Novy 15010 Pureline Frame 120cm Island Mounted Cooker Hood
- Novy 120cm Island Mounted Cooker Hood – Recirculation design with a standard monoblock filter rated for up to 900 cooking hours.
- 3 Fan Speeds Plus Power Mode – Delivers airflow from 252 to 445 m³/h, increasing to 508 m³/h on power mode.
- Dimmable LED Shelf Lighting – Three shelf lights adjust from warm 2700K to neutral white 4000K illumination.
- Integrated Sound Absorber – Keeps sound power levels between 47 and 58 dBA across standard fan speeds, rising to 61 dBA on power mode.
£4,039.00
- Product Info
- Specification
- FAQ's

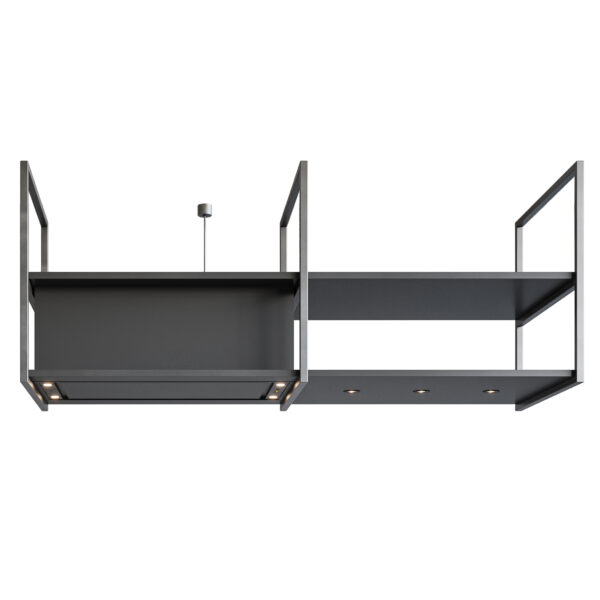

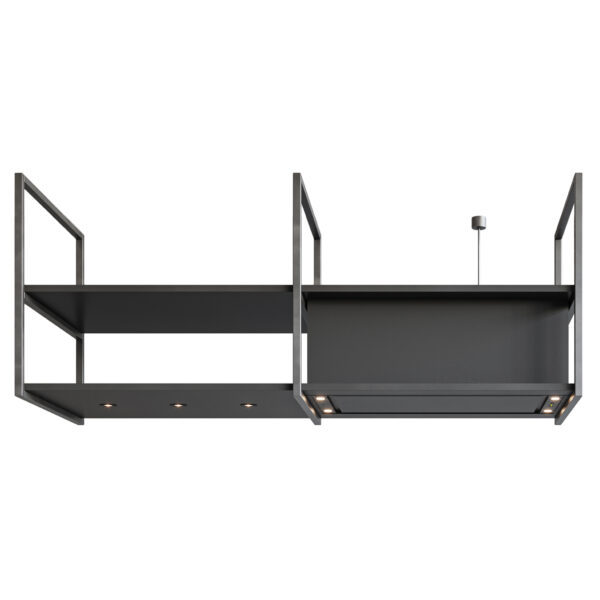

The Novy 15010 Pureline Frame 120cm Island Cooker Hood is a distinctive island-mounted hood designed for contemporary kitchens. Its modular setup allows the width and layout to be adjusted to suit your preference, while the textured black steel frame adds an industrial touch.
Panels are not included and are supplied by a professional kitchen fitter, allowing the Pureline Frame to be incorporated into a tailored kitchen installation. Designed for effective performance even with wide cooktops, this model operates in recirculation mode using a monoblock filter that lasts for up to 900 cooking hours.
Why choose the Novy 15010 island mounted cooker hood?
Choose the Novy 15010 if you want a statement island hood that blends extraction, lighting and kitchen furniture into one tailored design. Its modular Pureline Frame layout can be adjusted to suit wide cooking zones, while the black steel frame adds a clean industrial look. Recirculation with a long-life monoblock filter suits island installations, and the dimmable 2700K–4000K LED shelf lighting helps the hood double as practical task lighting. A strong fit for designed kitchens where panels are supplied by the kitchen fitter.

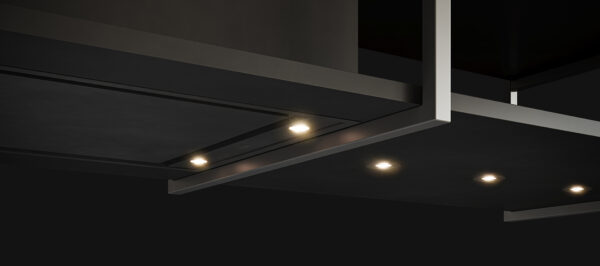

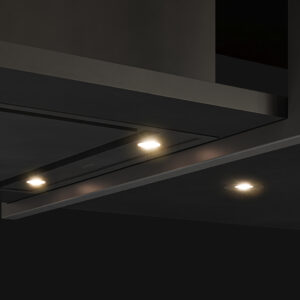

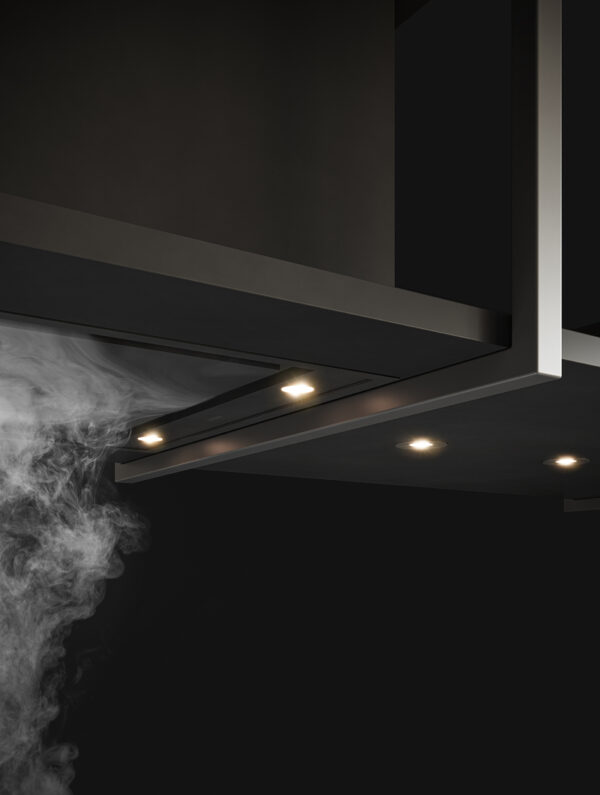

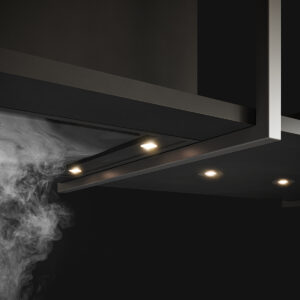

Adjustable Lighting and Extraction
Dimmable LED shelf lighting can be adjusted from a warm 2700K to a neutral white 4000K, helping you create suitable illumination above the cooking area. Three shelf lights are fitted, with a total shelf lighting energy consumption of 6W.
The Novy 15010 offers 3 fan speeds plus power mode and uses a single integrated motor with an integrated sound absorber. Controls are provided by remote control and push buttons, while the standard InTouch function provides additional control compatibility.
Airflow reaches 252 m³/h at speed 1, 379 m³/h at speed 2 and 445 m³/h at speed 3. Maximum power-speed airflow is 508 m³/h, while free airflow is 815 m³/h.
Recirculation Performance
This island cooker hood operates in recirculation mode with a standard monoblock recirculation filter. The associated recirculation filter reference is 7300055.
Sound power levels are 47 dBA at speed 1, 54 dBA at speed 2 and 58 dBA at speed 3, rising to 61 dBA at maximum power speed. Sound pressure levels are 35 dBA, 42 dBA and 45 dBA across speeds 1 to 3 respectively, with 48 dBA at maximum power speed.
Functions and Controls
The Novy Pureline Frame includes auto stop, remote control, perimeter extraction, grease filter cleaning indication, recirculation filter cleaning indication, shelf lighting dimming and a main on/off switch. Automatic power revert is set to 6 minutes, while delayed switch-off is 30 minutes.
Novy Connect is not applicable and automatic operation is not available. The information display uses green and red indicators.
The hood has 2 grease filters, with grease filter association reference 6830020. Cleaning association references are 906091, 906092 and 906093.
Recommended Mounting Heights
For gas hobs, the advised mounting height is 650 to 850mm. The minimum mounting height is 650mm and the maximum is 850mm.
For ceramic hobs, the advised mounting height is 650 to 850mm. The minimum mounting height is 650mm and the maximum is 850mm.
For induction hobs, the advised mounting height is 650 to 850mm. The minimum mounting height is 650mm and the maximum is 850mm.
The exhaust position is at the top.
| Weight | 61 kg |
|---|---|
| Dimensions | 55.6 × 117.2 × 40 cm |
| Automatic Programmes | No |
| Brand | Novy |
| Colour Group | Black |
| Noise Level | 61 |
| No. Of Fan Speeds | 4 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 2 |
| Group | Island |
| Variant | Island |
| Product Type | Cooker Hood |
| Smart Appliance | No |
| SKU | 15010 |
| GTIN | 5414425230716 |
| Brand | Novy |
|---|---|
| Product Type | Island Mounted Cooker Hood |
| Range | Pureline Frame |
| Model | 15010 |
| Type Number | 15010 |
| Colour | Black |
| Finish | Textured paint |
| Installation Type | Island mounted |
| Functioning Mode | Recirculation |
| Dimensions | 1172 x 556 x 330 mm |
| Width | 120 cm |
| Product Weight | 61 kg |
| Frame Dimensions | 25 x 806 x 800 mm |
| Number of Frames | 3 |
| Controls | Remote control and push buttons |
| Fan Speeds | 3 + power |
| Number of Motors | 1 |
| Motor Location | Integrated |
| Sound Absorber | Integrated |
| Lighting | 3 dimmable LED shelf lights, 2700K to 4000K |
| Airflow | 252 – 445 m³/h, 508 m³/h boost |
| Free Airflow | 815 m³/h |
| Sound Level | 47 – 58 dBA, 61 dBA boost |
| Recirculation Filter | Monoblock filter, standard |
| Grease Filters | 2 |
| Electrical Connection | 220-240V, 50-60Hz |
| Total Wattage | 123 W |
| Fuse Rating | 10 A |
| Power Cable Length | 1.8 m |
| Key Features | Modular frame setup, adjustable width and layout, black steel frame, dimmable LED lighting, InTouch function, delayed switch off and recirculation filter cleaning indication |
Installation details
This island mounted cooker hood is designed for recirculation installation with a top electrical connection. The cooker hood housing measures 1172 x 556 x 330 mm, with product dimensions for recirculation of 1172 x 556 x 800 mm. The advised mounting height is 650 – 850 mm above gas, ceramic and induction hobs. The top shelf cut-out is 401 x 248 mm and the lower shelf cut-out is 1145 x 485 mm. Shelf material should be 18 – 25 mm thick, with a shelf depth of 750 mm. The power supply cable is 1.8 m and a 10 A fuse is required. Panels are not included and should be supplied by a professional kitchen fitter.
Frequently Asked Questions About the 15010
Does the Novy 15010 Pureline Frame 120cm Island Cooker Hood need external ducting?
No. The Novy 15010 Pureline Frame is designed to operate in recirculation mode, so it does not require an external extraction duct. It uses a monoblock recirculation filter to help remove cooking odours before returning the filtered air to the kitchen.
How long does the Novy 15010 monoblock filter last?
The monoblock recirculation filter is designed to last for up to 900 cooking hours. The hood also includes a recirculation filter cleaning indication to help with ongoing maintenance.
What is the maximum extraction rate of the Novy 15010?
The Novy 15010 delivers airflow of 252 m³/h at speed 1, 379 m³/h at speed 2 and 445 m³/h at speed 3. Power mode increases the airflow to a maximum of 508 m³/h.
How many fan speeds does the Novy 15010 Pureline Frame have?
This model has three normal fan speeds plus a power mode for periods when you need increased extraction. The power setting automatically reverts after 6 minutes.
How noisy is the Novy 15010 Pureline Frame?
Sound power levels range from 47 dBA on speed 1 to 58 dBA on speed 3, increasing to 61 dBA on power mode. An integrated sound absorber is included to help keep operating noise controlled.
Does the Novy 15010 include lighting?
Yes. The Novy 15010 includes three dimmable LED shelf lights. Their colour temperature can be adjusted from a warm 2700K to a more neutral 4000K, allowing you to adapt the lighting above the cooking area.
Are the shelves or panels included with the Novy 15010?
No. The panel material is not included with the hood and is intended to be supplied by a professional kitchen fitter. This allows the Pureline Frame to be incorporated into a more tailored kitchen design.
What are the dimensions of the Novy 15010 cooker hood?
The cooker hood housing measures 1172mm wide, 556mm deep and 330mm high. The model uses three black frames measuring 25 x 806 x 800mm each and is classed as a 120cm island cooker hood.
How high should the Novy 15010 be fitted above the hob?
Novy recommends a mounting distance of 650 to 850mm above gas, ceramic and induction hobs. Keeping within this range helps the hood operate as intended while maintaining suitable clearance above the cooking surface.
Can the Novy 15010 be controlled from the hob?
Yes, this model includes Novy’s InTouch function as standard, providing compatible hob-to-hood control. It can also be operated using the supplied remote control or the hood’s push-button controls.
Does the Novy 15010 have a delayed switch-off function?
Yes. The delayed switch-off function runs for 30 minutes, allowing the hood to continue recirculating the air after cooking before switching itself off.
Which replacement recirculation filter does the Novy 15010 use?
The Novy 15010 uses the Novy monoblock recirculation filter with reference 7300055.
How many grease filters does the Novy 15010 have?
This model is fitted with two grease filters and includes a grease filter cleaning indication to help you keep them maintained. The associated grease filter reference is 6830020.
Are there any suitable alternatives to the Novy 15010 Pureline Frame 120cm Island Mounted Cooker Hood I could consider?
Yes, you could consider the Novy 15002 Pureline Frame 120cm Island Mounted Cooker Hood as a slightly simpler same-brand 120cm island option with a two-frame layout, while retaining recirculation, dimmable LED lighting and up to 508 m³/h boost airflow. Alternatively, the Novy 15005 Pureline Frame 90cm Island Mounted Cooker Hood is a more elaborate four-frame Pureline Frame option with six LED shelf lights, although it has a narrower 90cm hood housing.
