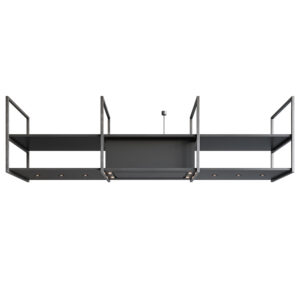

Novy 15005 Pureline Frame 90cm Island Mounted Cooker Hood
- Novy Pureline Frame Island Cooker Hood – 90cm black recirculation hood with a flexible four-frame modular installation.
- Powerful Recirculation Extraction – Three fan speeds plus power mode deliver up to 497 m³/h airflow.
- Dimmable LED Shelf Lighting – Six integrated LED lights offer adjustable 2700K or 4000K illumination.
- Monoblock Recirculation Filter – Long-life filter provides up to 900 cooking hours of recirculation use.
- Quiet Extraction – Integrated sound absorber helps limit sound power to 47-58 dBA across normal fan speeds.
£4,544.00
- Product Info
- Specification
- FAQ's
Novy 15005 Pureline Frame 90cm Island Mounted Cooker Hood combines flexible modular design, recirculation extraction and dimmable LED lighting.
The Novy 15005 Pureline Frame 90cm Island Mounted Cooker Hood is a black island cooker hood designed around a modular frame system. Its width and layout can be adjusted to suit your preference, while the black steel frame and textured paint finish bring an industrial touch to contemporary kitchen designs.
Panels are not included and are intended to be supplied by a professional kitchen fitter, allowing the Pureline Frame to be integrated into a customised kitchen installation.
Why choose the Novy 15005 island mounted cooker hood?
Choose the Novy 15005 if you want a premium island hood that feels like part of the kitchen architecture, not just an extractor. Its modular four-frame design can be tailored with suitable shelf panels by your kitchen fitter, while recirculation with a long-life Monoblock filter suits island layouts where ducting is impractical.
- 90cm black Pureline Frame design for contemporary open-plan kitchens.
- Up to 497 m³/h boost airflow with controlled 61 dBA sound power.
- Six dimmable LED shelf lights with 2700K or 4000K colour temperature.
- Remote, push-button and Novy InTouch control for compatible Novy hobs.
Adjustable Modular Island Cooker Hood
The Novy Pureline Frame 90cm uses a modular setup with four frames, giving you flexibility over the final width and layout. The recommended maximum width distance between two frames is 1250 mm, while suitable shelf material has a thickness of 18 to 25 mm.
The cooker hood itself measures 872 x 556 x 330 mm, with an overall product width of 90 cm. Each frame measures 25 x 806 x 700 mm.
Dimmable LED Shelf Lighting
Six integrated LED shelf lights provide dimmable illumination, with a choice between warm 2700K and neutral white 4000K colour temperatures. Total energy consumption for the shelf lighting is 12 W.
Recirculation Extraction with Monoblock Filter
The Novy 15005 operates in recirculation mode using a standard monoblock recirculation filter. The filter lasts for up to 900 cooking hours, helping provide efficient extraction without requiring a ducted outlet.
Three fan speeds plus a power setting provide adjustable extraction, with airflow reaching 423 m³/h at maximum continuous speed and 497 m³/h at maximum power speed. Free airflow is rated at 815 m³/h.
The hood uses one integrated motor and includes an integrated sound absorber. Control is available via remote control and push buttons, while Novy InTouch functionality is supplied as standard. Automatic operation is not included.
The automatic power revert activates after 6 minutes, while delayed switch-off is set to 30 minutes. The information display uses green and red indicators.
Airflow and Noise Performance
Airflow at fan speeds 1, 2 and 3 is 251 m³/h, 363 m³/h and 423 m³/h respectively. Maximum power-speed airflow is 497 m³/h.
Sound power levels at speeds 1, 2 and 3 are 47 dBA, 55 dBA and 58 dBA. At maximum power speed, the sound power level is 61 dBA.
Sound pressure levels at speeds 1, 2 and 3 are 35 dBA, 43 dBA and 46 dBA, rising to 49 dBA at maximum power speed. These figures are the same for the stated duct-out and recirculation measurements.
Filters and Associated Parts
The Novy 15005 uses two grease filters. The associated grease filter reference is 6830020, while the associated recirculation filter reference is 7300055.
Associated cleaning references are 906091, 906092 and 906093.
| Weight | 60 kg |
|---|---|
| Dimensions | 55.6 × 87.2 × 40 cm |
| Automatic Programmes | No |
| Brand | Novy |
| Colour Group | Black |
| Noise Level | 61 |
| No. Of Fan Speeds | 4 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 2 |
| Group | Island |
| Variant | Island |
| Product Type | Cooker Hood |
| Smart Appliance | No |
| SKU | 15005 |
| GTIN | 5414425230662 |
| Brand | Novy |
|---|---|
| Product Type | Island mounted cooker hood |
| Range | Pureline Frame |
| Model | 15005 |
| Colour | Black |
| Finish | Textured paint |
| Installation Type | Island mounted |
| Functioning Mode | Recirculation |
| Dimensions | 872 x 556 x 330 mm |
| Product Width | 90 cm |
| Product Weight | 60 kg |
| Frame Dimensions | 25 x 806 x 700 mm |
| Frame Quantity | 4 |
| Controls | Remote control and push buttons |
| Fan Speeds | 3 + power |
| Number of Motors | 1 |
| Motor Location | Integrated |
| Lighting | 6 dimmable LED shelf lights |
| Light Colour Temperature | 2700K / 4000K |
| Grease Filters | 2 |
| Recirculation Filter | Monoblock filter, standard |
| Sound Absorber | Integrated |
| InTouch Function | Standard |
| Automatic Operation | No |
| Automatic Power Revert | 6 minutes |
| Delayed Switch Off | 30 minutes |
| Airflow | 251 – 423 m³/h, 497 m³/h boost |
| Free Airflow | 815 m³/h |
| Sound Power Level | 47 – 58 dBA, 61 dBA boost |
| Sound Pressure Level | 35 – 46 dBA, 49 dBA boost |
| Electrical Voltage | 220-240V |
| Total Wattage | 129 W |
| Fuse Rating | 10 A |
| Frequency | 50-60 Hz |
| Power Supply Cable Length | 1.8 m |
| Electrical Connection Location | Top |
| Outlet Position | Top |
| Key Features | Modular adjustable setup, black steel frame, dimmable warm to neutral white LED lighting, perimeter extraction, suitable for wide cooktops, recirculation with long-life Monoblock filter |
Installation details
This island mounted cooker hood is designed for recirculation installation. The hood dimensions are 872 x 556 x 330 mm, with product dimensions for recirculation of 872 x 556 x 700 mm. The advised mounting height is 650 – 850 mm above gas, ceramic and induction hobs. The shelf material should be 18 – 25 mm thick, with a top shelf cut-out of 401 x 248 mm and a lower shelf cut-out of 845 x 485 mm. The power supply cable is 1.8 m long, with a 220-240V, 50-60 Hz electrical supply and 10 A fuse rating. Panels are not included and should be supplied by a professional kitchen fitter.
Frequently Asked Questions About the 15005
Does the Novy 15005 Pureline Frame 90cm Island Cooker Hood work in recirculation mode?
Yes. The Novy 15005 Pureline Frame is designed for recirculation and uses a Novy monoblock filter to clean the extracted air before returning it to the kitchen. This makes it suitable for island installations where external ducting is not available or preferred.
How powerful is the Novy 15005 Pureline Frame cooker hood?
This model has three normal fan speeds plus a power setting. Airflow ranges from 251 m³/h on speed 1 to 423 m³/h on the highest continuous setting, with up to 497 m³/h available on the power setting.
How long does the recirculation filter last?
The monoblock recirculation filter is designed to last for up to 900 cooking hours. The compatible replacement recirculation filter for the Novy 15005 is reference 7300055.
Are the shelves and panels included with the Novy 15005 Pureline Frame?
No. The panels are not included and are intended to be supplied by your professional kitchen fitter. This allows the Pureline Frame to be incorporated into a customised kitchen design using suitable shelf material between 18 and 25 mm thick.
Can the width and layout of the Novy Pureline Frame be customised?
Yes. The Novy 15005 uses a modular four-frame system, allowing the final arrangement to be adapted to your kitchen design. Novy recommends a maximum distance of 1250 mm between two frames.
Does the Novy 15005 have built-in lighting?
Yes. This model includes six dimmable LED shelf lights with a choice of warm 2700K or neutral white 4000K illumination. The shelf lighting has a total energy consumption of 12 W.
How quiet is the Novy 15005 Pureline Frame?
The integrated sound absorber helps keep operating noise controlled. Sound power levels are 47 dBA on speed 1, 55 dBA on speed 2 and 58 dBA on speed 3, rising to 61 dBA when the power setting is used.
How is the Novy 15005 cooker hood controlled?
The hood can be operated using its push-button controls or the supplied remote control. Novy InTouch functionality is also included as standard, allowing the hood to be controlled from a compatible Novy hob.
Does the Novy 15005 have automatic extraction?
No. Automatic operation is not included on this model. It does, however, include an automatic power revert after six minutes and a delayed switch-off function of 30 minutes.
What are the dimensions of the Novy 15005 Pureline Frame?
The cooker hood housing measures 872 x 556 x 330 mm and is classed as a 90 cm model. Each of the four surrounding frames measures 25 x 806 x 700 mm.
How high should the Novy 15005 be installed above the hob?
Novy specifies an installation height of between 650 and 850 mm above gas, ceramic and induction hobs. Correct positioning should be confirmed as part of the kitchen installation to ensure suitable extraction performance and clearance.
How many grease filters does the Novy 15005 use?
The Novy 15005 uses two grease filters. The associated Novy grease filter reference is 6830020.
Are there any suitable alternatives to the Novy 15005 Pureline Frame 90cm Island Mounted Cooker Hood I could consider?
Yes, you could consider the Novy 15001 Pureline Frame 90cm Island Mounted Cooker Hood as the closest simpler alternative, retaining the same 90cm Pureline Frame design, black finish, recirculation setup and 497 m³/h boost performance but using a two-frame modular layout. Alternatively, the Novy 7540 Phantom Frame 130cm Black Island Mounted Extractor Hood is a more design-led option, with the same island-mounted recirculation format, black styling and similar extraction performance, but a wider 130cm frame with translucent glass and additional ambient lighting.
*FAQs are checked against manufacturer information, but please confirm installation requirements before purchase.
