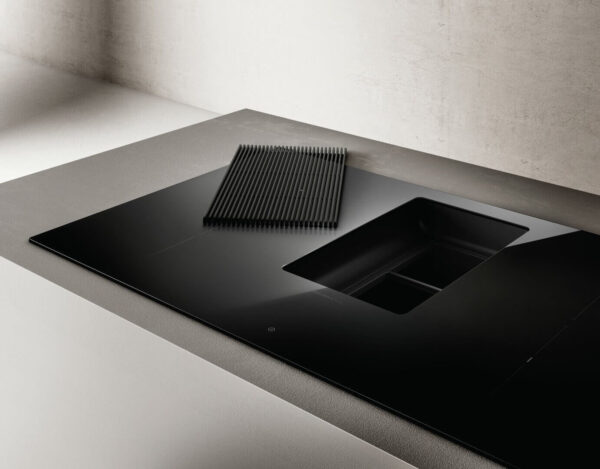

Elica NT-PRIME-S-DO Prime S DO 83cm Vented Induction Hob in Black Glass

Elica Duct-Out Vented Induction Hob – Combines four induction cooking zones with integrated downdraft extraction.
Powerful Extraction – Delivers up to 620m³/h booster airflow with a 5.1m/s suction speed.
Quiet Operation – Runs at a noise level of 44–63dB(A) for effective extraction with reduced sound.
Flexible Power Control – Offers nine power levels plus intensive boost and selectable 3.1–4.5kW power limitation.

5 Year Warranty

In Stock

FOUND IT CHEAPER? Get Our Best Price

£1,454.00

Product Info
Specification
FAQ's

Item 1

Discover the Elica NT-PRIME-S-DO Prime S DO 83cm vented induction hob, combining four induction zones with powerful integrated downdraft extraction.

Integrated Cooking and Downdraft Extraction

The Elica NT-PRIME-S-DO Prime S DO 83cm vented induction hob combines responsive induction cooking with integrated duct-out extraction. Finished in sleek tempered black glass, it provides a refined focal point for a contemporary kitchen while helping to remove steam, smoke and cooking odours directly from the hob surface.

Four induction cooking zones surround a discreet central extractor, giving you a practical all-in-one cooking and ventilation solution. The flush extraction grille complements the minimalist design while concealing the high-performance downdraft system beneath the surface.

Why choose the Elica NT-PRIME-S-DO 83cm vented induction hob?

Choose the Elica NT-PRIME-S-DO if you want induction cooking and downdraft extraction in one sleek black-glass hob. Its 83cm surface gives four zones, slider touch controls, booster power and automatic extraction that adjusts as you cook, helping keep steam and odours under control. It is a strong fit for open-plan kitchens where a separate hood is less desirable, with easy top-access filter maintenance, Stop&Go and Warming Mode for everyday flexibility.

Powerful and Quiet Extraction

The integrated extractor delivers airflow of up to 620m³/h in booster mode, supported by a suction speed of 5.1m/s. Four extraction speeds plus an intensive setting provide flexible control for everything from gentle simmering to high-intensity cooking.

Operating at a noise level of 44 to 63dB(A), the Prime S delivers effective extraction with reduced sound. Its A energy rating also supports efficient everyday operation.

The Autocapture function detects the intensity of your cooking and automatically adjusts the extraction level. This helps maintain fresher kitchen air while using the appropriate amount of power for the cooking activity.

Responsive Induction Cooking Controls

Intuitive touch slider controls provide direct access to all four induction zones. Nine power levels plus an intensive boost setting give you accurate control over cooking temperatures, whether you are gently warming food or bringing a pan to the boil.

Selectable power limitation from 3.1 to 4.5kW provides added installation flexibility. The Warming Mode supports gentle cooking and helps keep prepared food warm, while Stop&Go pauses the cooking zones with one touch and restores the previous settings when you are ready to continue.

Convenient Cleaning and Long-Life Filtration

The advanced Long Life Filter++ system uses regenerable filters to capture grease and odours. The filters can last for up to five years and can be regenerated by washing and drying, helping to reduce the need for frequent replacements.

Components can be accessed from above the hob for straightforward cleaning and maintenance. A built-in filter alert indicates when attention is required, while a smart drainage valve collects accidental spills to help keep the cooking area clean and hygienic.

Everyday Safety and Practical Features

The Child Lock helps prevent accidental operation of the hob or extractor. A practical Timer allows precise cooking durations to be set, with automatic switch-off and an audible alert when the selected time has elapsed.

Delayed Power-Off allows the extractor to continue running after cooking has finished, helping to remove remaining humidity and odours before switching off automatically.

Sleek, Flush-Fitting Black Glass Design

An adjustable mounting system supports precise installation and a flush fit with the worktop. The black glass surface and cast-iron-style central grille create a coordinated, modern appearance that integrates naturally into contemporary kitchen designs.

Combining four induction zones, intelligent controls and powerful downdraft extraction, the Elica Prime S DO 83cm duct-out vented induction hob offers a streamlined solution for modern cooking, ventilation and everyday kitchen maintenance.

Item 2

Weight	25 kg
Dimensions	51.5 × 83 × 25 cm
Automatic Programmes	No
Brand	Elica
Smart Appliance	No
Cooktop	Induction
Energy Efficiency Class	A
Colour Group	Black
Installation	Flush or Surface Mount
Noise Level	63
No. Of Fan Speeds	5
Outlet Type	Duct Out
Warranty	5
Zones	4
Product Type	Vented Induction Hob
Intensive Mode	Yes
SKU	NT-PRIME-S-DO
GTIN	8020283056015

Brand	Elica
Product Type	Vented Induction Hob
Model	Prime S DO
Product Code	NT-PRIME-S-DO
Colour	Black
Finish	Black Glass + Cast Iron
Width	83cm
Dimensions	83 x 51.5 x 25cm
Cut-Out Dimensions	75 x 49cm
Installation Type	Duct-out
Cooking Zones	4 induction zones
Cooking Area	Ø200mm – 2.3/3.0kW; Ø160mm – 1.2/1.4kW
Controls	Touch control slider 9P+I
Extractor Controls	3S+2B slider touch control
Booster Airflow	620m³/h duct-out
Suction Speed	5.1m/s
Noise Level	44 – 63dB(A) duct-out
Energy Rating	A
Absorption	7.2kW
Power Limitation	3.1 – 4.5kW
Voltage	220 – 240V
Key Features	Integrated downdraft extraction; Autocapture function; Long Life Filter++; Warming Mode; Stop&Go; Child Lock; Timer; Delayed Power-Off; smart drainage valve; top access for cleaning

Installation details

This duct-out vented induction hob measures 83 x 51.5 x 25cm and requires a 75 x 49cm cut-out. It has selectable power limitation from 3.1 to 4.5kW, 7.2kW absorption and a 220 – 240V electrical supply. Ducting, clearance requirements and electrical connection details should be confirmed before installation.

Item 2

Frequently Asked Questions About the NT-PRIME-S-DO

Is the Elica NT-PRIME-S-DO a duct-out or recirculating vented hob?

The Elica NT-PRIME-S-DO is the duct-out version. Its integrated extractor must be connected to suitable ducting that carries steam, grease and cooking odours outside. It is not designed to operate as a recirculating model.

How many cooking zones does the Elica Prime S DO have?

This model has four independent induction zones. The two front zones measure 16cm, while the two rear zones measure 20cm, giving you a practical layout for different pan sizes.

Does the Elica NT-PRIME-S-DO have a bridge function?

No. The four induction zones on the Elica NT-PRIME-S-DO operate independently and are not designed to combine into a larger bridge zone. A bridge function is available on selected alternative Elica models.

How powerful is the integrated extractor?

The integrated downdraft extractor delivers airflow of up to 620m³/h in booster mode, with a suction speed of 5.1m/s. This allows steam and cooking vapours to be captured directly from the hob surface.

How noisy is the Elica Prime S DO extractor?

The duct-out extractor has a quoted operating noise range of approximately 44 to 63dB(A), depending on the selected extraction level. Lower settings are suitable for everyday cooking, while the intensive setting provides additional extraction when required.

Does the extractor adjust automatically while cooking?

Yes. The Autocapture function automatically adjusts the extraction power according to the cooking activity on the hob. You can also control the extractor manually using the touch slider controls.

What cooking controls and power settings are included?

The Elica NT-PRIME-S-DO has touch slider controls, nine cooking power levels and a booster setting. It also includes Warming Mode for gentle heating and keeping food warm, plus Stop&Go for pausing the active zones and restoring their previous settings.

Can the electrical power be limited during installation?

Yes. This model offers selectable power limitation between 3.1kW and 4.5kW, providing additional flexibility for different electrical installations. The hob should be hardwired and installed by a suitably qualified professional.

What are the dimensions and worktop cut-out requirements?

The Elica Prime S DO measures approximately 830mm wide and 515mm deep. The required worktop cut-out is approximately 750mm by 492mm. Cabinet space, ducting routes and the full installation instructions should be checked before the worktop is prepared.

Can the Elica NT-PRIME-S-DO be installed flush with the worktop?

This frameless hob can support a flush or surface-mounted installation, subject to the worktop material and installation requirements. We recommend confirming the fitting method with your kitchen installer before cutting the worktop.

How easy is the vented hob to clean?

The central grille and grease filters can be accessed from above the hob, making routine cleaning more straightforward. The internal area is also accessible for maintenance, while a drainage valve helps manage liquids that are accidentally spilled into the extractor opening.

What cookware can be used on the Elica Prime S DO?

You will need induction-compatible cookware with a magnetic base. Cast iron and many stainless-steel pans are suitable, while aluminium, copper and glass cookware will only work when fitted with an induction-compatible base.

What safety features does this model include?

The Elica NT-PRIME-S-DO includes pan detection, a child lock, residual heat indicators, timers and automatic safety controls. These features help prevent unintended operation and provide greater control during everyday cooking.

Are there any suitable alternatives to the Elica NT-PRIME-S-DO Prime S DO 83cm Vented Induction Hob I could consider?

Yes, you could consider the Elica NT-ALPHA-B-80 Alpha B 78cm Vented Induction Hob in Black Glass as a lower-priced, slightly narrower option with four induction zones and integrated extraction, provided its 78cm dimensions suit your worktop.

Alternatively, the Elica NT-ALPHA-ADV Alpha Advance 83cm Vented Induction Hob in Black Glass is a more premium same-width alternative with a bridge zone, automatic extraction adjustment and Comfort Silence technology.

*FAQs are checked against manufacturer information, but please confirm installation requirements before purchase.
