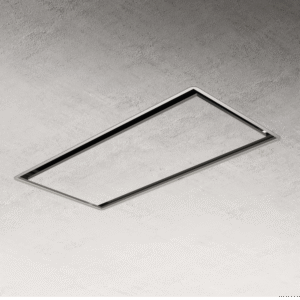

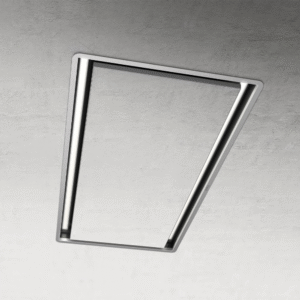

Elica ILLUS-PLS-16-CS Illusion Plus H16 100cm Ceiling Extractor Hood in Custom

Custom Finish Elica Ceiling Extractor Hood – 3+2 Intensive Speeds, Remote (Included) Control Operation, Washable Filter, LED Lighting, Max 750m3/h Capacity, Energy Rating A with a Noise Rating of Just 68dB(A).
3+2 Intensive Speeds – Remove even the strongest odours quickly & efficiently.
LED Lights – Illuminate your hob area with efficiently bright lighting.
Removable Filter – Periodic cleaning is easy; all components such as grease & odour filters can be removed.

2 Year Warranty

In Stock

FOUND IT CHEAPER? Get Our Best Price

£1,375.00

Product Info
Specification
FAQ's

Item 1

Introducing the Elica Illusion Plus H16 100cm Ceiling Extractor Hood in Custom Finish, a sleek ceiling hood designed to combine discreet style with powerful extraction. Available at Appliance Superstore, this model offers 3+2 intensive speeds, remote control operation with the remote included, washable filters, LED lighting, a maximum extraction rate of 750m3/h, an Energy Rating A, and a low 68dB(A) noise level.

The 3+2 intensive speeds help remove strong cooking odours quickly and efficiently, while the bright LED lights provide clear illumination across your hob area. Designed for easy maintenance, the removable filter can be cleaned periodically, with grease and odour filter components easy to detach.

Custom finish for a seamless ceiling look

The Illusion is finished with a stainless steel frame and a plasterboard panel (not included) that can be customised to match the texture of your ceiling. This allows the hood to blend more naturally into the room for a cleaner, more integrated appearance.

Elica’s Super Easy Installation system helps simplify fitting, allowing the hood to be fixed in an extremely easy way.

Concealed ceiling extractor design

The Illusion Ceiling Hood is designed to be completely concealed, blending into the ceiling for a streamlined, modern finish. It creates seamless integration with the architecture of your living space while still delivering powerful and quiet extraction performance.

This ceiling extractor hood is available with a white painted panel or a customisable cover to coordinate with the ceiling, helping to discreetly conceal its extraction system. The design is engineered to maintain effective performance even at a significant distance from the cooktop.

Adjustable LED lighting with Smart Remote control

Two discreetly recessed LED strips are built into the ceiling hood to provide effective kitchen lighting. You can adjust both the brightness and the temperature to create the right atmosphere at any time.

With the Smart Remote control, the Illusion can also act as a central point for kitchen lighting management, allowing additional lighting systems to be controlled more seamlessly.

Flexible installation options

Installation is designed to be hassle-free and requires minimal space, with five possible directions for the blower unit or a choice of four versions of external motors. The super-slim H16 design, with a compact size of up to 16 cm, is suited to more demanding installations while maintaining high extraction power.

Optional filter mode conversion

The Illusion can also be converted into filter mode using a dedicated accessory, helping deliver strong results for both extraction and odour removal.

Combining concealed styling, flexible installation and powerful performance, the Elica Illusion Plus H16 100cm Ceiling Extractor Hood is an elegant solution for modern kitchens where design and functionality matter equally.

Item 2

Dimensions	50 × 100 × 16 cm
Automatic Programmes	No
Brand	Elica
Smart Appliance	No
Energy Efficiency Class	A
Colour Group	Custom
Intensive Mode	Yes
Noise Level	68
No. Of Fan Speeds	5
Outlet Type	Duct Out or Recirculation
Warranty	2
Group	Ceiling
Variant	Ceiling
Product Type	Cooker Hood
SKU	ILLUS-PLS-16-CS
GTIN	8020283046764

Technical Features

Width: 100 cm
Energy Class: A
Size: 100 × 50 cm
Version: Duct-out / Re-circulating
Finishes: White with white frame, drywall compatible with stainless steel frame
Lighting: Strip LED 2 × 14 W
Controls: Remote control
Speeds: 3 speeds + 2 boost levels
Booster Airflow: 750 m³/h (H16) – 770 m³/h (H30)
Noise Level: 68 dBA (H16) – 53 dBA (H30)
Total Power Absorption: 293 W (H16) – 188 W (H30)
Duct Size: 220 × 90 mm (H16) – 150 mm (H30)

Item 2

Frequently Asked Questions About the ILLUS-PLS-16-CS

What type of kitchen is the Elica Illusion Plus H16 100cm Ceiling Extractor Hood in Custom best suited to?

The Elica Illusion Plus H16 100cm Ceiling Extractor Hood in Custom is designed for kitchens where you want extraction without a visible overhead hood. Because it sits flush into the ceiling and uses a customisable panel design, it works especially well in open-plan spaces, minimalist kitchens, and island layouts where keeping sightlines clear matters.

Can this model be finished to match the ceiling?

Yes. This version is designed for a customised look, with a stainless steel frame and a plasterboard panel setup so the extractor can blend into the ceiling finish. This makes it a good choice if you want a more discreet installation rather than a statement hood.

Is the Elica Illusion Plus H16 suitable for ducted extraction or recirculation?

The Elica Illusion Plus H16 can be installed for duct-out extraction or converted for recirculation, depending on your kitchen setup. If you are planning a recirculating installation, you will need the appropriate accessory kit, so it is worth checking this at the point of purchase.

How powerful is the extraction on this ceiling hood?

This model includes 3 speeds plus 2 intensive settings, giving you flexible extraction for everyday cooking and stronger odours. With the Elica Illusion Plus H16, you get high-capacity performance intended to deal effectively with steam, smoke, and cooking smells in larger or more open kitchen spaces.

How noisy is the Elica Illusion Plus H16?

The maximum stated noise level for this model is 68 dB(A). For a ceiling extractor with strong airflow, that makes it a practical option if you want effective extraction while keeping noise at a reasonable level for open-plan living.

What lighting does this model include?

This model includes integrated LED strip lighting to illuminate the hob area. The lighting is designed to be both practical and energy efficient, and the Illusion Plus range also supports adjustable light tone and brightness for a more tailored kitchen atmosphere.

Does the Elica Illusion Plus H16 come with a remote control?

Yes. A remote control is included, so you can adjust the fan speeds and lighting without reaching up to the ceiling unit. This is especially useful for ceiling-mounted extraction where easy day-to-day control is important.

How much ceiling space is needed for installation?

The Elica Illusion Plus H16 has dimensions of 100 x 50 x 16 cm, so it is designed for installations where a slimmer ceiling void is needed than with deeper ceiling extractors. We would recommend checking the full ceiling cavity, ducting route, and installation requirements before ordering to make sure the space is suitable.

Is this extractor energy efficient?

Yes. The Elica Illusion Plus H16 100cm Ceiling Extractor Hood in Custom has an A energy rating. This helps keep running costs lower while still giving you strong extraction and integrated LED lighting.

Are the filters easy to maintain?

Yes. This model uses removable, washable filters for straightforward routine cleaning. Regular filter maintenance helps the extractor perform at its best and is particularly important in kitchens used for frequent frying or high-heat cooking.

*FAQs are checked against manufacturer information, but please confirm installation requirements before purchase.
