Elica BOXIN-HE-60 Boxin HE 60cm Built-In Extractor Hood in Stainless Steel & White Glass
- Elica Integrated Cooker Hood – Stainless steel and white glass built-in design for discreet cabinet installation.
- Powerful Extraction – Delivers airflow from 230m³/h to a maximum of 610m³/h.
- 3S Mechanical rotative – Provides three straightforward extraction speed settings.
- Perimeter Aspiration – Concealed perimeter extraction distributes airflow across the hood.
- Energy Class B – Operates at noise levels from 49dB(A) to 70dB(A) with two integrated LED lights.
£529.00
- Product Info
- Specification
- FAQ's
Discover the Elica Boxin HE 60cm integrated cooker hood, model BOXIN-HE-60, with discreet built-in design and extraction up to 610m³/h.
Discreet Stainless Steel and White Glass Design
This 60cm built-in extractor hood fits neatly beneath a kitchen wall cabinet, becoming integrated with the underside of the unit. Its T-shaped stainless steel design, central white glass panel and two side glass panels help maximise cabinet space while creating a clean, coordinated finish.
The side protection panels and ergonomic front visor help shield surrounding wall units from cooking vapours, reducing potential wear even when the hood is installed at the minimum height of 50cm above gas, induction or radiant hobs.
Why choose the Elica BOXIN-HE-60 built-in extractor hood?
Choose the BOXIN-HE-60 if you want a discreet 60cm built-in hood that keeps the kitchen design clean while still giving strong everyday extraction. Its fully integrated T-shaped design with glass cabinet protection helps it disappear under the wall unit, with perimeter aspiration, washable filters, LED lighting and simple 3-speed mechanical controls. It is a strong fit for shoppers who want Elica’s core built-in quality and 610m³/h airflow, while Advance and Dry models add smart control, automatic sensing or condensation-focused extras.
Powerful Perimeter Extraction
Perimeter aspiration distributes extraction around the concealed edges of the hood for efficient airflow without leaving the extraction area exposed. The high-performance motor provides airflow from 230m³/h up to a maximum extraction rate of 610m³/h.
Three mechanical speed settings with push-pull controls make it straightforward to adjust the extraction level to suit your cooking. Operating noise ranges from 49dB(A) to 70dB(A).

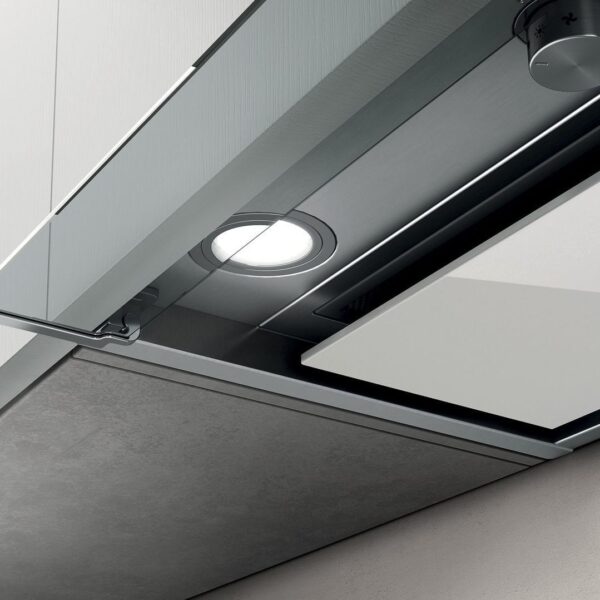

Integrated LED Lighting
Two integrated LED lights clearly illuminate the cooking area, helping you monitor food while preparing meals. The combination of effective extraction and practical lighting makes this Elica extractor hood a functional addition to compact and contemporary kitchens.
Easy Cleaning and Maintenance
The removable grease and odour filters are designed to be easy to access, wash, replace and maintain. Regular cleaning helps support effective extraction, good hygiene and a longer appliance lifespan.
| Weight | 10.35 kg |
|---|---|
| Dimensions | 31 × 60 × 37 cm |
| Automatic Programmes | No |
| Brand | Elica |
| Smart Appliance | No |
| Energy Efficiency Class | B |
| Colour Group | Stainless Steel |
| Noise Level | 70 |
| No. Of Fan Speeds | 3 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 2 |
| Group | Built In |
| Variant | Wall |
| Product Type | Cooker Hood |
| SKU | BOXIN-HE-60 |
| GTIN | 8020283036413 |
| Brand | Elica |
|---|---|
| Product Type | Integrated Cooker Hood |
| Model | BOXIN-HE-60 |
| Manufacturer Reference | PRF0097795A |
| Alternative Manufacturer Name | BOXIN PLUS IXGL/A/60 |
| Finish | Stainless Steel and White Glass |
| Width | 60cm |
| Weight | 10.35kg |
| Energy Rating | B |
| Extraction Rate | 230m³/h to 610m³/h |
| Noise Level | 49dB(A) to 70dB(A) |
| Speed Settings | 3 |
| Controls | 3S Mechanical Rotative |
| Extraction System | Perimeter Aspiration |
| Lighting | 2 x 2.5W LED Lights, 3500K, 381 Lux |
| Duct Connection | 150mm |
| Power Absorption | 255W |
| Minimum Installation Height | 50cm above gas, induction or radiant hobs |
| Key Features | Built-in stainless steel and white glass design, perimeter aspiration, three speed settings, LED lighting, removable grease and odour filters, central and side glass protection panels |
Installation details
This integrated cooker hood is designed for discreet cabinet installation and requires a 150mm duct connection. The minimum installation height is 50cm above gas, induction or radiant hobs. Cabinet cut-out dimensions, electrical connection type and clearance requirements are not provided and should be confirmed before installation.
Frequently Asked Questions About the BOXIN-HE-60
Is the Elica BOXIN-HE-60 a fully integrated cooker hood?
Yes. This built-in cooker hood is designed to sit within a kitchen wall cabinet and become flush with the underside of the unit. Its stainless steel and white glass finish remains visible from below, while the T-shaped body helps preserve useful cabinet space.

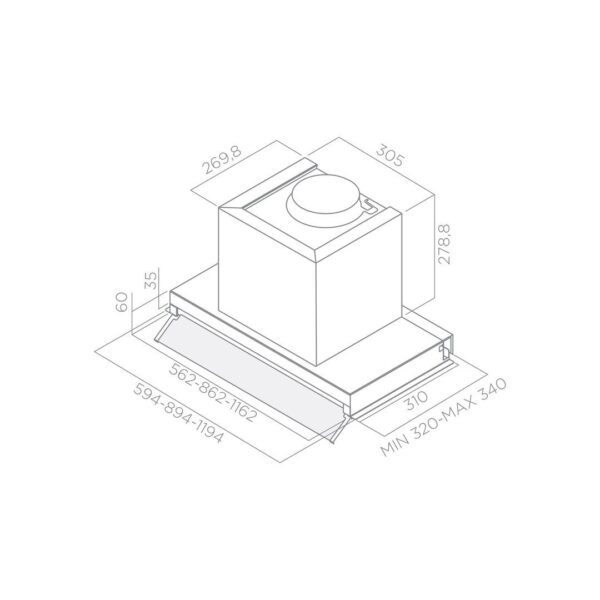

What are the dimensions of the Elica BOXIN-HE-60?
The hood has a nominal width of 60cm, with an actual width of approximately 59.4cm and a depth of approximately 32cm. Cabinet measurements and cut-out requirements should be checked against the installation instructions before fitting.
Can the Elica BOXIN-HE-60 be used for extraction or recirculation?
Yes. It can be installed to extract cooking vapours through external ducting or configured for recirculation. Recirculating installation requires a compatible Elica charcoal filter, which is available separately.
What size ducting does the Elica BOXIN-HE-60 require?
The hood has a 150mm duct connection. Using suitably sized ducting with a short, direct route helps maintain extraction performance and limit additional noise.
How powerful is the Elica BOXIN-HE-60?
Its airflow ranges from 230m³/h at the lowest setting to a maximum of 610m³/h. This provides a choice of extraction levels for light cooking, everyday use and more intensive cooking vapours.
How many speed settings does this cooker hood have?
The Elica BOXIN-HE-60 has three extraction speeds operated through a mechanical rotary push-pull control. This keeps adjustment straightforward without touch controls or electronic menus.
How loud is the Elica BOXIN-HE-60?
The stated noise level ranges from 49dB(A) to 70dB(A), depending on the selected speed. Lower settings are suitable for lighter cooking, while the highest setting provides maximum airflow with a corresponding increase in noise.
What is perimeter aspiration?
Perimeter aspiration draws cooking vapours through the concealed edges around the central panel rather than through a fully exposed extraction grille. This distributes suction around the hood while maintaining its clean, integrated appearance.
Does the Elica BOXIN-HE-60 include hob lighting?
Yes. Two integrated 2.5W LED lamps illuminate the cooking area. The lights have a 3500K colour temperature, producing a practical neutral-to-warm light over the hob.
How high should the Elica BOXIN-HE-60 be installed above the hob?
Elica specifies a minimum installation distance of 50cm above gas, induction and radiant hobs. The cabinet and surrounding installation must also meet the requirements stated in the fitting instructions.
How are the filters maintained?
The grease filter is removable for routine cleaning. When the hood is installed in recirculation mode, a compatible charcoal odour filter must also be fitted and maintained according to its instructions. Elica lists the CFC0140343 charcoal filter and CFC0162221 regenerable charcoal filter as compatible options for this model.
What is the energy rating of the Elica BOXIN-HE-60?
This model has an energy efficiency rating of B and a total rated power absorption of 255W, including the motor and lighting.
Are there any suitable alternatives to the Elica BOXIN-HE-60 Boxin HE 60cm Built In Extractor Hood I could consider?
Yes, you could consider the Elica BOXIN-LX-60 Boxin LX 60cm Built In Extractor Hood as a lower-priced same-brand 60cm built-in option with the same listed dimensions and very similar extraction performance.
Or the Elica BOXIN-AD-60 60cm Boxin Advance Integrated Cooker Hood for a higher-function alternative with more powerful extraction, intensive mode and AIRMATIC sensor control. Please confirm cabinet and ducting requirements before ordering.
*FAQs are checked against manufacturer information, but please confirm installation requirements before purchase.
