BOXIN-LX-60

Elica BOXIN-LX-60 Boxin LUX 60cm Built-In Extractor Hood in Stainless Steel

Elica 60cm Integrated Cooker Hood – Stainless steel concealed design fits discreetly within a kitchen wall unit.
620m³/h Maximum Extraction – Powerful airflow helps remove cooking fumes and strong odours.
Three-Speed Rotary Controls – Adjust the extraction level easily to suit different cooking demands.
Energy Rating A – Efficient extraction with a stated noise rating of 70dB(A).
Cabinet Protection – Side guards and an ergonomic front visor help shield wall units from cooking vapours.

2 Year Warranty

In Stock

FOUND IT CHEAPER? Get Our Best Price

£369.00

Product Info
Specification
FAQ's

Item 1

Elica BOXIN-LX-60 Boxin Lux 60cm integrated cooker hood combines 620m³/h extraction with a discreet stainless steel cabinet-fitted design.

Designed to fit neatly within a kitchen wall unit, this concealed cooker hood provides effective extraction while maintaining a clean, streamlined appearance.

Why choose the Elica BOXIN-LX-60 built-in extractor hood?

Choose the BOXIN-LX-60 if you want a discreet 60cm hood that sits inside a wall unit while still giving strong everyday performance. Its 620m³/h maximum extraction is the key reason to choose it, backed by an A energy rating, two LED lights and simple 3-speed rotary controls.

Good fit for compact or streamlined kitchens needing a built-in stainless steel finish.
Works for ducted extraction or recirculation with the correct optional charcoal filter.
A smart choice if you want Boxin Lux performance and easy filter access, and do not need specialist No Drip features or higher-tier glass-front styling.

Powerful Three-Speed Extraction

With a maximum extraction rate of 620m³/h, the Elica Boxin Lux helps remove cooking fumes, steam and strong odours from your kitchen. Simple rotary controls let you select from three extraction speeds to suit different cooking demands.

The hood has an A energy rating and a stated maximum noise level of 70dB(A).

Discreet Stainless Steel Design

This 60cm built-in extractor hood integrates discreetly into your kitchen cabinetry. Its stainless steel finish and concealed installation allow it to blend naturally with a wide range of kitchen styles.

Integrated LED lighting provides clear illumination over the hob, helping you see your cooking area more easily.

Cabinet Protection

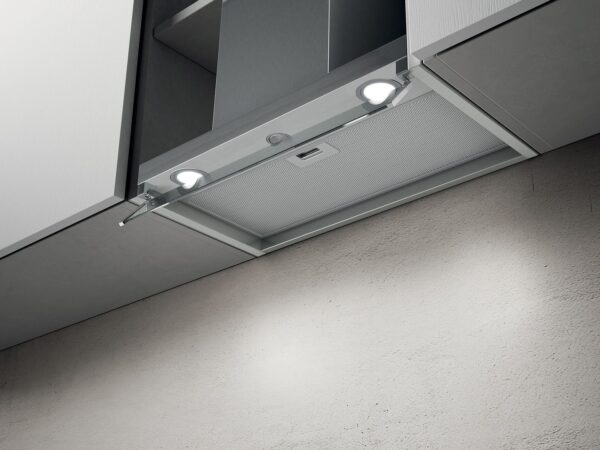

Elica’s Cabinet Protection design helps shield surrounding wall units from cooking vapours. Side guards work together with an ergonomic front visor to reduce exposure and help prevent potential wear to your cabinetry.

Easy Filter Maintenance

The removable, washable grease filters are designed to make regular cleaning straightforward. Grease and odour filters can also be removed and replaced when required, supporting effective performance and improved hygiene.

Elica states that the odour filters can last for up to three years, helping to reduce replacement frequency and environmental impact. An indicator light alerts you when the filters need to be washed, regenerated or replaced.

Item 2

Weight	8.7 kg
Dimensions	31 × 60 × 37 cm
Automatic Programmes	No
Brand	Elica
Smart Appliance	No
Energy Efficiency Class	A
Colour Group	Stainless Steel
Noise Level	70
No. Of Fan Speeds	3
Outlet Type	Duct Out or Recirculation
Warranty	2
Group	Built In
Variant	Wall
Product Type	Cooker Hood
SKU	BOXIN-LX-60
GTIN	8020283040625

Brand	Elica
Product Type	Integrated cooker hood
Model	Boxin Lux 60cm
Product Code	BOXIN-LX-60
Finish	Stainless steel
Dimensions	60cm width
Installation Type	Built-in installation within a kitchen wall unit
Energy Rating	A
Airflow	300-800m³/h
Noise Level	50-70dB(A)
Controls	Three-speed mechanical rotary controls
Lighting	LED 2 x 2.5W, 3500K, 381 lux
Duct Transition	150mm
Absorption	255W
Weight	8.7kg
Key Features	Concealed stainless steel design, integrated LED hob lighting, cabinet-protection side guards and front visor, removable washable grease filters, filter maintenance indicator

Installation details

This cooker hood is designed for built-in installation within a kitchen wall unit. The minimum distance from an induction or radiant hob is 50cm, and the minimum distance from a gas hob is 50cm. A 150mm duct transition is specified. Cut-out dimensions, electrical connection details and clearance requirements are not provided and should be confirmed before installation.

Item 2

Frequently Asked Questions About the BOXIN-LX-60

What is the maximum extraction rate of the Elica BOXIN-LX-60?

The Elica BOXIN-LX-60 provides an airflow range of 255 to 620m³/h across its three normal extraction speeds. It does not have a separate intensive or boost setting.

Can the Elica BOXIN-LX-60 be used for extraction and recirculation?

Yes. This cooker hood can discharge cooking vapours outside through ducting or operate in recirculation mode. Recirculating installation requires a compatible optional charcoal filter.

Which charcoal filters are compatible with this cooker hood?

The standard Elica CFC0140343 charcoal filter is compatible with the BOXIN-LX-60. The regenerable CFC0162221 long-life odour filter is also available separately and can last for up to three years when maintained as instructed.

Is a grease filter included with the Elica BOXIN-LX-60?

Yes. A removable aluminium grease filter is included. It should be cleaned regularly in accordance with the user manual to help maintain effective airflow and grease capture.

Does the Elica BOXIN-LX-60 have a filter maintenance indicator?

Yes. A filter saturation indicator signals when the grease or odour filters require cleaning, regeneration or replacement.

What are the dimensions of the Elica BOXIN-LX-60?

The hood measures 594mm wide and approximately 338.8mm high, with an installation depth of 310 to 340mm. The cabinet and cut-out dimensions should be checked against the installation drawing before fitting.

How far above the hob must the cooker hood be installed?

A minimum distance of 500mm is required between the hood and both electric or induction hobs and gas hobs. Any additional requirements specified by the hob manufacturer must also be followed.

What size ducting does the Elica BOXIN-LX-60 require?

The hood has a 150mm air outlet. Using correctly sized ducting with a short, direct route helps preserve airflow and reduce unnecessary operating noise.

How noisy is the Elica BOXIN-LX-60?

The stated sound level ranges from 50dB(A) on the lowest setting to 70dB(A) at maximum speed. Actual noise can also be affected by the duct length, diameter and number of bends.

How is the extraction speed controlled?

A mechanical rotary control provides three selectable speed settings, allowing the airflow to be adjusted for light cooking, everyday use or stronger fumes and odours.

Does the Elica BOXIN-LX-60 include hob lighting?

Yes. Two 2.5W LED lamps provide 3500K neutral-white illumination over the cooking area, with a stated average illumination level of 381 lux.

How does the cabinet-protection design work?

The built-in design incorporates side guards and a front glass visor to help direct steam and cooking vapours towards the extraction area. This reduces direct exposure of the surrounding wall unit while keeping the hood discreetly integrated into the cabinetry.

Are there any suitable alternatives to the Elica BOXIN-LX-60 Boxin LX 60cm Built In Extractor Hood I could consider?

Yes, you could consider the Elica ERA-HE-SS-60 Era HE 60cm Built In Extractor Hood in Stainless Steel as a simpler same-brand 60cm built-in option with three speeds and lower extraction.

Or the Elica BOXIN-DRY-60 Boxin Dry 60cm Built In Extractor Hood as a more premium alternative with 3+1 speeds, stronger extraction and a No Drip system designed to reduce condensation. Check the cabinet and cut-out dimensions before ordering.

*FAQs are checked against manufacturer information, but please confirm installation requirements before purchase.
