Smeg Universal 60cm Integrated Dishwasher Silver DI323BL

Smeg Universal 60cm Integrated Dishwasher Silver DI323BL

NEW ENERGY RATING

Energy rating bands have recently been re-scaled and revert to a simple A-G scaling, with no plusses.

Although re-scaled, this product is still energy efficient.

ACTIVE LIGHT

Selected Smeg dishwashers fitted with ActiveLight project a red light onto the floor when the appliance is in operation. At the end of cycle, the light automatically turns off alerting you to open the door.

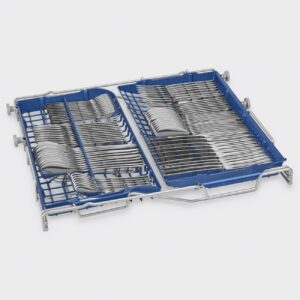

FLEXIDUO CUTLERY BASKET

The third cutlery basket; the Smeg Flexi Duo, consists of 2 separate and movable sections which can be adjusted individually or even removed entirely depending on your loading needs. An intelligent solution that makes room for tall glasses below or deep utensils above.

Depending on the model, these can be blue or grey in colour.

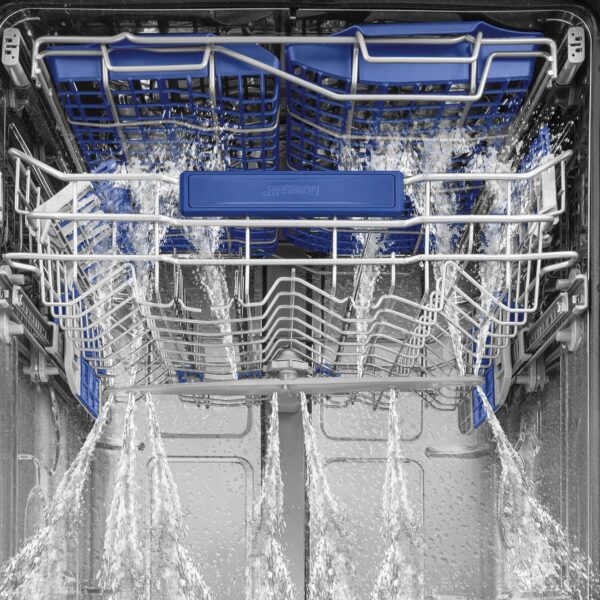

PLANETARIUM WASH SYSTEM

The unique, patented planetarium wash system from Smeg provides complete coverage of the dishwasher, thanks to the eccentric rotation of the spray arm on its base.

ANTI DRIP SYSTEM

Anti-drip inserts are installed in the lower basket of Smeg’s new generation dishwashers. This addition improves drying results and cuts down drips between dish and basket.

INVERTER MOTOR

Some dishwasher models are fitted with a latest generation Inverter motor which guarantees a longer service life, efficiency, reduced energy consumption and noise level.

Dishwashers fitted with the Inverter Motor have a Silence program which reduces the initial noise level of the dishwasher by 2 dB (A).
This is ideal for open plan kitchens and night use, especially during off-peak hours for total discretion.

SLIDING DOOR SYSTEM

The Flexifit hinge system allows smooth sliding of the dishwasher door, in order to offer freedom in the choice of the dimensions of the panel and the plinth, the height of which can vary from 5 to 21.5 cm. The dishwasher harmonises with the cabinet in which it is inserted, allowing the door and the plinth to appear almost flush, with a minimum distance between the two of only 3 mm.

TYPE

• Product Family: Dishwashers
• Commercial height: 82 cm
• Number of place settings: 13
• Installation: Fully-integrated built-in
• Width: 60 cm
• Kitchen panel: Not supplied
• EAN code: 8017709307844

AESTHETICS

• Colour: Silver
• Finishing: Silver
• Aesthetics: Universal
• Front panel colour: Silver (oropal grey)
• Door type: Silver (oropal)
• LED/display colour: White and blue
• Buttons colour: Silver (oropal grey)

PROGRAMS / FUNCTIONS

• No. of programmes: 10+1
• Soak: Yes
• Express 27′: Yes
• Full express – 60 minutes: Yes
• ECO: Yes
• Quiet (-2 dB): Yes
• Auto sensor 45-65: Yes
• Mix: Yes
• Intense: Yes
• Hygiene 99,9%: Yes
• Self clean: Yes
• Crystal: Yes
• Washing temperatures: 38, 45, 50, 55, 65, 70, 75 °C

OPTIONS

• Dry Assist+ option: Yes
• Delay timer option: Up to 24 hours, with automatic soak
• 1/2 load FlexiZone option (varied distribution): Yes
• Special programs option: Yes

BASKETS

• N° baskets: 3, FlexiDuo
• Basket colour: Grey
• Basket components colour: Grey
• Handle: In plastic on upper and lower basket
• Upper Basket: With 3 foldable racks
• Glass holder: Yes
• Height adjustment of the upper basket: On three levels
• Sliding Guides Extra Glide: Yes
• Lower Basket: With 4 foldable racks
• Largest loadable dish in upper basket: 19,0 cm
• Lower basket with anti-drip inserts: Yes
• Largest loadable dish in lower basket: 30,0 cm
• Cutlery basket: Yes
• Colour Inner Components: Blue

TECHNICAL FEATURES

• Controls: Electronic
• Display: Delayed start, Programme time indicator, Time to end indication
• Door opening system: Yes
• Display type: 3 digit
• On/off indicator: Yes
• Salt light indicator: Light
• Rinse aid indicator: Light
• End of cycle indicator: ActiveLight
• Washing system: Planetarium
• Drying system: Natural condenser drying, with Dry Assist + automatic door opening system at the end of the cycle
• Motor: Inverter 2.0
• Third spray arm: Single
• Water softener: With electronic setting
• Turbidity sensor Aquatest: Yes
• Flood protection system: Total Acquastop
• Water supply: Single; cold/hot water max. 60°C – energysave with hot water up to 35%
• Max water hardness: 100°fH;58°dH
• Steam protection: In plastic
• Tank material: Stainless steel
• Filter: Stainless steel
• Concealed heating element: Yes
• Min. and max plinth height: 50 – 215 mm
• Min. and max. frontal panel weight: 2 – 11 kg
• Hinges: Self balancing, Sliding, FLEXIFIT
• Adjustable feet: 7cm, from 820 to 890 mm
• Back feet adjustable from front: Yes

PERFORMANCE / ENERGY LABEL NEW

• Energy Efficiency Class (Washing cycle): B
• Energy consumption [per 100 cycles, based on the eco programme]: 63 KWh
• Rated capacity (ps): 13
• Water consumption [per cycle]: 9.0 litres
• Programme duration: 4:25 h:min
• Airborne acoustical noise emissions (spinning phase): 42 dB(A) re 1 pW
• Airborne acoustical noise emission class: B
• Energy efficiency Index (EEI) (Washing cycle): 37.9

ELECTRICAL CONNECTION

• Connected power: 1800 W
• Voltage: 220-240 V
• Type of connection: Single-phase
• Frequency (Hz): 50 Hz
• Power supply cable length: 140 cm

LOGISTIC INFORMATION

• Dimensions of the product HxWxD (mm): 818x598x545
• Net weight (kg): 44.000 kg
