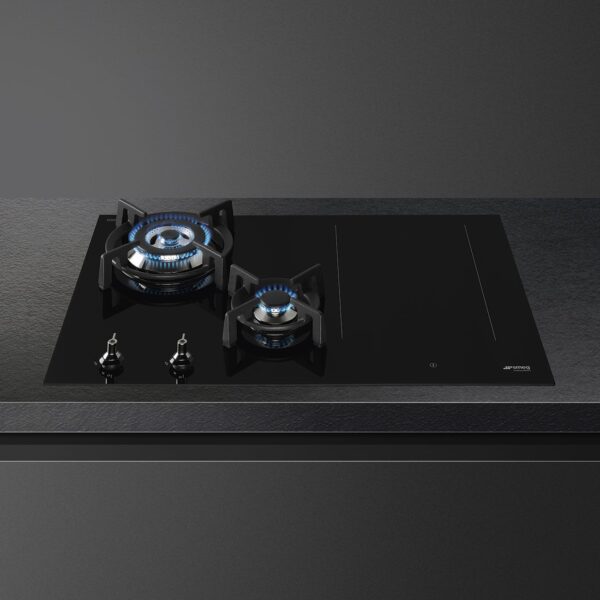

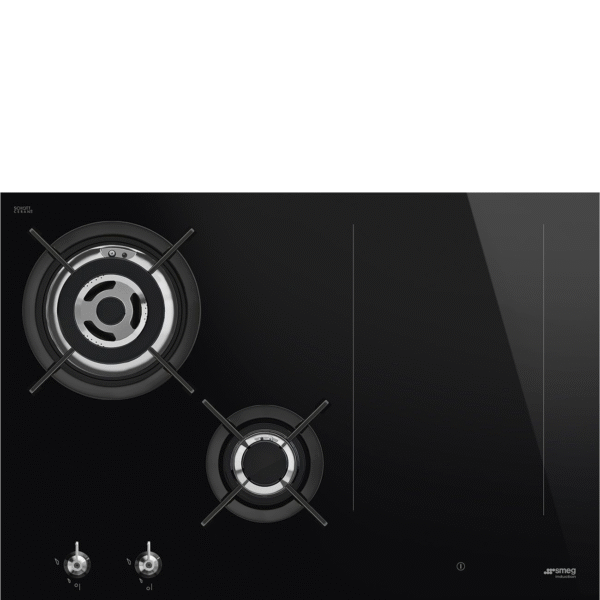

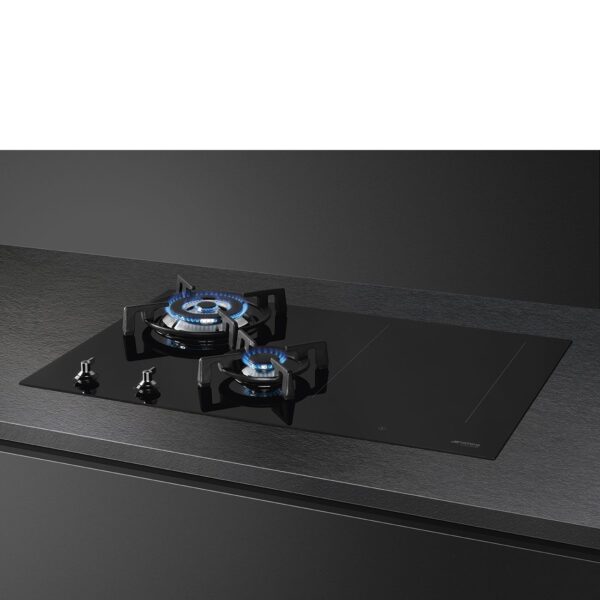

Smeg PM3743D 75cm Mixed Fuel Hob

Mixed Fuel Hob – 75cm Black glass hob with 2 gas burners and 2 induction zones for flexible everyday cooking.
MultiZone Induction – Use the right-side zones separately or combine them into one larger cooking area for bigger pans.
Ultra-low Profile Design – Sleek 1mm installation creates a streamlined built-in finish on the worktop.
Fast Precise Control – 9 Power levels, booster function and rotary controls help deliver responsive heat for simmering or rapid boiling.
Practical Safety Features – Includes timer, child lock, residual heat indicator, automatic ignition and gas safety valves.

2 Year Warranty

In Stock

FOUND IT CHEAPER? Get Our Best Price

£1,369.00

Product Info
Specification
FAQ's

Item 1

Smeg PM3743D mixed fuel hob in black glass combines gas and induction cooking in one ultra-low profile 75cm design, with MultiZone flexibility and sleek control.

Smeg PM3743D 75cm Mixed Fuel Hob in Black Glass

The Smeg PM3743D 75cm mixed fuel hob brings together the speed and precision of induction with the familiar control of gas, making it a versatile choice for keen home cooks. Finished in black ceramic Eclipse glass with a sleek Classica aesthetic, this mixed fuel hob features 4 cooking zones, including 2 gas burners and 2 induction zones, for flexible everyday cooking.

Its ultra-low profile installation creates a streamlined look, sitting at just 1mm high when fitted. With front-mounted rotary control knobs, touch slider operation for the induction zones, and durable cast iron pan supports, the PM3743D is designed to offer both style and practicality.

Mixed Fuel Flexibility for Everyday Cooking

For those who enjoy the benefits of both gas and induction cooking, this Smeg hob offers the best of both in a single appliance. The two gas burners include an AUX burner and an ultra-rapid burner, while the two induction zones can be used independently or combined with the MultiZone function to create one larger cooking area.

This flexible arrangement makes it easier to accommodate different pan sizes and cooking styles, whether you are simmering delicate sauces, boiling quickly, or preparing multiple dishes at once.

MultiZone Induction with Precise Control

Smeg’s MultiZone heating area allows the right-side induction zones to operate as two separate zones or as one larger space. The hob automatically adapts to the size and position of the pan, heating only where the cookware is placed for efficient heat distribution.

With 9 power levels, 2 booster-enabled induction zones, rapid level selection, quick start, pause option, bridge option, grill function, keep warm automatic function, minute minder, and end of cooking timer, the PM3743D is built for flexible and responsive cooking.

Fast, Efficient and Easy to Clean

Induction cooking offers precise temperature control, making it ideal for intricate cooking tasks as well as gentle simmering. Heat is generated only when the pan comes into direct contact with the cooking zone, helping to optimise power consumption and improving safety during use.

Another everyday benefit is the smooth ceramic glass surface, which is easy to wipe clean because splashes do not burn on in the same way as they can on traditional surfaces. The warming function also helps keep food warm with ease when needed.

Premium Materials and Practical Design

The black glass finish is paired with steel-effect controls and grey serigraphy for a refined, contemporary look. Smeg’s reinforced base, with a steel layer fixed to the underside of the glass surface, adds strength and durability. Heavy-duty cast iron pan stands provide stability for cookware, while brass burners add a premium finishing touch.

The hob has a straight glass edge, front control knob position, and an overall size of 750mm wide by 510mm deep, with a product height of 45mm. It is designed for ultra-low profile built-in installation and requires a worktop cut-out of 482-486 x 719-724mm.

Safety and Technical Features

The Smeg PM3743D includes a range of safety features designed for reassurance during cooking. These include gas safety valves, automatic ignition, overheat protection, overflow protection, residual heat indicators, protection against accidental start-up, child safety lock, automatic switch-off when overheating or overflow occurs, and permanent automatic pot detection with relative control indication.

The hob is set for G20/G25 natural gas and has an electrical connection rating of 3700W, gas connection rating of 4300W, current of 16A, voltage of 220-240V with 380-415V second voltage, and 50/60Hz frequency. It comes with a single-phase electric cable installed and a 120cm power supply cable. Plug not included.

Key Features at a Glance

Model: PM3743D
Product family: Hob
Type: Mixed fuel hob
Width: 75cm
Finish: Black glass
Built-in type: Ultra-low profile
Total cooking zones: 4
Gas zones: 2
Induction zones: 2
Flexible zones: 1 MultiZone
Power levels: 9
Pan supports: Cast iron
Controls: Rotary knobs and touch slider
Main functions: Booster, MultiZone, keep warm, quick start, timer, minute minder, pause, bridge option, grill function, child lock

The Smeg Classic 75cm mixed fuel ultra-low profile hob PM3743D is a strong choice for anyone looking for a stylish black glass hob that combines the control of gas with the speed and flexibility of induction.

Item 2

Dimensions	51 × 75 × 4.5 cm
Automatic Programmes	No
Brand	Smeg
Smart Appliance	No
Cooktop	Gas & Induction
Colour Group	Black
Installation	Flush or Surface Mount
Warranty	2
Zones	4
Group	Induction & Gas
Product Type	Mixed Hob
SKU	PM3743D
GTIN	8017709290252

Aesthetics

Knobs control. The slider control panel allows you to adjust the power simply by passing your finger across the touch device.
Darkness becomes light.
Reinforced base: A reinforced base, developed exclusively by Smeg, consists of a steel layer fixed to the underside of the glass surface of all gas-on-glass hobs.
Heavy duty cast iron pan stands: for maximum stability and strength.
Colour: Black
Finishing: Glass
Aesthetic: Classica
Glass type: Ceramic Eclipse
Material: Glass
Controls colour: Steel effect
Type of control setting: Control knobs
Control knob position: Front
No. of controls: 2
Slider: Yes
Glass edge: Straight edge
Glass on Steel: Yes
Pan stands: Cast iron
Burners: Smeg Contemporary
Burners Material: Brass
Serigraphy colour: Grey

Type

Ultra-low profile: Installation of product with flat edge – height of 1 mm.
Product Family: Hob
Dimensions: 70/75 cm
Type: Mixed
Built-in type: Ultra-low profile
Power supply: Mixed
EAN code: 8017709290252

Program / Functions

Power booster: option allows the zone to work at full power when very intense cooking is necessary.
Total no. of cook zones: 4
No. of gas cook zones: 2
No. of induction cook zones: 2
Time-setting options: Spegnimento automatico
No. of cooking zones with booster: 2
No. of Flexible zones: 1
Main on/off switch: Yes
Power levels: 9

Technical Features

Overheat protection: The safety system automatically turns off the hob in case of overheating of the control unit.
Overfill protection: The special overfill protection shuts down the stove in the presence of liquid overflow.
Permanent auto pot detection.
Indication of residual heat: After the glass ceramic hob is switched off, the residual heat indicator shows which heating zones still remain hot. When the temperature drops below 60°C, the indicator goes out.
Gas Type: G20/G25 natural gas
Automatic setting according to pan dimension: Yes
Permanent Automatic Pot Detection with indication of the relative control: Yes
Pan detection: Yes
Gas safety valves: Yes
Automatic Ignition: Yes
Automatic switch off when overheat: Yes
Automatic switch off when overflow: Yes
Residual heat indicator: Yes
Protection against accidental start up: Yes

Options

Grill function.
Multizone: allows several pans to be used at once, large or small, offering freedom of placement and greater flexibility.
Quick selection: with one touch, cooking begins at the highest level, then automatically reduces after time. Ideal for dishes that require quick boiling and then continued cooking without constant control.
Timer: All ceramic hobs have a timer which automatically ends cooking after a preset time.
Time elapsed: shows how long the cooking zone has been in use.
Quick Start function: the chosen temperature is reached faster. The heating element works at maximum power until the right temperature is reached.
Child lock: some models are fitted with a device to lock the programme or cycle so it cannot be accidentally changed.
This function allows you to keep cooked food warm without burning it.
Possibility to set the maximum power absorption of the hob.
All cooking zones can be reduced to the minimum power level, so the hob can be left unattended for a short period without food overcooking or burning. Pressing the function again reactivates the previously set power levels.
Worktop Cut-Out: 482-486 x 719-724 mm
Multizone Option: Yes
Flexible Zone Type: MultiZone
End cooking timer: 2
Pause option: Yes
Minute minder: 1
End of cooking alarm: Yes
Residual time indicator: Yes
Limited Power Consumption Mode: Si Advance
Limited Power Consumption Mode in W: 2100 to 3700, step 100 W
Showroom Demo Option: Yes
Grill function: Yes
Control Lock / Child Safety: Yes
Keep warm automatic function: Yes
Bridge option: Yes
Quick start: Yes
Rapid level selection: Yes

Cooking Zones

Ultra rapid burners: Powerful ultra rapid burners offer up to 5 kW of power.
1st zone position: Front-left
2nd zone position: Rear-left
3rd zone position: Rear-right
4th zone position: Front-right
1st zone type: Gas – AUX
2nd zone type: Gas – UR
3rd zone type: Induction – Multizone
4th zone type: Induction – Multizone
3rd zone dimensions: 24.0 x 18.0 cm
4th zone dimensions: 24.0 x 18.0 cm
Right Multizone dimension: 38.5 x 23.0 cm
1st zone power: 1.10 kW
2nd zone power: 3.30 kW
3rd zone power: 2.10 kW
4th zone power: 2.10 kW
Power double booster 3rd zone: 3.00 kW
Power double booster 4th zone: 3.00 kW
3rd zone booster power: 2.50 kW
4th zone booster power: 2.50 kW
Booster power right Multizone: 3.60 kW

Performance / Energy Label

Energy consumption zone 3: 191 Wh/Kg
Energy consumption zone 4: 195 Wh/Kg

Electrical Connection

Plug: Not present
Gas connection rating: 4300 W
Electrical connection rating: 3700 W
Current: 16 A
Voltage (V): 220-240 V
Voltage 2 (V): 380-415 V
Frequency (Hz): 50/60 Hz
Type of electric cable installed: Yes, Single phase
Power supply cable length: 120 cm

Standby Consumption

Power off activation time: 1 min.

Logistic Information

Dimensions of the product (mm): 45 x 750 x 510
Depth: 510 mm
Width: 750 mm
Product Height: 45 mm
Net weight: 15.100 kg
Gross weight: 18.800 kg
Packed width: 860 mm
Packaged depth: 610 mm
Height packed: 155 mm
Dimensions of the packed product (mm): 155 x 860 x 610
Type of packaging: Cardboard
Packaging composition – paper & cardboard: 0.000 kg
Packaging composition – polystyrene: 0.959 kg
Packaging composition – wood: 0.000 kg
Packaging composition – plastic: 0.031 kg

Item 2

Frequently Asked Questions About the PM3743D

Is the Smeg PM3743D a gas hob or an induction hob?

The Smeg PM3743D is a mixed fuel hob, so it combines both cooking methods in one appliance. You get 2 gas burners on the left and 2 induction zones on the right, which makes it a practical choice if you want the responsiveness of gas alongside the speed and precision of induction.

How many cooking zones does the Smeg PM3743D have?

This model has 4 cooking zones in total. There are 2 gas burners and 2 induction zones, giving you a flexible layout for everyday cooking and more demanding meal preparation.

Does the Smeg PM3743D have a flexible induction area?

Yes. The induction side includes Smeg’s MultiZone function, which allows the 2 right-hand induction zones to be used separately or linked together as one larger cooking area. This is especially useful for larger pans, griddles, or cookware that does not fit neatly on a single zone.

What controls does the Smeg PM3743D use?

The Smeg PM3743D uses front-mounted rotary control knobs for the gas burners and a touch slider for the induction zones. This gives you the familiar feel of knob control for gas cooking, with quick fingertip adjustment for induction power levels.

Does the Smeg PM3743D include a booster function?

Yes, the induction zones include booster settings for faster heat when you need to boil water quickly or bring pans up to temperature in less time. This model also offers 9 power levels for more precise control during cooking.

Can the Smeg PM3743D keep food warm?

Yes. This model includes a keep warm function, which is useful when you want to hold food at serving temperature without continuing to cook it too aggressively. This makes it a good choice for busy kitchens where dishes may be ready at slightly different times.

What safety features does the Smeg PM3743D have?

The Smeg PM3743D includes a strong range of safety features for both fuel types. These include gas safety valves, automatic ignition, residual heat indication, child lock, protection against accidental start-up, automatic switch-off in the event of overheating, and overflow protection on the induction side.

What size is the Smeg PM3743D?

This model is designed for the 70 to 75cm hob category and has an overall width of 750mm, depth of 510mm, and height of 45mm. It is built for an ultra-low profile installation, giving a clean, streamlined finish in the worktop.

What is the finish of the Smeg PM3743D?

The Smeg PM3743D comes in a black glass finish with Smeg’s ceramic Eclipse glass, steel-effect controls, cast iron pan supports, and brass burners. This combination gives the hob a premium look while also offering the durability needed for regular use.

Is the Smeg PM3743D a good choice for keen home cooks?

We would recommend the Smeg PM3743D for anyone who wants the benefits of both gas and induction in one hob. With 2 gas burners, 2 induction zones, a flexible MultiZone area, booster functions, timers, and a slim built-in design, it is a strong option for households that want flexibility, control, and a more professional cooking setup.

*Please be aware we try to be as factual as possible with all our answers but there may be the odd mistake.
