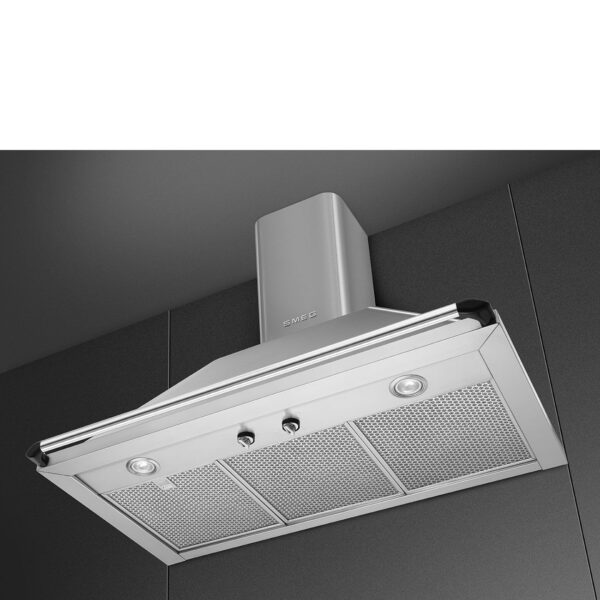

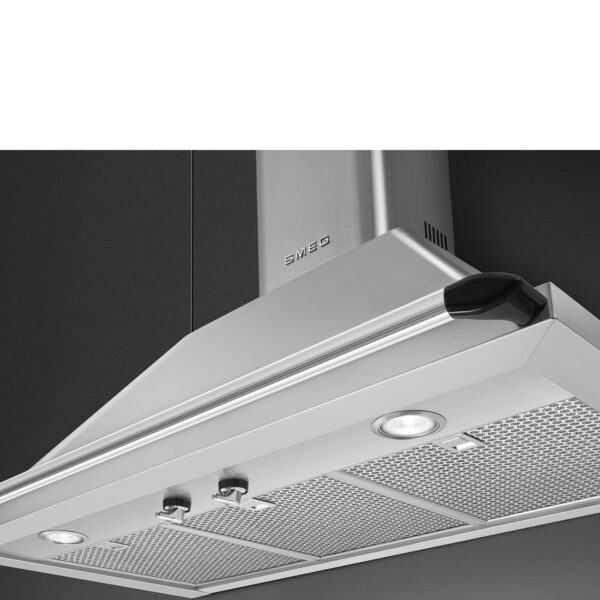

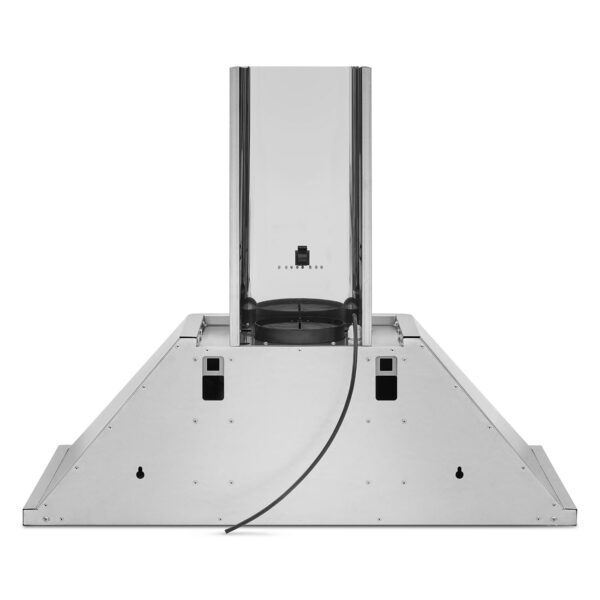

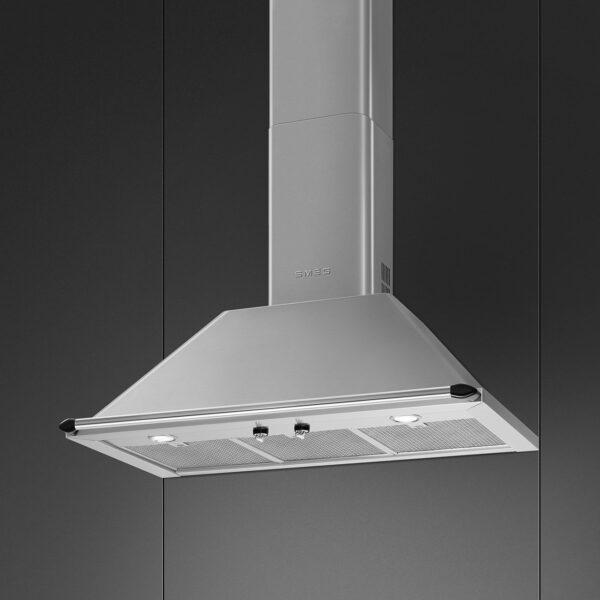

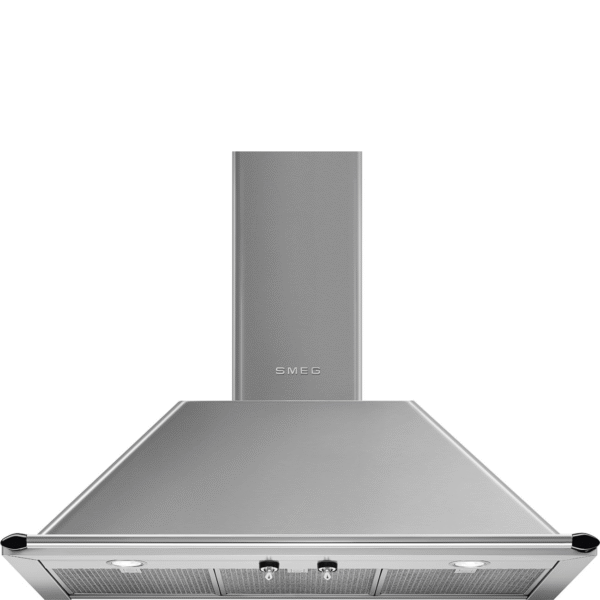

Smeg KTR90XE 90cm Chimney Wall Hood Stainless Steel
- 90cm Chimney Cooker Hood – Decorative wall-mounted Smeg hood in brushed stainless steel for wider cooking zones.
- Powerful Extraction – 3 speeds plus intensive mode with up to 788m³/h airflow to clear steam, smoke and cooking odours fast.
- Ducted Or Recirculating – Flexible installation with charcoal filters included for recirculation or duct-out extraction.
- LED Hob Lighting – twin energy-saving LED lights give bright, clear illumination across the cooking area.
- Energy Efficient Performance – A-rated cooker hood with aluminium anti-grease filters and classic Victoria control knobs.
£729.00
- Product Info
- Specification
- FAQ's
Smeg KTR90XE chimney wall hood brings classic Victoria styling and powerful extraction together in one elegant 90cm design. Finished in brushed stainless steel, this decorative wall hood is ideal for wider cooking zones and adds distinctive character to both traditional and contemporary kitchens.
The nostalgic Victoria aesthetic gives the Smeg KTR90XE 90cm chimney wall hood its unmistakable look, with curvy lines, chunky control knobs and signature branding. It is designed to make a style statement while delivering the performance needed for everyday cooking.
Powerful extraction for everyday cooking
With 3 speeds plus an intensive mode, the Smeg KTR90XE gives you the flexibility to tackle everything from light steam to strong cooking odours. It offers an extraction rate of 334m³/h at minimum speed, 567m³/h at maximum speed and up to 788m³/h on intensive, helping to clear the air quickly when extra power is needed.
The intensive setting is especially useful when preparing high-heat dishes such as stir fries or aromatic meals, removing smoke, steam and lingering odours efficiently.
Flexible ducted or recirculating installation
This Smeg Victoria cooker hood can be installed for either ducted extraction or recirculating operation, giving you greater flexibility to suit your kitchen layout.
Ducting out removes cooking fumes and expels them outside using a compatible vent kit, available as an optional accessory. The ducting hose diameter should match the 150mm vent outlet of the hood.
Suitable vent kits include:
SP150 – Simple vent kit for hoods with a 150mm diameter vent outlet
SP150FLAT – Comprehensive vent kit for hoods with a 150mm diameter vent outlet
SP215 – Simple vent kit for hoods with a 120mm diameter vent outlet
SP217 – Comprehensive vent kit for hoods with a 120mm diameter vent outlet
For recirculating installation, cooking fumes pass through active charcoal filters before cleaned air is released back into the room. Charcoal filters are included as standard with this hood, and you can also check the accessory tab on the product specification for compatible filter information.
Clear LED lighting over the hob
Two energy-saving LED lights provide bright, clear illumination across the cooking area, making it easier to monitor food while you cook. These long-lasting lights can also be switched on independently of the fan, so they can be used to create ambient kitchen lighting when needed.
The hood features 2 LED lights with 1W power each, a colour temperature of 3000°K and an average illumination level of 225 lux on the cooking surface.
Efficient performance with classic Smeg details
The Smeg KTR90XE is rated A for energy efficiency and also achieves A ratings for fluid dynamic efficiency and lighting efficiency. Aluminium anti-grease filters help maintain effective performance, while the classic Victoria steel-effect control knobs complete the heritage-inspired design.
This model has a free outlet maximum capacity of 820m³/h, motor power of 275W and 3 aluminium anti-grease filters. A non-return valve is also included.
Noise levels and technical information
Noise output ranges from 49 dB(A) on speed 1 to 61 dB(A) on speed 3, with a maximum of 69 dB(A) on intensive mode. Minimum installation distance is 750mm from a gas hob and 650mm from an electric hob.
Product dimensions are 740 x 895 x 530mm, with a nominal power of 278W, voltage of 220-240V, frequency of 50-60Hz and a power supply cable length of 1000mm.
Key features of the Smeg KTR90XE
90cm decorative wall-mounted chimney hood in brushed stainless steel
Victoria aesthetic with curvy retro-inspired styling and classic control knobs
3 speeds plus intensive mode
Extraction rates from 334m³/h to 788m³/h
Ducted or recirculating installation
Charcoal filters included as standard
2 LED lights
A energy efficiency rating
3 aluminium anti-grease filters
150mm vent outlet
| Dimensions | 53 × 89.5 × 74 cm |
|---|---|
| Automatic Programmes | No |
| Smart Appliance | No |
| Brand | Smeg |
| Energy Efficiency Class | A |
| Colour Group | Stainless Steel |
| Intensive Mode | Yes |
| Noise Level | 69 |
| No. Of Fan Speeds | 4 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 2 |
| Group | Chimney |
| Variant | Wall |
| Product Type | Cooker Hood |
| SKU | KTR90XE |
| GTIN | 8017709211684 |
TYPE
- Product family: Hood
- Hood Type: Decorative wall hood
- Hood width: 90 cm
- Extraction: Expulsion
- EAN code: 8017709211684
AESTHETICS
- Colour: Stainless steel
- Finishing: Brushed
- Aesthetics: Victoria
- Design: Chimney
- Material: Stainless steel
- Type of steel: Brushed
PROGRAMS / FUNCTIONS
- No. of speeds: 3
- Intensive speed: Yes
CONTROLS
- Control setting: Control knobs
- Control knobs: Victoria
- No. of controls: 2
- Controls colour: Steel effect
TECHNICAL FEATURES
- No. of lights: 2
- Light type: LED
- Light power: 1 W
- Light color temperature scale (°K): 3000 °K
- Free outlet maximum capacity: 820 m³/h
- Motor power: 275 W
- No. of filters: 3
- Anti-grease filters: Aluminium
- Minimum distance from GAS hob: 750 mm
- Vent outlet: 150 mm
- Minimum distance from ELECTRIC hob: 650 mm
- Non return valve: Yes
PERFORMANCE / ENERGY LABEL
- Energy efficicency class ( EEC): A
- Fluid Dynamic Efficiency class (FDEC): A
- Grease Filtering Efficiency Class (GFEC): C
- Lighting Efficiency Class (LEC): A
- Annual Efficiency Consumption (AEChood): 59 KWh/year
- Fluid Dynamic Efficiency (FDE): 30
- Lighting Efficiency (LE): 102.3 lux/W
- Grease Filtering Efficiency (GFE): 76.6 %
- Air flow at minumum speed (Qmin): 334 m³/h
- Maximum extraction rate: 567 m³/h
- Intensive extraction rate: 788 m³/h
- Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 49 dB(A)
- Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 61 dB(A)
- Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 69 dB(A)
- Time increase factor (F): 1.00
- Energy Efficiency Index per first cavity: 52.4
- Measured air flow rate at best efficiency point (Qbep): 438 m³/h
- Measured air pressure at best efficiency point (Qbep): 434 Pa
- Measured electric power input at best efficiency point (Wbep): 176 W
- Normal Power of the light system (Wl): 2 W
- Average illumination of the light on the cooking surface (Emiddle): 225 lux
- Sound power level at highest setting (Lwa): 61 dB(A)
ELECTRICAL CONNECTION
- Nominal power: 278 W
- Voltage: 220-240 V
- Frequency (Hz): 50-60 Hz
- Power supply cable length: 1000 mm
SPEED 1
- Extraction rate IEC 61591: 334 m³/h
- Noise level IEC 60704-2-13: 49 dB(A)
- Power: 199 W
SPEED 2
- Extraction rate IEC 61591: 439 m³/h
- Noise level IEC 60704-2-13: 57 dB(A)
- Power: 231 W
SPEED 3
- Extraction rate IEC 61591: 567 m³/h
- Noise level IEC 60704-2-13: 61 dB(A)
- Power: 260 W
INTENSIVE SPEED
- Extraction rate (IEC 61591): 788 m³/h
- Noise level IEC 60704-2-13: 69 dB(A)
- Power: 280 W
LOGISTIC INFORMATION
- Dimensions of the product (mm): 740x895x530
- Width: 895 mm
- Depth (mm): 530 mm
- Product Height (mm): 740 mm
Frequently Asked Questions About the KTR90XE
Is the Smeg KTR90XE suitable for a 90cm hob or range cooker?
Yes. The Smeg KTR90XE is a 90cm decorative wall-mounted chimney hood, so it is well suited to wider cooking zones and is a good match for many 90cm hobs and range cookers.
Can the Smeg KTR90XE be installed as either ducted or recirculating?
Yes. This model can be installed for ducted extraction or re-circulating use. Ducting out is usually the best option for removing cooking fumes to the outside, while re-circulating installation is useful where external venting is not practical.
Does the Smeg KTR90XE include an intensive setting?
Yes. The Smeg KTR90XE has 3 standard speeds plus an intensive mode. This gives you extra flexibility for everyday cooking, from light steam through to stronger odours, smoke and heat from more demanding dishes.
How powerful is the extraction on the Smeg KTR90XE?
This model offers extraction rates from 334m³/h on the lowest speed up to 567m³/h on the highest normal speed, with intensive extraction up to 788m³/h. That makes it a strong choice for larger cooking areas and more demanding day-to-day use.
How noisy is the Smeg KTR90XE in use?
Noise levels range from 49 dB(A) on speed 1 to 61 dB(A) on speed 3, rising to 69 dB(A) on intensive mode. In practical terms, it stays relatively moderate on lower settings and becomes more noticeable when running at maximum extraction.
What type of controls does the Smeg KTR90XE use?
The Smeg KTR90XE uses classic Victoria-style control knobs with a steel-effect finish. This suits the hood’s retro-inspired design and gives straightforward manual control over both extraction and lighting.
Does the Smeg KTR90XE have built-in lighting?
Yes. This model includes 2 LED lights, each rated at 1W. They provide clear illumination over the hob and are designed to be energy efficient as well as long lasting.
What filters does the Smeg KTR90XE use?
The Smeg KTR90XE includes 3 aluminium anti-grease filters to help capture grease during cooking. For re-circulating installation, charcoal filters are required, so it is worth checking the compatible accessories before purchase.
Is the Smeg KTR90XE energy efficient?
Yes. The Smeg KTR90XE has an A energy efficiency rating. It also achieves an A rating for fluid dynamic efficiency and lighting efficiency, which makes it a good option if you want strong performance with lower running costs.
What are the installation requirements for the Smeg KTR90XE?
This model has a 150mm vent outlet and should be installed at least 750mm above a gas hob or 650mm above an electric hob. It also includes a non-return valve, which helps support effective ducted installation.
