KSG70E

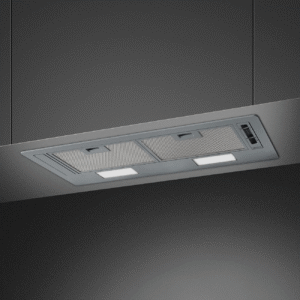

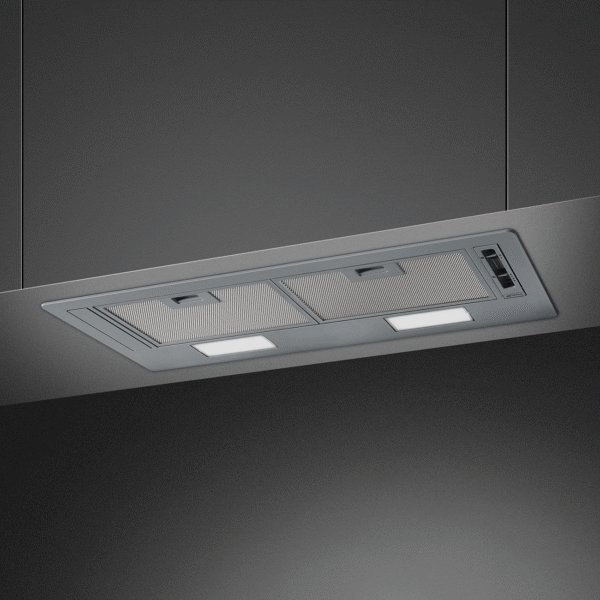

Smeg KSG70E 73cm Built In Cooker Hood

Silver Finish Smeg Extractor – 3 Speeds, Max 224 m³/h Capacity, Slider Control Operation, Recirculating or Ducted Out, LED Lights, Energy Rating C with a Noise Rating of Just 54dB(A).
3 Speeds Function – Removes odours efficiently.
LED Lights – Illuminate your hob area with efficiently bright lighting.

2 Year Warranty

In Stock

FOUND IT CHEAPER? Get Our Best Price

£241.00

Product Info
Specification

Item 1

Smeg Universal 73cm Integrated Cooker Hood Silver KSG70E

DUCTING OR RE-CIRCULATING

Most Smeg hoods offer the choice of ducting or re-circulating, so you can choose your preferred method.

Ducting out extracts cooking fumes and expels them outside, using a vent kit (available as an optional accessory) The diameter of the ducting hose should match the vent outlet of the hood (which can be found in the features tab)

SP150 – Simple vent kit for hoods with a 150mm diameter vent outlet
SP150FLAT – Comprehensive vent kit for hoods with a 150mm diameter vent outlet
SP215 – Simple vent kit for hoods with a 120mm diameter vent outlet
SP217 – Comprehensive vent kit for hoods with a 120mm diameter vent outlet

Re-circulating extracts the cooking fumes and passes them through active charcoal filters (available as an optional accessory), recirculating the cleaned air back into the room. To find out which charcoal filter your hood needs, check the accessory tab on the hoods specification.

LED LIGHTING

These lights are long lasting, save money and perfectly illuminate the work surface below. They can be switched on regardless of the fans, and used simply to create ambience lighting in the kitchen.

Item 2

Dimensions	25.7 × 73.4 × 20.8 cm
Automatic Programmes	No
Brand	Smeg
Smart Appliance	No
Energy Efficiency Class	C
Colour Group	Stainless Steel
Noise Level	54
No. Of Fan Speeds	3
Outlet Type	Duct Out or Recirculation
Warranty	2
Group	Built In
Variant	Wall
Product Type	Cooker Hood
SKU	KSG70E
GTIN	8017709275136

TYPE

Product family: Hood
Hood Type: Integrated hood
Hood width: 73 cm
Extraction: Expulsion
EAN code: 8017709275136

AESTHETICS

Colour: Silver
Aesthetics: Universal
Design: Fully integrated
Material: Painted material

PROGRAMS / FUNCTIONS

No. of speeds: 3

CONTROLS

Control setting: Slider

TECHNICAL FEATURES

No. of lights: 2
Light type: LED
Light power: 3 W
Light color temperature scale (°K): 2700 °K
Free outlet maximum capacity: 232 m³/h
Motor power: 75 W
No. of filters: 2
Anti-grease filters: Aluminium
Minimum distance from GAS hob: 650 mm
Vent outlet: 120 mm
Minimum distance from ELECTRIC hob: 500 mm
Non return valve: Yes

PERFORMANCE / ENERGY LABEL

Energy efficicency class ( EEC): C
Fluid Dynamic Efficiency class (FDEC): E
Grease Filtering Efficiency Class (GFEC): E
Lighting Efficiency Class (LEC): D
Annual Efficiency Consumption (AEChood): 50 KWh/year
Fluid Dynamic Efficiency (FDE): 8.8
Lighting Efficiency (LE): 13 lux/W
Grease Filtering Efficiency (GFE): 56 %
Air flow at minumum speed (Qmin): 125 m³/h
Maximum extraction rate: 224 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 45 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 54 dB(A)
Time increase factor (F): 1.7
Energy Efficiency Index per first cavity: 84.7
Measured air flow rate at best efficiency point (Qbep): 160 m³/h
Measured air pressure at best efficiency point (Qbep): 145 Pa
Measured electric power input at best efficiency point (Wbep): 74 W
Normal Power of the light system (Wl): 6 W
Average illumination of the light on the cooking surface (Emiddle): 78 lux
Sound power level at highest setting (Lwa): 54 dB(A)

ELECTRICAL CONNECTION

Nominal power: 81 W
Voltage: 220-240 V
Frequency (Hz): 50-60 Hz
Power supply cable length: 1500 mm

SPEED 1

Extraction rate IEC 61591: 125 m³/h
Noise level IEC 60704-2-13: 45 dB(A)
Power: 45 W

SPEED 2

Extraction rate IEC 61591: 155 m³/h
Noise level IEC 60704-2-13: 47 dB(A)
Power: 59 W

SPEED 3

Extraction rate IEC 61591: 224 m³/h
Noise level IEC 60704-2-13: 54 dB(A)
Power: 75 W

LOGISTIC INFORMATION

Dimensions of the product (mm): 208x734x257
Width: 734 mm
Depth (mm): 257 mm
Product Height (mm): 208 mm
