7612

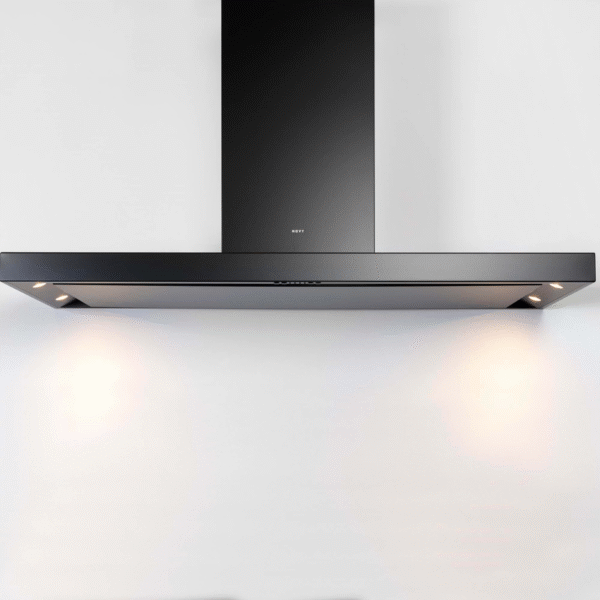

Novy 7612 Flatline 120cm Wall Extractor Hood
- Maximum Noise Level 59db
- Maximum Extraction rate 631m³/h with Qboost
- Seamless finish
- Subtle looking LED lighting (2700K)
- Reversible chimney for recirculation as standard
5 Year Warranty
£2,229.00
In Stock
- Product Info
- Specification
Item 1
Novy Wall mounted Flat’line 7612
Clean lines in a timeless design
Flat’line 120 cm Black has a seamless finish with subtle looking LED lighting (2700K). A Reversible chimney for recirculation as standard.
Item 2
| Dimensions | 55.4 × 119.8 × 112 cm |
|---|---|
| Automatic Programmes | No |
| Brand | Novy |
| Smart Appliance | No |
| Energy Efficiency Class | A+ |
| Colour Group | Black |
| Intensive Mode | Yes |
| Noise Level | 48 |
| No. Of Fan Speeds | 4 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 5 |
| Group | Chimney |
| Variant | Wall |
| Product Type | Cooker Hood |
| SKU | 7612 |
| GTIN | 5414425213726 |
Energy label
- Energy Efficiency class (EEIhood) A+
- Annual Energy Consumption (kWh/year) (AEChood) 33,7
- Lighting Efficiency class (LEhood) A
- Fluid Dynamic Efficiency class (FDEhood) A
- Grease Filtering Efficiency class (GFEhood) D
Functions and features
Control method Push buttons
- Number of speeds 3 + power
- Automatic Power revert (minutes) 6
- Motor Integrated
- Sound absorber Integrated
- Recirculation Optional
- InTouch function Optional
- Auto stop Yes
- Delayed switch off (minutes) 10

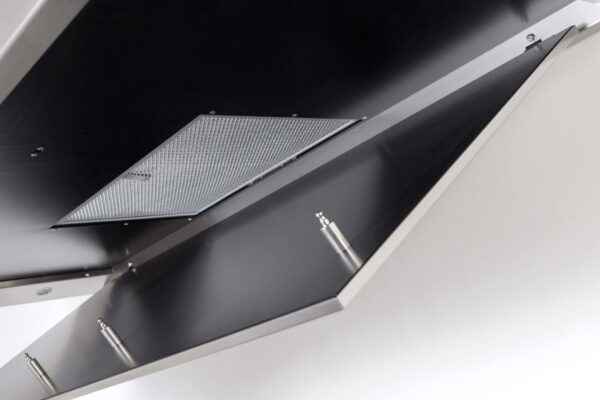

- Number of grease filters 1
- Grease filter 7400020
- Grease filter cleaning indication Yes
- Recirculation filter cleaning indication Yes
Lighting
- Functional lighting type Led
- Ambient lighting type Not Applicable
- Dimmable light Yes
- Soft-ON/OFF Yes
- Number of functional lights 4
- Total energy consumption functional light (W) 12
- Color ambient light Not Applicable

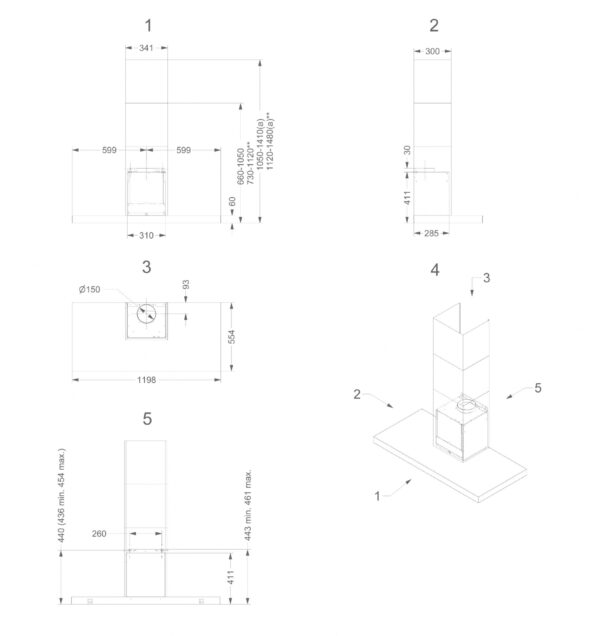

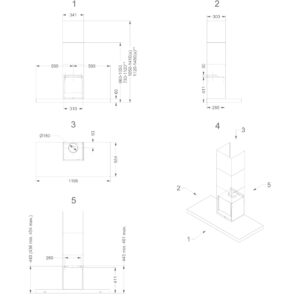

Dimensions
- Advised mounting height induction hobs (Hmin-Hmax) (mm) 650 – 750
- Product dimensions exhaust (WxDxHmin-Hmax) (mm) 1198 x 554 x 660 – 1050
- Product dimensions recirculation (WxDxHmin-Hmax) (mm) 1198 x 554 x 730 – 1120
- Max height optional chimney exhaust (mm) 1410
- Max height optional chimney recirculation (mm) 1480
- Advised mounting height ceramic hobs (Hmin-Hmax) (mm) 600 – 750
- Advised mounting height gas hobs (Hmin-Hmax) (mm) 650 – 750
- Diameter outlet (mm) 150
- Position exhaust Top
Airflow and noise level
- Airflow duct out speed 1 (m³/h) / Max pressure duct out speed 1 (Pa) 259 / 83
- Airflow duct out speed 2 (m³/h) / Max pressure duct out speed 2 (Pa) 420 / 247
- Airflow duct out speed 3 (m³/h) / Max pressure duct out speed 3 (Pa) 550 / 380
- Airflow duct out max powerspeed (m³/h) (Qboost) / Max pressure duct out max powerspeed (Pa) 631 / 381
- Sound pressure duct out speed 1 (dB(A)) / Sound power duct out speed 1 (dB(A)) 26 / 36
- Sound pressure duct out speed 2 (dB(A)) / Sound power duct out speed 2 (dB(A)) 38 / 49
- Sound pressure duct out speed 3 (dB(A)) / Sound power duct out speed 3 (dB(A)) 44 / 55
- Sound pressure duct out at max powerspeed (dB(A)) / Sound power duct out at max powerspeed (dB(A)) (LWAboost) 48 / 59
Technical specifications
- Maximum power (W) 117
- Voltage cooker hood (V) 220-230
- Frequency (Hz) 50
- Length power supply cord (m) 1,3
- Power consumption in stand-by-mode (Ps) (W) 0.25
- Net weight (kg) 35,6
