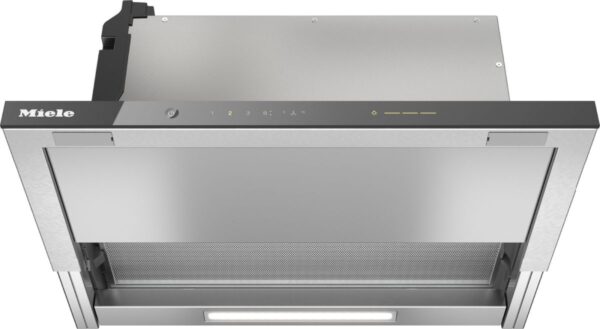

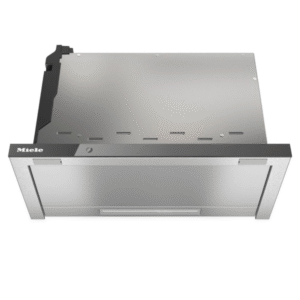

Miele DAS4630 60cm Built In Extractor Hood
- 60cm Built-In Miele Cooker Hood – Slimline Miele extractor in Obsidian Black and Clean Steel for integrated kitchens.
- Powerful Extraction – 3 Fan speeds plus booster mode with up to 720m³/h airflow.
- Smart Connectivity – Miele@home and Con@ctivity 3.0 WiFi for app control and compatible hob pairing.
- A+++ Energy Rating – Efficient ECO motor with low annual energy use of 23.50kWh.
- Easy Maintenance – Dishwasher-safe 10-ply stainless steel grease filter and Miele CleanCover.
£925.00
- Product Info
- Specification
- FAQ's
Miele DAS4630 built in extractor hood in Obsidian Black and Clean Steel offers A+++ efficiency, smart Miele@home control and flexible extraction for modern kitchens.
The Miele DAS 4630 Obsidian Black built in extractor hood brings together slimline styling, smart connectivity and efficient extraction for a neat, integrated kitchen finish. Designed in Obsidian Black with a Clean Steel finish, this 60cm canopy hood offers 3+1 intensive speeds, duct out or recirculation operation, LED lighting and an Energy Rating of A+++.
With Miele@home, you can connect compatible Miele appliances through your smart device, while Con@ctivity 3.0 (WiFi) supports a more seamless cooking experience. Touch controls, a programmable booster level switch-off and selectable 5 or 15 minute run-on time make everyday use simple and convenient.
Smart 60cm built in extractor hood for modern kitchens
The Miele DAS4630-OBBL is a slimline cooker hood with a convertible air guide, giving you the flexibility to choose extraction or recirculation to suit your kitchen layout. Its streamlined design, elegant glass shield and obsidian black control panel create a refined built in look that works well in a wide range of interiors.
Electronic touch controls keep operation straightforward, while useful indicators help maintain performance over time. These include a grease filter saturation indicator, programmable grease filter saturation indicator and programmable active charcoal filter saturation indicator.
Efficient extraction with powerful airflow
This Miele extractor hood is equipped with a dual-action blower, DC motor and ECO motor, supported by a Power Management system for efficient everyday running. In extraction mode, airflow reaches 180 m³/h at Level 1, 280 m³/h at Level 2 and 400 m³/h at Level 3, with booster airflow figures listed as 1600 m³/h and 1720 m³/h according to EN 6159.
In recirculation mode, airflow reaches 165 m³/h at Level 1, 265 m³/h at Level 2 and 380 m³/h at Level 3, with booster airflow figures of 585 m³/h and 695 m³/h according to EN 61591.
Sound power levels in extraction mode are 38 dB(A) at Level 1, 48 dB(A) at Level 2 and 56 dB(A) at Level 3, with booster values of 66 dB(A) and 70 dB(A). Sound pressure levels in extraction mode are 25 dB(A), 34 dB(A) and 42 dB(A) across Levels 1 to 3, with booster values of 53 dB(A) and 57 dB(A).
In recirculation mode, sound power levels are 43 dB(A), 53 dB(A) and 62 dB(A) across Levels 1 to 3, with booster values of 72 dB(A) and 77 dB(A). Sound pressure levels are 29 dB(A), 40 dB(A) and 48 dB(A), with booster values of 59 dB(A) and 63 dB(A).
Easy-clean filter system and bright LED lighting
The 10-ply stainless steel grease filter helps capture grease effectively during cooking and is dishwasher-safe for easy cleaning. Miele CleanCover supports straightforward maintenance while helping to protect the electrical components and motor.
An integrated LED light provides clear illumination over the hob for better visibility while you cook. The lighting system features 1 x 3W output, 330 lx light intensity and a 3500 Kelvin colour temperature.
Outstanding efficiency and practical installation details
With an A+++ energy efficiency rating, this built in cooker hood is designed for efficient performance, with annual energy consumption of 23.50 kWh/year. It also achieves Fluid Dynamic Efficiency Class A, Lighting Efficiency Class A and Grease Filtering Efficiency Class A.
The canopy measures 596mm wide, 36mm high and 273mm deep. Minimum installation height is 450mm above electric hobs and 650mm above gas hobs with a maximum total power of 12.6 kW and burner output of up to 4.5 kW. The hood has a net weight of 12.00kg, a 1.50m supply lead, standard plug fitted, 230V voltage, 10A fuse rating, 50Hz frequency and 1 phase connection.
For added peace of mind, the Miele DAS 4630 OBBL also features safety shut-off. Extraction ducting connects at the top, and the hood includes a non-return flap. The listed optional accessory is an active charcoal filter: No.
| Dimensions | 28 × 60 × 4 cm |
|---|---|
| Automatic Programmes | No |
| Brand | Miele |
| Smart Appliance | Yes |
| Energy Efficiency Class | A+++ |
| Colour Group | Black |
| Intensive Mode | Yes |
| Noise Level | 70 |
| No. Of Fan Speeds | 4 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 2 |
| Quiet Mark | Yes |
| Group | Built In |
| Variant | Wall |
| Product Type | Cooker Hood |
| SKU | DAS4630 |
| GTIN | 4002516496151 |
Construction Type
- Slimline cooker hood
Operating Modes
- Type of air guide: Convertible
Design
- Colour: Obsidian black
User Convenience
- Miele@home •
- Automatic function Con@ctivity 3.0 (WiFi) •
- Electronic controls •
- Touch controls •
- Programmable Booster level switch-off •
- Run-on time: 5/15 min. •
- Grease filter saturation indicator •
- Grease filter saturation indicator programmable •
- Active charcoal filter saturation indicator programmable •
Efficiency and Sustainability
- Energy efficiency class (A+++ to D): A+++
- Annual energy consumption in kWh/year: 23.50
- Fluid dynamic efficiency class: A
- Lighting efficiency class: A
- Grease filtering efficiency class: A
- Power Management system •
- ECO motor •
Filter System
- Number of dishwasher-safe stainless steel grease filters (10-ply): 1
Lighting
- LED •
- Number x W: 1 x 3 W
- Light intensity in lx: 330 lx
- Colour temperature in K: 3500 Kelvin
Blower
- Dual-action blower •
- DC motor •
Extraction
- Air throughput in Level 1 (m³/h) according to EN 61591: 180
- Air throughput in Level 2 (m³/h) according to EN 61591: 280
- Air throughput in Level 3 (m³/h) according to EN 61591: 400
- Air throughput in Booster level (m³/h) according to EN 6159: 1600
- Air throughput in Booster level (m³/h) according to EN 6159: 1720
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 38.00
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 48.00
- Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3: 56.00
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3: 66.00
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3: 70.00
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 25.00
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 34.00
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 42.00
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13: 53.00
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13: 57.00
Recirculation
- Air throughput in Level 1 (m³/h) according to EN 61591: 165
- Air throughput in Level 2 (m³/h) according to EN 61591: 265
- Air throughput in Level 3 (m³/h) according to EN 61591: 380
- Air throughput in Booster level (m³/h) according to EN 61591: 585
- Air throughput in Booster level (m³/h) according to EN 61591: 695
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 43.00
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 53.00
- Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3: 62.00
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3: 72.00
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3: 77.00
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 29.00
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 40.00
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 48.00
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13: 59.00
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13: 63.00
Safety
- Safety shut-off •
Technical Data
- Canopy width in mm: 596
- Canopy height in mm: 36
- Depth of hood canopy in mm: 273
- Minimum height above electric hobs in mm: 450
- Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm: 650
- Net weight in kg: 12.00
- Length of supply lead in m: 1.50
- Standard plug fitted •
- Total rated load in kW: 0.16
- Voltage in V: 230
- Fuse rating in A: 10
- Frequency in Hz: 50
- Number of phases: 1
Installation Notes
- Extraction ducting connection at top •
Optional Accessories
- Active charcoal filter: No
Frequently Asked Questions About the DAS4630
Is the Miele DAS4630 suitable for ducted extraction and recirculation?
Yes. The Miele DAS 4630 OBBL is designed to work in either ducted extraction mode or recirculation mode, so it can suit different kitchen layouts. If you are planning to use it in recirculation mode, you will need the appropriate recirculation kit and charcoal filters, which are supplied separately.
Does the Miele DAS 4630 Obsidian Black come ready for recirculation?
Yes. This model is supplied set up for recirculation mode from the factory. If you want to use it as a ducted extractor, it will need to be configured for extraction during installation.
How powerful is the Miele DAS4630?
The Miele DAS4630 offers strong extraction performance for a 60cm built-in hood. It has 3 standard power levels and booster settings, with a maximum extraction rate of up to 720m³/h in ducted mode. This makes it a good choice for everyday cooking as well as heavier frying and stronger cooking odours.
How noisy is the Miele DAS4630?
This model is designed to balance strong extraction with everyday usability. Noise levels vary depending on the selected setting, with the maximum sound power reaching 70dB(A). For most day-to-day cooking, lower settings will be noticeably quieter while still giving effective ventilation.
Does the Miele DAS4630 have washable filters?
Yes. The Miele DAS4630 includes a 10-ply stainless steel grease filter that is reusable and dishwasher-safe. This helps keep ongoing maintenance simple and makes it easier to keep the hood performing well over time.
Does the Miele DAS4630 include smart features?
Yes. This model includes Miele@home and Con@ctivity. With the Miele DAS4630, you can connect the hood to your home Wi-Fi and use compatible smart functions through the Miele app. Con@ctivity also allows the hood to work automatically with a compatible Miele hob.
What type of lighting does the Miele DAS4630 have?
The Miele DAS4630 has an LED strip for clear, even hob lighting. This gives you better visibility while cooking and also helps keep energy use low compared with more traditional lighting types.
What size is the Miele DAS4630?
This model is a 60cm slimline built-in cooker hood with a canopy width of 596mm. It is designed to fit neatly into a wall unit, making it a strong option for kitchens where you want effective extraction without a more prominent chimney-style hood.
What are the minimum installation distances for the Miele DAS4630?
The minimum installation height above an electric hob is 450mm, and the minimum safety distance above a gas hob is 650mm. Your installer should always check the full fitting instructions and your hob manufacturer’s guidance before installation.
Is the Miele DAS4630 energy efficient?
Yes. The Miele DAS4630 has an A+++ energy rating, so it is one of the more efficient options in its category. If you are looking for a built-in extractor that combines low running costs with strong day-to-day performance, this model offers a very efficient setup.
What controls does the Miele DAS4630 use?
This model uses Miele SmartControl touch-on-glass controls. The interface is straightforward to use and gives quick access to fan speeds, booster settings, lighting and run-on functions.
Who would the Miele DAS4630 suit best?
We would recommend the Miele DAS4630 for buyers who want a premium 60cm built-in extractor with a discreet look, strong extraction, smart connectivity and low energy consumption. It is particularly well suited to modern fitted kitchens where space-saving design and clean styling are important.
*FAQs are checked against manufacturer information, but please confirm installation requirements before purchase.
