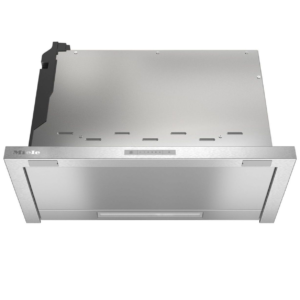

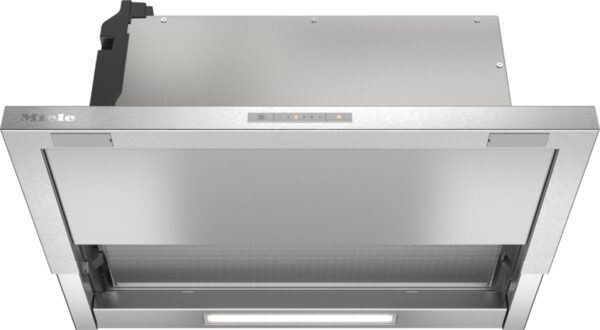

Miele DAS2620 60cm Telescopic Built In Extractor Hood
- Stainless Steel Finish Miele Telescopic Extractor Hood – 3+1 Intensive Speeds, Washable Filter, LED Lighting, Max 555m3/h Capacity, Energy Rating A with a Noise Rating of Just 53dB(A).
- Stainless Steel (10-ply) Grease Filter – Can be cleaned in Dishwasher.
- Energy Efficient – LED Lighting
- Miele CleanCover – Easy cleaning & Protects electrical components + motor.
£565.00
- Product Info
- Specification
- FAQ's
Miele DAS2620 telescopic built-in extractor hood in stainless steel, with up to 555m3/h extraction, LED lighting and Energy Rating A for efficient everyday use.
The Miele DAS2620 60cm telescopic built-in extractor hood in stainless steel is designed to deliver effective extraction, low noise performance and a clean, integrated look in your kitchen. With 3 speeds plus an intensive setting, a maximum extraction rate of 555m3/h, LED lighting and Energy Rating A, it offers reliable everyday performance in a slimline design.
Space-saving Miele telescopic extractor hood
This 60cm slimline cooker hood is ideal for kitchens where a discreet built-in finish is preferred. The telescopic design sits neatly within cabinetry, while the stainless steel finish gives it a smart, timeless appearance. It is a convertible model, offering flexibility to suit different installation requirements.
Flexible extraction with intensive boost
The Miele DAS2620 features electronic controls with light-touch switches and LED indicators for straightforward operation. Choose from three standard extraction levels or use the intensive setting when extra power is needed.
Air throughput in extraction mode according to EN 61591 is:
Level 1: 195m3/h
Level 2: 295m3/h
Level 3: 410m3/h
Booster level: 555m3/h
In recirculation mode according to EN 61591, air throughput is:
Level 1: 190m3/h
Level 2: 290m3/h
Level 3: 415m3/h
Booster level: 550m3/h
Efficient performance with low energy use
This model combines strong performance with efficient operation, with an annual energy consumption of 41.70 kWh/year. It has an Energy Efficiency Class A, along with Fluid Dynamic Efficiency Class A, Lighting Efficiency Class A and Grease Filtering Efficiency Class A.
LED lighting for clear hob illumination
An integrated LED light provides clear, even illumination across the cooking area. The lighting system includes 1 x 3.2W LED with a brightness of 310 lx and a colour temperature of 3500 Kelvin, helping you keep a close eye on cooking while using less energy.
Easy-clean stainless steel grease filter
The 10-ply stainless steel grease filter is designed for efficient filtration and can be cleaned in the dishwasher for easy maintenance. This model includes 1 dishwasher-safe stainless steel grease filter, helping keep the hood performing at its best with less effort.
Miele CleanCover for simpler cleaning
Miele CleanCover helps make cleaning easier while also protecting the electrical components and motor. This practical design detail supports safer maintenance and a cleaner interior.
Noise levels
In extraction mode, sound power levels according to EN 60704-3 are:
Level 1: 47dB(A)
Level 2: 55dB(A)
Level 3: 61dB(A)
Booster level: 68dB(A)
Sound pressure levels in extraction mode according to EN 60704-2-13 are:
Level 1: 34dB(A)
Level 2: 41dB(A)
Level 3: 47dB(A)
Booster level: 54dB(A)
In recirculation mode, sound power levels according to EN 60704-3 are:
Level 1: 53dB(A)
Level 2: 60dB(A)
Level 3: 68dB(A)
Booster level: 74dB(A)
Sound pressure levels in recirculation mode according to EN 60704-2-13 are:
Level 1: 39dB(A)
Level 2: 46dB(A)
Level 3: 54dB(A)
Booster level: 61dB(A)
Key technical details
Canopy width: 596mm
Canopy height: 36mm
Canopy depth: 273mm
Minimum height above electric hobs: 450mm
Minimum safety distance above gas hobs: 650mm
Net weight: 12.00kg
Supply lead length: 1.50m
Total rated load: 0.20kW
Voltage: 230V
Fuse rating: 10A
Frequency: 50Hz
Number of phases: 1
Installation and included item
The extraction ducting connection is positioned at the top and uses a 150mm diameter connection. A standard plug is fitted for installation convenience. This model also features safety shut-off for added reassurance.
Included:
Non-return flap
Optional accessory:
Active charcoal filter: No
| Dimensions | 27.3 × 59.7 × 3.6 cm |
|---|---|
| Automatic Programmes | No |
| Brand | Miele |
| Smart Appliance | No |
| Energy Efficiency Class | A |
| Colour Group | Stainless Steel |
| Intensive Mode | Yes |
| Noise Level | 53 |
| No. Of Fan Speeds | 4 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 2 |
| Group | Telescopic |
| Variant | Wall |
| Product Type | Cooker Hood |
| SKU | DAS2620 |
| GTIN | 4002516467021 |
CONSTRUCTION TYPE
- Slimline cooker hood
OPERATING MODES
- Type of air guide: Convertible
DESIGN
- Colour: Stainless steel
USER CONVENIENCE
- Electronic controls
- Light-touch switches with LED
EFFICIENCY AND SUSTAINABILITY
- Energy efficiency class (A+++ to D): A
- Annual energy consumption in kWh/year: 41.70
- Fluid dynamic efficiency class: A
- Lighting efficiency class: A
- Grease filtering efficiency class: A
FILTER SYSTEM
- Number of dishwasher-safe stainless steel grease filters (10-ply): 1
LIGHTING
- LED
- Number x W: 1 x 3.2 W
- Light intensity in lx: 310 lx
- Colour temperature in K: 3500 Kelvin
BLOWER
- Dual-action blower
- AC motor
EXTRACTION
- Air throughput in Level 1 (m³/h) according to EN 61591: 195
- Air throughput in Level 2 (m³/h) according to EN 61591: 295
- Air throughput in Level 3 (m³/h) according to EN 61591: 410
- Air throughput in Booster level (m³/h) according to EN 61591: 555
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 47.00
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 55.00
- Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3: 61.00
- Sound power in Booster level (dB(A) re 1 pW) according to EN 60704-3: 68.00
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 34.00
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 41.00
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 47.00
- Sound pressure in Booster level (dB(A) re 20 µPa) according to EN 60704-2-13: 54.00
RECIRCULATION
- Air throughput in Level 1 (m³/h) according to EN 61591: 190
- Air throughput in Level 2 (m³/h) according to EN 61591: 290
- Air throughput in Level 3 (m³/h) according to EN 61591: 415
- Air throughput in Booster level (m³/h) according to EN 61591: 550
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 53.00
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 60.00
- Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3: 68.00
- Sound power in Booster level (dB(A) re 1 pW) according to EN 60704-3: 74.00
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 39.00
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 46.00
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 54.00
- Sound pressure in Booster level (dB(A) re 20 µPa) according to EN 60704-2-13: 61.00
SAFETY
- Safety shut-off
TECHNICAL DATA
- Canopy width in mm: 596
- Canopy height in mm: 36
- Depth of hood canopy in mm: 273
- Minimum height above electric hobs in mm: 450
- Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm: 650
- Net weight in kg: 12.00
- Length of supply lead in m: 1.50
- Standard plug fitted
- Total rated load in kW: 0.20
- Voltage in V: 230
- Fuse rating in A: 10
- Frequency in Hz: 50
- Number of phases: 1
INSTALLATION NOTES
- Extraction ducting connection at top
- Diameter of extraction ducting connection in mm: 150
OPTIONAL ACCESSORIES
- Active charcoal filter: No
Frequently Asked Questions About the DAS2620
Is the Miele DAS2620 suitable for a 60cm kitchen unit?
Yes. The Miele DAS2620 is a 60cm telescopic built-in extractor hood with a canopy width of 596mm, so it is designed to fit neatly into a standard 60cm housing unit. Its slimline format makes it a good choice for kitchens where you want extraction performance without a full-size visible chimney hood.
Can the Miele DAS 2620 be used for both extraction and recirculation?
Yes. This model can be installed for extraction, and it can also be retrofitted for recirculation. For recirculation use, you will need the appropriate conversion kit and charcoal filter, which are ordered separately.
What extraction speeds does the Miele DAS2620 offer?
The Miele DAS2620 includes 3 standard fan speeds plus 1 intensive setting. In extraction mode, airflow is rated at 195m³/h on level 1, 295m³/h on level 2, 410m³/h on level 3 and up to 555m³/h on intensive mode. This gives you the flexibility to match performance to everyday cooking or heavier odours and steam.
How noisy is the Miele DAS2620 extractor hood?
This model is designed for relatively quiet day-to-day use. In extraction mode, sound pressure ranges from 34dB(A) on level 1 up to 54dB(A) on intensive mode. In recirculation mode, sound pressure ranges from 39dB(A) to 61dB(A), depending on the speed selected.
Does the Miele DAS2620 have LED lighting?
Yes. The Miele DAS2620 features integrated LED lighting to give clear illumination over the hob while keeping energy use low. It includes a 3.2W LED light with an output of 310 lux and a colour temperature of 3500K, which helps provide a bright, practical cooking area.
Is the grease filter dishwasher safe?
Yes. This model includes 1 dishwasher-safe 10-ply stainless steel grease filter. The filter is designed to capture grease effectively and can be cleaned in the dishwasher, which helps make routine maintenance easier.
What is Miele CleanCover on the DAS2620?
Miele CleanCover is the smooth, easy-clean interior design used inside the hood canopy. On the Miele DAS2620, it also helps protect the electrical components and motor, making the inside of the hood easier to maintain.
What are the installation and clearance requirements?
The Miele DAS2620 has a top duct connection with a 150mm ducting diameter. Minimum installation height is 450mm above an electric hob and 650mm above a gas hob, subject to the hob manufacturer’s guidance where a greater clearance is required. A standard plug is fitted, and the supply lead length is 1.5m.
Does the Miele DAS2620 come with a charcoal filter?
No. Charcoal filters for recirculation are not included as standard with this model. If you are planning a recirculation setup, the required charcoal filter and conversion components need to be purchased separately.
What is included with the Miele DAS2620?
With the Miele DAS2620, you get the telescopic built-in hood and a non-return flap as part of the included accessories. This model also features safety shut-off for added reassurance during everyday use.
Is the Miele DAS2620 energy efficient?
Yes. The Miele DAS2620 has an energy rating of A and annual energy consumption of 41.7kWh. It also carries A ratings for fluid dynamic efficiency, lighting efficiency and grease filtering efficiency, which makes it a strong choice if you want effective extraction with lower running costs.
