Elica BOXIN-LX-90 Boxin LUX 90cm Built-In Extractor Hood in Stainless Steel

Elica 90cm Integrated Cooker Hood – Stainless steel built-in design fits discreetly within a kitchen wall unit.
300–800m³/h Extraction – Powerful adjustable airflow helps clear cooking vapours and odours efficiently.
Three-Speed Rotary Controls – Mechanical dial operation provides straightforward extraction adjustment.
Energy Class A – Efficient performance with a noise range of 50–70dB(A).
LED Lighting – Two 2.5W LED lights provide bright, efficient hob illumination.

2 Year Warranty

In Stock

FOUND IT CHEAPER? Get Our Best Price

£409.00

Product Info
Specification
FAQ's

Item 1

Shop the Elica BOXIN-LX-90 integrated cooker hood, a discreet 90cm stainless steel model with powerful extraction up to 800m³/h and LED lighting.

The Elica Boxin LUX 90cm cooker hood fits neatly inside a kitchen wall unit, helping to maintain a clean, streamlined appearance. Its concealed stainless steel design integrates naturally into contemporary kitchens while protecting surrounding cabinetry from cooking fumes and vapours.

Why choose the Elica BOXIN-LX-90 built-in extractor hood?

Choose the BOXIN-LX-90 if you want powerful 620m³/h extraction in a discreet 90cm built-in design. It suits wider hobs and streamlined kitchen furniture, with cabinet protection, 3 simple rotary speeds, bright LED hob lighting and removable washable filters for easier upkeep. It is a strong fit for shoppers who want Elica’s practical built-in performance and prefer straightforward controls over connected or touch-led extras.

Powerful three-speed extraction

Three mechanical rotary speed settings provide simple, reliable control, with adjustable airflow from 300 to 800m³/h. This powerful 90cm built-in extractor hood helps remove steam, vapours and unwanted cooking odours efficiently.

Operating noise ranges from 50 to 70dB(A), while the A energy efficiency rating supports efficient everyday performance.

Integrated cabinet protection

The Elica Boxin cooker hood features side guards and an ergonomic front visor designed to protect wall units from cooking vapours and potential wear. Its fully integrated format allows the appliance to blend discreetly with the design and finish of your kitchen.

Bright LED hob lighting

Two 2.5W LED lights provide clear and efficient illumination across the cooking area. The 3500K lighting delivers 381 lux, helping you see the hob clearly while preparing meals.

Easy filter maintenance

Removable grease and odour filters make routine cleaning and replacement straightforward. An indicator light alerts you when the filters need to be washed, regenerated or replaced.

The odour filters can last for up to three years, helping to reduce replacement frequency and environmental impact. This stainless steel integrated cooker hood can be installed for external extraction or recirculation when used with the appropriate optional charcoal filter.

Item 2

Weight	10.25 kg
Dimensions	31 × 90 × 37 cm
Automatic Programmes	No
Brand	Elica
Smart Appliance	No
Energy Efficiency Class	B
Colour Group	Stainless Steel
Noise Level	70
No. Of Fan Speeds	3
Outlet Type	Duct Out or Recirculation
Warranty	2
Group	Built In
Variant	Wall
Product Type	Cooker Hood
SKU	BOXIN-LX-90
GTIN	8020283040632

Brand	Elica
Product Type	Built-In Extractor Hood
Model	Boxin LUX 90cm
Product Code	BOXIN-LX-90
Manufacturer Reference	PRF0114761A
Colour	Stainless Steel
Installation Type	Built-in wall unit installation
Width	90cm
Energy Rating	A
Airflow	300-800m³/h
Noise Level	50-70dB(A)
Controls	3-speed mechanical rotary controls
Lighting	2 x 2.5W LED lights, 3500K, 381 lux
Duct Connection	150mm
Power Absorption	255W
Weight	10.25kg
Extraction Mode	External extraction or recirculation with optional charcoal filter
Filter Features	Removable grease and odour filters with filter maintenance indicator
Key Features	Integrated stainless steel design, side guards, ergonomic front visor, LED hob lighting, washable and replaceable filters

Installation details

This cooker hood is designed for built-in installation within a kitchen wall unit. It requires a 150mm duct connection and has a power absorption of 255W. The minimum installation distance is 50cm from induction, radiant and gas hobs. Recirculation installation requires the appropriate optional charcoal filter.

Item 2

Frequently Asked Questions About the BOXIN-LX-90

Is the Elica BOXIN-LX-90 a fully integrated cooker hood?

Yes. The Elica BOXIN-LX-90 is designed to fit inside a kitchen wall unit, leaving a discreet stainless steel extraction panel visible beneath the cabinet. Its side guards and front visor also help protect the surrounding unit from cooking vapours.

How wide is the Elica BOXIN-LX-90?

This model has a nominal width of 90cm, making it suitable for installation above a wide hob or cooking area. The cabinet and cut-out dimensions should be checked against the installation guide before fitting.

What is the extraction rate of the Elica BOXIN-LX-90?

The three extraction speeds provide airflow from approximately 255m³/h to 620m³/h. This allows the extraction level to be adjusted for anything from gentle simmering to cooking that produces more steam and odours.

How is the extraction speed controlled?

The hood uses a mechanical rotary control with three speed settings. This provides straightforward operation without touch controls or a digital display.

Can the Elica BOXIN-LX-90 be used for recirculation?

Yes. It can be installed for either external ducted extraction or recirculation. Recirculating installation requires compatible activated charcoal filters, which are available separately.

What ducting size does the Elica BOXIN-LX-90 require?

The air outlet is designed for 150mm ducting. Using ducting with the correct diameter, a short route and as few bends as possible helps maintain extraction performance and reduce operating noise. The extraction pipe is not supplied with the hood.

How far above the hob should the cooker hood be installed?

The minimum specified distance is 50cm above an electric, radiant or induction hob and 50cm above a gas or mixed-fuel hob. A greater distance must be used when required by the hob manufacturer’s installation instructions.

What lighting does the Elica BOXIN-LX-90 include?

Two 2.5W LED lights illuminate the cooking area. The 3500K light has a neutral white appearance and provides up to 381 lux across the hob.

How noisy is the Elica BOXIN-LX-90?

The stated operating noise ranges from 50dB(A) at the lower setting to 70dB(A) at maximum speed. Noise can also be affected by the length, diameter and number of bends in the ducting.

Does the Elica BOXIN-LX-90 include a grease filter?

Yes. A removable aluminium grease filter is included. It captures airborne grease particles and can be washed by hand with a mild detergent or in a dishwasher on a short, low-temperature programme.

How much cabinet depth is needed for installation?

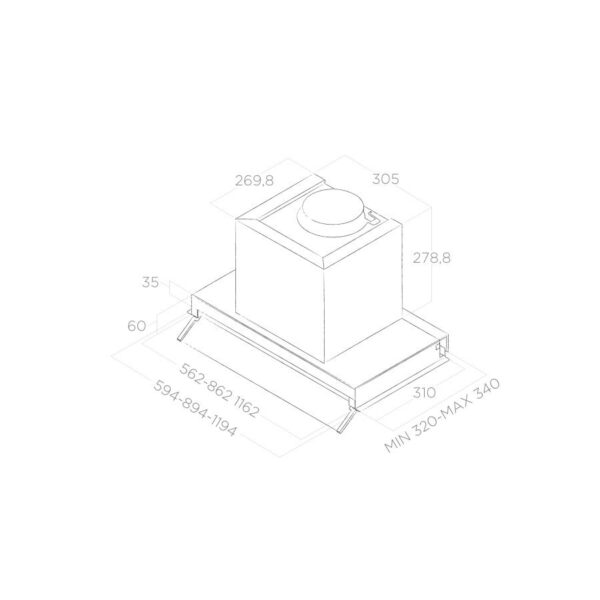

The installation instructions specify a cabinet depth greater than 310mm. The complete cabinet layout, outlet position and fitting clearances should be checked against the supplied installation drawings before the kitchen unit is prepared.

What energy rating does the Elica BOXIN-LX-90 have?

The Elica BOXIN-LX-90, manufacturer reference PRF0114761A, has an A energy efficiency rating and a stated total power absorption of 255W.

Are there any suitable alternatives to the Elica BOXIN-LX-90 Boxin LX 90cm Built In Extractor Hood I could consider?

Yes, you could consider the Elica SKLOCK-S-90-2.0 Sklock 90cm Built In Extractor Hood as a simpler same-brand built-in option with three speeds, button controls and a 425m³/h extraction capacity.

Alternatively, the Elica BOXIN-DRY-90 Boxin Dry 90cm Built In Extractor Hood is a more premium stainless-steel alternative from the same Boxin range, offering an intensive setting and up to 700m³/h extraction. Check the installation drawings before ordering to confirm the cabinet cut-out dimensions.

*FAQs are checked against manufacturer information, but please confirm installation requirements before purchase.
