Smeg Universal 90cm Downdraft Extractor Silver KDD90VXSE

Re-circulating or Ducted
Automatic switch-off function
Maximum extraction 700m³/h (Intensive)
Maximum noise level 70dB

PRODUCT DISCONTINUED

Need help finding an alternative?
Complete the form below and our team will do their best to help
or simply call us on

Product Info
Specification

Item 1

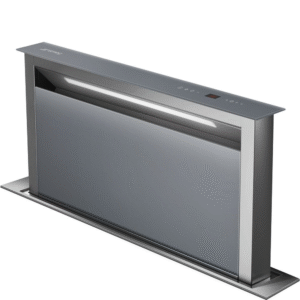

Smeg Universal 90cm Downdraft Extractor Silver KDD90VXSE

DOWNDRAFT EXTRACTOR

The main advantage of downdraft hoods is the sleek design and space-saving opportunities that the unit has to offer. The hood retracts in and out of your worksurface when you need it- saving invaluable space and maintaining the contemporary and minimalist look in your kitchen or open plan area.
Downdraft hoods are installed behind a hob, reversing the direction of rising smoke and fumes to a downward direction.
The design of the unit lends itself perfectly to a kitchen island, although in traditional work surface settings, the extractor can sit close to the wall behind the hob.

MINIMALIST DESIGN

Optimising the space in a kitchen can always be a tricky task – especially when you’re tight for room. It’s important to make the most of your cooking area and ensure that every inch is being used effectively. A current trend that has been steadily growing over the past few years is the introduction of retractable extractors, such as the Smeg island downdraft hood. Great for comtemporary, open plan spaces.

This hood can be vented or recirculated with induction and ceramic hobs. However, when using a gas hob, it is only possible to vent out.

Ducting out extracts cooking fumes and expels them outside, using a vent kit (available as an optional accessory) The diameter of the ducting hose should match the vent outlet of the hood.

SP150 – Simple vent kit for hoods with a 150mm diameter vent outlet
SP150FLAT – Comprehensive vent kit for hoods with a 150mm diameter vent outlet

Re-circulating extracts the cooking fumes and passes them through active charcoal filters (available as an optional accessory), recirculating the cleaned air back into the room. To find out which charcoal filter your hood needs, check the accessory tab on the hoods specification.

INTENSIVE EXTRACTION

A powerful intensive speed can be selected when quick extraction is needed, whether you’re creating a sizzling stir fry or preparing an aromatic curry, even the strongest cooking odours will be removed in no time.

LED LIGHTING

These lights are long lasting, save money and perfectly illuminate the work surface below. They can be switched on regardless of the fans, and used simply to create ambiance lighting in the kitchen.

PERIMETER EXTRACTION

This is an extremely efficient extraction process where vapors are drawn in through a restricted area of the hood quickly and then decrease once inside which reduces noise as it limits the vibrations of the filters.

CLEAN AIR

The 24h air exchange function makes the hood work for 10 minutes every hour at very low speed and therefore without noise for a total of 24 hours in order to purify the air of the house, with low energy impact.

Item 2

Automatic Programmes	No
Brand	Smeg
Smart Appliance	No
Discontinued	Yes
Warranty	2
SKU	7fe4d18bb8ee
GTIN	8017709270407

TYPE

Product family: Hood
Hood Type: Fully Integrated
Hood width: 90 cm
Extraction: Expulsion
Electronic control: Yes
Perimeter extraction: Yes
EAN code: 8017709270407

AESTHETICS

Colour: Silver
Finishing: Brushed
Aesthetics: Universal
Design: Fully integrated
Material: Stainless steel
Type of steel: Brushed
Glass Type: Silver

PROGRAMS / FUNCTIONS

No. of speeds: 4
Intensive speed: Yes
24h air filter function: Yes
Time-setting options: Automatic switch-off

CONTROLS

Control setting: Touch control
Led colour: Ice
Display: Digital

TECHNICAL FEATURES

Remote motor: KITRBDD – Kit Optional
No. of lights: 1
Light type: LED
Light power: 7 W
Dimmer mode: Yes
Light color temperature scale (°K): 4000 °K
Free outlet maximum capacity: 725 m³/h
Motor power: 270 W
No. of filters: 2
Anti-grease filters: Aluminium
Filter replacement indicator: Yes
Vent outlet: 150 mm

PERFORMANCE / ENERGY LABEL

Energy efficicency class ( EEC): A
Fluid Dynamic Efficiency class (FDEC): A
Grease Filtering Efficiency Class (GFEC): D
Lighting Efficiency Class (LEC): A
Annual Efficiency Consumption (AEChood): 58 KWh/year
Fluid Dynamic Efficiency (FDE): 30
Lighting Efficiency (LE): 29 lux/W
Grease Filtering Efficiency (GFE): 65.1 %
Air flow at minumum speed (Qmin): 160 m³/h
Maximum extraction rate: 350 m³/h
Intensive extraction rate: 700 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 40 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 54 dB(A)
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 70 dB(A)
Power Consumption in Off mode (Po): 0.49 W
Time increase factor (F): 0.9
Energy Efficiency Index per first cavity: 53.8
Measured air flow rate at best efficiency point (Qbep): 397 m³/h
Measured air pressure at best efficiency point (Qbep): 441 Pa
Measured electric power input at best efficiency point (Wbep): 162 W
Normal Power of the light system (Wl): 7 W
Average illumination of the light on the cooking surface (Emiddle): 200 lux
Sound power level at highest setting (Lwa): 54 dB(A)

ELECTRICAL CONNECTION

Nominal power: 277 W
Voltage: 220-240 V
Frequency (Hz): 50-60 Hz
Power supply cable length: 1500 mm

SPEED 1

Extraction rate IEC 61591: 160 m³/h
Noise level IEC 60704-2-13: 40 dB(A)
Power: 55 W

SPEED 2

Extraction rate IEC 61591: 290 m³/h
Noise level IEC 60704-2-13: 53 dB(A)
Power: 120 W

SPEED 3

Extraction rate IEC 61591: 350 m³/h
Noise level IEC 60704-2-13: 54 dB(A)
Power: 155 W

SPEED 4

Extraction rate IEC 61591: 430 m³/h
Noise level IEC 60704-2-13: 60 dB(A)
Power: 210 W

INTENSIVE SPEED

Extraction rate (IEC 61591): 700 m³/h
Noise level IEC 60704-2-13: 70 dB(A)
Power: 270 W

LOGISTIC INFORMATION

Dimensions of the product (mm): 1044x880x120
Width: 880 mm
Depth (mm): 120 mm
Product Height (mm): 1044 mm
