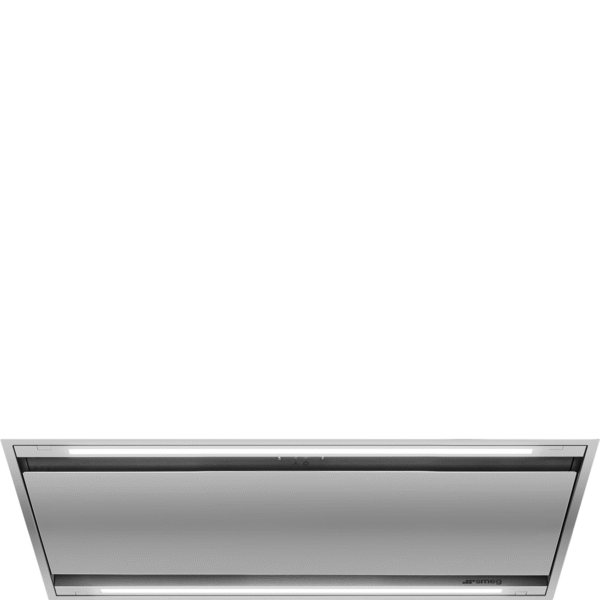

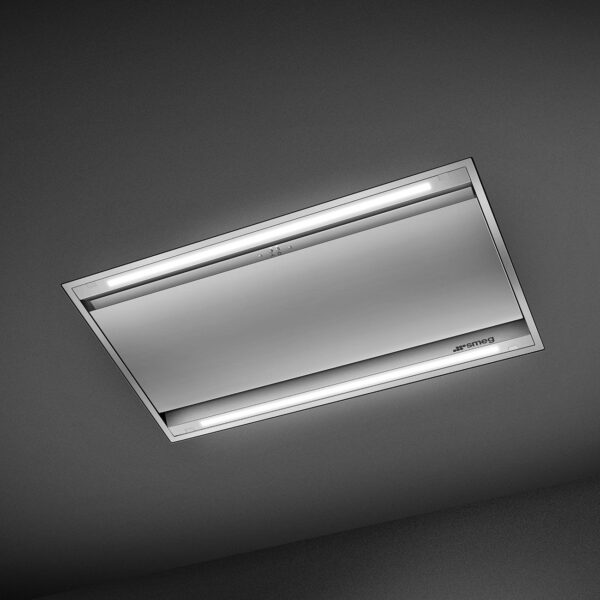

Smeg Universal 90cm Ceiling Cooker Hood Stainless Steel KLT90LXS

Smeg Universal 90cm Ceiling Cooker Hood Stainless Steel KLT90LXS

STREAMLINED STYLE

Ceiling hoods are perfect for open plan kitchen/dining areas with an island unit below.

Whether you have limited headroom, or simply want to leave your kitchen open and clear, ceiling hoods provide an elegant space saving solution in any kitchen and are much less intrusive than conventional hoods.

DUCTING OR RE-CIRCULATING

Most Smeg hoods offer the choice of ducting or re-circulating, so you can choose your preferred method.

Ducting out extracts cooking fumes and expels them outside, using a vent kit (available as an optional accessory) The diameter of the ducting hose should match the vent outlet of the hood.

SP150 – Simple vent kit for hoods with a 150mm diameter vent outlet
SP150FLAT – Comprehensive vent kit for hoods with a 150mm diameter vent outlet
SP215 – Simple vent kit for hoods with a 120mm diameter vent outlet
SP217 – Comprehensive vent kit for hoods with a 120mm diameter vent outlet

Re-circulating extracts the cooking fumes and passes them through active charcoal filters (available as an optional accessory), recirculating the cleaned air back into the room. To find out which charcoal filter your hood needs, check the accessory tab on the hoods specification.

LED LIGHTING

These lights are long lasting, save money and perfectly illuminate the work surface below. They can be switched on regardless of the fans, and used simply to create ambience lighting in the kitchen.

INTENSIVE EXTRACTION

A powerful intensive speed can be selected when quick extraction is needed, whether you’re creating a sizzling stir fry or preparing an aromatic curry, even the strongest cooking odours will be removed in no time.

PERIMETER EXTRACTION

This is extremely efficient extraction process where vapors are drawn in through a restricted area of the hood quickly and then decrease once inside which reduces noise as it limits the vibrations of the filter.

TYPE

• Product family: Hood
• Hood Type: Ceiling
• Hood width: 90 cm
• Extraction: Expulsion
• Electronic control: Yes
• Perimeter extraction: Yes
• EAN code: 8017709287412

AESTHETICS

• Colour: Stainless steel
• Finishing: Brushed
• Aesthetics: Universal
• Design: Ceiling
• Material: Stainless steel
• Type of steel: Brushed

PROGRAMS / FUNCTIONS

• No. of speeds: 3
• Intensive speed: Yes

CONTROLS

• Control setting: Electronic buttons

TECHNICAL FEATURES

• No. of lights: 2
• Light type: LED
• Light power: 7.4 W
• Light color temperature scale (°K): 3000 °K
• Light color temperature range: 3000° – 5700° °K
• Free outlet maximum capacity: 610 m³/h
• Motor power: 270 W
• No. of filters: 3
• Anti-grease filters: Aluminium
• Minimum distance from GAS hob: 650 mm
• Vent outlet: 150 mm
• Minimum distance from ELECTRIC hob: 650 mm
• Non return valve: Yes

PERFORMANCE / ENERGY LABEL

• Energy efficicency class ( EEC): B
• Fluid Dynamic Efficiency class (FDEC): B
• Grease Filtering Efficiency Class (GFEC): G
• Lighting Efficiency Class (LEC): F
• Annual Efficiency Consumption (AEChood): 94 KWh/year
• Fluid Dynamic Efficiency (FDE): 27.5
• Lighting Efficiency (LE): 7.9 lux/W
• Grease Filtering Efficiency (GFE): 43.0 %
• Air flow at minumum speed (Qmin): 213 m³/h
• Maximum extraction rate: 459 m³/h
• Intensive extraction rate: 604 m³/h
• Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 51 dB(A)
• Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 64 dB(A)
• Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 70 dB(A)
• Power consumption in stand-by mode (Ps): 0.40 W
• Time increase factor (F): 1.0
• Energy Efficiency Index per first cavity: 63.2
• Measured air flow rate at best efficiency point (Qbep): 358 m³/h
• Measured air pressure at best efficiency point (Qbep): 633 Pa
• Measured electric power input at best efficiency point (Wbep): 229 W
• Normal Power of the light system (Wl): 15 W
• Average illumination of the light on the cooking surface (Emiddle): 117 lux
• Sound power level at highest setting (Lwa): 70 dB(A)

ELECTRICAL CONNECTION

• Nominal power: 230 W
• Voltage: 220-240 V
• Frequency (Hz): 50-60 Hz
• Power supply cable length: 1500 mm

SPEED 1

• Extraction rate IEC 61591: 213 m³/h
• Noise level IEC 60704-2-13: 51 dB(A)
• Power: 124 W

SPEED 2

• Extraction rate IEC 61591: 329 m³/h
• Noise level IEC 60704-2-13: 56 dB(A)
• Power: 164 W

SPEED 3

• Extraction rate IEC 61591: 459 m³/h
• Noise level IEC 60704-2-13: 64 dB(A)
• Power: 213 W

INTENSIVE SPEED

• Extraction rate (IEC 61591): 604 m³/h
• Noise level IEC 60704-2-13: 70 dB(A)
• Power: 282 W

LOGISTIC INFORMATION

• Dimensions of the product (mm): 312x899x469
• Width: 899 mm
• Depth (mm): 469 mm
• Product Height (mm): 312 mm
