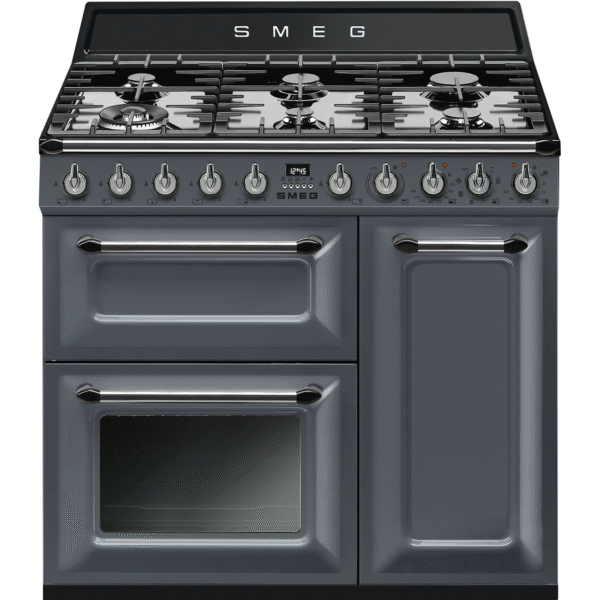

Smeg TR93GR 90cm Range Cooker with Gas Top

Smeg Victoria 90cm Range Cooker with Gas Top Slate Grey TR93GR

VICTORIA AESTHETIC

Inspired by Smegs very first Elisabeth cooker produced in 1948, the Victoria range perfectly captures the essence of timeless classic design and exclusive aesthetics, thanks to Smegs signature 1950s style branding and premium build quality.

AUXILIARY OVEN

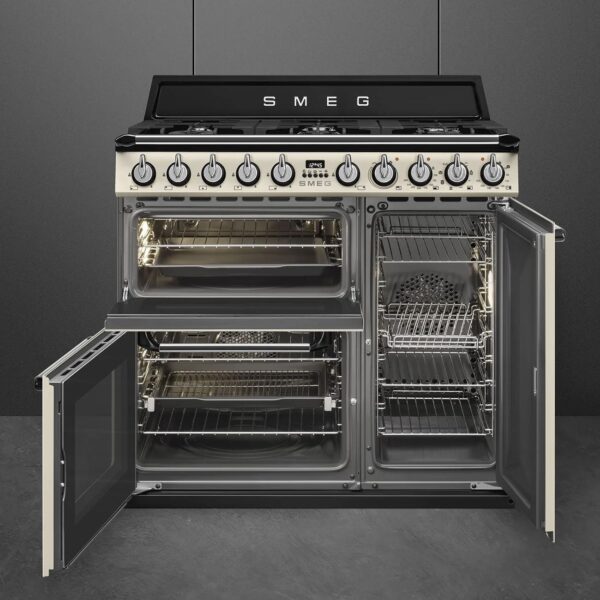

The TR93’s AUXILIARY OVEN (positioned on the right hand side) has a full height side opening door which is externally glazed with an enamelled inner door for energy efficiency. With a net capacity of 62 litres this tall oven is equipped a total of 9 cooking levels making it ideal for small batch baking and plate warming – in fact you can cook a whole roast dinner just in this tall oven.

GRILL OVEN

The GRILL OVEN (positioned top left) boasts a powerful 2.7kW adjustable grill, and has a 36 litre net capacity alongside 2 cooking levels.

The grill operated with the drop down door closed. It is particularly energy efficient and is easy to maintain thanks to its enamel interior and roof liner for effortless cleaning. There’s also telescopic rails to glide your grill pan in and out of the oven.

TYPE

• Product Family: Cooker
• Cooker size: 90×60 cm
• Hob energy type: Gas
• N. of ovens: 3
• Hob type: Gas
• Main oven type: Thermo-ventilated
• Type of second oven: Thermo-ventilated
• Cleaning system: Vapor Clean
• EAN code: 8017709294243

AESTHETICS

• Colour: Slate Grey
• Aesthetics: Victoria
• Design: Victoria
• Material: Enamelled
• Door: With frame
• Command panel finish: Enamelled metal
• Hob colour: Black enamel
• Handle: Smeg Victoria
• Controls colour: Stainless steel
• Upstand: Yes
• Display: electronic 5 buttons
• Type of pan stands: Cast Iron
• Handle Colour: Brushed stainless steel
• Control knobs: Smeg Victoria
• Glass type: Black
• No. of controls: 10
• Plinth: Anthracite

PROGRAMS / FUNCTIONS

Traditional cooking functions

• Static
• Circulaire
• Turbo (circulaire + bottom + upper + fan)
• ECO
• Small grill
• Large grill
• Fan grill (large)
• Fan assisted base

Cleaning functions

• Vapor Clean

PROGRAMS / FUNCTIONS AUXILIARY OVEN

• Cooking functions cavity 2: 1

Traditional cooking functions, cavity 2

• Circulaire

PROGRAMME / FUNCTIONS THIRD OVEN

• No. of functions third oven: 1

OPTIONS MAIN OVEN

• Timer: Yes
• End of cooking acoustic alarm: Yes
• Minimum Temperature: 50 °C
• Maximum temperature: 260 °C

OPTIONS AUXILIARY OVEN

• Minimum Temperature: 50 °C
• Maximum temperature: 245 °C

OPTIONS THIRD OVEN

• Minimum Temperature: 50 °C
• Maximum temperature: 260 °C

HOB TECHNICAL FEATURES

• Total no. of cook zones: 6
• 1st zone position: Front left
• 2nd zone position: Rear left
• 3rd zone position: Front centre
• 4th zone position: Rear centre
• 5th zone position: Front right
• 6th zone position: Rear right
• 1st zone type: Gas – 2UR (dual)
• 2nd zone type: Gas – AUX
• 3rd zone type: Gas – AUX
• 4th zone type: Gas – Semi Rapid
• 5th zone type: Gas – Semi Rapid
• 6th zone type: Gas – Rapid
• 1st zone power: 4.20 kW
• 2nd zone power: 1.00 kW
• 3rd zone power: 1.00 kW
• 4th zone power: 1.80 kW
• 5th zone power: 1.80 kW
• 6th zone power: 2.90 kW
• Type of gas burners: Standard
• Burner caps: Matt black enamelled
• Automatic electronic ignition: Yes
• Gas safety valves: Yes

MAIN OVEN TECHNICAL FEATURES

• Net volume of the cavity: 61 litres
• Cavity material: Easy clean enamel
• Shelf positions: 4
• Type of shelves: Metal racks
• No. of lights: 1
• Light type: Halogen
• Light power: 40 W
• Fan number: 1
• Cooking time setting: Start and Stop
• Door opening: Side opening
• Side opening door: Yes
• Removable door: Yes
• Full glass inner door: Yes
• Removable inner door: Yes
• Total no. of door glasses: 3
• No.of thermo-reflective door glasses: 1
• Safety Thermostat: Yes
• Cooling system: Tangential
• Grill type: Electric
• Tilting grill: Yes
• Grill element: 1700 W
• Large grill – Power: 2700 W
• Lower heating element power: 1200 W
• Upper heating element – Power: 1000 W
• Circular heating element – Power: 2000 W
• Temperature control: Electro-mechanical

SECOND OVEN TECHNICAL FEATURES

Net volume of the second cavity: 62 litres

Cavity material: Easy clean enamel

Shelf positions: 9

Type of shelves: Metal racks

No. of lights: 1

Light type: Halogen

Light power: 40 W

Door opening: Side opening

Side opening door: Yes

Removable door: Yes

Full glass inner door: Yes

Removable inner door: Yes

No. total door glasses: 2

No. thermo-reflective door glasses: 1

Safety Thermostat: Yes

Cooling system: Tangential

Temperature control: Electro-mechanical

THIRD OVEN TECHNICAL FEATURES

• Net volume, 3rd cavity: 36 l
• Gross volume, 3rd cavity: 41 l
• Cavity material: Easy clean enamel
• Shelf positions: 2
• Type of shelves: Metal racks
• No. of lights: 1
• Light type: Halogen
• Light power: 40 W
• Door opening: Flap down
• Removable door: Yes
• Full glass inner door: Yes
• Removable inner door: Yes
• No. total door glasses: 3
• No. of thermo-reflective door glasses: 1
• Safety Thermostat: Yes
• Cooling system: Tangential
• Grill type: Electric
• Tilting grill: Yes
• Large grill – Power: 2700 W
• Temperature control: Electro-mechanical

PERFORMANCE / ENERGY LABEL

• Energy efficiency class: A
• GAS – Energy consumption in fan-forced convection, first cavity: 2.77 MJ
• Energy consumption forced air convection (kWh) first cavity: 0.77 KWh
• GAS – Energy consumption conventional mode, first cavity: 3.42 MJ
• Energy consumption conventional first cavity (kWh): 0.95 KWh

PERFORMANCE /ENERGY LABEL – SECOND CAVITY

• Energy efficiency class, second cavity: B
• GAS – Energy consumption in forced air convection, second cavity: 3.49 MJ
• GAS – Energy consumption in forced air convection, second cavity: 0.97 KWh

ELECTRICAL CONNECTION

• Nominal power: 8300 W
• Voltage: 220-240 V
• Voltage 2 (V): 380-415 V
• Frequency: 50/60 Hz

GAS CONNECTION

• Gas connection rating (W): 12700 W
• Gas Type: G20 Natural gas

LOGISTIC INFORMATION

• Width (mm): 900 mm
• Product Height (mm): 900 mm
• Depth (mm): 600 mm
• Net weight (kg): 106.300 kg
