KSG9P4X

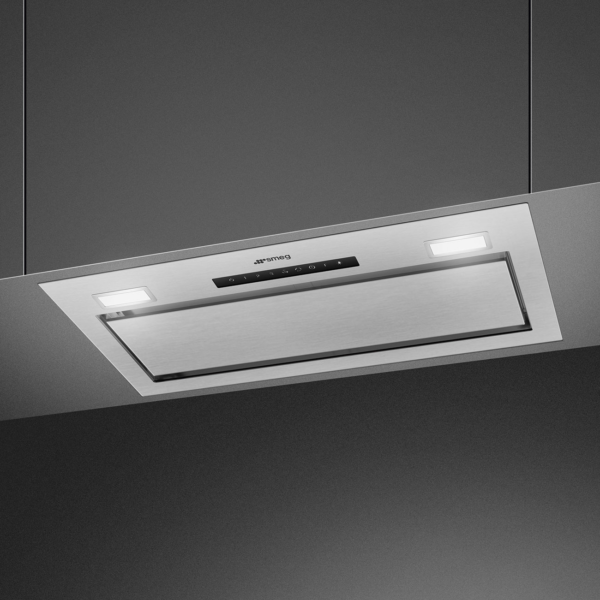

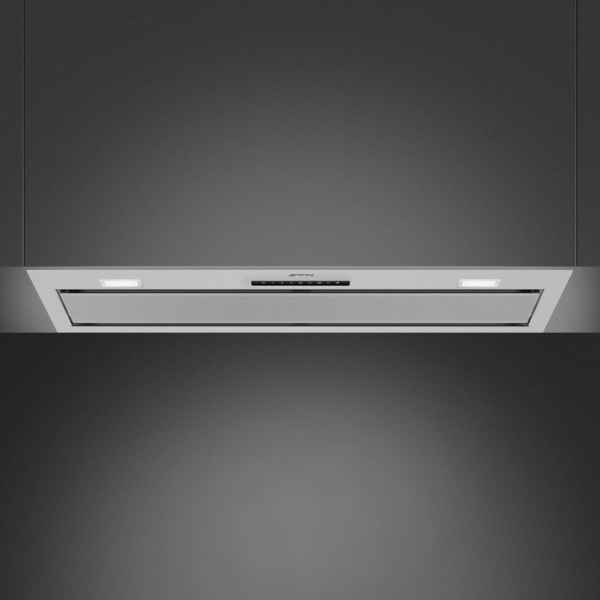

Smeg KSG9P4X 90cm Integrated Canopy Cooker Hood in Stainless Steel

Smeg 90cm Integrated Canopy Cooker Hood – Brushed stainless steel extractor with a maximum airflow of 481 m³/h.
Intensive Extraction – Boosts airflow to 697 m³/h for rapidly clearing stronger cooking odours.
Perimeter Extraction – Draws in vapours efficiently while helping to reduce filter vibration and operating noise.
Ducted or Recirculating Installation – Supports flexible fitting with a 150mm vent outlet and optional charcoal filters for recirculation.
Dimmable LED Lighting – Two efficient LED lights offer an adjustable colour temperature from 2700K to 4000K.

2 Year Warranty

In Stock

FOUND IT CHEAPER? Get Our Best Price

£719.00

Product Info
Specification
FAQ's

Item 1

Shop the Smeg KSG9P4X 90cm integrated canopy cooker hood in stainless steel, with Auto-Vent 2.0, LED lighting and 697 m³/h intensive extraction. Finished in stainless steel, this Smeg extractor hood offers 3 speeds plus an intensive setting, with a maximum extraction rate of 481 m³/h and 697 m³/h on intensive mode. It also features touch controls, LED lighting, Energy Rating A, and a low noise level of just 67dB(A).

Why choose the Smeg KSG9P4X 90cm canopy cooker hood?

Choose the Smeg KSG9P4X if you want a discreet 90cm hood that sits neatly within cabinetry while still giving strong extraction for larger hobs. Auto-Vent 2.0 lets a compatible Smeg hob control the hood automatically, adjusting extraction as you cook. Perimeter extraction, an intensive speed, 24-hour air refresh, touch controls and adjustable LED lighting make it a smart fit for modern kitchens where clean lines and everyday practicality matter.

Efficient extraction for everyday cooking

The 3 speeds plus intensive function help remove cooking odours effectively, including stronger smells when extra power is needed. The intensive setting is ideal for times when quick extraction is required, helping clear the air efficiently while you cook.

Perimeter extraction for quieter performance

This model features perimeter extraction, an efficient system that draws vapours in through a restricted area of the hood. Once inside, airflow decreases, helping to reduce noise by limiting vibrations from the filters. The result is an extraction process that is both effective and quieter in operation.

Streamlined design for open-plan kitchens

Ceiling hoods are a great choice for open-plan kitchen and dining areas, particularly where there is an island unit below. They offer an elegant, space-saving solution and are much less intrusive than conventional hoods, making them ideal for kitchens where you want to maintain an open, uncluttered look.

Whether headroom is limited or you simply prefer a cleaner, more streamlined finish, this built-in extractor hood helps create a stylish and practical cooking space.

Ducted or recirculating installation

Like most Smeg hoods, the KSG9P4X can be installed as either ducted or recirculating, giving you the flexibility to choose the setup that suits your kitchen.

Ducting out provides optimum extraction of cooking fumes by expelling them outside using a vent kit, available as an optional accessory. This hood has a 150mm vent outlet, compatible with the following options:

SP150 – Simple vent kit for hoods with a 150mm diameter vent outlet
SP150FLAT – Comprehensive vent kit for hoods with a 150mm diameter vent outlet

Recirculating extracts cooking fumes and passes them through active charcoal filters, available as an optional accessory, before recirculating the cleaned air back into the room. To find the correct charcoal filter for this hood, please refer to the accessory tab on the hood’s specification.

LED lights for clear visibility

The integrated LED lights provide bright, efficient illumination across your hob area and work surface below. They are long-lasting, energy efficient, and can be switched on independently of the fan, making them useful for both cooking and ambient kitchen lighting.

Item 2

Weight	11.5 kg
Dimensions	30 × 89.7 × 33.5 cm
Brand	Smeg
Smart Appliance	No
Energy Efficiency Class	A
Colour Group	Stainless Steel
Intensive Mode	Yes
Noise Level	67
No. Of Fan Speeds	4
Outlet Type	Duct Out or Recirculation
Warranty	2
Group	Built In
Variant	Wall
Product Type	Cooker Hood
SKU	KSG9P4X
GTIN	8017709319380

Brand	Smeg
Product Type	Integrated canopy cooker hood
Model	KSG9P4X
EAN	8017709319380
Colour	Stainless steel
Finish	Brushed stainless steel
Width	90 cm
Dimensions	335 x 897 x 300 mm
Installation Type	Ducted extraction or recirculation
Vent Outlet	150 mm
Controls	White backlit touch controls
Speeds	3 speeds plus intensive setting
Maximum Extraction Rate	481 m³/h
Intensive Extraction Rate	697 m³/h
Free Outlet Maximum Capacity	730 m³/h
Noise Level	45 dBA minimum, 60 dBA maximum, 67 dBA intensive
Lighting	2 x 2.3 W dimmable LED lights
Light Colour Temperature	2700 – 4000 K
Filters	2 aluminium anti-grease filters with replacement indicator
Perimeter Extraction	Yes
Auto-Vent 2.0	Yes
Additional Functions	24h air filter function and automatic switch-off
Energy Rating	A
Annual Energy Consumption	53 kWh/year
Nominal Power	235 W
Voltage	220-240 V
Power Cable Length	1500 mm
Plug	No
Net Weight	11.5 kg

Installation details

This cooker hood can be installed for ducted extraction or recirculation. It has a 150 mm vent outlet and is compatible with optional 150 mm ducting kits. Recirculating installation requires suitable optional charcoal filters. Minimum installation distance is 650 mm above a gas hob and 500 mm above an electric hob. The hood is supplied without a plug and includes a 1500 mm power supply cable.

Item 2

Frequently Asked Questions About the KSG9P4X

What type of cooker hood is the Smeg KSG9P4X?

The Smeg KSG9P4X is a 90cm fully integrated canopy cooker hood. It is designed to be built into kitchen cabinetry for a clean, discreet look while still providing strong extraction over a wider hob or range cooking area.

Can the Smeg KSG9P4X be used for both ducted and recirculating installation?

Yes. This model can be installed either as a ducted hood or in recirculating mode. Ducting out is usually the best option for removing cooking fumes to the outside, while recirculating is useful where external venting is not practical. The Smeg KSG9P4X uses a 150mm vent outlet, and charcoal filters are required for recirculating use.

How powerful is the extraction on the Smeg KSG9P4X?

The Smeg KSG9P4X offers a maximum extraction rate of 481m³/h in normal operation, with an intensive setting reaching 697m³/h. This makes it a good choice for busy kitchens, larger cooking zones, and situations where you need extra help clearing steam, smoke, and strong odours quickly.

How many speed settings does the Smeg KSG9P4X have?

This model includes 3 standard fan speeds plus an intensive setting. That gives you flexible control for everyday cooking, as well as extra power when frying, searing, or cooking more aromatic dishes.

Is the Smeg KSG9P4X noisy?

The Smeg KSG9P4X is designed to balance extraction performance with low-noise operation. Noise levels start from 45dB at the lowest speed, reach 60dB at maximum normal speed, and go up to 67dB on the intensive setting. Perimeter extraction also helps reduce noise by limiting filter vibration.

Does the Smeg KSG9P4X have LED lighting?

Yes. The Smeg KSG9P4X has 2 LED lights to illuminate the cooking area below. It also includes dimmer control and an adjustable light colour temperature range from 2700K to 4000K, which gives you more flexibility for task lighting and softer ambient lighting.

Does the Smeg KSG9P4X have touch controls?

Yes. This model uses white back-lit touch controls for a clean, modern finish and straightforward operation. It is designed for easy access to the fan speeds, lighting, and additional functions.

What special features does the Smeg KSG9P4X include?

The Smeg KSG9P4X includes several useful features beyond standard extraction. These include an intensive mode for fast odour removal, a 24-hour air refresh function, automatic switch-off, perimeter extraction, and filter replacement indication. With the Smeg KSG9P4X, you also get Auto-Vent 2.0 compatibility for automatic hood management when paired with a compatible hob.

Does the Smeg KSG9P4X have washable grease filters?

Yes. The Smeg KSG9P4X includes 2 aluminium anti-grease filters. These are designed to capture grease from cooking vapours and help maintain efficient performance. The filter replacement indicator is also useful for ongoing maintenance.

What size opening or space do I need for the Smeg KSG9P4X?

This model is 90cm wide and the listed dimensions are approximately 335mm high, 897mm wide, and 300mm deep. As it is a built-in canopy hood, we would always recommend checking your cabinet size, installation space, and ventilation route before ordering.

What is the minimum installation distance above the hob?

The Smeg KSG9P4X requires a minimum distance of 650mm above a gas hob and 500mm above an electric hob. Following these installation clearances is important for safe operation and correct performance.

Is the Smeg KSG9P4X energy efficient?

Yes. The Smeg KSG9P4X has an A energy efficiency rating. This makes it a strong option if you want effective extraction with lower running costs compared with less efficient models.

Are there any suitable alternatives to the Smeg KSG9P4X 90cm Built In Cooker Hood I could consider?

Yes, you could consider the Smeg KSG6P4X 60cm Built In Cooker Hood as a narrower same-brand built-in option with perimeter extraction, intensive mode and LED lighting.

Alternatively, if your cabinetry can accommodate a wider extractor, the Smeg KSGT124X 120cm Universal Canopy Cooker Hood Stainless Steel is a more premium built-in canopy alternative with stronger intensive extraction and Smeg’s V-Condense system.

*FAQs are checked against manufacturer information, but please confirm installation requirements before purchase.
