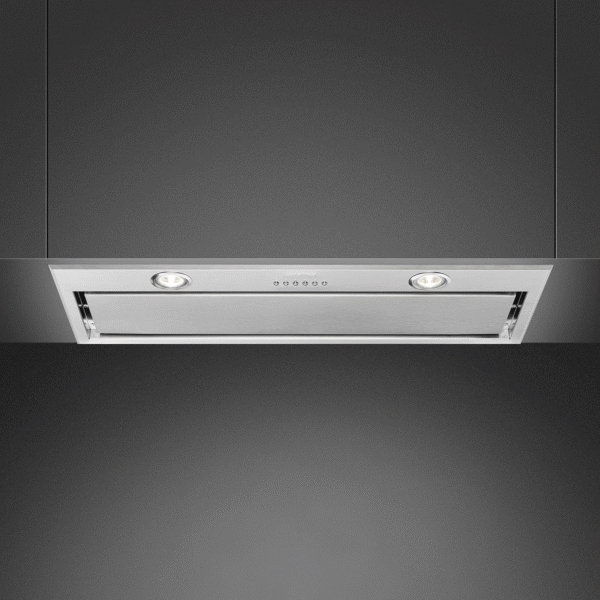

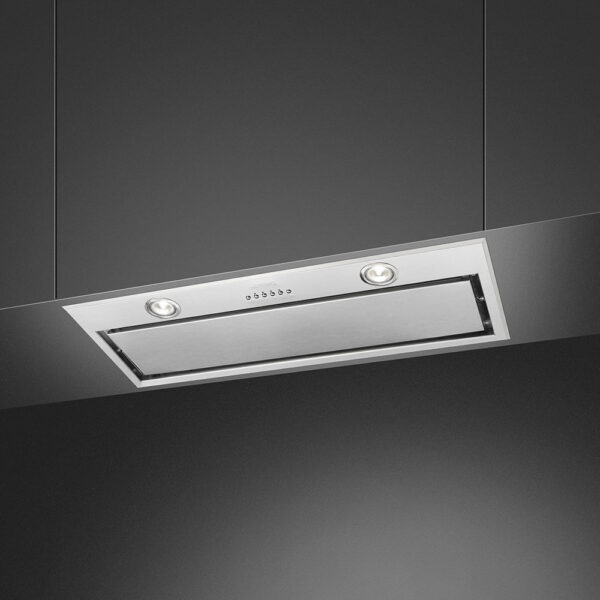

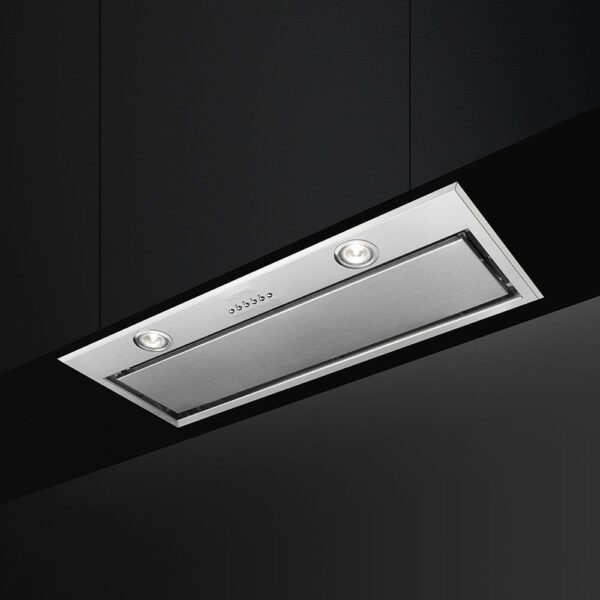

Smeg KSEG78PXE – 77cm Built In Extractor Hood
- 77cm Built In Extractor Hood – Fully integrated Smeg cooker hood with a brushed stainless steel finish.
- Powerful Extraction – Intensive speed delivers up to 683 m³/h for fast removal of steam and cooking odours.
- 3 Speeds Plus intensive – Electronic controls and automatic switch-off offer flexible ventilation while cooking.
- LED Hob Lighting – Two efficient LED lights illuminate the cooking area clearly.
- Ducted Or Recirculating – Suitable for external venting or recirculation with optional charcoal filters.
Complete the form below and our team will do their best to help
or simply call us on
- Product Info
- Specification
- FAQ's
The Smeg KSEG78PXE is a 77cm fully integrated cooker hood designed to provide powerful, discreet extraction with a smart brushed stainless steel finish.
Smeg KSEG78PXE 77cm Integrated Cooker Hood
The Smeg KSEG78PXE 77cm integrated cooker hood offers a fully built-in design with a brushed stainless steel finish, making it a discreet and practical choice for modern kitchens.
Designed for flexible everyday ventilation, this Smeg cooker hood features electronic button controls, 3 speeds plus an intensive speed, and a maximum extraction rate of 606 m³/h. For more demanding cooking, the intensive extraction setting delivers up to 683 m³/h to help remove steam, vapours and cooking odours quickly.
Why choose the Smeg KSEG78PXE built-in extractor hood?
Choose the Smeg KSEG78PXE if you want a discreet 77cm integrated hood with powerful perimeter extraction up to 683m³/h on intensive speed. Its stainless steel, fully built-in design suits streamlined kitchens, while LED lighting, electronic buttons, washable aluminium grease filters and a filter-change indicator keep everyday use simple. It can be set up for ducted extraction or recirculation, making it a flexible fit for many kitchen layouts.
Ducted or Recirculating Installation
Most Smeg hoods offer the choice of ducting or recirculating, allowing you to choose your preferred method of extraction.
Ducting out extracts cooking fumes and expels them outside using a vent kit, available as an optional accessory. The diameter of the ducting hose should match the vent outlet of the hood. The vent outlet diameter for this model is 150 mm.
Compatible vent kits include:
SP150: Simple vent kit for hoods with a 150 mm diameter vent outlet
SP150FLAT: Comprehensive vent kit for hoods with a 150 mm diameter vent outlet
SP215: Simple vent kit for hoods with a 120 mm diameter vent outlet
SP217: Comprehensive vent kit for hoods with a 120 mm diameter vent outlet
Recirculating extracts cooking fumes and passes them through active charcoal filters, available as an optional accessory, before recirculating the cleaned air back into the room. To find out which charcoal filter this hood needs, check the accessory tab on the hood specification.
Powerful Intensive Extraction
When fast extraction is needed, the intensive speed provides extra power for cooking such as sizzling stir fries or aromatic curries. Even stronger cooking odours can be removed quickly, helping to keep the kitchen fresher while you cook.
Efficient Perimeter Extraction
Perimeter extraction draws vapours through a restricted area of the hood before the airflow decreases once inside. This efficient process helps reduce noise by limiting vibrations from the filters.
LED Hob Lighting
Two 1 W LED lights clearly illuminate the cooking area below. Long lasting and energy efficient, they can be switched on independently of the fan and used to create ambient lighting in the kitchen.
Installation Details
The vent outlet diameter is 150 mm. The minimum distance from a gas hob is 750 mm, and the minimum distance from an electric hob is 650 mm. The power supply cable length is 1500 mm.
| Dimensions | 30 × 77 × 33.5 cm |
|---|---|
| Automatic Programmes | No |
| Brand | Smeg |
| Smart Appliance | No |
| Discontinued | Yes |
| Energy Efficiency Class | A |
| Noise Level | 68 |
| No. Of Fan Speeds | 4 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 2 |
| SKU | KSEG78PXE |
| GTIN | 8017709224905 |
| Product Type | Integrated hood |
|---|---|
| Product Family | Hood |
| EAN | 8017709224905 |
| Colour | Stainless steel |
| Finish | Brushed |
| Design | Fully integrated |
| Material | Stainless steel |
| Width | 77 cm |
| Dimensions | 335 x 770 x 300 mm |
| Extraction Type | Expulsion |
| Controls | Electronic buttons |
| Speeds | 3 speeds plus intensive speed |
| Maximum Extraction Rate | 606 m³/h |
| Intensive Extraction Rate | 683 m³/h |
| Noise Level | 46-65 dB(A), 68 dB(A) on intensive speed |
| Lighting | 2 x 1 W LED lights |
| Light Colour Temperature | 4000 K |
| Filters | 2 aluminium anti-grease filters |
| Filter Indicator | Yes |
| Perimeter Extraction | Yes |
| Non-Return Valve | Yes |
| Energy Rating | A |
| Annual Energy Consumption | 46 kWh/year |
| Grease Filtering Efficiency Class | E |
| Lighting Efficiency Class | A |
| Fluid Dynamic Efficiency Class | A |
| Motor Power | 275 W |
| Nominal Power | 277 W |
| Voltage | 220-240 V |
| Frequency | 50-60 Hz |
Installation details
Vent outlet diameter is 150 mm. Minimum distance from a gas hob is 750 mm and minimum distance from an electric hob is 650 mm. Power supply cable length is 1500 mm.
Frequently Asked Questions About the KSEG78PXE
Is the Smeg KSEG78PXE a built-in cooker hood?
Yes. The Smeg KSEG78PXE is a fully integrated 77cm cooker hood designed to be built into kitchen cabinetry, giving you discreet extraction with a brushed stainless steel finish.
What size is the Smeg KSEG78PXE?
The Smeg KSEG78PXE measures 770mm wide, 335mm high and 300mm deep. This makes it suitable for kitchens needing a wider integrated canopy-style hood.
How powerful is the Smeg KSEG78PXE cooker hood?
This model has a maximum extraction rate of 606 m³/h, with an intensive speed that increases extraction up to 683 m³/h. This is useful when cooking produces more steam, vapour or strong odours.
Does the Smeg KSEG78PXE have an intensive speed setting?
Yes. The Smeg KSEG78PXE includes 3 standard speeds plus an intensive speed, giving you extra extraction power when you need to clear the air quickly.
Can the Smeg KSEG78PXE be used for recirculation?
Yes. The Smeg KSEG78PXE can be installed for recirculating use with the correct optional charcoal filter kit. The compatible charcoal filter kit for this model is FLT4.
Can the Smeg KSEG78PXE be ducted outside?
Yes. This hood can be used for external extraction. The vent outlet diameter is 150mm, so we would recommend using a compatible 150mm ducting kit for the best airflow performance.
What controls does the Smeg KSEG78PXE have?
The Smeg KSEG78PXE uses electronic button controls, making it simple to select the fan speed and adjust the extraction level while cooking.
Does the Smeg KSEG78PXE have lighting?
Yes. This model includes 2 x 1W LED lights to illuminate the hob area below. The lights are energy efficient and can help improve visibility while cooking.
How noisy is the Smeg KSEG78PXE?
The Smeg KSEG78PXE has a noise level range of 46 to 65 dB(A), rising to 68 dB(A) on the intensive setting. This gives you quieter everyday extraction with extra power available when needed.
Does the Smeg KSEG78PXE have washable grease filters?
Yes. This model includes 2 aluminium anti-grease filters. It also has a filter indicator to help remind you when maintenance is needed.
What is perimeter extraction on the Smeg KSEG78PXE?
Perimeter extraction draws air through a more restricted area around the hood, helping to manage airflow efficiently and reduce vibration from the filters. This supports effective extraction while keeping the design discreet.
What is the minimum installation height above a hob?
The Smeg KSEG78PXE should be installed at least 750mm above a gas hob and at least 650mm above an electric hob. Always follow the installation instructions for safe and correct fitting.
What energy rating does the Smeg KSEG78PXE have?
The Smeg KSEG78PXE has an A energy rating, with an annual energy consumption of 46 kWh/year. This makes it a practical choice if you want strong extraction with efficient everyday performance.
Are there any suitable alternatives to the Smeg KSEG78PXE 77cm Built In Extractor Hood I could consider?
Yes, you could consider the Smeg KI52E3 52cm Built In Hood in Silver Grey as a simpler same-brand built-in cooker hood option with duct-out or recirculation, 3 speeds and LED lighting, or the Smeg KSET900XE 90cm Built In Extractor Hood if you want a larger stainless steel built-in telescopic alternative with duct-out or recirculation, LED lighting and a stronger maximum extraction rate. Please check cabinet width and installation dimensions before ordering, as neither is an exact 77cm like-for-like replacement.
*FAQs are checked against manufacturer information, but please confirm installation requirements before purchase.
