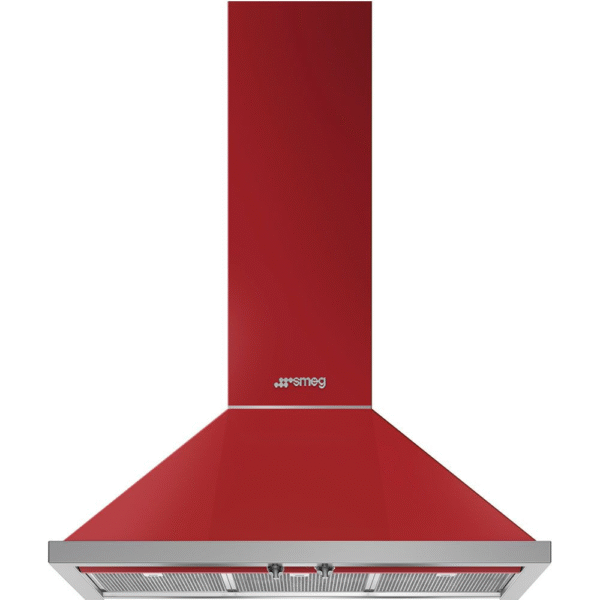

Smeg KPF9RD 90cm Chimney Wall Hood Red
- 90cm Chimney Wall Hood – Red Smeg extractor hood in the Portofino style for a bold statement kitchen.
- 4 Fan Speeds – 3 x Standard speeds plus 1 x intensive setting for fast, effective odour removal.
- Powerful Extraction – Up to 781m³/h intensive extraction to clear steam and cooking smells quickly.
- LED lighting – Two energy-efficient LED lights brighten the hob area while you cook.
- Washable Metal Filters – Dishwasher-safe stainless steel grease filters for easy everyday maintenance.
£766.00
- Product Info
- Specification
- FAQ's
Smeg KPF9RD 90cm Chimney Wall Hood in red brings bold Portofino style, powerful extraction up to 781m³/h and bright LED lighting for a striking kitchen upgrade.
The Smeg KPF9RD 90cm chimney wall hood combines standout Portofino design with strong everyday performance. Finished in red with a decorative chimney-style design, this wall-mounted extractor hood is made to co-ordinate beautifully with the Smeg Portofino cooker range while helping keep your kitchen fresher as you cook.
Portofino design with powerful extraction
Inspired by the rich tones of the Italian Riviera, the Smeg KPF9RD brings distinctive character to contemporary kitchens. It offers 3 standard fan speeds plus an intensive setting, giving you the flexibility to match extraction power to whatever is on the hob.
With a maximum extraction rate of 630m³/h and an intensive extraction rate of 781m³/h, it is designed to clear steam, smoke and cooking odours quickly and effectively. The free outlet maximum capacity is 815m³/h.
Clear visibility while you cook
Two energy-efficient LED lights illuminate the hob area for better visibility during cooking. Each light is rated at 2W with a 4000°K colour temperature, helping to brighten the cooking surface while also creating ambient kitchen lighting when needed.
Simple controls and easy maintenance
The hood is operated using Portofino control knobs with a steel-effect finish, giving it a coordinated and premium look. For easy everyday upkeep, it features 3 washable stainless steel anti-grease filters that can be cleaned in the dishwasher.
Installation and operating options
This 90cm decorative wall hood is designed for expulsion and has a 150mm vent outlet with a non-return valve. Most Smeg hoods also offer the choice of ducting or re-circulating, depending on your preferred installation method and the accessories used. Charcoal filters are included as standard with this hood, and the relevant accessory information can be checked in the specification.
Minimum installation distance is 750mm above a gas hob and 650mm above an electric hob.
Efficiency and performance details
The Smeg KPF9RD has an A+ energy efficiency rating, with A-rated fluid dynamic efficiency and A-rated lighting efficiency. Annual energy consumption is 40 kWh/year.
Airflow performance by speed:
Speed 1: 288m³/h, 48dB(A), 173W
Speed 2: 421m³/h, 63dB(A), 199W
Speed 3: 630m³/h, 67dB(A), 223W
Intensive: 781m³/h, 72dB(A), 224W
Additional specifications include motor power of 275W, nominal power of 277W, 220 to 240V, 50 to 60Hz, and a 1000mm power supply cable.
Dimensions
Product dimensions: 1227 x 896 x 495mm
Width: 896mm
Depth: 495mm
Height: 1227mm
| Dimensions | 49.5 × 89.6 × 122.7 cm |
|---|---|
| Automatic Programmes | No |
| Smart Appliance | No |
| Brand | Smeg |
| Energy Efficiency Class | A+ |
| Noise Level | 72 |
| Intensive Mode | Yes |
| No. Of Fan Speeds | 4 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 2 |
| SKU | KPF9RD |
| GTIN | 8017709236311 |
TYPE
- Product family: Hood
- Hood Type: Decorative wall hood
- Hood width: 90 cm
- Extraction: Expulsion
- EAN code: 8017709236311
AESTHETICS
- Colour: Red
- Aesthetics: Portofino
- Design: Chimney
- Material: Stainless Steel + Painted Material
- Type of steel: Brushed
PROGRAMS / FUNCTIONS
- No. of speeds: 3
- Intensive speed: Yes
CONTROLS
- Control setting: Control knobs
- Control knobs: Portofino
- No. of controls: 2
- Controls colour: Steel effect
TECHNICAL FEATURES
- No. of lights: 2
- Light type: LED
- Light power: 2 W
- Light color temperature scale (°K): 4000 °K
- Free outlet maximum capacity: 815 m³/h
- Motor power: 275 W
- No. of filters: 3
- Anti-grease filters: Stainless steel
- Minimum distance from GAS hob: 750 mm
- Vent outlet: 150 mm
- Minimum distance from ELECTRIC hob: 650 mm
- Non return valve: Yes
PERFORMANCE / ENERGY LABEL
- Energy efficicency class ( EEC): A+
- Fluid Dynamic Efficiency class (FDEC): A
- Grease Filtering Efficiency Class (GFEC): C
- Lighting Efficiency Class (LEC): A
- Annual Efficiency Consumption (AEChood): 40 KWh/year
- Fluid Dynamic Efficiency (FDE): 36.2
- Lighting Efficiency (LE): 78.2 lux/W
- Grease Filtering Efficiency (GFE): 78.5 %
- Air flow at minumum speed (Qmin): 288 m³/h
- Maximum extraction rate: 630 m³/h
- Intensive extraction rate: 781 m³/h
- Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 48 dB(A)
- Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 67 dB(A)
- Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 72 dB(A)
- Time increase factor (F): 1.00
- Energy Efficiency Index per first cavity: 40.3
- Measured air flow rate at best efficiency point (Qbep): 413 m³/h
- Measured air pressure at best efficiency point (Qbep): 476 Pa
- Measured electric power input at best efficiency point (Wbep): 151 W
- Normal Power of the light system (Wl): 2 W
- Average illumination of the light on the cooking surface (Emiddle): 172 lux
- Sound power level at highest setting (Lwa): 67 dB(A)
ELECTRICAL CONNECTION
- Nominal power: 277 W
- Voltage: 220-240 V
- Frequency (Hz): 50-60 Hz
- Power supply cable length: 1000 mm
SPEED 1
- Extraction rate IEC 61591: 288 m³/h
- Noise level IEC 60704-2-13: 48 dB(A)
- Power: 173 W
SPEED 2
- Extraction rate IEC 61591: 421 m³/h
- Noise level IEC 60704-2-13: 63 dB(A)
- Power: 199 W
SPEED 3
- Extraction rate IEC 61591: 630 m³/h
- Noise level IEC 60704-2-13: 67 dB(A)
- Power: 223 W
INTENSIVE SPEED
- Extraction rate (IEC 61591): 781 m³/h
- Noise level IEC 60704-2-13: 72 dB(A)
- Power: 224 W
LOGISTIC INFORMATION
- Dimensions of the product (mm): 1227x896x495
- Width: 896 mm
- Depth (mm): 495 mm
- Product Height (mm): 1227 mm
Frequently Asked Questions About the KPF9RD
Is the Smeg KPF9RD suitable for a 90cm hob or range cooker?
Yes. The Smeg KPF9RD is a 90cm wall-mounted chimney hood designed to pair well with a 90cm hob or range cooker. Its Portofino styling also makes it a strong visual match for Smeg’s Portofino cooking range.
How powerful is the extraction on the Smeg KPF9RD?
This model offers three standard speeds and an intensive setting. Extraction ranges from 288m³/h on the lowest speed up to 630m³/h on the highest standard speed, with a 781m³/h intensive mode for quickly clearing heavier steam and cooking odours.
Is the Smeg KPF9RD a ducted or recirculating hood?
The Smeg KPF9RD is specified as an extraction hood for ducted installation and uses a 150mm vent outlet. It also has a non-return valve. If you are planning a recirculating setup, it is worth checking the compatible accessory options before ordering.
Are charcoal filters included with the Smeg KPF9RD?
No. The official product information lists charcoal filters as accessories not included. This model comes with stainless steel anti-grease filters, while charcoal filters are a separate accessory for recirculating use.
Does the Smeg KPF9RD have built-in lighting?
Yes. The hood includes two LED lights to brighten the cooking area. Each light is rated at 2W and has a 4000K colour temperature, which gives a clear, neutral light over the hob.
How noisy is the Smeg KPF9RD?
Noise levels start at 48dB(A) on speed 1, rise to 67dB(A) on the highest standard speed, and reach 72dB(A) on intensive mode. That gives you the option of quieter day-to-day extraction or extra power when needed.
Are the filters easy to clean?
Yes. The Smeg KPF9RD has three stainless steel anti-grease filters that are designed for easy routine maintenance. They are washable, which helps keep everyday cleaning simple.
What controls does the Smeg KPF9RD use?
This model uses Portofino-style control knobs with a steel-effect finish. That gives it a more traditional, premium look than push-button or touch controls, while keeping operation straightforward.
How energy efficient is the Smeg KPF9RD?
The Smeg KPF9RD has an A+ energy rating, with A-rated fluid dynamic efficiency and A-rated lighting efficiency. Annual energy consumption is listed at 40kWh per year, making it a good choice if you want strong performance without high running costs.
What are the installation dimensions and minimum clearances?
The product dimensions are 1227 x 896 x 495mm. Minimum installation height is 650mm above an electric hob and 750mm above a gas hob, so it is important to check your kitchen layout before installation.
*FAQs are checked against manufacturer information, but please confirm installation requirements before purchase.
