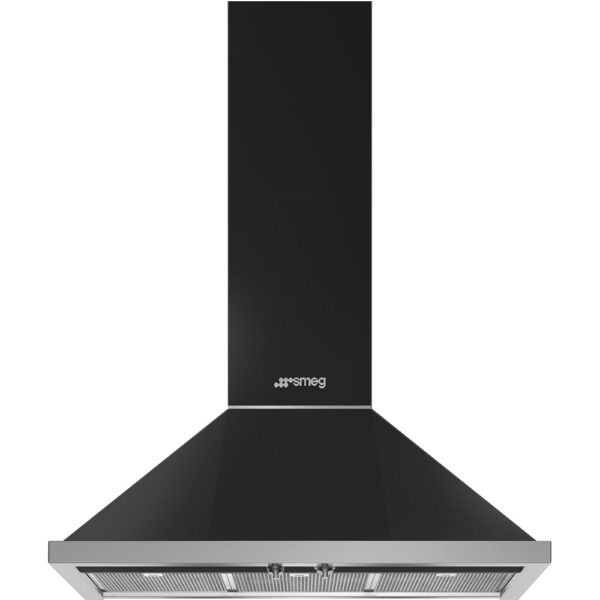

Smeg KPF9AN 90cm Chimney Wall Hood Anthracite
- 3 Speed Settings + Intensive Boost – Gives you adaptable extraction power, with an extra boost for tackling lingering cooking odours and steam.
- Energy-Efficient LED Lighting – Casts bright, practical light over the hob area so you can cook with a clearer view.
- Dishwasher-Safe Stainless Steel Filters – Removable metal grease filters are easy to clean and designed for straightforward maintenance.
£766.00
- Product Info
- Specification
- FAQ's
Smeg KPF9AN 90cm Chimney Wall Hood in Anthracite combines powerful extraction, Portofino styling and energy-efficient LED lighting for a refined kitchen finish.
The Smeg KPF9AN 90cm chimney wall hood in anthracite brings together elegant Portofino design, strong extraction performance and practical everyday features. Created to co-ordinate with the Portofino cooker range, this decorative wall hood offers 3 speed settings plus an intensive boost, helping you tackle everything from light cooking vapours to lingering odours and steam.
Smeg Portofino design in anthracite
Part of Smeg’s distinctive Portofino collection, the KPF9AN is inspired by the rich tones of the Italian Riviera and designed for contemporary living. Its chimney-style design, anthracite finish and brushed stainless steel and painted material construction give it a stylish, premium look that fits beautifully into a modern kitchen.
Adaptable extraction with intensive boost
This 90cm decorative wall hood features 3 speed settings for flexible extraction, plus an intensive speed when rapid clearing is needed. Whether you are frying, boiling or preparing strongly scented dishes, it delivers the extra power required to remove cooking fumes quickly.
Extraction performance includes airflow from 288 m³/h at minimum speed up to 630 m³/h at maximum speed, with an intensive extraction rate of 781 m³/h. The free outlet maximum capacity is 815 m³/h.
Bright LED hob lighting
Two integrated LED lights provide bright, practical illumination over the hob area, helping you keep a clearer view while cooking. With a light power of 2 W per lamp and a colour temperature of 4000 °K, they also offer an energy-efficient way to light the cooking surface.
Easy-clean stainless steel filters
The dishwasher-safe stainless steel anti-grease filters are removable for straightforward cleaning and maintenance. This hood includes 3 filters, designed to support effective grease capture while making regular upkeep easier.
Ducting or re-circulating options
Most Smeg hoods offer the choice of ducting or re-circulating, giving you flexibility to choose the installation method that suits your kitchen. Ducting extracts cooking fumes and expels them outside using a vent kit, while re-circulating passes the air through active charcoal filters before returning cleaned air to the room.
The vent outlet measures 150 mm, and suitable vent kit options mentioned for Smeg hoods include SP150 and SP150FLAT for 150mm diameter vent outlets, plus SP215 and SP217 for 120mm diameter vent outlets. Charcoal filters are included as standard with this hood. A non-return valve is also fitted.
Efficient performance for everyday use
Rated A+ for energy efficiency, the Smeg KPF9AN is designed to deliver strong everyday performance while helping to keep energy consumption low. It has an annual efficiency consumption of 40 KWh/year, a fluid dynamic efficiency class of A, lighting efficiency class A and grease filtering efficiency class C.
Noise levels range from 48 dB(A) on speed 1 to 67 dB(A) at maximum speed, with 72 dB(A) at intensive speed. This makes it a practical choice for kitchens where both extraction performance and controlled noise levels matter.
Key specifications
Model: KPF9AN
Product family: Hood
Hood type: Decorative wall hood
Width: 90 cm
Colour: Anthracite
Aesthetic: Portofino
Design: Chimney
Controls: Control knobs
Number of controls: 2
Light type: LED
Number of lights: 2
Motor power: 275 W
Nominal power: 277 W
Voltage: 220-240 V
Frequency: 50-60 Hz
Power supply cable length: 1000 mm
Minimum distance from gas hob: 750 mm
Minimum distance from electric hob: 650 mm
Product dimensions: 1227 x 896 x 495 mm
| Dimensions | 49.5 × 89.6 × 122.7 cm |
|---|---|
| Automatic Programmes | No |
| Smart Appliance | No |
| Brand | Smeg |
| Energy Efficiency Class | A+ |
| Noise Level | 72 |
| Intensive Mode | Yes |
| No. Of Fan Speeds | 4 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 2 |
| SKU | KPF9AN |
| GTIN | 8017709236366 |
TYPE
- Product family: Hood
- Hood Type: Decorative wall hood
- Hood width: 90 cm
- Extraction: Expulsion
- EAN code: 8017709236366
AESTHETICS
- Colour: Anthracite
- Aesthetics: Portofino
- Design: Chimney
- Material: Stainless Steel + Painted Material
- Type of steel: Brushed
PROGRAMS / FUNCTIONS
- No. of speeds: 3
- Intensive speed: Yes
CONTROLS
- Control setting: Control knobs
- Control knobs: Portofino
- No. of controls: 2
- Controls colour: Steel effect
TECHNICAL FEATURES
- No. of lights: 2
- Light type: LED
- Light power: 2 W
- Light color temperature scale (°K): 4000 °K
- Free outlet maximum capacity: 815 m³/h
- Motor power: 275 W
- No. of filters: 3
- Anti-grease filters: Stainless steel
- Minimum distance from GAS hob: 750 mm
- Vent outlet: 150 mm
- Minimum distance from ELECTRIC hob: 650 mm
- Non return valve: Yes
PERFORMANCE / ENERGY LABEL
- Energy efficicency class ( EEC): A+
- Fluid Dynamic Efficiency class (FDEC): A
- Grease Filtering Efficiency Class (GFEC): C
- Lighting Efficiency Class (LEC): A
- Annual Efficiency Consumption (AEChood): 40 KWh/year
- Fluid Dynamic Efficiency (FDE): 36.2
- Lighting Efficiency (LE): 78.2 lux/W
- Grease Filtering Efficiency (GFE): 78.5 %
- Air flow at minumum speed (Qmin): 288 m³/h
- Maximum extraction rate: 630 m³/h
- Intensive extraction rate: 781 m³/h
- Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 48 dB(A)
- Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 67 dB(A)
- Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 72 dB(A)
- Time increase factor (F): 1.00
- Energy Efficiency Index per first cavity: 40.3
- Measured air flow rate at best efficiency point (Qbep): 413 m³/h
- Measured air pressure at best efficiency point (Qbep): 476 Pa
- Measured electric power input at best efficiency point (Wbep): 151 W
- Normal Power of the light system (Wl): 2 W
- Average illumination of the light on the cooking surface (Emiddle): 172 lux
- Sound power level at highest setting (Lwa): 67 dB(A)
ELECTRICAL CONNECTION
- Nominal power: 277 W
- Voltage: 220-240 V
- Frequency (Hz): 50-60 Hz
- Power supply cable length: 1000 mm
SPEED 1
- Extraction rate IEC 61591: 288 m³/h
- Noise level IEC 60704-2-13: 48 dB(A)
- Power: 173 W
SPEED 2
- Extraction rate IEC 61591: 421 m³/h
- Noise level IEC 60704-2-13: 63 dB(A)
- Power: 199 W
SPEED 3
- Extraction rate IEC 61591: 630 m³/h
- Noise level IEC 60704-2-13: 67 dB(A)
- Power: 223 W
INTENSIVE SPEED
- Extraction rate (IEC 61591): 781 m³/h
- Noise level IEC 60704-2-13: 72 dB(A)
- Power: 224 W
LOGISTIC INFORMATION
- Dimensions of the product (mm): 1227x896x495
- Width: 896 mm
- Depth (mm): 495 mm
- Product Height (mm): 1227 mm
Frequently Asked Questions About the KPF9AN
Is the Smeg KPF9AN a ducted or recirculating cooker hood?
The Smeg KPF9AN is supplied as an extraction hood for ducting out, with a 150mm vent outlet and a non-return valve. It can also be adapted for recirculating use with compatible charcoal filters, so it can suit kitchens where external venting is not practical.
How powerful is the extraction on the Smeg KPF9AN?
This model offers 3 standard speeds plus an intensive boost setting. Extraction rates range from 288 m³/h on the lowest speed to 630 m³/h on the highest standard speed, with up to 781 m³/h on intensive mode. This makes the Smeg KPF9AN a strong choice for clearing everyday steam, grease and cooking odours.
How noisy is the Smeg KPF9AN when running?
Noise levels start at 48 dB(A) on the lowest setting, rise to 67 dB(A) on the highest normal speed, and reach 72 dB(A) on intensive mode. For most kitchens, that gives you the option of quieter background extraction for lighter cooking and higher power when faster clearing is needed.
Does the Smeg KPF9AN have LED lighting?
Yes, the Smeg KPF9AN includes 2 LED lights to illuminate the cooking area. Each light is rated at 2W, with a 4000K colour temperature that gives a bright, practical white light over the hob.
Are the filters dishwasher safe?
Yes, this model includes 3 stainless steel anti-grease filters that are removable for easy cleaning. That makes routine maintenance more straightforward and helps keep the hood performing well over time.
What controls does the Smeg KPF9AN use?
The Smeg KPF9AN uses Portofino-style control knobs with 2 controls on the front of the hood. This gives it a classic, coordinated look that matches other appliances in the Portofino range while keeping everyday operation simple.
Is the Smeg KPF9AN energy efficient?
Yes, this model is rated A+ for energy efficiency, with annual energy consumption of 40 kWh/year. It is a good option if you want strong extraction performance with lower ongoing energy use than many less efficient models.
What size hob is the Smeg KPF9AN designed for?
With its 90cm width, the Smeg KPF9AN is well suited to wider cooking zones and range-style setups. It is designed as a decorative wall hood, so it works especially well where you want both effective extraction and a statement chimney design.
What are the installation clearances for the Smeg KPF9AN?
Smeg states a minimum installation distance of 750mm above a gas hob and 650mm above an electric hob. These clearances should always be checked alongside the hob and installation instructions before fitting.
What are the dimensions of the Smeg KPF9AN?
The product dimensions are 1227 x 896 x 495 mm. This gives you an overall width just under 90cm, with a chimney-style height and depth that should be considered when planning space above the cooking area.
Does the Smeg KPF9AN include charcoal filters?
For recirculating installation, compatible charcoal filter options are available for this model. This is worth checking before purchase if you are not ducting externally, as recirculating setup depends on the correct accessory kit.
Who is the Smeg KPF9AN best suited to?
The Smeg KPF9AN is a good choice for shoppers who want a premium 90cm wall hood with distinctive Portofino styling, strong extraction and simple knob controls. We would recommend it for kitchens where appearance matters just as much as everyday performance.
*Please be aware we try to be as factual as possible with all our answers but there may be the odd mistake.
