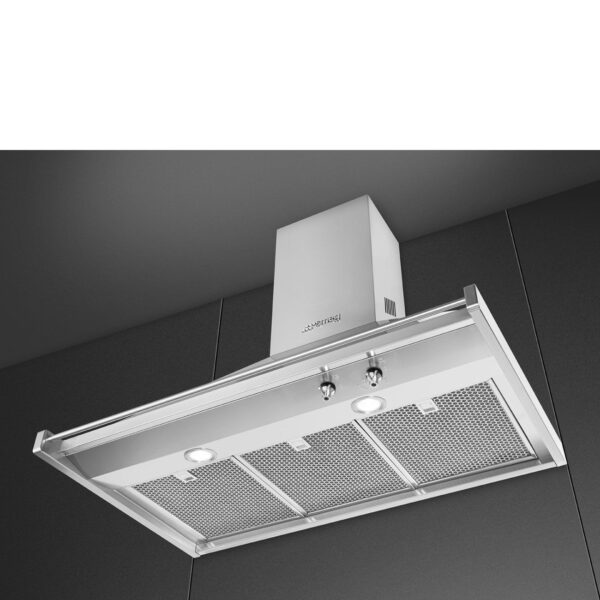

Smeg KD90HXE 90cm Chimney Wall Hood Stainless Steel
- 3 Power Levels + Intensive Mode – Lets you switch from everyday extraction to a more powerful setting for lingering smoke and cooking vapours.
- Integrated LED Lighting – Casts bright, efficient light over the hob so you can keep a clear view while cooking.
- Stainless Steel Grease Filters – Removable metal filters are suitable for dishwasher cleaning, making routine maintenance easier.
£734.00
- Product Info
- Specification
- FAQ's
Smeg KD90HXE 90cm chimney wall hood in stainless steel with 3 power levels and an intensive mode for fast, effective extraction. Bright LED lighting and dishwasher-safe filters.
The Smeg KD90HXE chimney wall hood combines classic styling with practical performance, making it a strong choice for busy kitchens. Finished in brushed stainless steel, this 90cm wall hood offers 3 power levels plus an intensive mode, so you can move from everyday extraction to a more powerful setting for lingering smoke and cooking vapours.
Smeg KD90HXE extraction performance
Designed for expulsion, the Smeg KD90HXE delivers a maximum extraction rate of 630 m³/h, with an intensive extraction rate of 781 m³/h when rapid clearing is needed. Air flow starts at 288 m³/h on the minimum speed, rises to 421 m³/h on speed 2, and reaches full power on speed 3 for more demanding cooking tasks.
With 3 speeds and an intensive setting, this decorative wall hood is well suited to everything from light cooking to stronger odours created by frying, stir-fries and richly spiced dishes.
Classic design with Opera aesthetic
Part of the Smeg Classic and Opera aesthetic range, this hood has a clean, elegant look with a chimney design, classic control knobs and a brushed stainless steel finish. Its styling makes it a natural match for contemporary and traditional kitchen schemes alike.
Smeg describes the Opera range as modern in design, with ergonomic lever-shaped controls and robust handles, created with close attention to detail. Opera hoods are available in widths ranging from 90cm to 150cm.
LED lighting for a clearer cooking view
Two integrated LED lights cast bright, efficient illumination over the hob, helping you keep a clear view while cooking. The hood uses 2 x 1W LED lights with a 4000 °K colour temperature, delivering practical lighting across the cooking surface.
Easy-clean stainless steel grease filters
The 3 stainless steel anti-grease filters are removable and suitable for dishwasher cleaning, making regular maintenance easier. This helps keep the hood performing well while reducing the effort needed for routine cleaning.
Energy efficiency and everyday usability
Rated A+ for energy efficiency, the Smeg KD90HXE is designed to deliver strong extraction performance with efficient operation. It also features a non-return valve, a 150mm vent outlet, and classic steel-effect controls for straightforward use.
Noise levels range from 48 dB(A) at minimum speed to 67 dB(A) at maximum speed, with the intensive setting reaching 72 dB(A).
Ducting and re-circulating options
Most Smeg hoods offer the choice of ducting or re-circulating, allowing you to choose your preferred installation method.
Ducting out extracts cooking fumes and expels them outside using a vent kit, available as an optional accessory. The diameter of the ducting hose should match the hood vent outlet. For hoods with a 150mm diameter vent outlet, compatible vent kits listed are SP150 and SP150FLAT. For hoods with a 120mm diameter vent outlet, compatible vent kits listed are SP215 and SP217.
Re-circulating extracts cooking fumes and passes them through active charcoal filters, available as an optional accessory, before recirculating the cleaned air back into the room. To identify the correct charcoal filter, check the accessory tab on the hood specification.
Key specifications
Model: KD90HXE
EAN: 8017709243593
Product family: Hood
Hood type: Decorative wall hood
Width: 90cm
Dimensions: 1230 x 900 x 555mm
Finish: Brushed stainless steel
Controls: 2 classic control knobs
Motor power: 275W
Nominal power: 277W
Voltage: 220-240V
Frequency: 50-60Hz
Cable length: 1000mm
Minimum distance from electric hob: 650mm
Minimum distance from gas hob: 750mm
The Smeg KD90HXE 90cm stainless steel chimney hood offers strong extraction, efficient LED lighting and easy-clean filters in a classic decorative design, making it a practical and stylish addition to the cooking space.
| Dimensions | 56 × 90 × 123 cm |
|---|---|
| Automatic Programmes | No |
| Smart Appliance | No |
| Brand | Smeg |
| Energy Efficiency Class | A+ |
| Noise Level | 72 |
| Intensive Mode | Yes |
| No. Of Fan Speeds | 4 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 2 |
| SKU | KD90HXE |
| GTIN | 8017709243593 |
TYPE
- Product family: Hood
- Hood Type: Decorative wall hood
- Hood width: 90 cm
- Extraction: Expulsion
- EAN code: 8017709243593
AESTHETICS
- Colour: Stainless steel
- Finishing: Brushed
- Aesthetics: Classic
- Design: Chimney
- Material: Stainless steel
- Type of steel: Brushed
PROGRAMS / FUNCTIONS
- No. of speeds: 3
- Intensive speed: Yes
CONTROLS
- Control setting: Control knobs
- Control knobs: Classic
- No. of controls: 2
- Controls colour: Steel effect
TECHNICAL FEATURES
- No. of lights: 2
- Light type: LED
- Light power: 1 W
- Light color temperature scale (°K): 4000 °K
- Free outlet maximum capacity: 815 m³/h
- Motor power: 275 W
- No. of filters: 3
- Anti-grease filters: Stainless steel
- Minimum distance from GAS hob: 750 mm
- Vent outlet: 150 mm
- Minimum distance from ELECTRIC hob: 650 mm
- Non return valve: Yes
PERFORMANCE / ENERGY LABEL
- Energy efficicency class ( EEC): A+
- Fluid Dynamic Efficiency class (FDEC): A
- Grease Filtering Efficiency Class (GFEC): C
- Lighting Efficiency Class (LEC): A
- Annual Efficiency Consumption (AEChood): 40 KWh/year
- Fluid Dynamic Efficiency (FDE): 36.2
- Lighting Efficiency (LE): 78.2 lux/W
- Grease Filtering Efficiency (GFE): 78.5 %
- Air flow at minumum speed (Qmin): 288 m³/h
- Maximum extraction rate: 630 m³/h
- Intensive extraction rate: 781 m³/h
- Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 48 dB(A)
- Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 67 dB(A)
- Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 72 dB(A)
- Time increase factor (F): 1.00
- Measured air flow rate at best efficiency point (Qbep): 413 m³/h
- Measured air pressure at best efficiency point (Qbep): 476 Pa
- Measured electric power input at best efficiency point (Wbep): 151 W
- Normal Power of the light system (Wl): 2 W
- Average illumination of the light on the cooking surface (Emiddle): 172 lux
- Sound power level at highest setting (Lwa): 67 dB(A)
ELECTRICAL CONNECTION
- Nominal power: 277 W
- Voltage: 220-240 V
- Frequency (Hz): 50-60 Hz
- Power supply cable length: 1000 mm
SPEED 1
- Extraction rate IEC 61591: 288 m³/h
- Noise level IEC 60704-2-13: 48 dB(A)
- Power: 173 W
SPEED 2
- Extraction rate IEC 61591: 421 m³/h
- Noise level IEC 60704-2-13: 63 dB(A)
- Power: 199 W
SPEED 3
- Extraction rate IEC 61591: 630 m³/h
- Noise level IEC 60704-2-13: 67 dB(A)
- Power: 223 W
INTENSIVE SPEED
- Extraction rate (IEC 61591): 781 m³/h
- Noise level IEC 60704-2-13: 72 dB(A)
- Power: 224 W
LOGISTIC INFORMATION
- Dimensions of the product (mm): 1230x900x555
- Width: 900 mm
- Depth (mm): 555 mm
- Product Height (mm): 1230 mm
Frequently Asked Questions About the KD90HXE
Is the Smeg KD90HXE a ducted cooker hood or can it also be used in recirculation mode?
The Smeg KD90HXE is designed for ducted extraction, but it can also be set up for recirculating use if your kitchen does not allow external venting. This gives you more flexibility at installation.
How powerful is the Smeg KD90HXE extraction rate?
This model offers extraction rates from 288 m³/h on the lowest speed up to 630 m³/h on the highest normal setting. It also includes an intensive mode that reaches 781 m³/h for quickly clearing heavier smoke, steam and cooking odours.
How many fan speeds does the Smeg KD90HXE have?
The Smeg KD90HXE has 3 standard power levels plus an intensive mode. That makes it a practical choice for everything from lighter everyday cooking to more demanding frying and high-heat cooking.
Is the Smeg KD90HXE suitable for a 90cm hob or range cooker?
Yes, this is a 90cm chimney wall hood, so it is well suited to matching with a 90cm hob or range cooker. Its width helps it cover a larger cooking area more effectively.
Does the Smeg KD90HXE have built-in lighting?
Yes, the Smeg KD90HXE includes 2 integrated LED lights. These provide bright, efficient illumination over the hob to help you see more clearly while cooking.
Are the grease filters easy to clean?
Yes, this model has 3 stainless steel anti-grease filters that can be removed for cleaning. They are suitable for dishwasher cleaning, which makes routine maintenance easier.
What controls does the Smeg KD90HXE use?
The Smeg KD90HXE uses 2 classic control knobs with a steel-effect finish. This gives you straightforward manual control over the fan speeds and lighting.
How noisy is the Smeg KD90HXE?
Noise levels start at 48 dB(A) on the lowest speed and rise to 67 dB(A) on the highest normal setting. On intensive mode, the noise level reaches 72 dB(A).
What is the energy rating of the Smeg KD90HXE?
The Smeg KD90HXE has an A+ energy efficiency rating, so it combines strong extraction performance with efficient day-to-day running.
What size vent outlet does the Smeg KD90HXE use?
This model has a 150mm vent outlet. If you are planning a ducted installation, your ducting should match this outlet size for the best performance.
What are the installation clearances for the Smeg KD90HXE?
The minimum recommended distance is 650mm above an electric hob and 750mm above a gas hob. Following these clearances is important for safe installation and effective extraction.
What are the dimensions of the Smeg KD90HXE?
The Smeg KD90HXE measures 1230 x 900 x 555mm. With its brushed stainless steel chimney design, it is made to create a strong visual match with both classic and contemporary kitchen layouts.
