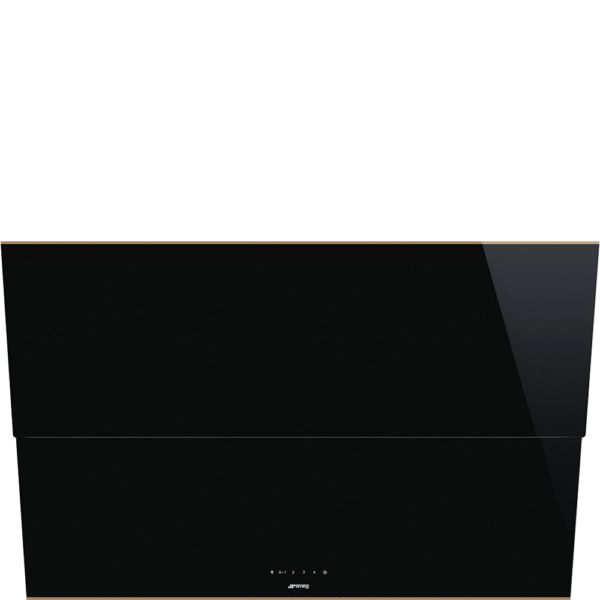

Smeg Dolce Stil Novo 90cm Decorative wall hood KSVV90NRA
- 90cm Decorative Wall Hood – Angled Smeg cooker hood in black glass with Dolce Stil Novo styling and copper finish details.
- Powerful Extraction – Up to 770 m³/h intensive extraction for clearing steam, smoke and strong cooking odours quickly.
- Perimeter Extraction – Efficient airflow design helps reduce noise while delivering effective kitchen ventilation.
- Touch Controls And Auto Shut-off – Easy electronic control with 3 speeds, intensive mode and automatic switch-off for convenient use.
- LED Lighting And Filters – Twin LED lights, washable stainless steel grease filters and charcoal filters included for ducted or recirculating use.
Complete the form below and our team will do their best to help
or simply call us on
- Product Info
- Specification
- FAQ's
Smeg Dolce Stil Novo KSVV90NRA 90cm decorative wall hood in black glass with copper details, powerful extraction, quiet perimeter design and LED lighting.
The Smeg Dolce Stil Novo 90cm decorative wall hood KSVV90NRA combines striking black glass, elegant copper finish details and strong extraction performance to keep your kitchen fresh. Designed with angled styling and touch controls, this decorative wall hood offers 3 speeds, an intensive mode and efficient perimeter extraction for effective everyday ventilation.
Flexible extraction for your kitchen
The Smeg KSVV90NRA cooker hood can be installed for ducting out or re-circulating, so you can choose the setup that best suits your kitchen. Ducting out removes cooking fumes and expels them outside using an optional vent kit, while re-circulating draws air through active charcoal filters and returns cleaned air back into the room.
Charcoal filters are included as standard with this hood. For ducted installation, the vent outlet is 150mm, and the diameter of the ducting hose should match the hood outlet. Compatible optional vent kits include SP150 and SP150FLAT for 150mm vent outlets, plus SP215 and SP217 for 120mm vent outlets.
Powerful extraction with quieter performance
With a maximum extraction rate of 563 m³/h and an intensive extraction rate of 757 m³/h, this 90cm Smeg wall hood is built to deal with steam, smoke and lingering cooking odours. A powerful intensive speed can be selected when fast extraction is needed, making it ideal for stronger cooking aromas.
Perimeter extraction improves efficiency by drawing vapours through a restricted area of the hood quickly, then reducing airflow speed once inside. This helps limit filter vibration and reduce noise, while maintaining effective extraction. Noise levels range from 50 dB(A) at minimum speed to 62 dB(A) at maximum speed, reaching 68 dB(A) on intensive mode.
Simple controls and practical everyday features
Electronic touch controls make it easy to select between 3 speeds and intensive mode. There is also an automatic switch-off setting, which turns off both the extraction and the lights after a predefined time while the hood continues purifying the air before switching off automatically.
Twin LED lights provide clear illumination across the cooking area and can also be used independently of the fan for ambient kitchen lighting. The hood includes 2 LED lights, each rated at 1W, with a light colour temperature of 4000 °K.
Stylish finish with easy cleaning
This angled Smeg extractor hood features a black glass finish with the distinctive Dolce Stil Novo aesthetic and refined copper details. It also includes 2 washable stainless steel anti-grease filters, which can be cleaned in the dishwasher for simple maintenance.
Key specifications
Product family: Hood
Hood type: Decorative wall hood
Width: 90 cm
Colour: Black
Finish: Glass
Aesthetic: Dolce Stil Novo
Design: Angled
Components finishing: Copper
Energy efficiency class: A
Motor power: 280 W
Vent outlet: 150 mm
Minimum distance from gas hob: 600 mm
Minimum distance from electric hob: 550 mm
Dimensions: 450 x 900 x 430 mm
EAN: 8017709226169
| Automatic Programmes | No |
|---|---|
| Brand | Smeg |
| Smart Appliance | No |
| Discontinued | Yes |
| Warranty | 2 |
| SKU | KSVV90NRA |
| GTIN | 8017709226169 |
TYPE
- Product family: Hood
- Hood Type: Decorative wall hood
- Hood width: 90 cm
- Extraction: Expulsion
- Electronic control: Yes
- Perimeter extraction: Yes
- EAN code: 8017709226169
AESTHETICS
- Colour: Black
- Finishing: Glass
- Aesthetics: Dolce Stil Novo
- Design: Angled
- Components finishing: Copper
- Material: Glass
- Glass Type: Black
PROGRAMS / FUNCTIONS
- No. of speeds: 3
- Intensive speed: Yes
- Time-setting options: Automatic switch-off
CONTROLS
- Control setting: Touch control
- Led colour: Ice
TECHNICAL FEATURES
- No. of lights: 2
- Light type: LED
- Light power: 1 W
- Light color temperature scale (°K): 4000 °K
- Free outlet maximum capacity: 830 m³/h
- Motor power: 280 W
- No. of filters: 2
- Anti-grease filters: Stainless steel
- Charcoal filters included: Yes
- Minimum distance from GAS hob: 600 mm
- Vent outlet: 150 mm
- Minimum distance from ELECTRIC hob: 550 mm
- Non return valve: Yes
PERFORMANCE / ENERGY LABEL
- Energy efficicency class ( EEC): A
- Fluid Dynamic Efficiency class (FDEC): A
- Grease Filtering Efficiency Class (GFEC): B
- Lighting Efficiency Class (LEC): A
- Annual Efficiency Consumption (AEChood): 59 KWh/year
- Fluid Dynamic Efficiency (FDE): 29.6
- Lighting Efficiency (LE): 107 lux/W
- Grease Filtering Efficiency (GFE): 87.1 %
- Air flow at minumum speed (Qmin): 330 m³/h
- Maximum extraction rate: 563 m³/h
- Intensive extraction rate: 757 m³/h
- Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 50 dB(A)
- Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 62 dB(A)
- Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 68 dB(A)
- Power consumption in stand-by mode (Ps): 0.49 W
- Time increase factor (F): 1.00
- Energy Efficiency Index per first cavity: 51.9
- Measured air flow rate at best efficiency point (Qbep): 397 m³/h
- Measured air pressure at best efficiency point (Qbep): 431 Pa
- Measured electric power input at best efficiency point (Wbep): 159 W
- Normal Power of the light system (Wl): 2 W
- Average illumination of the light on the cooking surface (Emiddle): 250 lux
- Sound power level at highest setting (Lwa): 62 dB(A)
ELECTRICAL CONNECTION
- Nominal power: 283 W
- Voltage: 220-240 V
- Frequency (Hz): 50-60 Hz
- Power supply cable length: 1000 mm
SPEED 1
- Extraction rate IEC 61591: 345 m³/h
- Noise level IEC 60704-2-13: 48 dB(A)
- Power: 197 W
SPEED 2
- Extraction rate IEC 61591: 460 m³/h
- Noise level IEC 60704-2-13: 55 dB(A)
- Power: 229 W
SPEED 3
- Extraction rate IEC 61591: 600 m³/h
- Noise level IEC 60704-2-13: 61 dB(A)
- Power: 254 W
INTENSIVE SPEED
- Extraction rate (IEC 61591): 770 m³/h
- Noise level IEC 60704-2-13: 68 dB(A)
- Power: 266 W
LOGISTIC INFORMATION
- Dimensions of the product (mm): 450x900x430
- Width: 900 mm
- Depth (mm): 430 mm
- Product Height (mm): 450 mm
Frequently Asked Questions About the KSVV90NRA
What type of cooker hood is the Smeg Dolce Stil Novo KSVV90NRA?
The Smeg Dolce Stil Novo KSVV90NRA is a 90cm decorative wall hood with an angled design. It combines black glass, copper finish details and touch controls, making it a strong choice for kitchens where style is just as important as everyday ventilation.
Can the Smeg KSVV90NRA be installed for ducted or recirculating use?
Yes. This model can be installed to duct air outside or to recirculate filtered air back into the room. That gives you more flexibility depending on your kitchen layout and whether external venting is available.
Are charcoal filters included with the Smeg Dolce Stil Novo KSVV90NRA?
Yes, charcoal filters are included as standard. This is useful if you are planning a recirculating installation, as the hood is ready to help reduce cooking odours without needing a separate charcoal filter purchase.
How powerful is the extraction on the Smeg KSVV90NRA?
This model offers a maximum extraction rate of 563 m³/h, with an intensive setting up to 757 m³/h. It is designed to cope well with everyday steam and cooking smells, while the intensive mode is useful when you need a quicker clear-out after frying or other stronger cooking.
How many speeds does the Smeg Dolce Stil Novo KSVV90NRA have?
The hood has 3 standard speeds plus an intensive mode. This makes it easy to adjust the extraction level to suit lighter cooking, regular daily use or heavier steam and odour.
Does the Smeg KSVV90NRA have perimeter extraction?
Yes, it does. Perimeter extraction draws vapours through a more focused area around the hood, helping improve airflow efficiency and reduce filter vibration. This makes it a good choice if you want effective extraction with a more refined acoustic profile.
Is the Smeg Dolce Stil Novo KSVV90NRA noisy?
Noise levels range from 50 dB(A) at minimum speed to 62 dB(A) at maximum speed, with 68 dB(A) on intensive mode. For most kitchens, that gives a practical balance between strong extraction and day-to-day comfort.
Does this Smeg wall hood include lighting?
Yes. The Smeg Dolce Stil Novo KSVV90NRA includes 2 LED lights, each rated at 1W, with a 4000°K light colour temperature. They provide clear task lighting over the hob and can also be used independently of the fan.
Are the grease filters washable?
Yes. This model includes 2 stainless steel anti-grease filters, and they are washable for easier maintenance. Being able to clean the filters regularly helps keep the hood working efficiently over time.
Does the Smeg KSVV90NRA have an automatic switch-off function?
Yes. The automatic switch-off function allows the hood to keep purifying the air for a set period before turning itself off. This is a handy feature if you want the hood to carry on clearing lingering odours after cooking without needing to return and switch it off manually.
What is the minimum installation distance above the hob?
The minimum distance is 600mm above a gas hob and 550mm above an electric hob. It is important to follow these installation clearances to help ensure safe and effective use.
What size vent outlet does the Smeg Dolce Stil Novo KSVV90NRA use?
This model has a 150mm vent outlet. If you are installing it in ducted mode, the ducting should match the hood outlet size for the best possible extraction performance.
Is the Smeg Dolce Stil Novo KSVV90NRA energy efficient?
Yes. This model has an A energy efficiency rating. If you are looking for a premium 90cm wall hood that combines strong extraction with lower running costs than less efficient alternatives, this model offers a well-balanced specification.
