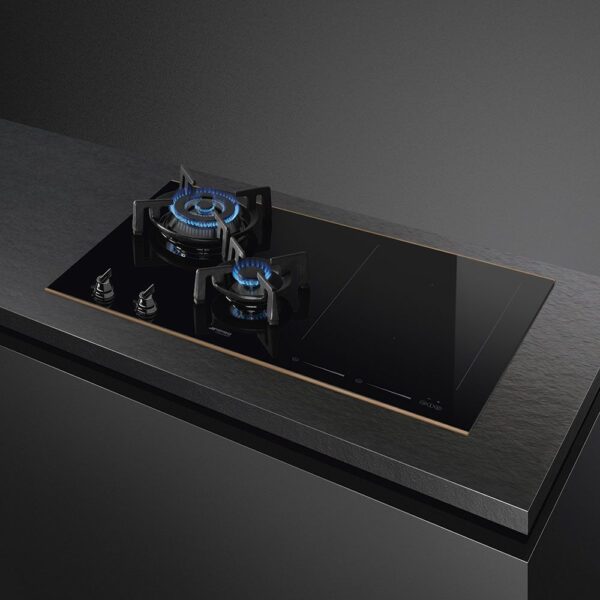

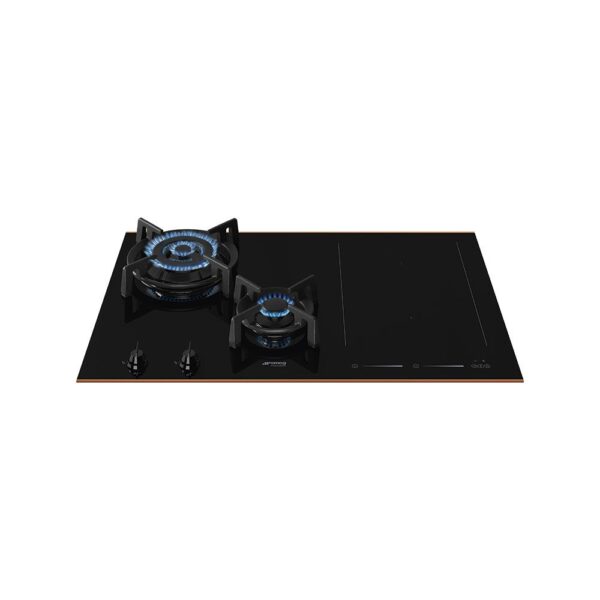

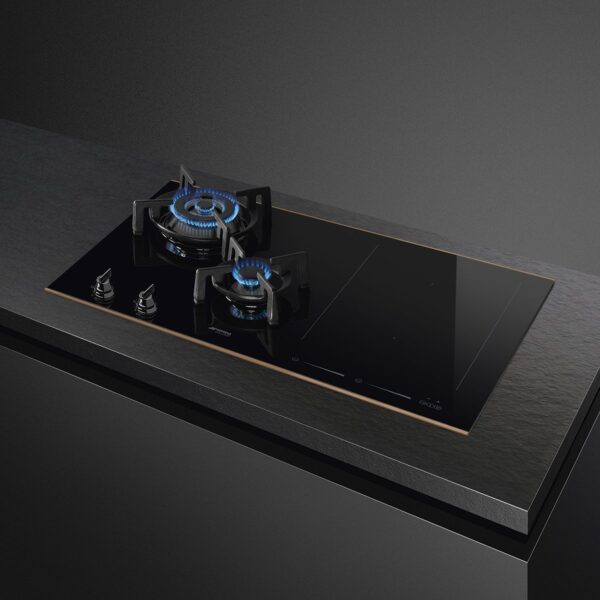

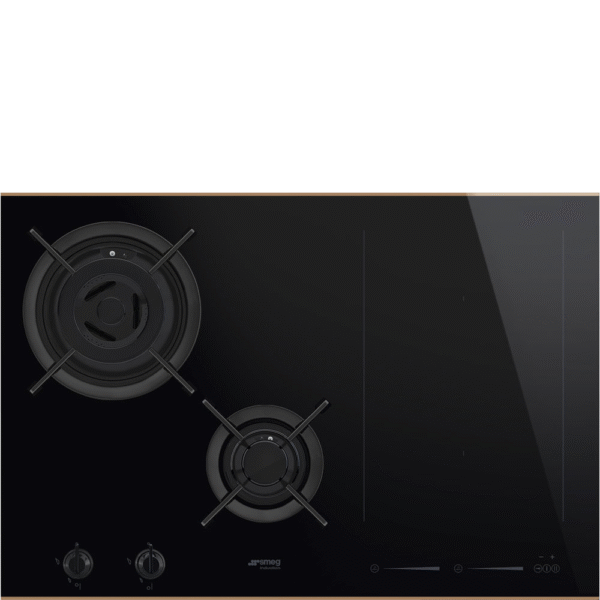

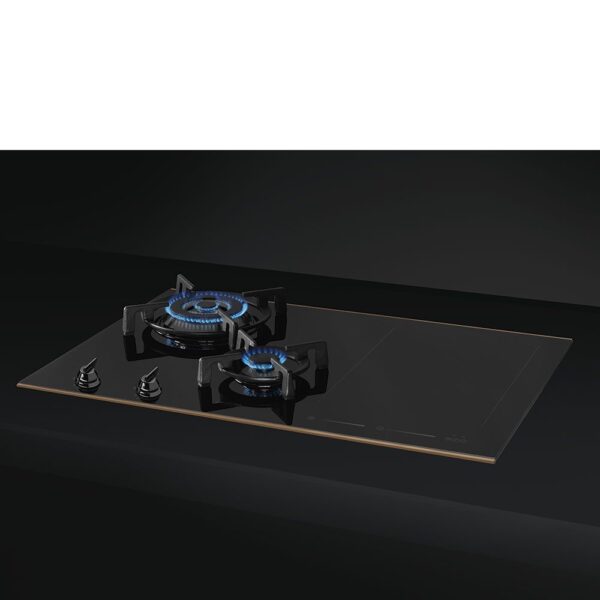

Smeg Dolce Stil Novo 75cm Mixed Fuel Hob PM6721WLDR

Smeg Dolce Stil Novo 75cm Mixed Fuel Hob PM6721WLDR

DOLCE STIL NOVO AESTHETIC

Dolce Stil Novo presents the ultimate style and embodies all the latest appliance innovations. The play on light and shadow and the technical excellence of the products are the distinctive features of this range.

MULTIZONE OPERATION

Smeg’s MultiZone heating zone can be used as two independent cooking zones or combined into a single zone.

Each zone automatically adapts to the size and position of the dishes and is heated only where the pans locate, providing better heat distribution.

FAST OPERATION

Induction allows for precise temperature control when doing intricate cooking, or simmering for example. Heat is only generated when the pan comes into direct contact of the specific cooking zone, ensuring safety in the presence of children. This helps optimise power consumption, only using the energy needed to heat the pan itself.

Induction is faster than gas cooking taking only a little over a minute to boil a pint of water. Another benefit is that any splashes will not burn onto the hob top and are easily wiped clean making it safe and user friendly.

KEY FUNCTIONS

Various special functions provide exactly the right level of heat for each type of cooking:

• Melting slowly melts delicate foods such as butter or chocolate
• Keep Warm keeps already cooked foods at the right temperature without burning them
• Simmering is used to make soups and sauces that need to cook slowly and for a long time without boiling
• Smart Pot Detection identifies where a pot has been placed and immediately activates the appropriate controls.

Finally, the elegant slider-based control panel allows the user to adjust the heat level by simply running a finger across the touch surface.

ULTRA RAPID BURNERS

These powerful burners offer up to 5.00kW power and offer 3 different configurations: a triple flame burner or a dual flame burner with a single control, or a dual flame 3-way burner. Composed of an auxiliary and a rapid burner, its 2 controls allow both parts of the burner to work together or independently.

TYPE

• Product Family: Hob
• Dimensions: 70/75 cm
• Type: Mixed
• Built-in: Traditional
• Power supply: Mixed
• EAN code: 8017709230470

AESTHETICS

• Colour: Black
• Finishing: Glass
• Aesthetics: Dolce Stil Novo
• Components finishing: Copper
• Material: Glass
• Glass Type: Eclipse ceramic
• Controls colour: Black
• Type of control setting: Control knobs
• Control knobs position: Front
• No. of controls: 2
• Slider: Yes
• Glass edge: Straight edge
• Glass on Steel: Yes
• Pan stands: Cast iron
• Burners: Smeg Contemporary
• Burners Material: Alluminium
• Burner Coating: Black Ceram
• Serigraphy colour: Grey

PROGRAMS / FUNCTIONS

• Total no. of cook zones: 4
• No. of gas cook zones: 2
• No. of induction cook zones: 2
• No. of cooking zones with booster: 2
• No. of Flexible zones: 1
• Main on/off switch: Yes
• Power levels: 9

OPTIONS

• Standard cut out: 482-486×719-724 mm
• Multizone Option: Yes
• Flexible Zone Type: MultiZone
• End cooking timer: 2
• Pause option: Yes
• Minute minder: 1
• End of cooking acoustic alarm: Yes
• Residual time indicator: Yes
• Show Room Demo Option: Yes
• Control Lock / Child Safety: Yes
• Keep warm automatic function: Yes
• Simmering Function: Yes
• Melting/Low temperature cooking function: Yes
• Rapid level selection: Yes

COOKING ZONES

• 1st zone position: Front left
• 2nd zone position: Rear left
• 3rd zone position: Rear right
• 4th zone position: Front right
• 1st zone type: Gas – AUX
• 2nd zone type: Gas – UR
• 3rd zone type: Induction – Multizone
• 4th zone type: Induction – multizone
• 3rd zone dimensions: 18.0×23.0 cm
• 4th zone dimensions: 18.0×23.0 cm
• Right Multizone dimension: 38.5×23.0 cm
• 1st zone power: 1.10 kW
• 2nd zone power: 3.30 kW
• 3rd zone power: 2.10 kW
• 4th zone power: 2.10 kW
• 3rd zone booster power: 3.60 kW
• 4th zone booster power: 3.60 kW
• Booster power right Multizone: 3.60 kW

TECHNICAL FEATURES

• Gas Type: G20/G25 natural gas
• Automatic setting according to pan dimension: Yes
• Permanent Automatic Pot Detection with indication of the relative control: Yes
• Automatic pan detection: Yes, min 9 cm
• Gas safety valves: Yes
• Automatic Ignition: Yes
• Automatic switch off when overheat: Yes
• Automatic switch off when overflow: Yes
• Residual heat indicator: Yes
• Protection against accidental start up: Yes

PERFORMANCE / ENERGY LABEL

• Energy consumption zone 3: 195 Wh/Kg
• Energy consumption zone 4: 195 Wh/Kg

ELECTRICAL CONNECTION

• Gas connection rating (W): 4400 W
• Nominal power (W): 3700 W
• Voltage (V): 220-240 V
• Frequency (Hz): 50/60 Hz
• Type of electric cable: Single phase
• Power supply cable length: 120 cm

LOGISTIC INFORMATION

• Dimensions of the product (mm): 45x750x510
• Depth (mm): 510 mm
• Width (mm): 750 mm
• Product Height (mm): 45 mm
