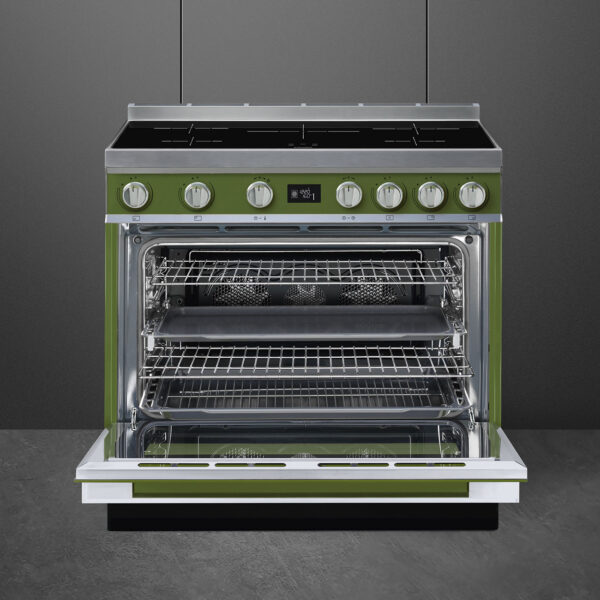

Smeg CPF9IPOG Portofino 90cm Range Cooker with Induction Top

Smeg Portofino 90cm Range Cooker with Induction Top Olive Green CPF9IPOG

ISOTHERMIC OVEN CAVITY

Maximum thermal insulation and optimal energy performance are guaranteed by the unique shape of the Smeg cavity.

The new cavity also helps reducing pre-heating time – 392°F is reached in just 8 minutes, a time saving of 50% compared to a standard oven.

PYROLYTIC CLEANING

Smeg’s pyrolitic oven cavity is designed to eliminate corners, holes and joints whilst every element inside the cavity can be easily removed: the upper grill has a tilting mechanism, and the side oven shelf brackets can be removed and washed in the dishwasher.

Through the automatic pyrolytic cleaning function, all the dirt and grease stuck to the walls of the oven is burned away effortlessly, without the need for detergents, thanks to the extremely high temperature reached by the oven (500 °C).

EXPANSIVE INDUCTION HOB

Induction hobs are significantly faster in operation versus gas, giving you the possibility to speed up cooking times.

Heat is only generated when the pan comes into direct contact of the specific cooking zone, ensuring safety in the presence of children. This helps optimise power consumption, only using the energy needed to heat the pan itself.

Induction allows for precise temperature control when doing intricate cooking, or simmering for example.

5 COOKING LEVELS

The Portofino’s 5 cooking levels allows multiple courses to be cooked simultaneously. This enables users to optimise the time spent cooking, preparing courses quickly and efficiently whilst avoiding flavour transfer thanks to Smeg’s unique fan system.

SOFT CLOSE DOORS

The Portofino cooker door is equipped with smooth soft close hinges which can make all the difference when opening & shutting the door regularly.

STURDY CONTROLS

Featuring solid, chunky metal knobs – the Portofino’s controls are robust and extremely ergonomic.

THE BAKING STONE

Portofino ovens can be equipped with a large refractory stone for quick and easy baking, which is ideal for homemade pizza, bread and cakes as well as fish and vegetables.

By activating the Turbo function, you can cook two pizzas simultaneously, in just 4 minutes.

TRIPLE FAN TECHNOLOGY

The oven is equipped with an exclusive three-fan system which, combined with the greater power of the motors, allows excellent cooking performance to be achieved. The two large side fans distribute the air around the perimeter of the cavity while the small central one increases ventilation by creating a vertical heat vortex. This uniformed temperature allows you to cook evenly on all five levels, just like in professional kitchens.

TYPE

• Product Family: Cooker
• Cooker size: 90×60 cm
• Hob energy type: Electric
• N. of ovens: 1
• Hob type: Induction
• Main oven type: Thermo-ventilated
• Cleaning system: Pyrolytic
• EAN code: 8017709240745

AESTHETICS

• Colour: Olive green
• Aesthetics: Portofino
• Design: Flush fit
• Material: Enamelled
• Door: With frame
• Command panel finish: Enamelled metal
• Hob colour: Stainless steel
• Handle: Smeg Portofino
• Controls colour: Stainless steel
• Upstand: Yes
• Display: LCD
• Handle Colour: coloured
• Control knobs: Smeg Portofino
• Glass type: Grey
• No. of controls: 7
• Feet: Black
• Plinth: Black
• Storage compartment: Push pull

PROGRAMS / FUNCTIONS

• Automatic programs: 20

Traditional cooking functions

• Static
• Fan assisted
• Circulate
• Turbo (circulate + bottom + upper + fan)
• ECO
• Large grill
• Fan grill (large)
• Base
• Fan assisted base
• Rotisserie

Cleaning functions

• Pyrolytic
• Pyrolytic eco

Other functions

• Defrost by time
• Defrost by weight
• Proving
• Sabbath

OPTIONS MAIN OVEN

• Timer: Yes
• End of cooking acoustic alarm: Yes
• Minimum Temperature: 50 °C
• Maximum temperature: 260 °C

HOB TECHNICAL FEATURES

• Total no. of cook zones: 5
• 1st zone position: Front left
• 2nd zone position: Rear left
• 3rd zone position: Central
• 4th zone position: Rear right
• 5th zone position: Front right
• 1st zone type: Induction – single
• 2nd zone type: Induction – single
• 3rd zone type: Induction – single
• 4th zone type: Induction – single
• 5th zone type: Induction – single
• 1st zone dimensions: Ø 14.5 cm
• 2nd zone dimensions: Ø 18.0 cm
• 3rd zone dimensions: Ø 27.0 cm
• 4th zone dimensions: Ø 21.0 cm
• 5th zone dimensions: Ø 14.5 cm
• 1st zone power: 1.40 kW
• 2nd zone power: 1.85 kW
• 3rd zone power: 2.60 kW
• 4th zone power: 2.30 kW
• 5th zone power: 1.40 kW
• 1st zone booster power: 2.20 kW
• 2nd zone booster power: 3.00 kW
• 3rd zone booster power: 3.70 kW
• 4th zone booster power: 3.70 kW
• 5th zone booster power: 2.20 kW
• Automatic switch off when overheat: Yes
• Automatic pan detection: Yes
• Minimum pan diameter indication: Yes
• Selected zone indicator: Yes
• Residual heat indicator: Yes

MAIN OVEN TECHNICAL FEATURES

• Net volume of the cavity: 115 litres
• Cavity material: Easy clean enamel
• Shelf positions: 5
• Type of shelves: Metal racks
• No. of lights: 4
• Light type: Halogen
• Light power: 40 W
• Fan number: 3
• Cooking time setting: Start and Stop
• Door opening: Flap down
• Light when oven door is open: Yes
• Removable door: Yes
• Full glass inner door: Yes
• Removable inner door: Yes
• Total no. of door glasses: 4
• No.of thermo-reflective door glasses: 3
• Door Lock During Pyrolisis: Yes
• Safety Thermostat: Yes
• Cooling system: Tangential
• Heating suspended when door is opened: Yes
• Grill type: Electric
• Grill element: 1700 W
• Large grill – Power: 2900 W
• Lower heating element power: 1700 W
• Upper heating element – Power: 1200 W
• Circular heating element – Power: 1850 W
• Soft Close system: Yes
• Temperature control: Electronic

PERFORMANCE / ENERGY LABEL

• Energy efficiency class: A+
• GAS – Energy consumption in fan-forced convection, first cavity: 5.22 MJ
• Energy consumption forced air convection (kWh) first cavity: 1.45 KWh
• GAS – Energy consumption conventional mode, first cavity: 3.02 MJ
• Energy consumption conventional first cavity (kWh): 0.84 KWh
• Energy consumption zone 2: 167.5 Wh/Kg
• Energy consumption zone 3: 142 Wh/Kg
• Energy consumption zone 4: 172.8 Wh/Kg
• Energy consumption zone 5: 174.8 Wh/Kg

ELECTRICAL CONNECTION

• Nominal power: 11400 W
• Voltage: 220-240 V
• Voltage 2 (V): 380-415 V
• Frequency: 50/60 Hz

LOGISTIC INFORMATION

• Width (mm): 900 mm
• Product Height (mm): 900 mm
• Depth (mm): 600 mm
• Net weight (kg): 95.200 kg
