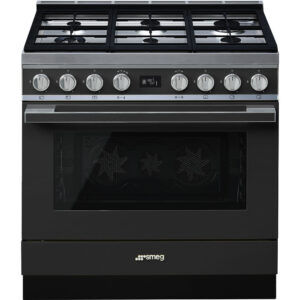

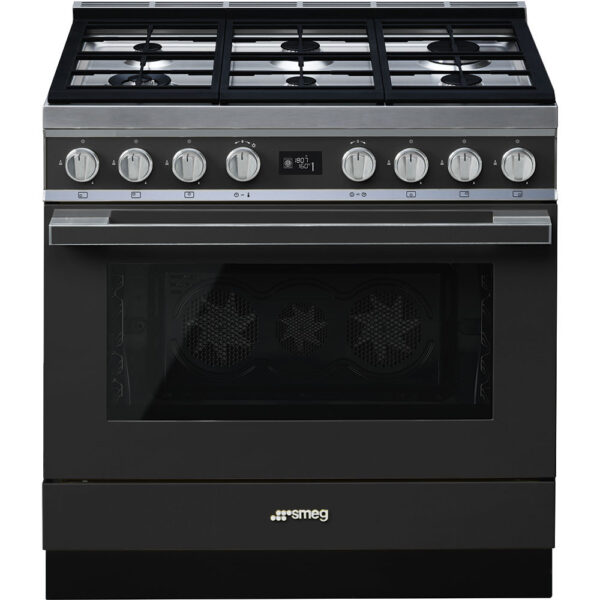

Smeg CPF9GPAN Portofino 90cm Range Cooker with Gas Top

Smeg Portofino 90cm Range Cooker with Gas Top Anthracite CPF9GPAN

PYROLYTIC CLEANING

Smeg’s pyrolitic oven cavity is designed to eliminate corners, holes and joints whilst every element inside the cavity can be easily removed: the upper grill has a tilting mechanism, and the side oven shelf brackets can be removed and washed in the dishwasher.

Through the automatic pyrolytic cleaning function, all the dirt and grease stuck to the walls of the oven is burned away effortlessly, without the need for detergents, thanks to the extremely high temperature reached by the oven (500 °C).

SOFT CLOSE DOORS

The Portofino cooker door is equipped with smooth soft close hinges which can make all the difference when opening & shutting the door regularly.

STURDY CONTROLS

Featuring solid, chunky metal knobs – the Portofino’s controls are robust and extremely ergonomic.

TRIPLE FAN TECHNOLOGY

The oven is equipped with an exclusive three-fan system which, combined with the greater power of the motors, allows excellent cooking performance to be achieved. The two large side fans distribute the air around the perimeter of the cavity while the small central one increases ventilation by creating a vertical heat vortex. This uniformed temperature allows you to cook evenly on all five levels, just like in professional kitchens.

TYPE

• Product Family: Cooker
• Cooker size: 90×60 cm
• Hob energy type: Gas
• N. of ovens: 1
• Hob type: Gas
• Main oven type: Thermo-ventilated
• Cleaning system: Pyrolytic
• EAN code: 8017709229429

AESTHETICS

• Colour: Anthracite
• Aesthetics: Portofino
• Design: Flush fit
• Material: Enamelled
• Door: With frame
• Command panel finish: Enamelled metal
• Hob colour: Stainless steel
• Handle: Smeg Portofino
• Controls colour: Stainless steel
• Upstand: Yes
• Display: LCD
• Type of pan stands: Cast Iron
• Handle Colour: coloured
• Control knobs: Smeg Portofino
• Glass type: Grey
• No. of controls: 8
• Feet: Black
• Plinth: Black
• Storage compartment: Push pull

PROGRAMS / FUNCTIONS

• Automatic programs: 20

Traditional cooking functions

• Static
• Fan assisted
• Circulaire
• Turbo (circulaire + bottom + upper + fan)
• ECO
• Large grill
• Fan grill (large)
• Base
• Fan assisted base
• Rotisserie

Cleaning functions

• Pyrolytic​​​​​​​
• Pyrolytic eco

Other functions

• Defrost by time
• Defrost by weight
• Proving
• Sabbath

OPTIONS MAIN OVEN

• Timer: Yes
• End of cooking acoustic alarm: Yes
• Minimum Temperature: 50 °C
• Maximum temperature: 260 °C

HOB TECHNICAL FEATURES

• Total no. of cook zones: 6
• 1st zone position: Front left
• 2nd zone position: Rear left
• 3rd zone position: Front centre
• 4th zone position: Rear centre
• 5th zone position: Front right
• 6th zone position: Rear right
• 1st zone type: Gas – 2UR (dual)
• 2nd zone type: Gas – AUX
• 3rd zone type: Gas – AUX
• 4th zone type: Gas – Semi Rapid
• 5th zone type: Gas – Semi Rapid
• 6th zone type: Gas – Rapid
• 1st zone power: 4.20 kW
• 2nd zone power: 1.00 kW
• 3rd zone power: 1.00 kW
• 4th zone power: 1.80 kW
• 5th zone power: 1.80 kW
• 6th zone power: 3.00 kW
• Type of gas burners: Standard
• Burner caps: Matt black enamelled
• Automatic electronic ignition: Yes
• Gas safety valves: Yes

• MAIN OVEN TECHNICAL FEATURES

• Net volume of the cavity: 115 litres
• Cavity material: Easy clean enamel
• Shelf positions: 5
• Type of shelves: Metal racks
• No. of lights: 4
• Light type: Halogen
• Light power: 40 W
• Fan number: 3
• Cooking time setting: Start and Stop
• Door opening: Flap down
• Light when oven door is open: Yes
• Removable door: Yes
• Full glass inner door: Yes
• Removable inner door: Yes
• Total no. of door glasses: 4
• No.of thermo-reflective door glasses: 3
• Door Lock During Pyrolisis: Yes
• Safety Thermostat: Yes
• Cooling system: Tangential
• Heating suspended when door is opened: Yes
• Grill type: Electric
• Grill element: 1700 W
• Large grill – Power: 2900 W
• Lower heating element power: 1700 W
• Upper heating element – Power: 1200 W
• Circular heating element – Power: 1850 W
• Soft Close system: Yes
• Temperature control: Electronic

PERFORMANCE / ENERGY LABEL

• Energy efficiency class: A+
• GAS – Energy consumption in fan-forced convection, first cavity: 5.22 MJ
• Energy consumption forced air convection (kWh) first cavity: 1.45 KWh
• GAS – Energy consumption conventional mode, first cavity: 3.02 MJ
• Energy consumption conventional first cavity (kWh): 0.84 KWh

ELECTRICAL CONNECTION

• Nominal power: 4000 W
• Voltage: 220-240 V
• Voltage 2 (V): 380-415 V
• Frequency: 50/60 Hz

GAS CONNECTION

• Gas connection rating (W): 12500 W
• Gas Type: G20 Natural gas

LOGISTIC INFORMATION

• Width (mm): 900 mm
• Product Height (mm): 900 mm
• Depth (mm): 600 mm
• Net weight (kg): 93.900 kg
