Siemens ED611BS16E iQ300 Induction Hob with Integrated Ventilation System 60cm Surface Mount
- Siemens Induction Hob with Integrated Extractor – Four induction cooking zones combine cooking and built-in ventilation in one appliance.
- InductionAir Plus – Integrated ventilation delivers up to 500 m³/h maximum air extraction with minimal noise without compromising suction power.
- 69 dB Maximum Sound Power – Maximum-speed operation reaches a verified sound power level of 69 dB.
- touchControl – Touch-sensitive controls provide convenient fingertip adjustment of the induction hob settings.
£1,929.00
- Product Info
- Specification
- FAQ's
The Siemens ED611BS16E iQ300 60cm induction hob with integrated extractor combines four induction zones with inductionAir Plus ventilation in one appliance.
Induction Cooking with Integrated Extraction
Designed to combine cooking and ventilation in a single surface-mounted appliance, the Siemens ED611BS16E features four induction cooking zones alongside the integrated inductionAir Plus ventilation system. The extractor delivers a maximum air extraction rate of 500 m³/h, helping remove cooking vapours directly from the hob area.
At maximum speed, the ventilation system has a sound power level of 69 dB. Its easy-clean design also helps make routine care of the integrated extractor more straightforward.
Why choose the Siemens ED611BS16E induction hob?
Choose the Siemens ED611BS16E if you want a 60 cm induction hob with built-in extraction, combining four cooking zones and inductionAir Plus ventilation in one frameless appliance.
- 500 m³/h maximum normal extraction helps manage cooking vapours at hob level.
- touchControl, powerInduction and cooking-zone timers provide straightforward everyday control.
- Its 60 cm format suits kitchens where wider 70 cm or 80 cm Siemens venting hobs are unnecessary.
- A strong fit for buyers who want Siemens’ core induction and extraction functions and do not require Home Connect.
touchControl and powerInduction
Siemens touchControl provides fingertip adjustment of the hob settings, while powerInduction technology supports responsive induction cooking across the four cooking zones.
A cooking-zone timer with automatic shut-off provides additional control when preparing meals, while the child safety lock helps prevent unintended operation.
Frameless Surface-Mounted Design
The Siemens iQ300 induction hob with integrated extractor has a frameless, surface-mounted design and measures 592 mm wide. This combines the hob and ventilation system within one cooking appliance without requiring a separate overhead extractor.
The Siemens ED611BS16E does not feature Home Connect connectivity.
| Dimensions | 52.2 × 59.2 × 22.3 cm |
|---|---|
| Brand | Siemens |
| Smart Appliance | No |
| Cooktop | Induction |
| Energy Efficiency Class | B |
| Colour Group | Black Glass |
| Installation | Surface Mount |
| Noise Level | 67 |
| No. Of Fan Speeds | 10 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 2 |
| Zones | 4 |
| Product Type | Vented Induction Hob |
| SKU | ED611BS16E |
| GTIN | 4242003945872 |
| Brand | Siemens |
|---|---|
| Series | iQ300 |
| Product Type | Induction hob with integrated ventilation system |
| Model | ED611BS16E |
| EAN | 4242003945872 |
| Installation Type | Built-in, surface mount |
| Hob Type | Induction with integrated downdraft extractor |
| Colour | Black |
| Surface Material | Ceramic |
| Frame Type | Frameless |
| Number of Cooking Zones | 4 |
| combiZone | Yes, combines two cooking zones to accommodate larger cookware |
| Front Left Cooking Zone | 190 x 210 mm, 2.2 kW, up to 3.7 kW with powerBoost |
| Rear Left Cooking Zone | 190 x 210 mm, 2.2 kW, up to 3.7 kW with powerBoost |
| Rear Right Cooking Zone | 145 mm, 1.4 kW, up to 2.2 kW with powerBoost |
| Front Right Cooking Zone | 210 mm, 2.2 kW, up to 3.7 kW with powerBoost |
| Controls | Front-mounted touchControl with +/- touch buttons |
| Power Levels | 17, comprising 9 main levels and 8 intermediate levels |
| powerBoost | Available on all cooking zones |
| quickStart | Automatically selects the cooking zone where cookware has been placed when the hob is switched on |
| reStart | Restores previous settings when the hob is switched back on within 4 seconds after an unintentional switch-off |
| quickStop | Allows a cooking zone to be switched off with a longer touch |
| Cooking Zone Timer | Switch-off timer automatically turns off the selected cooking zone at the end of the set time |
| Count-Down Timer | Audible alarm sounds at the end of the selected time |
| Residual Heat Indicator | 2-stage residual heat indicator for each cooking zone |
| Control Panel Lock | Yes |
| Main On/Off Switch | Yes |
| Automatic Safety Switch-Off | Yes |
| Integrated Ventilation System | inductionAir Plus downdraft extraction |
| Extraction Configuration | Suitable for ducted or recirculated extraction |
| Fan Speed Settings | 3 electronically controlled power levels plus 1 Boost/Intensive level |
| Automatic Extractor Start | Ventilation system switches on automatically when a cooking zone is used |
| Delayed Extractor Shut-Off | 12 minutes in ducted extraction mode or 30 minutes in recirculation mode |
| Ducted Extraction Rate | 330 m³/h minimum normal setting, 500 m³/h maximum normal setting, 622 m³/h Boost/Intensive |
| Recirculation Extraction Rate | 252 m³/h minimum normal setting, 441 m³/h maximum normal setting, 595 m³/h Boost/Intensive |
| Ducted Noise Level | 61 dB minimum normal setting, 69 dB maximum normal setting, 74 dB Boost/Intensive |
| Recirculation Noise Level | 55 dB minimum normal setting, 66 dB maximum normal setting, 72 dB Boost/Intensive |
| Grease Filter Efficiency | 94% |
| Grease Filter Efficiency Class | B |
| Extractor Energy Efficiency Class | B |
| Fluid Dynamic Efficiency Class | A |
| Fluid Dynamic Efficiency | 28.1 |
| Annual Extractor Energy Consumption | 61.8 kWh/a |
| Standby Power Consumption | 0.17 W |
| Clean Filter Reminder | Yes |
| Grease Filter Cleaning | Removable dishwasher-safe grease filter and liquid collector unit |
| Upper Liquid Collector Capacity | 200 ml |
| Lower Liquid Safety Collector Capacity | 700 ml |
| Total Liquid Collection Capacity | 900 ml |
| Home Connect | No |
| Dimensions (H x W x D) | 223 x 592 x 522 mm |
| Required Niche Size (H x W x D) | 223 x 560 x 490 mm |
| Minimum Worktop Thickness | 16 mm |
| Suitable Base Cabinet Width | 60 cm |
| Maximum Immersion Depth | 223 mm below the worktop surface |
| Connected Load | 7.4 kW |
| Voltage | 220-240 / 380-415 V |
| Frequency | 50-60 Hz |
| Power Management | Connection current management with 20 A, 16 A, 13 A and 10 A options |
| Electrical Supply Cord Length | 1.1 m |
| Included Accessories | Clean Air Plus odour filter and slider for unducted recirculation |

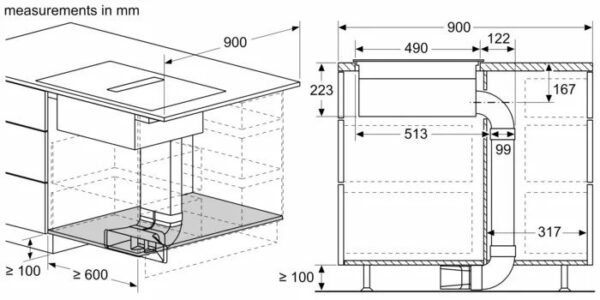

Installation details
The ED611BS16E can be installed for ducted extraction or recirculation and is suitable for installation into a 60 cm base cabinet. The appliance requires a 223 x 560 x 490 mm niche and a minimum worktop thickness of 16 mm. Installation with the included unducted recirculation accessories can be planned with worktop depths of at least 60 cm. For unducted recirculation, Siemens specifies a minimum 25 mm vertical aperture behind the furniture back panel, with 50 mm suggested for optimum performance. Partly ducted and unducted recirculation installations require a return-flow aperture of at least 400 cm² in the plinth area. The appliance must remain accessible from below for access to the lower liquid safety collector. The rear air outlet accepts a DN 150 flat duct element. Electrical connection requirements should be checked against the 7.4 kW connected load and the installation must be appropriate for the available electrical supply.
Frequently Asked Questions About the ED611BS16E
What is the Siemens ED611BS16E?
The Siemens ED611BS16E is an iQ300 60 cm induction hob with an integrated ventilation system. It combines four induction cooking zones and built-in extraction in one frameless, surface-mounted appliance.
How many cooking zones does the Siemens ED611BS16E have?
It has four induction cooking zones. The combiZone function can combine two zones to provide more space for larger pots and roasting pans.
Does the Siemens ED611BS16E have an integrated extractor?
Yes. The hob features the inductionAir Plus integrated ventilation system, which extracts cooking vapours directly from the hob area without requiring a separate overhead extractor.
What is the extraction rate of the Siemens ED611BS16E?
The integrated extractor has a maximum air extraction rate of 500 m³/h during normal operation.
How loud is the Siemens ED611BS16E extractor?
The sound power level is 69 dB at the maximum normal extraction speed.
What controls does the Siemens ED611BS16E use?
The hob uses front-mounted touchControl controls, allowing cooking settings and functions to be adjusted using touch-sensitive buttons.
Does the Siemens ED611BS16E have powerBoost?
Yes. powerBoost is available for the induction cooking zones and can increase the power of an induction zone by up to 50% when additional heating power is required.
Is the Siemens ED611BS16E easy to clean?
The integrated extractor is designed for straightforward cleaning. Its removable grease filter and liquid collection components help provide access to the parts that require routine cleaning.
What are the dimensions of the Siemens ED611BS16E?
The appliance measures 223 mm high, 592 mm wide and 522 mm deep. It is designed as a frameless, surface-mounted 60 cm induction hob.
Does the Siemens ED611BS16E have a timer and child lock?
Yes. It features a cooking-zone timer with an automatic shut-off function, as well as a child safety lock to help prevent unintended operation.
Does the Siemens ED611BS16E support Home Connect?
No. The Siemens ED611BS16E does not support Home Connect connectivity.
What is the electrical load of the Siemens ED611BS16E?
The hob has a maximum connected load of 7.4 kW. The electrical supply and installation requirements should be checked before fitting.
