Miele KFN7764D DailyFresh Built In Fridge Freezer
- Miele Built In Fridge Freezer – Integrated 178 cm Miele appliance designed for a seamless fitted kitchen.
- 254 Litre Capacity – 184 Litre fridge and 70 litre 4-star freezer for fresh and frozen food storage.
- NoFrost Freezer – Frost free technology prevents ice build-up and removes the need to defrost manually.
- DailyFresh Drawer – Adjustable humidity control helps keep fruit and vegetables in better condition.
- Quiet Smart Cooling – DynaCool, Miele@Home connectivity and 34 dB operation suit open plan kitchens.
Complete the form below and our team will do their best to help
or simply call us on
- Product Info
- Specification
- FAQ's
Miele KFN7764D built-in fridge freezer with DynaCool for even cooling, DailyFresh storage, NoFrost convenience and smart Miele@Home control.
Miele KFN 7764 D Built-In Fridge Freezer with DynaCool

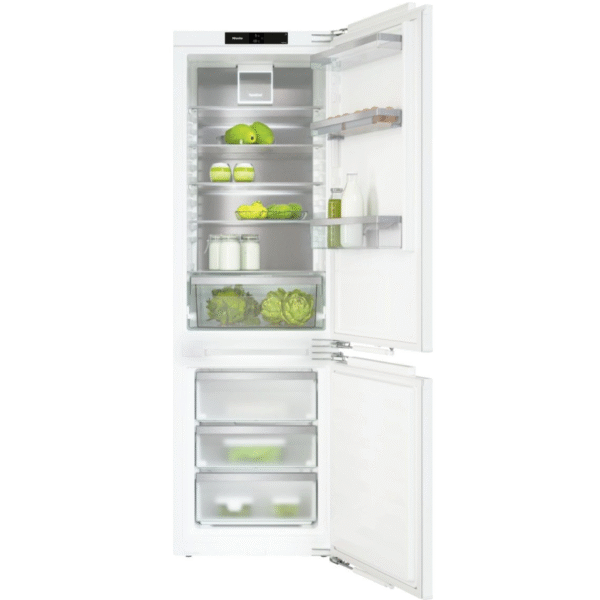

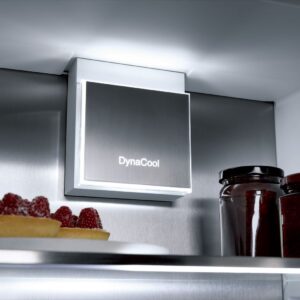

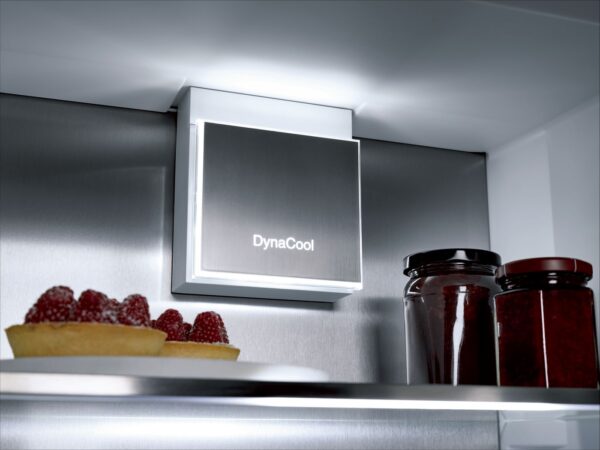

The Miele KFN7764 D integrated fridge freezer, with 178 cm niche height is designed for integrated kitchens, combining precise cooling performance, smart connectivity and flexible food storage. With DynaCool, a fan circulates cold air evenly throughout the refrigerator, helping to maintain consistent conditions across every shelf.

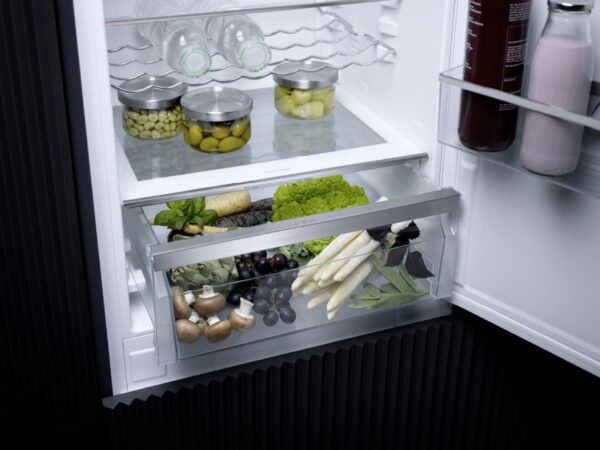

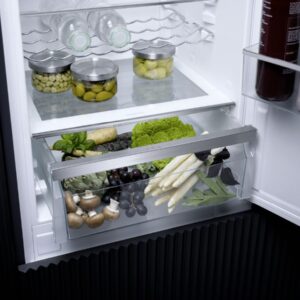

DailyFresh provides a large-capacity drawer with adjustable moisture, making it easier to store fresh produce in suitable conditions. The appliance also features NoFrost, which offers convenient frost-free freezing and removes the need for manual defrosting.
Smart Cooling and Flexible Storage
With Miele@Home, you can connect compatible Miele appliances using smart devices, helping make everyday appliance use more convenient. The KFN 7764D also includes electronic temperature display and adjustment, FreshTouch, independent temperature control for the refrigeration and freezer zones, and two temperature zones.
The fridge area offers 184 litres of usable capacity, five shelves, two illuminated shelves, one vegetable bin, two door shelves for preserves and one interior door compartment for bottles. Adjustable door shelves help create practical storage space for bottles, cans and everyday groceries.
The freezer zone provides 70 litres of 4-star freezer capacity, with three removable freezer drawers or baskets, all on sliding rails. VarioRoom gives added flexibility when storing larger frozen items.
Convenience Features for Everyday Use

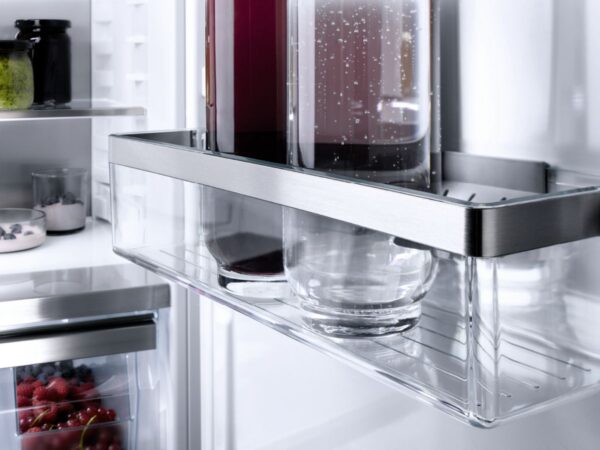

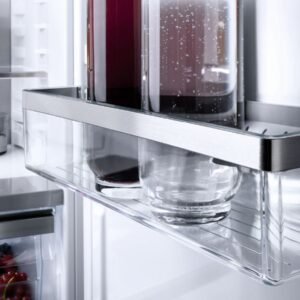

The Miele KFN7764D integrated fridge-freezer includes ComfortClean door shelves made from high-quality plastic. These shelves are scratch-resistant, highly transparent and suitable for hygienic cleaning in the dishwasher at up to 55°C.
SoftClose door closing damping, ComfortSize, DuplexCool, SuperCool and SuperFrost all support simple and reliable daily use. Additional modes include Sabbath Mode, Party mode and Vacation mode.
Built-In Design and Key Specifications
This integrated Miele fridge freezer is a built-in appliance with a fixed door fitting system, right-hand door hinges and switchable door hinges. It features LED freezer zone lighting, fan lighting, a dry wall interior and CleanSteel anti-trace stainless steel detailing.
The appliance has an energy efficiency class D, annual energy consumption of 181.40 kWh and 24-hour energy consumption of 0.495 kWh. It has a total useful volume of 254 litres, a freezing capacity of 6.0 kg per 24 hours and a storage time of 14 hours in the event of a fault.
For peace of mind, the KFN 7764 D includes a lock function, audible and optical door signals, acoustic and optical temperature signals, and a power failure indication for the freezer area.
Technical Information
Niche width: 560 to 570 mm
Niche height: 1,772 to 1,788 mm
Niche depth: 550 mm
Appliance width: 559 mm
Appliance height: 1,770 mm
Appliance depth: 546 mm
Weight: 65.2 kg
Climate class: SN-ST
Sound perception class: B
Acoustic power: 34 dB(A) re1pW
Voltage: 220 to 240 V
Fuse protection: 10 A
Frequency: 50 Hz
Electrical connection cable length: 2.2 m
Supplied Accessories
The Miele KFN7764D built-in fridge freezer is supplied with an egg tray and ice tray.
| Dimensions | 54.5 × 55.9 × 177 cm |
|---|---|
| Automatic Programmes | No |
| Brand | Miele |
| Capacity | 254 |
| Colour Group | Custom |
| Smart Appliance | Yes |
| Discontinued | Yes |
| Energy Efficiency Class | D |
| Noise Level | 34 |
| Quiet Mark | Yes |
| Variant | Built In |
| Warranty | 2 |
| SKU | KFN7764D |
| GTIN | 4002516413820 |
Model
- Built-in appliance
- Integrated device
- Door hinges right
- Switchable door hinges
- Design
- Freezer zone lighting LED
- Fan lighting
Comfort in use
- Networking with Miele @ home
- Cooling system
- DailyFresh
- Precise interior door adjustment
- ComfortClean
- DynaCool
- NoFrost
- DuplexCool
- ComfortSize
- VarioRoom
- SoftClose door closing damping
Ordered
- Electronic temperature display and adjustment
- FreshTouch
- Disconnectable refrigeration part
- Independent temperature adjustment for the refrigeration and freezer zone
- Super cool
- SuperFrost
- Number of temperature zones 2
- Sabbath Mode
- Party mode
- Vacation mode
Refrigerator / Refrigeration area
- Number of shelves 5
- of which illuminated 2
- Number of vegetable bins 1
- Dry wall
- Cleansteel anti-trace stainless steel
- Number of door shelves for preserves 2
- Interior door compartment for bottles 1
Freezer / Freezer zone
- Number of removable freezer drawers / baskets 3
- including on sliding rails 3
Efficiency and sustainability
- Energy efficiency class (A – F) D
- Energy consumption per year in kWh 181.40
- Energy consumption in 24 hours in kWh 0.495
Security
- Lock function
- Audible signal for the door
- Acoustic signal for the temperature of the freezer
- Optical signal for the door
- Optical signal for temperature
- Power failure indication for the freezer area
Technical informations
- Niche width in mm 560 – 570
- Height of the niche in mm 1.772 – 1,788
- Depth of the niche in mm 550
- Device width in mm 559
- Device height in mm 1,770
- Device depth in mm 546
- Weight in kg 65.2
- Fixing technique
- Fixed door
- Max weight door front refrigeration section in kg 18
- Max weight freezer section door front in kg 12
- Climate class SN-ST
- Refrigeration zone in l 184
- 4-star freezer zone in l 70
- Total useful volume in l 254
- Shelf life in case of failure in h 14
- Freezing capacity in kg / 24h 6.0
- Sound perception class (A – D) B
- Acoustic power in dB (A) re1pW 34
- Power consumption in milliamps (mA) 1,400
- Voltage in V 220-240
- Fuse protection in A 10
- Frequency in Hz 50
- Length of the electrical connection cable in m 2.2
Supplied accessories
- Egg tray
- Ice tray
Frequently Asked Questions About the KFN7764D
Is the Miele KFN 7764 D DailyFresh a built-in fridge freezer?
Yes. The Miele KFN7764D is a built-in, integrated fridge freezer designed for a 178 cm niche height. It is made to sit behind kitchen furniture doors for a neat, fitted look.
Does the Miele KFN7764 D need defrosting?
No. This model includes NoFrost technology, which helps prevent ice build-up in the freezer. That means you do not need to manually defrost the freezer section.
What is the fridge and freezer capacity of the Miele KFN 7764D?
The Miele KFN7764D offers 184 litres of usable fridge capacity and 70 litres of usable freezer capacity, giving a total useful volume of 254 litres. This makes it a practical choice for everyday fresh and frozen food storage.
What does DailyFresh do on the Miele KFN 7764D?
DailyFresh provides a large drawer with adjustable moisture control, designed to help create suitable storage conditions for fresh fruit and vegetables. It is useful if you regularly buy fresh produce and want flexible storage inside the fridge.
Does the Miele KFN7764 D have even cooling?
Yes. This model includes DynaCool, which uses a fan to circulate cold air throughout the fridge section. This helps maintain more consistent cooling conditions across the shelves.
Can the Miele KFN7764D be controlled with an app?
Yes. With Miele@Home, the Miele KFN7764D can connect to compatible smart devices, allowing convenient appliance control and monitoring through the Miele app where supported.
What door fitting does the Miele KFN7764D use?
The Miele KFN7764D uses a fixed door fitting system. It is supplied with right-hand hinges, and the door hinging is reversible, giving more flexibility when planning your kitchen installation.
Does the Miele KFN7764D have separate fridge and freezer controls?
Yes. This model has independent temperature control for the refrigeration and freezer zones, with electronic temperature display and adjustment. This helps you manage each compartment separately.
How noisy is the Miele KFN7764D?
The Miele KFN7764D has an acoustic power level of 34 dB(A) re1pW and a sound perception class of B. This makes it a quiet option for integrated kitchen spaces.
What are the installation dimensions for the Miele KFN7764D?
The appliance itself measures 1,770 mm high, 559 mm wide and 546 mm deep. It is designed for a niche width of 560 to 570 mm, a niche height of 1,772 to 1,788 mm and a niche depth of 550 mm.
Does the Miele KFN7764D have dishwasher-safe door shelves?
Yes. The ComfortClean door shelves are made from high-quality plastic and can be cleaned hygienically in the dishwasher at up to 55°C.
What freezer storage features does the Miele KFN7764D include?
The freezer section has three removable drawers, with flexible VarioRoom storage for larger frozen items. It also offers 4-star freezing performance and a freezing capacity of 6 kg in 24 hours.
*FAQs are checked against manufacturer information, but please confirm installation requirements before purchase.
