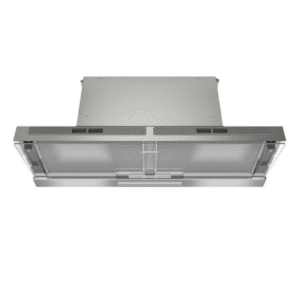

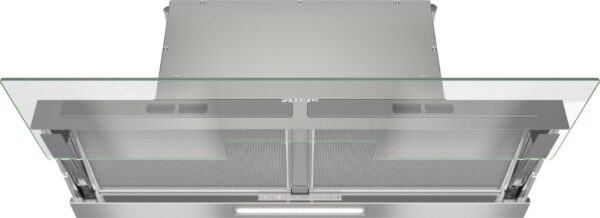

Miele DAS4940 90cm Built In Extractor Hood
- Clear Glass & Stainless Steel Finish Miele Extractor Hood – Duct Out or Recirculation (sold separately), Pull-Out, Run-On function, Touch control operation & Energy Rating A++.
- Miele@Home – Make your life smart; connect up all your Miele appliances using your smart devices.
- Stainless Steel (10-ply) Grease Filter – Can be cleaned in Dishwasher.
- Powerful – 625 m3/h on booster setting.
- Miele CleanCover – Easy cleaning & Protects electrical components + motor.
£1,114.00
- Product Info
- Specification
- FAQ's
Miele DAS4940 90cm built in extractor hood with clear glass, stainless steel finish, A++ energy rating and powerful 625 m³/h booster extraction.
Miele DAS 4940 Transp. Glass 90cm Built In Extractor Hood
The Miele DAS 4940 Glass 90cm built in extractor hood is a slimline cooker hood designed for installation in narrow wall units. Finished with a transparent glass panel and stainless steel, it offers a clean, integrated look while delivering powerful extraction for modern kitchens.
This Miele extractor hood can be used for ducted extraction or recirculation, with recirculation accessories sold separately. Its pull-out design, light-touch controls with LED indicators and run-on function make everyday use simple and practical.
Smart Control with Miele@home and Con@ctivity 3.0
Miele@home lets you connect compatible Miele appliances using your smart devices, helping to make your kitchen smarter and easier to manage. The Con@ctivity 3.0 WiFi automatic function allows the hood to work intelligently with compatible Miele hobs.
Electronic controls, touch operation and a programmable Booster level switch-off give you flexible control over extraction performance. The run-on time can be set to 5 or 15 minutes, helping clear lingering cooking vapours after use.
Powerful and Efficient Extraction
With a powerful 625 m³/h booster setting in extraction mode, the Miele DAS4940 is built to handle busy cooking environments. Extraction air throughput is 200 m³/h on Level 1, 290 m³/h on Level 2 and 400 m³/h on Level 3, according to EN 61591.
In recirculation mode, air throughput reaches 175 m³/h on Level 1, 270 m³/h on Level 2, 425 m³/h on Level 3 and 610 m³/h on Booster level, according to EN 61591.
The hood features an ECO motor, DC motor, dual-action blower and PowerManagement system. It has an A++ energy efficiency rating and an annual energy consumption of 24.80 kWh/year, with fluid dynamic efficiency class A, lighting efficiency class A and grease filtering efficiency class B.
Easy Cleaning and Effective Filtration
The Miele CleanCover is designed for easy cleaning while helping to protect electrical components and the motor. Two dishwasher-safe 10-ply stainless steel grease filters efficiently capture grease and can be cleaned conveniently in the dishwasher.
A grease filter saturation indicator is included and programmable, while the active charcoal filter saturation indicator is also programmable. An active charcoal filter is not included.
LED Lighting and Low Noise Performance
An integrated LED strip provides uniform lighting across the hob area. The lighting uses 1 x 3 W, with a light intensity of 285 lx, a colour temperature of 3500 Kelvin and a dimmer function.
In extraction mode, sound power levels are 36 dB(A) on Level 1, 44 dB(A) on Level 2, 51 dB(A) on Level 3 and 62 dB(A) on Booster level, according to EN 60704-3. Sound pressure levels are 22 dB(A), 30 dB(A), 38 dB(A) and 48 dB(A) respectively, according to EN 60704-2-13.
In recirculation mode, sound power levels are 41 dB(A) on Level 1, 50 dB(A) on Level 2, 61 dB(A) on Level 3 and 70 dB(A) on Booster level. Sound pressure levels are 28 dB(A), 36 dB(A), 47 dB(A) and 56 dB(A) respectively.
Installation and Technical Details

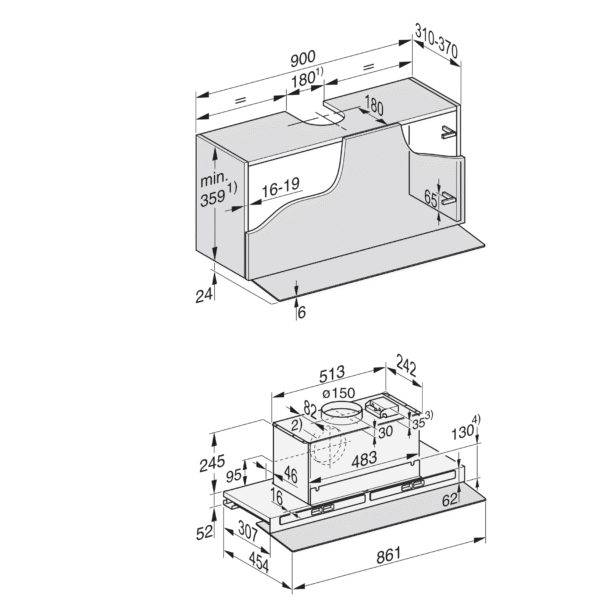

The canopy measures 861 mm wide, 68 mm high and 307 mm deep. Minimum height above electric hobs is 450 mm, and the net weight is 15.00 kg.
Extraction ducting connections are available at the top and rear, with a 150 mm extraction ducting connection. A fitting template and non-return flap are included.
Electrical details include a 1.50 m supply lead, standard plug, 0.08 kW total rated load, 230 V voltage, 10 A fuse rating, 50 Hz frequency and 1 phase.
Key Features
Model: Miele DAS4940
Type: 90cm built in slimline cooker hood
Finish: Transparent glass and stainless steel
Operating modes: Ducted extraction or recirculation, with recirculation accessories sold separately
Energy rating: A++
Maximum extraction booster airflow: 625 m³/h
Controls: Light-touch switches with LED
Filters: 2 dishwasher-safe 10-ply stainless steel grease filters
Lighting: LED strip with dimmer function
Included: Non-return flap and fitting template
| Dimensions | 31 × 90 × 7 cm |
|---|---|
| Automatic Programmes | No |
| Brand | Miele |
| Smart Appliance | Yes |
| Energy Efficiency Class | A++ |
| Colour Group | Glass |
| Intensive Mode | Yes |
| Noise Level | 70 |
| No. Of Fan Speeds | 4 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 2 |
| Quiet Mark | Yes |
| Group | Built In |
| Variant | Wall |
| Product Type | Cooker Hood |
| SKU | DAS4940 |
| GTIN | 4002516496366 |
Construction Type
- Slimline cooker hood
Operating Modes
- Type of air guide Convertible
Design
- Colour Transp. glass
User Convenience
- Miele@home
- Automatic function Con@ctivity 3.0 (WiFi)
- Electronic controls
- Light-touch switches with LED
- Programmable Booster level switch-off
- Run-on time 5/15 min.
- Grease filter saturation indicator
- Grease filter saturation indicator programmable
- Active charcoal filter saturation indicator programmable
Efficiency and Sustainability
- Energy efficiency class (A+++ to D) A++
- Annual energy consumption in kWh/year 24.80
- Fluid dynamic efficiency class A
- Lighting efficiency class A
- Grease filtering efficiency class B
- PowerManagement system
- ECO motor
Filter System
- Number of dishwasher-safe stainless steel grease filters (10-ply) 2
Lighting
- LED
- Number x W 1 x 3 W
- Light intensity in Lx 285 lx
- Colour temperature in K 3500 Kelvin
- Dimmer function
Blower
- Dual-action blower
- DC motor
Extraction
- Air throughput in Level 1 (m³/h) according to EN 61591 200
- Air throughput in Level 2 (m³/h) according to EN 61591 290
- Air throughput in Level 3 (m³/h) according to EN 61591 400
- Air throughput in Booster level (m³/h) according to EN 61591 625
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 36.00
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 44.00
- Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 51.00
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 62.00
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 22.00
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 30.00
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 38.00
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 48.00
Recirculation
- Air throughput in Level 1 (m³/h) according to EN 61591 175
- Air throughput in Level 2 (m³/h) according to EN 61591 270
- Air throughput in Level 3 (m³/h) according to EN 61591 425
- Air throughput in Booster level (m³/h) according to EN 61591 610
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 41.00
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 50.00
- Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 61.00
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 70.00
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 28.00
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 36.00
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 47.00
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 56.00
Safety
- Safety shut-off
- Single-ply safety glass (ESG)
Technical Data
- Canopy width in in. (mm) 861
- Canopy height in in. (mm) 68
- Depth of hood canopy in in. (mm) 307
- Minimum height above electric hobs in mm 450
- Net weight in kg 15.00
- Length of supply lead in m 1.50
- Standard plug fitted
- Total rated load in kW 0.08
- Voltage in V 230
- Fuse rating in A 10
- Frequency in Hz 50
- Number of phases 1
Installation Notes
- Extraction ducting connection at top
- Extraction ducting connection at rear
- Extraction connection at top and rear
- Diameter of extraction ducting connection in mm 150
- Fitting template
Optional Accessories
- Active charcoal filter No
Frequently Asked Questions About the DAS4940
Is the Miele DAS 4940 a 90cm extractor hood?
Yes. The Miele DAS 4940 Transp. Glass is a 90cm slimline built in cooker hood with an 861mm wide canopy. It is designed to fit neatly into narrow wall units for a clean, integrated kitchen look.
Can the Miele DAS4940 be used for recirculation?
Yes. The Miele DAS4940 can be used for ducted extraction or recirculation. For recirculation, the required conversion kit and charcoal filter are sold separately, so these should be added if you are not venting air outside.
What is the maximum extraction rate of the Miele DAS 4940?
The Miele DAS 4940 offers a booster extraction rate of up to 625 m³/h in extraction mode. This gives it strong performance for clearing steam, cooking vapours and odours from larger hob areas.
Does the Miele DAS4940 work with Miele Con@ctivity?
Yes. This model includes Miele@home and Con@ctivity 3.0 via WiFi. When paired with a compatible Miele hob, the hood can adjust its extraction automatically based on hob activity.
Does this cooker hood have built in lighting?
Yes. The Miele DAS 4940 includes an integrated LED strip to provide even lighting over the hob. The light also has a dimmer function, giving you more flexibility while cooking.
Are the grease filters dishwasher safe?
Yes. This model has two 10-ply stainless steel grease filters that are dishwasher safe. It also includes a grease filter saturation indicator, helping you know when the filters need cleaning.
Is an active charcoal filter included with the Miele DAS4940?
No. An active charcoal filter is not included as standard. If you plan to use the hood in recirculation mode, you will need the appropriate recirculation accessories and charcoal filter separately.
How quiet is the Miele DAS 4940?
In extraction mode, the Miele DAS 4940 has a sound power level from 36 dB(A) on Level 1 up to 62 dB(A) on the Booster setting. This makes it relatively quiet at lower speeds while still offering powerful extraction when needed.
What is the energy rating of the Miele DAS4940?
The Miele DAS4940 has an A++ energy efficiency rating and an annual energy consumption of 24.80 kWh/year. It also uses an efficient ECO motor and LED lighting to help keep running costs low.
What height should the Miele DAS 4940 be installed above the hob?
The minimum installation height above an electric hob is 450mm. Gas hob installation is not suitable for this model, so it should be used with compatible electric hob installations only.
Does the Miele DAS4940 have a run-on timer?
Yes. The Miele DAS4940 includes a run-on function that can be set for 5 or 15 minutes. This helps remove remaining steam and odours after cooking without needing to leave the hood running manually.
What comes supplied with the Miele DAS 4940?
The Miele DAS 4940 is supplied with a non-return flap and fitting template. Recirculation accessories, including the required conversion kit and charcoal filter, are available separately.
