DAS2920

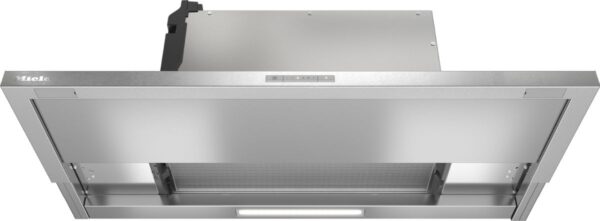

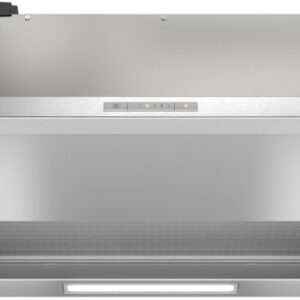

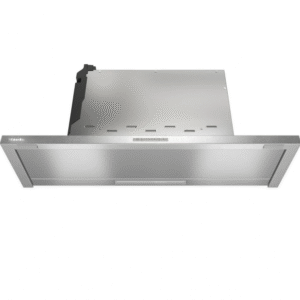

Miele DAS 2920 Stainless Steel 90cm Telescopic Built In Slimline Cooker Hood

Miele Telescopic Extractor Hood – Three extraction speeds plus a booster setting deliver airflow up to 555m³/h.
Convertible Air Guidance – Supports both extraction and recirculation installation configurations.
10-Ply Stainless Steel Grease Filter – Dishwasher-safe filtration makes routine cleaning more convenient.
LED Hob Lighting – A 3.2 W LED provides 275 lx illumination across the cooking area.
A Energy Rating – Achieves A-class ratings for energy, fluid dynamics, lighting and grease filtration efficiency.

2 Year Warranty

In Stock

FOUND IT CHEAPER? Get Our Best Price

£636.00

Product Info
Specification
FAQ's

Item 1

Miele DAS2920 90cm telescopic extractor hood delivers up to 555m³/h airflow, LED hob lighting and A-rated efficiency in stainless steel.

Miele DAS 2920 Stainless Steel 90cm Telescopic Built-In Extractor Hood

The Miele DAS 2920 stainless steel 90cm telescopic built-in extractor hood combines powerful extraction with straightforward everyday operation. Its slimline design and clean stainless steel finish allow it to integrate neatly into a modern kitchen.

Three extraction speeds and an intensive booster setting provide flexible ventilation for everyday cooking and more demanding extraction. In extraction mode, airflow reaches up to 555m³/h on the booster setting.

Why choose the Miele DAS2920 slimline cooker hood?

Choose the DAS2920 if you want a discreet 90cm telescopic hood with strong 555m³/h booster extraction for everyday cooking smells, steam and grease. Its stainless steel pull-out design suits fitted kitchens, while LED hob lighting, A-rated efficiency and a dishwasher-safe 10-ply grease filter keep daily use simple. It is a smart fit for shoppers who want Miele’s core extraction quality and flexible ducted or recirculating installation in a clean, built-in format.

Flexible Extraction and Recirculation

The convertible Miele DAS2920 supports both extraction and recirculation configurations, allowing the air guidance system to be adapted to suit your kitchen installation. A dual-action blower with an AC motor supports reliable performance across each operating level.

Extraction mode airflow:
Level 1: 195m³/h
Level 2: 295m³/h
Level 3: 410m³/h
Booster level: 555m³/h

Recirculation mode airflow:
Level 1: 190m³/h
Level 2: 290m³/h
Level 3: 415m³/h
Booster level: 550m³/h

Dishwasher-Safe 10-Ply Grease Filter

The 10-ply stainless steel grease filter captures grease during cooking and can be removed for convenient cleaning in the dishwasher. This makes routine maintenance easier while supporting long-lasting filtration performance.

Energy-Efficient LED Hob Lighting

Integrated LED lighting provides clear, energy-efficient illumination across the cooking area. The extractor hood includes one 3.2 W LED light with an intensity of 275 lx and a colour temperature of 3500 Kelvin, helping you maintain a clear view of the hob while preparing meals.

Simple Electronic Controls and Easy Cleaning

Electronic controls and light-touch switches with LED indicators make the Miele telescopic extractor hood straightforward to operate. The Miele CleanCover helps simplify cleaning while shielding the motor and electrical components.

A-Rated Energy Efficiency

The Miele DAS 2920 has an A energy rating and annual energy consumption of 42.00 kWh/year. It also achieves A-class ratings for fluid dynamic efficiency, lighting efficiency and grease filtering efficiency.

Extraction and Recirculation Noise Levels

Extraction mode sound power levels:
Level 1: 47.00 dB(A)
Level 2: 54.00 dB(A)
Level 3: 61.00 dB(A)
Booster level: 69.00 dB(A)

Extraction mode sound pressure levels:
Level 1: 33.00 dB(A)
Level 2: 40.00 dB(A)
Level 3: 47.00 dB(A)
Booster level: 55.00 dB(A)

Recirculation mode sound power levels:
Level 1: 52.00 dB(A)
Level 2: 60.00 dB(A)
Level 3: 68.00 dB(A)
Booster level: 75.00 dB(A)

Recirculation mode sound pressure levels:
Level 1: 38.00 dB(A)
Level 2: 46.00 dB(A)
Level 3: 54.00 dB(A)
Booster level: 61.00 dB(A)

Active charcoal filter: No

Item 2

Dimensions	27.3 × 89.6 × 3.6 cm
Automatic Programmes	No
Brand	Miele
Smart Appliance	No
Energy Efficiency Class	A
Colour Group	Stainless Steel
Intensive Mode	Yes
Noise Level	69
No. Of Fan Speeds	4
Outlet Type	Duct Out or Recirculation
Warranty	2
Group	Telescopic
Variant	Built In
Product Type	Cooker Hood
SKU	DAS2920
GTIN	4002516495888

Miele DAS2920 Technical Details

Construction type: Slimline cooker hood
Colour: Stainless steel
Canopy width: 896 mm
Canopy height: 36 mm
Depth of hood canopy: 273 mm
Net weight: 14.00 kg
Minimum height above electric hobs: 450 mm
Minimum safety distance above gas hobs: 650 mm, maximum 12.6 kW total power, burner ≤ 4.5 kW
Length of supply lead: 1.50 m
Standard plug fitted: Yes
Total rated load: 0.20 kW
Voltage: 230 V
Fuse rating: 10 A
Frequency: 50 Hz
Number of phases: 1

Installation and Safety

The extraction ducting connection is positioned at the top and has a diameter of 150 mm. For added reassurance, the Miele DAS2920 includes a safety shut-off and is supplied with a non-return flap.

CONSTRUCTION TYPE

Slimline cooker hood

OPERATING MODES

Type of air guide: Convertible

DESIGN

Colour: Stainless steel

USER CONVENIENCE

Electronic controls
Light-touch switches with LED

EFFICIENCY AND SUSTAINABILITY

Energy efficiency class (A+++ to D): A
Annual energy consumption: 42.00 kWh/year
Fluid dynamic efficiency class: A
Lighting efficiency class: A
Grease filtering efficiency class: A

FILTER SYSTEM

Number of dishwasher-safe stainless steel grease filters (10-ply): 1

LIGHTING

LED
Number x W: 1 x 3.2 W
Light intensity: 275 lx
Colour temperature: 3500 Kelvin

BLOWER

Dual-action blower
AC motor

EXTRACTION

Air throughput in Level 1 (m³/h) according to EN 61591: 195
Air throughput in Level 2 (m³/h) according to EN 61591: 295
Air throughput in Level 3 (m³/h) according to EN 61591: 410
Air throughput in Booster level (m³/h) according to EN 61591: 555
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 47.00
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 54.00
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3: 61.00
Sound power in Booster level (dB(A) re 1 pW) according to EN 60704-3: 69.00
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 33.00
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 40.00
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 47.00
Sound pressure in Booster level (dB(A) re 20 µPa) according to EN 60704-2-13: 55.00

RECIRCULATION

Air throughput in Level 1 (m³/h) according to EN 61591: 190
Air throughput in Level 2 (m³/h) according to EN 61591: 290
Air throughput in Level 3 (m³/h) according to EN 61591: 415
Air throughput in Booster level (m³/h) according to EN 61591: 550
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 52.00
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 60.00
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3: 68.00
Sound power in Booster level (dB(A) re 1 pW) according to EN 60704-3: 75.00
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 38.00
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 46.00
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 54.00
Sound pressure in Booster level (dB(A) re 20 µPa) according to EN 60704-2-13: 61.00

SAFETY

Safety shut-off

TECHNICAL DATA

Canopy width: 896 mm
Canopy height: 36 mm
Depth of hood canopy: 273 mm
Minimum height above electric hobs: 450 mm
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW): 650 mm
Net weight: 14.00 kg
Length of supply lead: 1.50 m
Standard plug fitted
Total rated load: 0.20 kW
Voltage: 230 V
Fuse rating: 10 A
Frequency: 50 Hz
Number of phases: 1

INSTALLATION NOTES

Extraction ducting connection at top
Diameter of extraction ducting connection: 150 mm

OPTIONAL ACCESSORIES

Active charcoal filter: No

Item 2

Frequently Asked Questions About the DAS2920

Can the Miele DAS 2920 be used for extraction and recirculation?

Yes. The Miele DAS 2920 supports ducted extraction and can be converted for recirculation. Recirculation requires a compatible Miele conversion kit and an Active AirClean or Longlife AirClean charcoal filter, which are sold separately.

How powerful is the Miele DAS 2920 extractor hood?

In ducted extraction mode, airflow is 195 m³/h at level 1, 295 m³/h at level 2 and 410 m³/h at level 3. The intensive booster setting increases airflow to 555 m³/h.

What is the airflow in recirculation mode?

When correctly configured for recirculation, the Miele DAS 2920 delivers 190 m³/h at level 1, 290 m³/h at level 2, 415 m³/h at level 3 and up to 550 m³/h on the booster setting.

How noisy is the Miele DAS 2920?

In ducted mode, the sound power level ranges from 47 dB(A) on level 1 to 69 dB(A) on the booster setting. In recirculation mode, it ranges from 52 dB(A) to 75 dB(A), depending on the selected speed.

Does the Miele DAS 2920 have a dishwasher-safe grease filter?

Yes. It has one removable 10-ply stainless-steel grease filter that can be cleaned in a dishwasher. The smooth Miele CleanCover interior also helps make the inside of the hood easier and safer to wipe clean.

What lighting does the Miele DAS 2920 use?

The hood has an integrated 3.2 W LED strip designed to provide uniform hob lighting. It produces 275 lx of illumination with a colour temperature of 3500 K.

How is the Miele DAS 2920 controlled?

Electronic EasySwitch touch controls provide access to three normal extraction speeds, one intensive booster setting and the LED hob light. A safety function automatically switches the hood off after 10 hours.

What is the energy rating of the Miele DAS 2920?

The Miele DAS 2920 has an A energy-efficiency rating and estimated annual energy consumption of 42 kWh. It also achieves A ratings for fluid dynamic efficiency, lighting efficiency and grease-filtering efficiency.

What are the dimensions of the Miele DAS 2920?

The telescopic canopy measures 896 mm wide, 36 mm high and 273 mm deep. Its 90 cm width is designed to provide coverage across a wider cooking area while integrating into suitable kitchen cabinetry.

What ducting connection does the Miele DAS 2920 require?

The extraction outlet is positioned at the top of the appliance and has a diameter of 150 mm. Correctly sized ducting with a short, direct route will help support efficient airflow.

What is included with the Miele DAS 2920?

The extractor hood is supplied with a non-return flap, a 1.5 m power lead and a fitted UK plug. Recirculation conversion components and charcoal filters are not included.

What clearance is required above the hob?

The minimum installation distance is 450 mm above an electric hob and 650 mm above a gas hob where the total gas output does not exceed 12.6 kW and no individual burner exceeds 4.5 kW. The installation instructions and hob manufacturer’s requirements should always be checked before fitting.

Are there any suitable alternatives to the Miele DAS2920 90cm Telescopic Built In Extractor Hood I could consider?

Yes, you could consider the Miele DAS2620 60cm Telescopic Built In Extractor Hood as a more compact, lower-priced same-brand telescopic option if a 60cm cabinet width suits your installation.

Alternatively, the Miele DAS4940 90cm Built In Extractor Hood is a higher-spec, same-width slimline pull-out alternative with stronger extraction, smart connectivity and an A++ energy rating.

*FAQs are checked against manufacturer information, but please confirm installation requirements before purchase.
