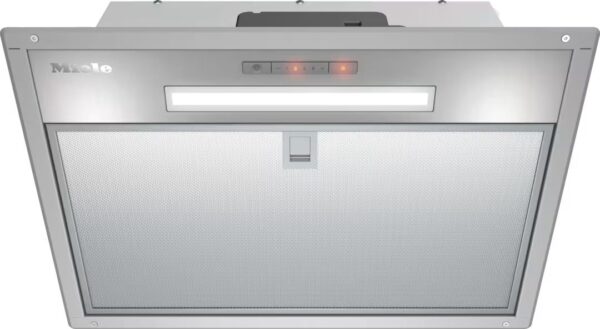

Miele DAE 1530 Stainless Steel 53cm Built In Extractor Unit
- Miele Integrated Extractor Hood – 53cm stainless steel unit designed to fit neatly within kitchen cabinetry.
- 675m³/h Booster Extraction – Powerful maximum airflow helps clear steam, grease and cooking odours quickly.
- EasySwitch Controls – Touch-on-glass operation provides three power levels plus one Booster setting.
- Ducted or Recirculating Installation – Supports external extraction or recirculation with the separately available conversion kit and charcoal filter.
- Energy-Efficient LED Lighting – 3.2W lighting delivers 360-lux illumination over the hob.
£336.00
- Product Info
- Specification
- FAQ's
Miele DAE 1530 built-in extractor hood offers powerful extraction, LED lighting and a neat 53cm stainless steel design for integrated kitchens.
The Miele DAE 1530 stainless steel 53cm built-in extractor hood fits neatly within kitchen cabinetry while helping to remove steam, grease and cooking odours. Measuring 532mm wide, this compact Miele integrated extractor hood supports both ducted and recirculating installation.
Why choose the Miele DAE 1530 integrated extractor hood?
Choose the DAE 1530 if you want discreet Miele extraction built into cabinetry, with a compact 532mm stainless steel canopy and strong performance when cooking gets busy. Its 675m³/h Booster airflow gives it real clearing power, while EasySwitch touch controls, LED hob lighting, CleanCover and a dishwasher-safe 10-ply grease filter keep daily use simple. It suits ducted extraction or recirculation with Miele’s optional conversion kit and charcoal filter.
Powerful Booster extraction
The Booster setting provides powerful airflow for clearing the kitchen air quickly during intensive cooking. The supplied specifications state a maximum airflow of 675m³/h, with 630m³/hr also listed for the Booster setting.
A B-rated grease filter supports effective filtration, helping to maintain a cleaner and fresher kitchen environment.

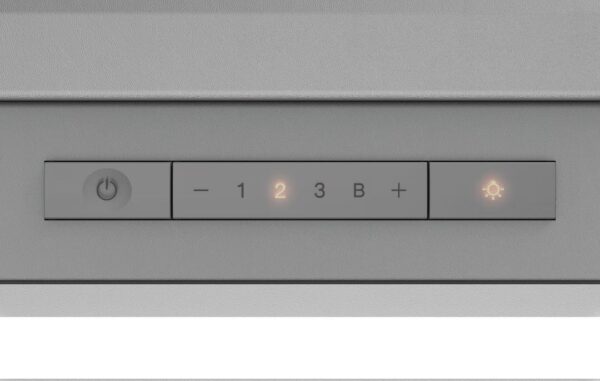

EasySwitch controls and LED hob lighting
EasySwitch touch-on-glass controls provide three power levels and one Booster setting, making it simple to adjust the extraction while cooking.
Energy-efficient 3.2W LED lighting delivers 360-lux illumination over the hob, giving you a clear view of your cooking area while helping to reduce energy use.
Ducted or recirculating installation
The Miele DAE1530 can be installed for external extraction or recirculating operation to suit your kitchen layout. Recirculation requires the separately available conversion kit and charcoal filter.
Finished in durable stainless steel and rated B for energy efficiency, the Miele DAE 1530 is a practical built-in extractor hood suited to both contemporary and traditional kitchens.
| Weight | 9 kg |
|---|---|
| Dimensions | 37.2 × 53.2 × 5 cm |
| Automatic Programmes | No |
| Brand | Miele |
| Smart Appliance | No |
| Energy Efficiency Class | B |
| Colour Group | Stainless Steel |
| Intensive Mode | Yes |
| No. Of Fan Speeds | 4 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 2 |
| Group | Canopy |
| Variant | Built In |
| Product Type | Cooker Hood |
| SKU | DAE1530 |
| GTIN | 4002516879633 |
| Brand | Miele |
|---|---|
| Product Type | Integrated extractor hood |
| Model | DAE 1530 |
| Manufacturer Material Number | 12760960 |
| Old Material Number | 28E1530SGB |
| EAN | 4002516879633 |
| Colour | Stainless steel |
| Installation Type | Integrated; suitable for ducted extraction or recirculation |
| Controls | EasySwitch touch-on-glass controls |
| Power Levels | 3 power levels plus 1 Booster level |
| Maximum Ducted Extraction Rate | 675m³/h |
| Maximum Recirculation Rate | 630m³/h |
| Ducted Extraction Rates | 215, 315, 415 and 675m³/h |
| Recirculation Rates | 200, 295, 395 and 630m³/h |
| Noise Level | 45 to 65dB(A) sound power in ducted mode; 46 to 71dB(A) sound power in recirculation mode |
| Energy Rating | B |
| Annual Energy Consumption | 72.2kWh/year |
| Efficiency Classes | Fluid dynamic efficiency B; lighting efficiency A; grease filtering efficiency B |
| Filter | 1 dishwasher-safe 10-ply stainless steel grease filter |
| Lighting | 1 x 3.2W LED strip |
| Light Intensity | 360lx |
| Colour Temperature | 3500K |
| Cleaning Features | Miele CleanCover easy-clean canopy interior |
| Safety Features | Safety switch-off |
| Dimensions | 532 x 50 x 372mm |
| Weight | 9kg |
| Total Rated Load | 0.20kW |
| Electrical Connection | 230V, 50Hz, 10A fuse, single phase |
| Supply Lead | 1.5m with standard plug fitted |
| Ducting Connection | Top extraction ducting connection, 150mm diameter |
| Accessories Included | Non-return flap |
| Optional Accessories | DUU 150 or DUU 151 recirculation conversion kit; DKF 32-P active charcoal filter |
| Key Features | Integrated 532mm design, Booster extraction, LED hob lighting, EasySwitch controls, CleanCover interior and dishwasher-safe stainless steel grease filter |
Installation details
This integrated extractor hood measures 532 x 50 x 372mm and requires a minimum height of 450mm above electric hobs or 650mm above suitable gas hobs. It has a 150mm extraction ducting connection at the top, with rear exhaust air connection also possible. Recirculating installation requires a separately available DUU 150 or DUU 151 conversion kit and DKF 32-P active charcoal filter. The appliance has a 1.5m supply lead, standard plug, 0.20kW total rated load and requires a 230V, 50Hz, 10A single-phase electrical supply.
Frequently Asked Questions About the DAE1530
Is the Miele DAE 1530 designed for built-in installation?
Yes. The Miele DAE 1530 is an integrated extractor hood designed to fit neatly within kitchen cabinetry. Its stainless steel canopy measures 532mm wide, 50mm high and 372mm deep.
How powerful is the Miele DAE 1530?
In ducted mode, the extractor provides airflow rates of 215, 315 and 415m³/h across its three normal power levels, rising to 675m³/h on the Booster setting. In recirculation mode, the maximum Booster airflow is 630m³/h.
Can the Miele DAE 1530 be used in recirculation mode?
Yes. It can be installed for either ducted extraction or recirculating operation. Recirculation requires a separately available Miele DUU 150 or DUU 151 conversion kit and a compatible DKF 32-P active charcoal filter.
How is the Miele DAE 1530 controlled?
The extractor has EasySwitch touch-on-glass controls. These provide access to three standard power levels, one Booster setting and the hob lighting.
Does the Miele DAE 1530 have LED lighting?
Yes. It has one energy-efficient 3.2W LED light, producing an illumination level of 360 lux with a 3500K colour temperature for clear, warm-white lighting over the hob.
How noisy is the Miele DAE 1530?
In ducted operation, the sound power level ranges from 45dB(A) on level one to 53dB(A) on level three, increasing to 65dB(A) on Booster. Noise levels may be higher when the extractor is configured for recirculation.
What type of grease filter does the Miele DAE 1530 use?
It includes one 10-ply stainless steel grease filter designed to capture grease particles from cooking vapours. The filter is dishwasher safe, making regular cleaning straightforward.
What is the energy rating of the Miele DAE 1530?
The Miele DAE 1530 has a B energy efficiency rating, with an estimated annual energy consumption of 72.2kWh. It also has an A-rated lighting efficiency class and a B-rated grease filtering efficiency class.
What clearance is required above the hob?
The minimum installation height is 450mm above an electric hob. Above a gas hob with a maximum total output of 12.6kW and no burner exceeding 4.5kW, the minimum safety distance is 650mm. The appliance and hob installation instructions should always be checked before fitting.
What ducting size is required for the Miele DAE 1530?
The extraction outlet is positioned at the top of the appliance and is designed for 150mm-diameter ducting. A non-return flap is also included to help prevent outside air from entering through the duct.
What are the electrical requirements?
The Miele DAE 1530 requires a 230V, 50Hz single-phase electricity supply with a 10A fuse. It has a total rated load of 0.203kW and is supplied with a standard plug.
What are the identifying details for this extractor hood?
The exact model is the Miele DAE 1530 in stainless steel. Its Miele material number is 12760960 and its EAN is 4002516879633.
Are there any suitable alternatives to the Miele DAE1530 53cm Built In Extractor Hood I could consider?
Yes, you could consider the Miele DAZ1620 60cm Hidden Built In Extractor Hood as a more powerful same-brand built-in option with up to 730m³/h booster extraction, provided your cabinetry can accommodate its wider 599mm fitting.
Alternatively, the Miele DA2668 58cm Hidden Built In Extractor Hood is a more premium alternative, offering an A+ energy rating, a quiet ECO motor and Miele@home connectivity. Check the installation aperture carefully, as both alternatives are wider than the 532mm DAE1530.
*FAQs are checked against manufacturer information, but please confirm installation requirements before purchase.
