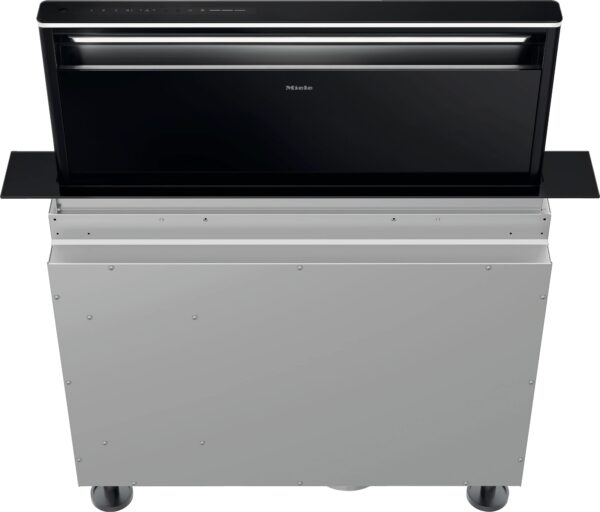

Miele DAD 6980 Levantar Ambient Obsidian Black 94cm Downdraft Extractor

Miele DAD6980 downdraft extractor in Obsidian Black with AmbientLight, Con@ctivity and ECO motor. A 94cm design with powerful, space-saving extraction.

Miele DAD 6980 Levantar Ambient 94cm Downdraft Extractor with AmbientLight

The Miele DAD 6980 Levantar Obsidian Black downdraft extractor combines sleek design with efficient extraction, making it a strong choice for modern kitchens. Finished in Obsidian Black, this 94cm downdraft extractor features AmbientLight, Con@ctivity and an ECO motor for powerful performance with everyday convenience.

With 3 power levels and 2 booster levels, the Miele DAD6980 is designed to adapt to different cooking demands. Air throughput reaches 450 m³/h at Level 3, rising to 610 m³/h and 655 m³/h on the booster settings according to EN 61591.

Why choose the Miele DAD 6980 downdraft extractor?

Choose the Miele DAD6980 if you want powerful extraction that disappears neatly into the worktop when not in use. Its 936mm width suits larger hobs and islands, while the motorised Hood in Motion design delivers up to 655 m³/h airflow. AmbientLight adds adjustable coloured lighting, and Con@ctivity can automatically match extraction to a compatible Miele hob. Compared with the narrower DAD6880, it offers the same premium features in a wider format, making it particularly well suited to spacious contemporary kitchens.

Motorised design for practical everyday use

The motorised retractable deflector plate, described by Miele as Hood in Motion, automatically moves the canopy into the ideal working position and returns it to park position when switched off. This improves ergonomics while helping the extractor integrate neatly into the kitchen when not in use.

Electronic SmartControl White touch controls keep operation simple and refined. When switched off, only the On/Off icon is visible, while active settings are brightly illuminated for a clean, modern look that coordinates with compatible Miele hobs.

AmbientLight, Con@ctivity and smart control

The AmbientLight feature adds individual coloured lighting for a more inviting kitchen atmosphere. Lighting performance includes 1 x 12W + 1 x 8W, with an intensity of 400 lx, a 3500 Kelvin colour temperature, dimmer function and ambient lighting colour adjustment.

With Miele@home and Con@ctivity, the vapour extractor activates automatically during cooking and adjusts air throughput to the hob settings to help maintain a pleasant room climate. If preferred, operation can also adapt to manual changes in power level. During pyrolytic cleaning of the oven, the cooker hood switches on automatically to help prevent odours.

Efficient filtration and easy cleaning

The Miele DAD6980 features edge extraction and a 10-ply stainless-steel grease filter for effective grease removal. The commercial-style metal grease filters are concealed behind a decorative cover, with cooking vapours drawn in at the outer edges for a streamlined appearance.

Miele’s CleanCover canopy interior helps make cleaning easier. Behind the grease filters, the sealed smooth surface replaces sharp metal edges and exposed electrical components, improving both convenience and safety.

Filter maintenance is also straightforward thanks to the grease filter saturation indicator and active charcoal filter saturation indicator. A red LED shows when filters need cleaning or replacement, and the factory-set service life can be adjusted to suit usage.

Recirculation flexibility and optional accessories

This model supports easy recirculation mode installation with the Plug&Play accessory set. Using DUP 150, planning and installation are quick and easy without a separate ducting system or additional plinth box.

The air guide can be retrofitted, and the recirculation conversion kit is available separately as DUU 600 or DUP 150. Optional active charcoal filters are available separately as DKF 30-P and DKF 30-R. The extractor also features a bottom exhaust duct and a 150mm extraction ducting connection.

Performance, noise levels and efficiency

The ECO motor and dual-action blower support strong extraction performance while maintaining efficient operation. Miele states that its ECO motors work up to 50% more economically than conventional motors while remaining very quiet and powerful.

In standard operation, sound power levels are 43 dB(A) at Level 1, 55 dB(A) at Level 2 and 62 dB(A) at Level 3 according to EN 60704-3. Booster sound power levels reach 69 dB(A) and 71 dB(A). Sound pressure levels range from 30 dB(A) at Level 1 up to 57 dB(A) at Booster level 2 according to EN 60704-2-13.

A second set of performance figures is also provided according to EN 61591 and EN 60704 standards, with air throughput up to 420 m³/h at Level 3 and up to 560 m³/h at Booster level 2, alongside sound power levels up to 75 dB(A) and sound pressure levels up to 62 dB(A).

This model has an energy efficiency rating of A, with annual energy consumption of 41.1 kWh/year, fluid dynamic efficiency class A, lighting efficiency class A and grease filtering efficiency class B.

Dimensions and installation details

The canopy dimensions are 936 x 708 x 171mm (W x H x D), with a glass frame width of 936mm. The minimum base unit width is 900mm, and the cut-out dimensions for surface-mounted installation are 815mm wide by 106mm deep.

For flush-fit installation, internal cut-out dimensions are 815mm wide by 106mm deep, while external dimensions are 940mm wide by 124mm deep. The overall hood height for both extraction and recirculation modes is 1008 to 1288mm.

The extractor is suitable for installation on the unit floor and installation on floor, with options for flush-fit installation, surface-mounted installation and joint installation with hob in one cut-out. The optimum combination with hob, subject to availability, is KM 8695 FL.

Additional features and electrical specifications

Additional features include run-on time options of 5 or 15 minutes, a PowerManagement system, safety shut-off and single-ply safety glass (ESG). The automatic safety switch-off turns the cooker hood off after 10 hours.

Electrical details include a total rated load of 0.260kW, 230V voltage, 10A fuse rating, 50Hz frequency and 1 phase. The appliance has a 1.3m supply lead, a standard plug fitted and a net weight of 34kg.

Installation details

The Miele DAD 6980 Levantar Ambient is a 936 mm wide motorised downdraft extractor designed for flush-fit or surface-mounted worktop installation. The canopy measures 936 mm wide, 708 mm high and 171 mm deep, with an overall installation height ranging from 1008 to 1288 mm. A minimum base unit width of 900 mm is required.

For surface-mounted installation, Miele specifies a worktop cut-out of 815 x 106 mm. Flush-fit installation requires an internal cut-out of 815 x 106 mm and an external stepped cut-out of 940 x 124 mm. The extractor also supports compatible joint installation with a hob in one cut-out. Check Miele’s installation drawings for complete worktop, cabinet and clearance requirements.

The appliance supports ducted extraction through a 150 mm diameter outlet or recirculation using separately purchased conversion accessories. Miele specifies DUU 600 and DUP 150 for compatible recirculation installations, with DKF 30-P or DKF 30-R active charcoal filters available separately. The appropriate conversion components depend on the installation configuration and are not included as standard.

The extractor is supplied with longer appliance feet and a connection strip for compatible hob installations. Miele identifies the KM 8695 FL as an optimum hob combination, subject to availability and installation compatibility.

The appliance has a total rated load of 0.260 kW and operates on a 230 V, 50 Hz single-phase electrical supply with a 10 A fuse rating. A standard plug and 1.3-metre power cable are specified. Confirm the electrical connection, ventilation requirements, ducting route and servicing clearances against Miele’s installation instructions before fitting.
