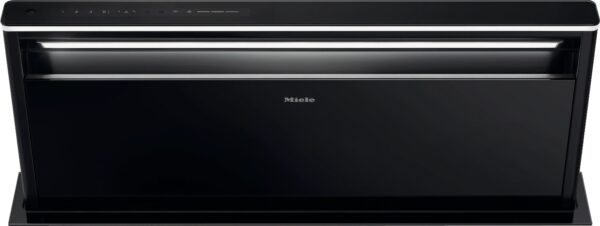

Miele DAD6880 80cm Downdraft Extractor with ECO Motor
- 80cm Downdraft Extractor – Space-saving built-in design rises from the worktop when needed and retracts when switched off.
- ECO Motor – Powerful yet efficient extraction with up to 655 m³/h airflow and Energy Efficiency Class A performance.
- Hood in Motion – Motorised deflector plate moves into the ideal position for improved ergonomics while cooking.
- Smart Connectivity – Miele@home and Con@ctivity automatically adjust extraction levels to suit a compatible hob.
- Easy-Clean Filtration – Twin dishwasher-safe stainless steel grease filters with edge extraction help keep maintenance simple.
£2,849.00
- Product Info
- Specification
- FAQ's
Miele DAD6880 downward extractor delivers powerful, space-saving extraction with an ECO motor, motorised Hood in Motion design and elegant Obsidian Black styling.
The Miele DAD 6880 Levantar Ambient Obsidian Black 80cm downward extractor combines discreet design with powerful performance, making it an excellent choice for modern kitchens. Finished in Obsidian black, this cooker hood features a motorised retractable deflector plate with Hood in Motion for improved ergonomics, along with Con@ctivity, AmbientLight and an efficient ECO motor.
Designed for convenience, the DAD 6880 Ambient Downdraft Extractor supports easy recirculation mode installation with a plug and play accessory set. It also offers edge extraction, SmartControl White electronic touch controls and a personalised lighting experience for an inviting kitchen atmosphere.
Motorised downdraft extraction with flexible performance
This Miele downward extractor automatically moves into the ideal working position when in use and retracts neatly when switched off. With 3 power levels and 2 booster levels, it gives you the flexibility to match extraction power to your cooking needs.
Air throughput according to EN 61591 reaches 205 / 350 / 450 m³/h across Levels 1 to 3, rising to 610 / 655 m³/h on Booster levels 1 and 2. A further set of airflow figures is also quoted at 165 / 320 / 420 m³/h and 525 / 560 m³/h on Booster levels 1 and 2.
Sound power levels according to EN 60704-3 are 43 / 55 / 62 dB(A) across standard levels and 69 / 71 dB(A) on Booster levels. A second quoted set of sound power figures is 49 / 63 / 69 dB(A) and 74 / 75 dB(A) on Booster levels.
Sound pressure according to EN 60704-2-13 is 30 / 42 / 48 dB(A) across Levels 1 to 3 and 55 / 57 dB(A) on Booster levels. A second quoted set of sound pressure figures is 36 / 50 / 55 dB(A) and 61 / 62 dB(A) on Booster levels.
Efficient filtration and easy cleaning
The DAD6880 is fitted with two dishwasher-safe 10-ply stainless steel grease filters for effective grease removal. Miele’s high-quality stainless steel construction helps maintain their appearance even after dishwasher cleaning, while built-in fall protection supports safer handling and helps protect your hob from damage.
Behind the filters, Miele CleanCover provides a smooth, sealed interior surface without sharp metal edges or exposed electrical components. This makes cleaning easier while also improving convenience and safety during maintenance.
The hood also features edge extraction, drawing cooking vapours in around the outer edges while concealing the metal grease filters behind a decorative cover for a cleaner, more streamlined look.
Smart features for everyday convenience
With Miele@home and Con@ctivity, the extractor can interact with a compatible hob and automatically adjust air throughput to suit your cooking settings. This helps maintain a pleasant kitchen environment with less manual adjustment. During pyrolytic oven cleaning, the cooker hood also switches on automatically to help prevent odours.
The elegant SmartControl White touch controls are designed to complement Miele hobs. When switched off, only the On/Off icon remains visible, while active settings are brightly illuminated and other options appear dimmed for a clean, modern finish.
A run-on function allows the fan to continue extracting lingering steam and odours after cooking, with automatic switch-off after 5 or 15 minutes. There are also grease filter saturation and active charcoal filter saturation indicators to help keep performance at its best.
The factory-set service life for the filters can be adjusted individually. The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, while the active charcoal filter replacement indicator can be set for 120, 180 or 240 hours.
Lighting, energy efficiency and motor technology
This Miele cooker hood includes lighting rated at 1 x 12W + 1 x 8W, delivering 400 lx illumination at a 3500 Kelvin colour temperature. A dimmer function and ambient lighting colour options help create the right mood in your kitchen.
The ECO motor is designed to provide efficient and quiet operation while maintaining strong extraction performance. Miele states that selected cooker hoods with ECO motors work up to 50% more economically than conventional motors.
For energy performance, the DAD6880 is rated Energy Efficiency Class A with an annual energy consumption of 41.1 kWh/year. It also achieves Fluid Dynamic Efficiency Class A, Lighting Efficiency Class A and Grease Filtering Efficiency Class B.

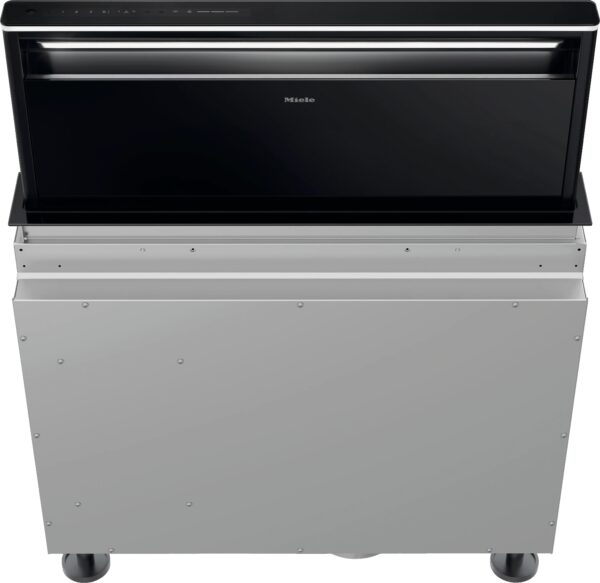

Installation and technical details
The canopy dimensions are 800 x 708 x 171 mm, with an overall hood height of 1008 to 1288 mm for both extraction and recirculation modes. The minimum base unit width required is 900 mm.
For installation, the cut-out dimensions are 790 x 106 mm for surface-mounted installation and flush-fit internal installation, while flush-fit external installation requires 804 x 124 mm. The hood supports flush-fit installation, surface-mounted installation, joint installation with hob in one cut-out and bottom exhaust duct configuration.
The glass frame width is 800 mm, net weight is 34 kg and the supply lead length is 1.4 m. A standard plug is fitted. Electrical connection details are 0.260 kW total rated load, 230 V, 10 A, 50 Hz and 1 phase.
The diameter of the extraction ducting connection is 150 mm. The optimum hob combinations, subject to availability, are KM 8684 FL and KM 8685 FL.
Recirculation accessories and safety
This model can be retrofitted for recirculation. The recirculation conversion kit is available separately as DUU 600 and DUP 150. Compatible active charcoal filters, also ordered separately, are DKF 30-P and DKF 30-R.
The Longlife AirClean filter uses a reactivatable active charcoal filter to remove odours efficiently in recirculation mode. These charcoal filters are also available as optional accessories for many wall-mounted and island cooker hoods.
For added peace of mind, the DAD6880 includes a safety switch-off function that automatically turns the cooker hood off after 10 hours, helping to ensure safe operation even in the event of user error. The unit also features single-ply safety glass (ESG).
If you are looking for a premium 80cm downdraft extractor with smart connectivity, efficient filtration and elegant integrated design, the Miele DAD6880 is a strong choice for a refined, modern kitchen.
| Weight | 34 kg |
|---|---|
| Dimensions | 17.1 × 80 × 70.8 cm |
| Brand | Miele |
| Colour Group | Black |
| Energy Efficiency Class | A |
| Installation | Flush or Surface Mount |
| Intensive Mode | Yes |
| No. Of Fan Speeds | 5 |
| Noise Level | 75 |
| Product Type | Downdraft Extractor |
| Outlet Type | Duct Out or Recirculation |
| Smart Appliance | Yes |
| Variant | Built In |
| Warranty | 2 |
| SKU | DAD6880 |
| GTIN | 4002516975090 |
Frequently Asked Questions About the DAD6880
What type of extractor is the Miele DAD 6880?
The Miele DAD6880 Ambient Levantar is an 80cm downdraft extractor. It rises from the worktop when needed and retracts back down when switched off, making it a good choice for open-plan and minimalist kitchens where you want extraction without a traditional overhead hood.
Does the Miele DAD 6880 Levantar Ambient Obsidian Black use a motorised lift system?
Yes. This model includes Miele’s motorised Hood in Motion design, so the deflector plate moves automatically into position during use and lowers back into the worktop afterwards.
Can the Miele DAD 6880 be used in recirculation mode?
Yes. The Miele DAD 6880 can be retrofitted for recirculation, which is useful where external ducting is not practical. The required recirculation components are ordered separately.
Which recirculation accessories are compatible with the Miele DAD 6880?
For recirculation setup, this model uses the DUU 600 and DUP 150 conversion components, with compatible charcoal filters DKF 30-P or DKF 30-R ordered separately.
Does the Miele DAD 6880 have smart connectivity?
Yes. The Miele DAD 6880 includes Miele@home and Con@ctivity, allowing the extractor to work with a compatible hob and automatically adjust extraction performance to suit your cooking.
How many fan speeds does the Miele DAD 6880 have?
This model offers 3 standard power levels and 2 booster levels, giving you flexible control for everything from gentle simmering to more intensive cooking.
How powerful is the Miele DAD 6880 extractor?
In extraction mode, the Miele DAD 6880 reaches airflow rates of up to 655 m³/h on Booster level 2. This makes it well suited to clearing steam, grease and cooking odours from a modern kitchen.
Is the Miele DAD 6880 quiet in use?
For a downdraft extractor with strong performance, this model is designed to operate quietly. Standard sound power levels are rated from 43 to 62 dB(A), depending on the selected setting.
What filters does the Miele DAD 6880 use?
The Miele DAD 6880 is fitted with two 10-ply stainless steel grease filters. These are dishwasher-safe, so routine cleaning is straightforward and convenient.
Does the Miele DAD 6880 have a filter warning indicator?
Yes. This model includes both a grease filter saturation indicator and an active charcoal filter saturation indicator, helping you keep the extractor working at its best.
What is Miele CleanCover on the DAD 6880?
Miele CleanCover is the smooth, sealed interior behind the filters. It is designed to make cleaning easier while also helping protect against contact with internal components.
Does the Miele DAD 6880 have edge extraction?
Yes. Edge extraction draws vapours around the outer edges while keeping the grease filters concealed behind a panel. This supports a cleaner look and effective everyday extraction.
Does the Miele DAD 6880 include lighting?
Yes. This model includes built-in lighting with dimming and ambient lighting colour adjustment, so it can add both practical task lighting and a more atmospheric finish to the kitchen.
What controls does the Miele DAD 6880 use?
The Miele DAD 6880 uses SmartControl White electronic touch controls. These are designed for a clean, modern appearance and simple day-to-day operation.
What is the energy rating of the Miele DAD 6880?
This model is rated Energy Efficiency Class A. It also has an annual energy consumption of 41.1 kWh per year, making it a strong option if you want premium extraction with efficient day-to-day running.
Does the Miele DAD 6880 use an ECO motor?
Yes. The Miele DAD 6880 uses an ECO motor, which is designed to deliver efficient extraction performance with lower energy use than conventional motor systems.
What size cabinet is needed for the Miele DAD 6880?
Miele specifies a minimum base unit width of 900mm for this extractor. That is worth checking carefully when planning your kitchen layout.
What are the cut-out dimensions for the Miele DAD 6880?
For surface-mounted installation, the cut-out size is 790 x 106mm. For flush-fit installation, the internal cut-out is 790 x 106mm, while the external flush-fit cut-out is 804 x 124mm.
What ducting size does the Miele DAD 6880 require?
The extraction ducting connection on the Miele DAD 6880 is 150mm in diameter.
Is the Miele DAD 6880 a good choice for modern kitchens?
We would recommend the Miele DAD 6880 for customers looking for a premium downdraft extractor with discreet design, smart hob connectivity, strong extraction performance and elegant Obsidian Black styling. It is particularly well suited to contemporary kitchens where clean lines and open sightlines matter.
*FAQs are checked against manufacturer information, but please confirm installation requirements before purchase.
