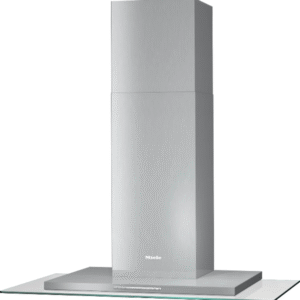

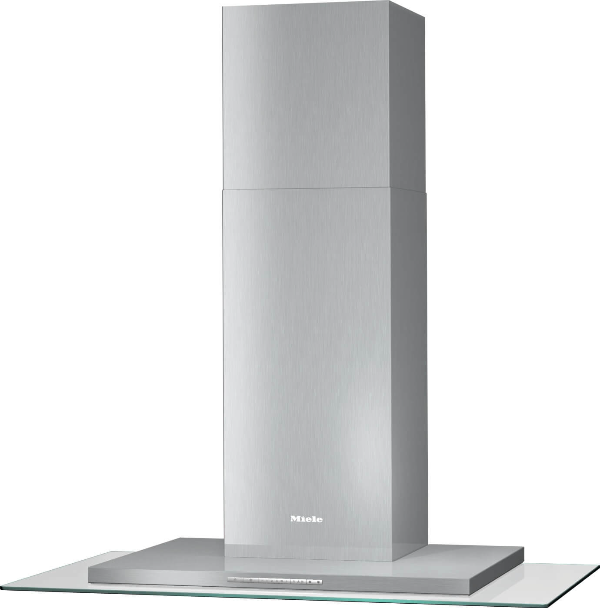

Miele DA5798W 90cm Wall Extractor Hood
- Stainless Steel (10-ply) Grease Filter – Can be cleaned in Dishwasher
- Powerful – 600 m³/h on booster setting
- Quiet + Energy Efficient ECO Motor – Runs on DC current & saves up to 70% energy compared to conventional motor
- Miele@Home – Communicates with the hob below: Settings on the hob are transmitted to the controls on the cooker hood
Complete the form below and our team will do their best to help
or simply call us on
- Product Info
- Specification
MIELE DA5798W Next Step Wall mount extractor | Energy efficient LED lighting
The DA5796W wall mount extractor is 90cm wide and finished in stainless steel and glass, offering powerful extraction of up to 620m3/h and 55db in normal operation. Energy rated at A+ thanks to LED lighting and ECO DC motor, includes the stainless steel 10 ply grease filter and can be operated automatically with Con@ctivity 2.0 wireless technology using a suitable Miele hob. Extraction can be ducted or recirculation depending on your requirements.
| Dimensions | 52 × 89.3 × 79 cm |
|---|---|
| Automatic Programmes | No |
| Smart Appliance | Yes |
| Brand | Miele |
| Energy Efficiency Class | A++ |
| Colour Group | Stainless Steel |
| Intensive Mode | Yes |
| Noise Level | 45 |
| No. Of Fan Speeds | 4 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 2 |
| Quiet Mark | Yes |
| Group | Chimney |
| Variant | Wall |
| Product Type | Cooker Hood |
| SKU | DA5798W |
| GTIN | 4002515978269 |
Type
- Stainless steel
- RAL colour possible as special order
- Customisation possible on request
- Variable height available as special order
Operating modes
- Type of air guide Convertible
User convenience
- Electronic controls
- Light-touch switches with LED
- Power levels (number excl. Booster setting) 3
- Booster setting
- Programmable Booster switch-off
- Run-on time 5/15 mins.
- Programmable grease filter saturation indicator
- Programmable charcoal filter saturation indicator
- Acoustic package
Cleaning convenience
- Easy-to-clean CleanCover hood liner
Efficiency and sustainability
- Annual energy consumption in kWh/year29.9
- Energy efficiency classA+
- Fluid dynamic efficiency classA
- Lighting efficiency classA
- Grease filtering efficiency classA
- Power management system
- Eco package
Networking of domestic appliances
- Automatic function Con@ctivity 2.0
- Miele@homeEquippedFilter system
- Dishwasher-proof stainless steel grease filters 2
- Lighting LED
- Light intensity in Lx500
- Colour temperature in K3,500Fan
- Dual-action fan
- DC motor
Safety switch-off
- Single-ply safety glass (ESG)

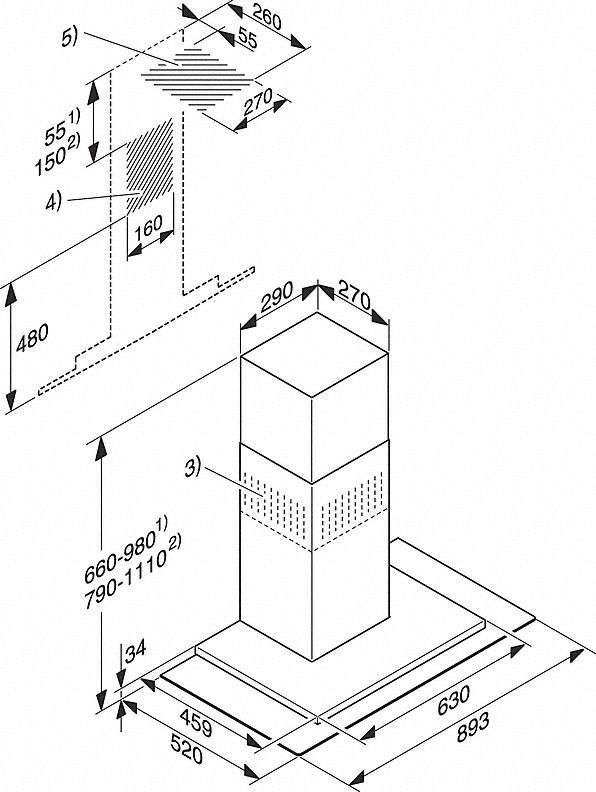

Technical data
- Overall hood height for vented and external in mm660 -980
- Overall hood height for recirculation in mm790 – 1,110
- Canopy width in mm893
- Height of hood carcase in mm34
- Depth of hood carcase in mm520
- Minimum distance above electric hobs in mm450
- Minimum height above gas hob (max. 12.6 kW total power, burner ? 4.5 kW) in mm650
- Net weight in kg22.0
- Length of electrical cable in m1.5
- Total connected load in kW0.10
- Voltage in V230
- Fuse rating in A10
- Number of phases 1
Installation notes
- Vent connection at top
- Vent connection at top and rear
- Diameter of vent connection in mm150
- Telescopic chimney
Accessories supplied
- Non-return flap
- Wireless stick Con@ctivity 2.0 & WiFiconn@ct
