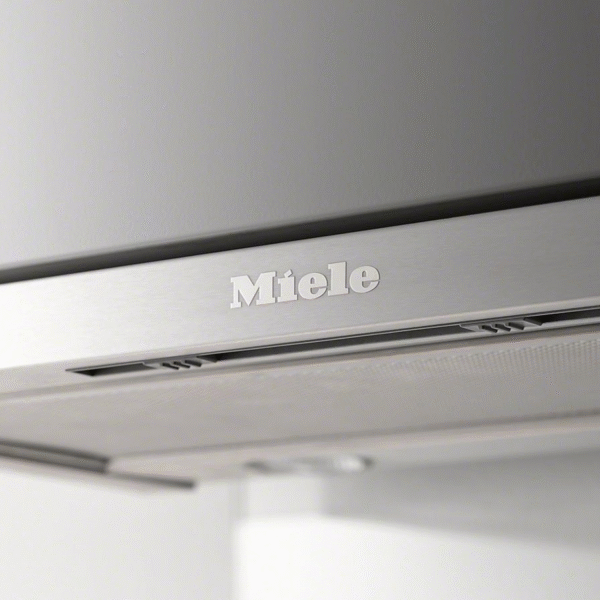

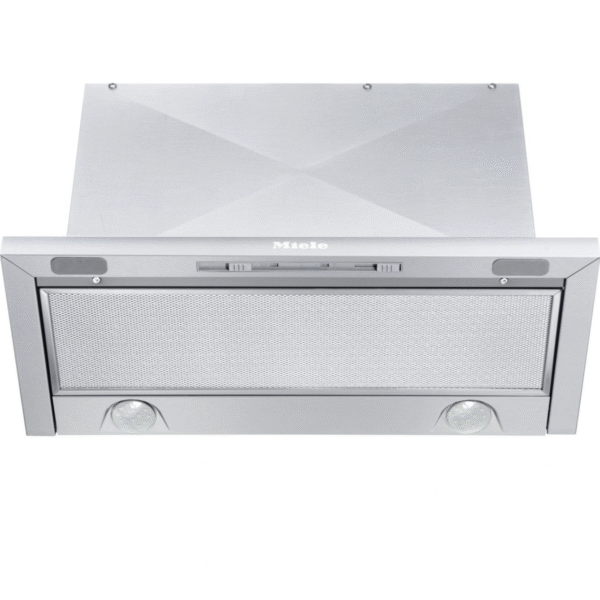

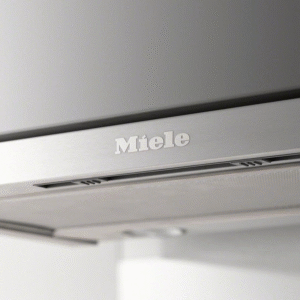

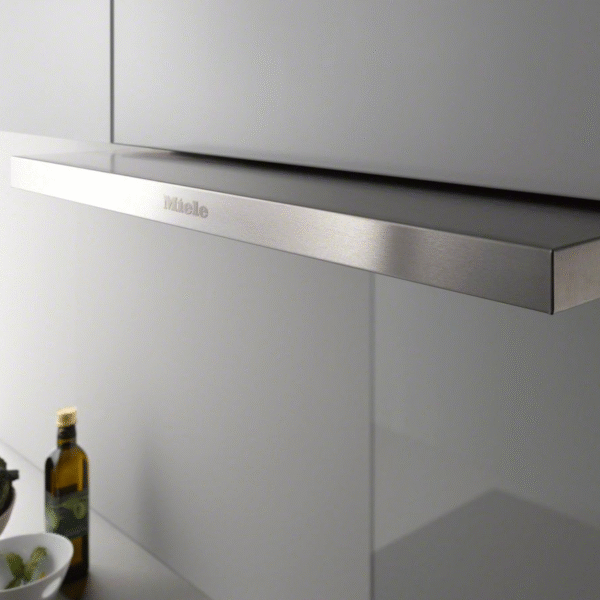

Miele DA3366 Slimline Cooker Hood with Energy-Efficient LED Lighting
- Slimline Cooker Hood – Built-in Miele canopy design for a neat, space-saving kitchen fit.
- Powerful extraction – Up to 635 m³/h booster performance helps clear cooking vapours quickly.
- LED lighting – Energy-efficient hob illumination gives bright, even light while you cook.
- Easy-clean Filters – 10-ply stainless-steel grease filter is dishwasher safe for simple maintenance.
- ECO Motor – Efficient, quieter operation with CleanCover interior for easier cooker hood cleaning.
Complete the form below and our team will do their best to help
or simply call us on
- Product Info
- Specification
- FAQ's
Miele DA3366 Slimline Cooker Hood offers powerful extraction up to 635 m³/h, energy-efficient LED lighting and easy-clean filters for a neat built-in fit.
Miele DA3366 Slimline Cooker Hood with Energy-Efficient LED Lighting
The Miele DA3366 slimline cooker hood is designed for a neat, space-saving built-in fit, making it a practical choice for modern kitchens. With powerful extraction, energy-efficient LED lighting and easy-clean filters, it helps keep your cooking area clearer and brighter every day.
This built-in Miele canopy cooker hood delivers up to 635 m³/h booster performance to clear cooking vapours quickly. It features three power levels plus a booster level, controlled by straightforward mechanical slide switch controls for simple operation.
Powerful extraction with convertible operation
The Miele DA3366 is a convertible cooker hood, giving you flexibility for different kitchen layouts. It can be used with a recirculation conversion kit DUU 151 and active charcoal filter DKF13-1, both available separately.
For extraction performance according to EN 61591, air throughput reaches 150 m³/h at level 1, 240 m³/h at level 2, 320 m³/h at level 3 and 430 m³/h on booster.
In recirculation mode according to EN 61591, air throughput reaches 80 m³/h at level 1, 150 m³/h at level 2, 200 m³/h at level 3 and 300 m³/h on booster.
Energy-efficient LED hob lighting
Integrated LED lighting provides bright, even illumination across the hob while keeping energy use low. The lighting system includes 2 x 3 W LED lamps, delivers 320 lx light intensity and has a 3000 Kelvin colour temperature for a warm, clear cooking environment.
The cooker hood has a lighting efficiency class A and an energy efficiency class C, with annual energy consumption of 61.40 kWh/year.
Easy-clean stainless-steel grease filter
The Miele DA3366 features one dishwasher-safe 10-ply stainless-steel grease filter for effective grease removal and simple maintenance. Built-in fall protection helps with safe handling and protects the hob during cleaning.
The top layer and filter frame are made from high-quality stainless steel to help maintain their appearance, even after dishwasher cleaning.
CleanCover interior and quieter, efficient operation
An ECO motor supports efficient, quieter operation, while the CleanCover canopy interior is designed to make cleaning easier. Miele cooker hoods are also equipped with high-quality radial fans with suction on two sides for consistent air throughput and optimised extraction.
For extraction mode according to EN 60704, sound power levels are 44 dB(A) at level 1, 47 dB(A) at level 2, 51 dB(A) at level 3 and 58 dB(A) on booster. Sound pressure levels are 32 dB(A) at level 1, 35 dB(A) at level 2, 38 dB(A) at level 3 and 45 dB(A) on booster.
In recirculation mode according to EN 60704, sound power levels are 52 dB(A) at level 1, 58 dB(A) at level 2, 61 dB(A) at level 3 and 67 dB(A) on booster. Sound pressure levels are 40 dB(A) at level 1, 45 dB(A) at level 2, 49 dB(A) at level 3 and 55 dB(A) on booster.
Design and installation details
Finished in stainless steel, the Miele DA3366 slimline cooker hood has a canopy width of 595 mm, height of 34 mm and depth of 275 mm. Variable height and variable width are available as customisation on request.
Minimum installation height is 450 mm above electric hobs and 650 mm above gas hobs with a maximum total power of 12.6 kW and burner output of up to 4.5 kW.
Additional technical details include a net weight of 12.00 kg, 1.50 m supply lead, standard plug fitted, total rated load of 0.12 kW, 230 V voltage, 50 Hz frequency and 1 phase. The extraction ducting connection is at the top with a 150 mm diameter.
Key features at a glance
Model: Miele DA3366
Type: Slimline cooker hood
Design: Built-in canopy
Controls: Mechanical slide switch
Power levels: 3 + booster
Maximum booster performance: Up to 635 m³/h
Lighting: 2 x 3 W LED
Grease filter: 1 dishwasher-safe 10-ply stainless-steel filter
Energy rating: C
Colour: Stainless steel
| Discontinued | Yes |
|---|---|
| Brand | Miele |
| Product Type | Cooker Hood |
| Variant | Built In |
| Automatic Programmes | No |
| Smart Appliance | No |
| SKU | DA3366 |
| GTIN | 4002515562574 |
Construction type
- Slimline cooker hood
Operating modes
- Type of air guide Convertible
- Recirculation conversion kit (order separately) DUU 151
- Active charcoal filter (order separately) DKF13-1
Design
- Colour Stainless steel
- Variable height available as customisation on request
- Variable width available as customisation on request
User convenience
- Mechanical controls
- Slide switch
- Power levels (number without Booster level) 3
- Booster level
Efficiency and sustainability
- Energy efficiency class (A+++ to D) C
- Annual energy consumption in kWh/year 61.40
- Fluid dynamic efficiency class D
- Lighting efficiency class A
- Grease filtering efficiency class B
- Cleaning convenience
- Easy-to-clean canopy interior – CleanCover
Filter system
- Number of dishwasher safe stainless-steel grease filters (10-ply) 1
Lighting
- LED
- Number x W 2 x 3 W
- Light intensity in Lx 320 lx
- Colour temperature in K 3000 Kelvin
Blower
- Dual-action blower
- AC motor
Extraction
- Air throughput in Level 1 (m³/h) according to EN 61591 150
- Air throughput in Level 2 (m³/h) according to EN 61591 240
- Air throughput in Level 3 (m³/h) according to EN 61591 320
- Air throughput in Booster level (m³/h) according to EN 61591 430
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 44
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 47.00
- Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 51.00
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 58
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 32.00
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 35.00
- Sound pressure in setting 3 (dB(A) re 20 µPa) 38.00
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 45.00
Recirculation
- Air throughput in Level 1 (m³/h) according to EN 61591 80
- Air throughput in Level 2 (m³/h) according to EN 61591 150
- Air throughput in Level 3 (m³/h) according to EN 61591 200
- Air throughput in Booster level (m³/h) according to EN 61591 300
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 52.00
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 58.00
- Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 61.00
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 67.00
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 40.00
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 45.00
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 49.00
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 55.00
Technical data
- Canopy width in in. (mm) 595
- Canopy height in in. (mm) 34
- Depth of hood canopy in in. (mm) 275
- Minimum height above electric hobs in mm 450
- Minimum height above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650
- Net weight in kg 12.00
- Length of supply lead in m 1.50
- Standard plug fitted
- Total rated load in kW 0.12
- Voltage in V 230
- Fuse rating in A 10
- Frequency in Hz 50
- Number of phases 1
Installation notes
- Extraction ducting connection at top
- Diameter of extraction ducting connection in mm 150
Frequently Asked Questions About the DA3366
Is the Miele DA3366 suitable for a 60cm kitchen unit?
Yes. The Miele DA3366 has a canopy width of 595mm, so it is designed to fit neatly into a 60cm housing for a built-in, space-saving finish.
Can the Miele DA3366 be used for both extraction and recirculation?
Yes. This model is convertible, so it can be set up for external extraction or recirculation. For recirculation, the DUU 151 conversion kit and DKF13-1 active charcoal filter are required and are ordered separately.
How powerful is the Miele DA3366 cooker hood?
The Miele DA3366 offers three standard power levels plus a booster setting. In extraction mode, airflow reaches up to 430 m³/h on booster, which makes it a good choice for clearing everyday cooking vapours and odours quickly.
Does the Miele DA3366 include built-in lighting?
Yes. This model includes energy-efficient LED lighting with 2 x 3W lamps. It delivers 320 lux at a warm 3000K colour temperature, giving you clear, even light across the hob.
Are the grease filters easy to clean?
Yes. The Miele DA3366 includes one 10-ply stainless-steel grease filter that is dishwasher safe, so routine cleaning is simple and convenient.
How noisy is the Miele DA3366?
In extraction mode, sound power levels range from 44 dB(A) on the lowest setting to 58 dB(A) on booster. This helps keep day-to-day use relatively unobtrusive while still giving you the option of stronger extraction when needed.
What controls does the Miele DA3366 use?
The Miele DA3366 uses simple mechanical controls with a slide switch. This makes it straightforward to select between the three fan speeds and booster mode.
What is the energy rating of the Miele DA3366?
This model has an energy efficiency rating of C. It also has lighting efficiency class A and grease filtering efficiency class B.
What are the installation requirements for the Miele DA3366?
The Miele DA3366 has a top ducting connection with a 150mm outlet diameter. The minimum installation height is 450mm above an electric hob and 650mm above a gas hob, subject to the hob manufacturer’s guidance.
Is the Miele DA3366 a good choice for a streamlined kitchen design?
Yes. With its slimline built-in canopy design, stainless-steel finish and compact 34mm height, the Miele DA3366 is designed to sit neatly into cabinetry and keep the overall kitchen look clean and understated.
