BORA X BO Built In Steam Oven

Discover the BORA X BO Built In Steam Oven in Black Glass on Appliance Superstore. Black Glass Finish BORA Steam Oven –  53L Capacity, 19-inch Foldable Touch Screen, Full Touch Control Operation, Steam Functions, Steam Cleaning, Energy Rating A. SmartOpen – A face full of steam is a thing of the past. Steam is extracted from the oven chamber before the door is unlocked. 19-inch TouchScreen – Huge, intuitive & responsive. Just like a smartphone, do everything with a swipe of a fingertip. Steam Cooking – Preserves the natural flavours, colours & nutrients of your ingredients, making your meals not only delicious but also nutritious. Automatic Programmes – Cook delicious meals with ease.

Important Installation Note

The BORA X BO oven is unique in that no air is exhausted from the front of the machine.  The X BO is instead exhausting steam at the rear of the appliance.

This USP elevates the user experience to the next level of customer satisfaction as no unwanted hot steam surrounds the X BO users face during use.

Consequently, the X BO requires a certain volume of ventilation, like integrated refrigeration systems to make this USP user experience to come alive.

We kindly ask you and your planning team to check your floor plans, and inform your fitters to be mindful of the following requirements:

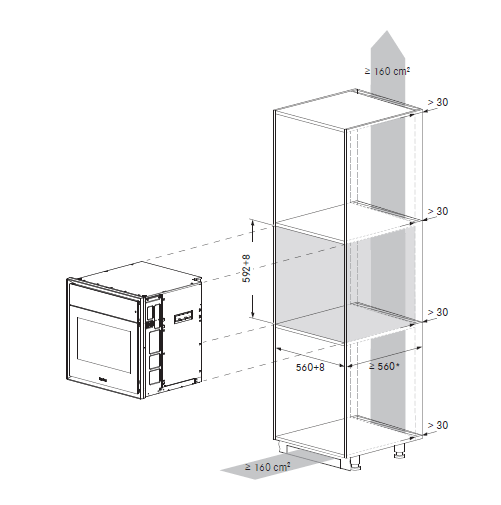

• X BO systems require a minimum clearance of 30mm behind the unit, flowing all the way from the bottom to the top of the cabinet.
• The air must circulate from the bottom to the top of the unit!
• We therefore require a minimum space equal or even greater >160cm².
• At the bottom this can be achieved by means of a gap above the plinths (similar to how we accommodate the venting of a BORA hob recirculation systems).
• At the top this can be achieved by either free flow into the room, or by creating a gap like the plinth method or by way of ventilation grille. (Please see page 161 attached)

If the X BO does not have enough ventilation > 160cm², the system can become too hot and prompt error messages and malfunctions due to overheating electronic components being inside the X BO.

This is easily avoided by providing the required > 160cm², ventilation when installing the X BO system.

The professional steam oven for your home.

A steamer and oven in one. Thanks to the innovative steam and hot air technology combined with intuitive operation, preparing perfect, evenly cooked everyday meals on all three levels is no longer a problem.

A premium design with a large touch display.

Jet black and elegant. Precisely contoured yet confidently restrained: the X BO is characterised by high-quality glass surfaces, multi-level lighting in the stainless steel oven chamber and an operating concept that dispenses with knobs and handles in favour of a large, 19-inch touch display.

Pre-set programmes and perfect cooking results on all levels.

Perfectly designed pre-set programmes enable particularly uniform cooking results and make it easier to switch from a conventional oven to cooking with steam and hot air. For perfect results every time, even when cooking on all three levels.

Fully automatic intensive cleaning.

The fully automatic cleaning programme makes even cleaning a cinch. The appliance is cleaned and dried automatically all you have to do is screw the environmentally friendly, recyclable cleaning cartridge into the centre of the oven rack.

Automatic steam extraction and effective odour filtration.

BORA Smart Open automatically extracts the steam from the oven chamber before the door is opened so it will no longer fog up unit fronts or hit you in the face. The odour filter also neutralises unpleasant odours. Changing the filter is extremely easy.

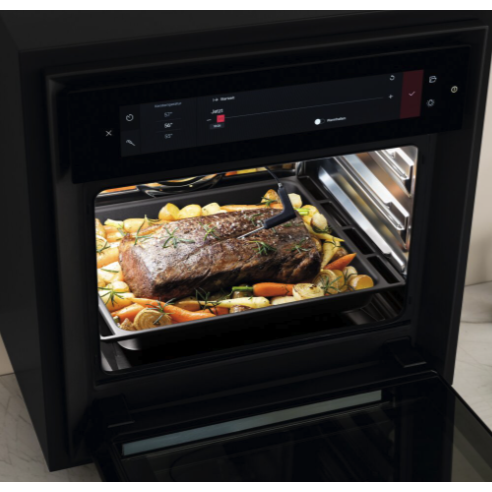

Four-point food thermometer for precisely cooked food.

Thanks to the unique four-point food thermometer, the optimum cooking temperature can be determined. Located in the oven chamber, it is simply inserted into the food. There is no need to find the optimum measuring position as the measuring points always detect the coldest part of the food. The cooking process is automatically ended when the target temperature is reached.

SPECIFICATION

Multiphase supply voltage

380 – 415 V 2N

Single-phase supply voltage

220 – 240 V

Frequency

50 Hz

Maximum power consumption

6,1 kW

Two-phase power supply/fuse protection

2 x 16 A

Single-phase power supply/fuse protection

1 x 16 A / 1 x 32 A

Dimensions (width x height x depth)

595 x 595 x 580 mm

Dimensions oven chamber (width x height x depth)

480 x 308 x 405 mm

Oven chamber volume

51,5 l

Number of shelf levels

3

Weight (incl. accessories/packaging)

62 kg

Weight

47 kg

Surface material

Glass

Temperature control range

30 – 230 °C

Power control

Freely adjustable

Lenght inlet tube

2,5 m

Connection inlet tube

3/4”

Lenght drain hose

2,5 m

Inside diameter drain hose

19 mm

Filter material

Activated charcoal filter with ion exchanger

Maximum filter service life

1 year

Product description

• Foldable 19-inch full-graphic touch display
• Clear view thanks to BORA Clear View automatic steam extraction before the door is opened
• BORA Smart Open – automatic door opening after BORA Clear View steam extraction
• Innovative, fully automatic cleaning of the cooking chamber
• eSwap – easy filter change from the front by simply lifting up the display flap
• Four-point food thermometer to determine precisely when food is cooked and interconnected automatic cut-off
• Internal steam generation
• BORA Choice – these dishes are in line with the nutritional guidelines of the professional cyclists in the BORA – hansgrohe team
• Multi-drawer connection for simplified and expanded control
• LED multi-level lighting
• Scope of delivery
• X BO steam oven
• X BO frame spacer
• X BO cleaning cartridge
• X BO non-perforated stainless steel steamer tray
• X BO perforated stainless steel steamer tray
• X BO oven rack
• X BO universal tray
• X BO odour filter
• water inlet hose
• water outlet hose
• drain filter
• operating and installation instructions
• mounting accessories
