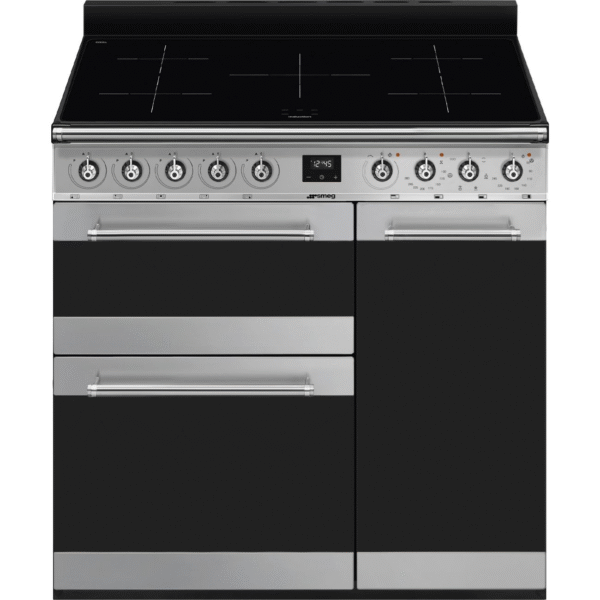

Smeg SY93I-1 Classic Symphony 90cm Range Cooker with Induction Top

Smeg Classic Symphony 90cm Range Cooker with Induction Top Stainless Steel SY93I-1

AUXILIARY OVEN

The SY93’s AUXILIARY OVEN (positioned on the right hand side) has a full height side opening door which is externally glazed with an enamelled inner door for energy efficiency. With a net capacity of 62 litres this tall oven is equipped a total of 9 cooking levels, making it ideal for small batch baking and plate warming – in fact you can cook a whole roast dinner just in this tall oven.

GRILL OVEN

The GRILL OVEN (positioned top left) boasts a powerful 2.7kW adjustable grill, and has a 36 litre net capacity alongside 2 cooking levels.

COOKERS WITH INDUCTION HOB TOPS

Induction hobs are significantly faster in operation versus gas, giving you the possibility to speed up cooking times.

Heat is only generated when the pan comes into direct contact of the specific cooking zone, ensuring safety in the presence of children. This helps optimise power consumption, only using the energy needed to heat the pan itself.

Induction allows for precise temperature control when doing intricate cooking, or simmering for example.

VAPOR CLEAN PROGRAMME

Smeg ovens offer a vapor clean programme designed to generate steam to help release burnt on food from the walls oven. Vapor cleaning is straightforward, simply put a little water & detergent into the hollow in the oven base and select vapor setting.

ECLIPSE BLACK GLASS

This innovative, premium material appears jet black when the oven is off, yet transparent when the oven is turned on and the light illuminates the cavity.

EXTRA STORAGE

This cooker has a useful storage compartment beneath the oven, perfect for housing shelves, racks, trays and other items.

TYPE

• Product Family: Cooker
• Cooker size: 90×60 cm
• Hob energy type: Electric
• Hob type: Induction
• Main oven type: Thermo-ventilated
• Type of second oven: Thermo-ventilated
• Cleaning system: Vapor Clean
• EAN code: 8017709308742

AESTHETICS

• Colour: Stainless steel
• Finishing: Brushed
• Aesthetics: Classic
• Design: Square design
• Series: Symphony
• Material: Stainless steel
• Door: With 2 horizontal strips
• Command panel finish: Stainless steel
• Hob colour: Black enamel
• Handle: Smeg Classic
• Controls colour: Stainless steel
• Upstand: Yes
• Display: Touch
• Handle Colour: Brushed stainless steel
• Control knobs: Smeg Classic
• Glass type: dark grey
• No. of controls: 9
• Plinth: Black

PROGRAMS / FUNCTIONS

Traditional cooking functions

• Static
• Fan assisted
• Circulaire
• ECO
• Fan assisted base

Cleaning functions

• Vapor Clean

Other functions

• Defrost by time

PROGRAMS / FUNCTIONS AUXILIARY OVEN

• Cooking functions cavity 2: 1

Traditional cooking functions, cavity 2

• Circulaire

PROGRAMME / FUNCTIONS THIRD OVEN

• No. of functions third oven: 1

HOB OPTIONS

• Limited Power Consumption Mode: Yes
• Limited Power Consumption Mode in W: 3700, 4800, 7400 W

OPTIONS MAIN OVEN

• Timer: Yes
• End of cooking acoustic alarm: Yes
• Minimum Temperature: 50 °C
• Maximum temperature: 260 °C

OPTIONS AUXILIARY OVEN

• Minimum Temperature: 50 °C
• Maximum temperature: 245 °C

OPTIONS THIRD OVEN

• Minimum Temperature: 50 °C
• Maximum temperature: 260 °C

HOB TECHNICAL FEATURES

• Total no. of cook zones: 5
• 1st zone position: Front left
• 2nd zone position: Rear left
• 3rd zone position: Central
• 4th zone position: Rear right
• 5th zone position: Front right
• 1st zone type: Induction – single
• 2nd zone type: Induction – single
• 3rd zone type: Induction – single
• 4th zone type: Induction – single
• 5th zone type: Induction – single
• 1st zone dimensions: – Ø 21.0 cm
• 2nd zone dimensions: – Ø 18.0 cm
• 3rd zone dimensions: – Ø 27.0 cm
• 4th zone dimensions: – Ø 18.0 cm
• 5th zone dimensions: – Ø 21.0 cm
• 1st zone power: 2.30 kW
• 2nd zone power: 1.40 kW
• 3rd zone power: 2,3 kW
• 4th zone power: 1,4 kW
• 5th zone power: 2.30 kW
• 1st zone booster power: 3.00 kW
• 3rd zone booster power: 3 kW
• 4th zone booster power: 3.00 kW
• 5th zone booster power: 3.00 kW
• Automatic switch off when overheat: Yes
• Automatic pan detection: Yes
• Minimum pan diameter indication: Yes
• Selected zone indicator: Yes
• Residual heat indicator: Yes

MAIN OVEN TECHNICAL FEATURES

• Net volume of the cavity: 61 litres
• Cavity material: Easy clean enamel
• Shelf positions: 4
• Type of shelves: Metal racks
• No. of lights: 1
• Light type: Halogen
• Light power: 40 W
• Fan number: 1
• Cooking time setting: Start and Stop
• Door opening: Side opening
• Side opening door: Yes
• Removable door: Yes
• Full glass inner door: Yes
• Removable inner door: Yes
• Total no. of door glasses: 3
• No.of thermo-reflective door glasses: 1
• Safety Thermostat: Yes
• Cooling system: Tangential
• Grill type: Electric
• Tilting grill: Yes
• Grill element: 1700 W
• Large grill – Power: 2700 W
• Lower heating element power: 1200 W
• Upper heating element – Power: 1000 W
• Circular heating element – Power: 2000 W
• Temperature control: Electro-mechanical

SECOND OVEN TECHNICAL FEATURES

• Net volume of the second cavity: 62 litres
• Cavity material: Easy clean enamel
• Shelf positions: 9
• Type of shelves: Metal racks
• No. of lights: 1
• Light type: Halogen
• Light power: 40 W
• Fan number: 1
• Door opening: Side opening
• Side opening door: Yes
• Removable door: Yes
• Full glass inner door: Yes
• Removable inner door: Yes
• No. total door glasses: 2
• No. thermo-reflective door glasses: 1
• Safety Thermostat: Yes
• Cooling system: Tangential
• Grill type: Electric
• Temperature control: Electro-mechanical

THIRD OVEN TECHNICAL FEATURES

• Net volume, 3rd cavity: 36 l
• Gross volume, 3rd cavity: 41 l
• Cavity material: Easy clean enamel
• Shelf positions: 2
• Type of shelves: Metal racks
• No. of lights: 1
• Light type: Halogen
• Light power: 40 W
• Door opening: Flap down
• Removable door: Yes
• Full glass inner door: Yes
• Removable inner door: Yes
• No. total door glasses: 3
• No. of thermo-reflective door glasses: 1
• Safety Thermostat: Yes
• Cooling system: Tangential
• Grill type: Electric
• Tilting grill: Yes
• Large grill – Power: 2700 W
• Temperature control: Electro-mechanical

PERFORMANCE / ENERGY LABEL

• Energy efficiency class: A
• GAS – Energy consumption in fan-forced convection, first cavity: 2.77 MJ
• Energy consumption forced air convection (kWh) first cavity: 0.77 KWh
• GAS – Energy consumption conventional mode, first cavity: 3.56 MJ
• Energy consumption conventional first cavity (kWh): 0.99 KWh
• Energy consumption zone 2: 185 Wh/Kg
• Energy consumption zone 3: 193.5 Wh/Kg
• Energy consumption zone 4: 189.2 Wh/Kg
• Energy consumption zone 5: 180 Wh/Kg

PERFORMANCE /ENERGY LABEL – SECOND CAVITY

• Energy efficiency class, second cavity: B
• GAS – Energy consumption in forced air convection, second cavity: 3.49 MJ
• GAS – Energy consumption in forced air convection, second cavity: 0.97 KWh

ELECTRICAL CONNECTION

• Nominal power: 15000 W
• Voltage: 220-240 V
• Frequency: 50 Hz
• Power supply cable length: 150 cm

LOGISTIC INFORMATION

• Width (mm): 900 mm
• Product Height (mm): 900 mm
• Depth (mm): 600 mm
• Net weight (kg): 101.000 kg
