Smeg KPF9X 90cm Chimney Wall Hood Stainless Steel
- 90cm Chimney Wall Hood – Decorative stainless steel cooker hood with Portofino design for larger cooking areas.
- Powerful Extraction – 3 Speeds plus intensive mode with up to 781 m³/h extraction for strong cooking odours.
- Ducted or Recirculating – Flexible installation with charcoal filters included as standard.
- LED Hob Lighting – 2 x energy-efficient LED lights provide bright illumination across the cooking surface.
- Dishwasher-safe Filters – Washable stainless steel grease filters make everyday hood maintenance simple.
£766.00
- Product Info
- Specification
- FAQ's
Smeg KPF9X 90cm Chimney Wall Hood in stainless steel combines powerful extraction with striking Portofino style, bringing effective odour removal to larger kitchens.

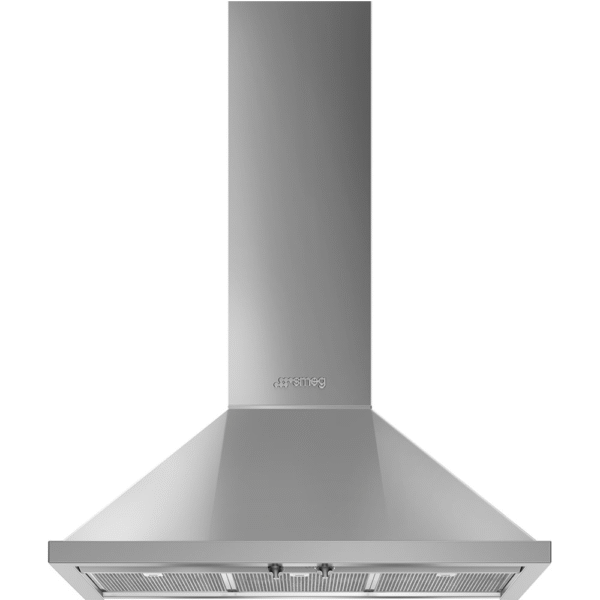

Smeg KPF9X 90cm chimney wall hood in stainless steel
The Smeg KPF9X 90cm chimney wall hood is a decorative wall hood designed for larger cooking areas. Finished in brushed stainless steel with Smeg’s distinctive Portofino aesthetic, it co-ordinates beautifully with the Portofino cooker range while delivering strong extraction performance for everyday cooking.
With 3 speeds plus an intensive mode, this 90cm cooker hood gives you the flexibility to match extraction power to what you are cooking. It offers airflow from 288 m³/h at minimum speed up to 630 m³/h at maximum speed, with an intensive extraction rate of 781 m³/h when rapid odour removal is needed.
Flexible installation for ducted or recirculating use
This Smeg wall hood is designed for expulsion extraction and can also be installed for recirculating use, giving you greater flexibility to suit your kitchen layout. Charcoal filters are included as standard, while the 150mm vent outlet supports ducted installation where required.
A non-return valve is also included, helping support efficient airflow during operation.
Bright LED lighting across the hob
Two energy-efficient LED lights provide clear illumination over the cooking surface, making it easier to monitor food while you cook. Each light is rated at 2W and delivers practical, bright lighting with a 4000 °K colour temperature.
Simple controls and easy everyday maintenance
Portofino control knobs give the hood a coordinated, premium look and make settings easy to adjust. The washable stainless steel anti-grease filters are dishwasher-safe, helping to keep maintenance straightforward.
Efficient performance with low energy consumption
Rated A+ for energy efficiency, the Smeg KPF9X combines strong extraction with economical operation. It has an annual energy consumption of 40 kWh/year, with a fluid dynamic efficiency class of A and a lighting efficiency class of A.
Noise levels range from 48 dB(A) at minimum speed to 67 dB(A) at maximum speed, reaching 72 dB(A) on the intensive setting.
Key specifications
This decorative chimney hood measures 1227 x 896 x 495mm and has a nominal power of 277W. Minimum installation distance is 750mm above a gas hob and 650mm above an electric hob.
The Smeg KPF9X stainless steel chimney hood is an excellent choice for anyone looking for a Portofino cooker hood with powerful extraction, flexible installation and easy-clean metal grease filters.
| Dimensions | 49.5 × 89.6 × 122.7 cm |
|---|---|
| Automatic Programmes | No |
| Smart Appliance | No |
| Brand | Smeg |
| Energy Efficiency Class | A+ |
| Noise Level | 72 |
| Intensive Mode | Yes |
| No. Of Fan Speeds | 4 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 2 |
| SKU | KPF9X |
| GTIN | 8017709236373 |
TYPE
- Product family: Hood
- Hood Type: Decorative wall hood
- Hood width: 90 cm
- Extraction: Expulsion
- EAN code: 8017709236373
AESTHETICS
- Colour: Stainless steel
- Finishing: Brushed
- Aesthetics: Portofino
- Design: Chimney
- Material: Stainless steel
- Type of steel: Brushed
PROGRAMS / FUNCTIONS
- No. of speeds: 3
- Intensive speed: Yes
CONTROLS
- Control setting: Control knobs
- Control knobs: Portofino
- No. of controls: 2
- Controls colour: Steel effect
TECHNICAL FEATURES
- No. of lights: 2
- Light type: LED
- Light power: 2 W
- Light color temperature scale (°K): 4000 °K
- Free outlet maximum capacity: 815 m³/h
- Motor power: 275 W
- No. of filters: 3
- Anti-grease filters: Stainless steel
- Minimum distance from GAS hob: 750 mm
- Vent outlet: 150 mm
- Minimum distance from ELECTRIC hob: 650 mm
- Non return valve: Yes
PERFORMANCE / ENERGY LABEL
- Energy efficicency class ( EEC): A+
- Fluid Dynamic Efficiency class (FDEC): A
- Grease Filtering Efficiency Class (GFEC): C
- Lighting Efficiency Class (LEC): A
- Annual Efficiency Consumption (AEChood): 40 KWh/year
- Fluid Dynamic Efficiency (FDE): 36.2
- Lighting Efficiency (LE): 78.2 lux/W
- Grease Filtering Efficiency (GFE): 78.5 %
- Air flow at minumum speed (Qmin): 288 m³/h
- Maximum extraction rate: 630 m³/h
- Intensive extraction rate: 781 m³/h
- Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 48 dB(A)
- Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 67 dB(A)
- Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 72 dB(A)
- Time increase factor (F): 1.00
- Energy Efficiency Index per first cavity: 40.3
- Measured air flow rate at best efficiency point (Qbep): 413 m³/h
- Measured air pressure at best efficiency point (Qbep): 476 Pa
- Measured electric power input at best efficiency point (Wbep): 151 W
- Normal Power of the light system (Wl): 2 W
- Average illumination of the light on the cooking surface (Emiddle): 172 lux
- Sound power level at highest setting (Lwa): 67 dB(A)
ELECTRICAL CONNECTION
- Nominal power: 277 W
- Voltage: 220-240 V
- Frequency (Hz): 50-60 Hz
- Power supply cable length: 1000 mm
SPEED 1
- Extraction rate IEC 61591: 288 m³/h
- Noise level IEC 60704-2-13: 48 dB(A)
- Power: 173 W
SPEED 2
- Extraction rate IEC 61591: 421 m³/h
- Noise level IEC 60704-2-13: 63 dB(A)
- Power: 199 W
SPEED 3
- Extraction rate IEC 61591: 630 m³/h
- Noise level IEC 60704-2-13: 67 dB(A)
- Power: 223 W
INTENSIVE SPEED
- Extraction rate (IEC 61591): 781 m³/h
- Noise level IEC 60704-2-13: 72 dB(A)
- Power: 224 W
LOGISTIC INFORMATION
- Dimensions of the product (mm): 1227x896x495
- Width: 896 mm
- Depth (mm): 495 mm
- Product Height (mm): 1227 mm
Frequently Asked Questions About the KPF9X
Is the Smeg KPF9X suitable for a 90cm range cooker or larger hob?
Yes. The Smeg KPF9X is a 90cm decorative wall hood designed for larger cooking areas, so it is well suited to a 90cm hob or range cooker where you want strong extraction and a matching Portofino look.
Can the Smeg KPF9X be installed as either ducted or recirculating?
Yes. This model is designed for ducted extraction and can also be used in recirculating mode, giving you more flexibility depending on your kitchen layout. It has a 150mm vent outlet and includes a non-return valve.
Does the Smeg KPF9X come with charcoal filters?
Yes. Charcoal filters are included as standard for recirculating installation, so you have what you need if external ducting is not being used.
How powerful is the extraction on the Smeg KPF9X?
The Smeg KPF9X offers 3 speeds plus an intensive mode. Extraction rates run from 288 m³/h on the lowest speed to 630 m³/h on the highest normal setting, with up to 781 m³/h on intensive mode for faster clearing of strong cooking odours and steam.
How noisy is the Smeg KPF9X in use?
Noise levels start at 48 dB(A) on the lowest speed, rise to 67 dB(A) on the highest standard speed, and reach 72 dB(A) on intensive mode. That gives you the choice of quieter everyday extraction or higher power when needed.
What controls does the Smeg KPF9X use?
This model uses Portofino-style control knobs rather than touch controls, which makes speed selection simple and keeps the design in line with the rest of the Portofino range.
Does the Smeg KPF9X have built-in hob lighting?
Yes. The Smeg KPF9X includes two LED lights to illuminate the cooking area. Each light is rated at 2W, with a 4000K colour temperature for clear, practical task lighting over the hob.
Are the grease filters easy to clean?
Yes. The Smeg KPF9X uses stainless steel anti-grease filters that are washable, making routine cleaning much easier and helping keep the hood performing well over time.
What is the energy rating of the Smeg KPF9X?
The Smeg KPF9X is rated A+ for energy efficiency. It also has an annual energy consumption of 40.3 kWh, which makes it a strong choice if you want effective extraction with lower running costs.
What are the installation dimensions and minimum hob clearances?
The product dimensions are 1227 x 896 x 495mm. Smeg states a minimum installation distance of 750mm above a gas hob and 650mm above an electric hob, so it is important to allow the correct clearance during planning.
