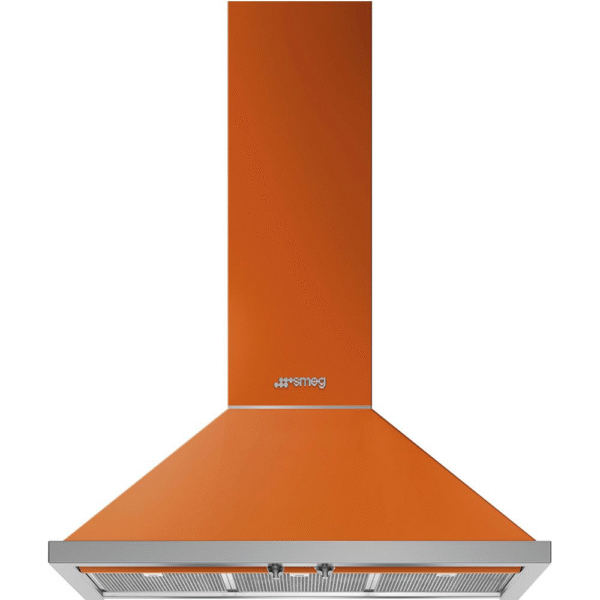

Smeg KPF9OR 90cm Chimney Wall Hood Orange
- 90cm Chimney Wall Hood – Decorative Smeg Portofino cooker hood in orange for statement kitchen styling.
- Powerful Extraction – 3 Speeds plus intensive mode with up to 781 m³/h airflow for clearing strong cooking odours.
- Flexible Installation – Suitable for ducted extraction or recirculation, with charcoal filters included as standard.
- LED Hob Lighting – 2 x energy-efficient LED lights provide bright illumination across the cooking area.
- Easy-Clean Filters – Washable stainless steel grease filters are dishwasher safe for simple maintenance.
£766.00
- Product Info
- Specification
- FAQ's
Smeg KPF9OR 90cm Chimney Wall Hood Orange combines striking Portofino design with powerful extraction, giving your kitchen standout style and effective odour removal.
Bring bold colour and premium performance to your cooking space with the Smeg KPF9OR 90cm chimney wall hood in orange. Designed in Smeg’s distinctive Portofino aesthetic, this decorative wall hood co-ordinates beautifully with the Portofino cooker range while delivering strong extraction for everyday cooking and more intense kitchen fumes.
Statement Portofino design for modern kitchens
Inspired by the rich tones of the Italian Riviera, the Smeg KPF9OR adds character to contemporary kitchens with its vibrant orange finish, chimney design and brushed stainless steel and painted material construction. At 90 cm wide, it is ideal for creating a focal point above your hob while maintaining the refined look of the Portofino collection.
Powerful extraction with intensive mode
This 90cm decorative wall hood features 3 speeds plus an intensive setting, so you can match performance to whatever you are cooking. Extraction rates range from 288 m³/h at minimum speed up to 630 m³/h at maximum speed, with an intensive extraction rate of 781 m³/h when rapid odour removal is needed. The free outlet maximum capacity is 815 m³/h.
Noise levels range from 48 dB(A) on the lowest setting to 67 dB(A) at maximum speed, or 72 dB(A) when using intensive mode.
Suitable for ducted or recirculating installation
The Smeg KPF9OR offers flexible installation to suit your kitchen layout. It is designed for ducted extraction with a 150 mm vent outlet and also supports recirculating installation. A non-return valve is included, and charcoal filters are included as standard for added convenience.
For ducting, the outlet diameter should match the vent outlet of the hood. Compatible vent kits mentioned for Smeg hoods include SP150 and SP150FLAT for 150 mm diameter vent outlets.
Bright LED hob lighting
Two 2 W LED lights provide bright, energy-efficient illumination across the cooking area, helping you keep a clear view of your hob. The lights have a 4000 °K colour temperature and can be switched on independently of the fan, making them useful for both task lighting and a softer kitchen ambience.
Simple controls and easy cleaning
Control is straightforward thanks to Portofino control knobs with a steel-effect finish. For day-to-day maintenance, the hood is fitted with 3 washable stainless steel anti-grease filters that are dishwasher safe, making cleaning quick and simple.
Energy-efficient performance
Rated A+ for energy efficiency, this Smeg chimney hood is designed to combine strong performance with efficient running. It also achieves A ratings for fluid dynamic efficiency and lighting efficiency. Annual energy consumption is 40 kWh/year.
Key specifications
Model: KPF9OR
EAN: 8017709236328
Product family: Hood
Hood type: Decorative wall hood
Width: 90 cm
Colour: Orange
Aesthetic: Portofino
Material: Stainless Steel + Painted Material
Motor power: 275 W
Nominal power: 277 W
Voltage: 220-240 V
Frequency: 50-60 Hz
Power supply cable length: 1000 mm
Minimum distance from gas hob: 750 mm
Minimum distance from electric hob: 650 mm
Product dimensions: 1227 x 896 x 495 mm
The Smeg Portofino 90cm Decorative Wall Hood Orange KPF9OR is an excellent choice for anyone looking for designer style, flexible installation and dependable extraction performance in one striking appliance.
| Dimensions | 49.5 × 89.6 × 122.7 cm |
|---|---|
| Automatic Programmes | No |
| Smart Appliance | No |
| Brand | Smeg |
| Energy Efficiency Class | A+ |
| Noise Level | 72 |
| Intensive Mode | Yes |
| No. Of Fan Speeds | 4 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 2 |
| SKU | KPF9OR |
| GTIN | 8017709236328 |
TYPE
- Product family: Hood
- Hood Type: Decorative wall hood
- Hood width: 90 cm
- Extraction: Expulsion
- EAN code: 8017709236328
AESTHETICS
- Colour: Orange
- Aesthetics: Portofino
- Design: Chimney
- Material: Stainless Steel + Painted Material
- Type of steel: Brushed
PROGRAMS / FUNCTIONS
- No. of speeds: 3
- Intensive speed: Yes
CONTROLS
- Control setting: Control knobs
- Control knobs: Portofino
- No. of controls: 2
- Controls colour: Steel effect
TECHNICAL FEATURES
- No. of lights: 2
- Light type: LED
- Light power: 2 W
- Light color temperature scale (°K): 4000 °K
- Free outlet maximum capacity: 815 m³/h
- Motor power: 275 W
- No. of filters: 3
- Anti-grease filters: Stainless steel
- Minimum distance from GAS hob: 750 mm
- Vent outlet: 150 mm
- Minimum distance from ELECTRIC hob: 650 mm
- Non return valve: Yes
PERFORMANCE / ENERGY LABEL
- Energy efficicency class ( EEC): A+
- Fluid Dynamic Efficiency class (FDEC): A
- Grease Filtering Efficiency Class (GFEC): C
- Lighting Efficiency Class (LEC): A
- Annual Efficiency Consumption (AEChood): 40 KWh/year
- Fluid Dynamic Efficiency (FDE): 36.2
- Lighting Efficiency (LE): 78.2 lux/W
- Grease Filtering Efficiency (GFE): 78.2 %
- Air flow at minumum speed (Qmin): 288 m³/h
- Maximum extraction rate: 630 m³/h
- Intensive extraction rate: 781 m³/h
- Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 48 dB(A)
- Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 67 dB(A)
- Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 72 dB(A)
- Time increase factor (F): 1.00
- Energy Efficiency Index per first cavity: 40.3
- Measured air flow rate at best efficiency point (Qbep): 413 m³/h
- Measured air pressure at best efficiency point (Qbep): 476 Pa
- Measured electric power input at best efficiency point (Wbep): 151 W
- Normal Power of the light system (Wl): 2 W
- Average illumination of the light on the cooking surface (Emiddle): 172 lux
- Sound power level at highest setting (Lwa): 67 dB(A)
ELECTRICAL CONNECTION
- Nominal power: 277 W
- Voltage: 220-240 V
- Frequency (Hz): 50-60 Hz
- Power supply cable length: 1000 mm
SPEED 1
- Extraction rate IEC 61591: 288 m³/h
- Noise level IEC 60704-2-13: 48 dB(A)
- Power: 173 W
SPEED 2
- Extraction rate IEC 61591: 421 m³/h
- Noise level IEC 60704-2-13: 63 dB(A)
- Power: 199 W
SPEED 3
- Extraction rate IEC 61591: 630 m³/h
- Noise level IEC 60704-2-13: 67 dB(A)
- Power: 223 W
INTENSIVE SPEED
- Extraction rate (IEC 61591): 781 m³/h
- Noise level IEC 60704-2-13: 72 dB(A)
- Power: 224 W
LOGISTIC INFORMATION
- Dimensions of the product (mm): 1227x896x495
- Width: 896 mm
- Depth (mm): 495 mm
- Product Height (mm): 1227 mm
Frequently Asked Questions About the KPF9OR
What type of cooker hood is the Smeg KPF9OR?
The Smeg KPF9OR is a 90cm decorative chimney wall hood from the Smeg Portofino range. It is designed to sit above a hob as a statement feature while providing effective extraction for everyday cooking.
Is the Smeg KPF9OR suitable for a 90cm hob?
Yes. The Smeg KPF9OR is 90cm wide, which makes it a good match for many 90cm hobs and range cookers. It is especially well suited to kitchens where you want balanced coverage and a co-ordinated look above a larger cooking area.
Can the Smeg KPF9OR be used for both ducted extraction and recirculation?
Yes. This model supports both ducted extraction and recirculating installation. That gives you more flexibility depending on your kitchen layout. Charcoal filters are included, which is helpful if you are planning to use it in recirculation mode.
How powerful is the extraction on the Smeg KPF9OR?
The Smeg KPF9OR offers 3 fan speeds plus an intensive mode. It extracts from 288 m³/h on the lowest setting up to 630 m³/h on the highest standard speed, with an intensive rate of up to 781 m³/h. This makes it a strong choice for dealing with steam, odours and heavier cooking fumes.
How noisy is the Smeg KPF9OR during use?
Noise levels start at 48 dB(A) on the lowest speed and rise to 67 dB(A) on the highest standard setting. On intensive mode, the sound level reaches 72 dB(A). This gives you the option to use a quieter setting for lighter cooking and more power when needed.
Does the Smeg KPF9OR include hob lighting?
Yes. This model includes 2 LED lights to brighten the cooking area. They are energy-efficient and designed to give you a clearer view of the hob while cooking.
Are the filters easy to clean?
Yes. The Smeg KPF9OR has washable stainless steel grease filters that are dishwasher safe, so regular cleaning is simple. This helps keep the hood performing well and makes day-to-day maintenance easier.
What controls does the Smeg KPF9OR use?
This model uses Portofino-style control knobs with a steel-effect finish. The controls are straightforward to use and match the overall design of the hood, making it a practical and stylish option for a statement kitchen.
Is the Smeg KPF9OR energy efficient?
Yes. The Smeg KPF9OR has an A+ energy efficiency rating, so it combines strong extraction with efficient running costs. It also has A ratings for fluid dynamic efficiency and lighting efficiency.
What is the minimum installation distance above the hob?
The minimum installation distance is 650mm above an electric hob and 750mm above a gas hob. This is important to check when planning installation to make sure the hood is fitted safely and performs as intended.
What size ducting does the Smeg KPF9OR use?
The Smeg KPF9OR has a 150mm vent outlet. If you are installing it in ducted mode, you will need compatible ducting to match this outlet size.
Who is the Smeg KPF9OR best suited for?
The Smeg KPF9OR is a good choice for anyone looking for a premium 90cm wall hood with distinctive styling and strong extraction. We would recommend this model for kitchens where design matters just as much as performance, especially if you want to complement other appliances in the Smeg Portofino range.
