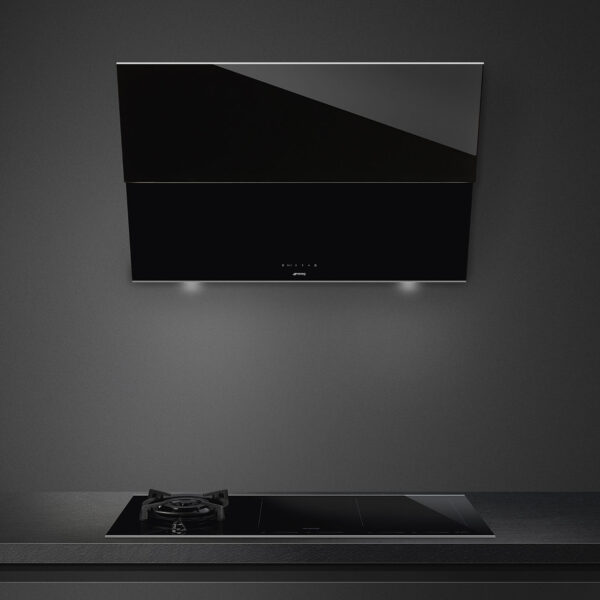

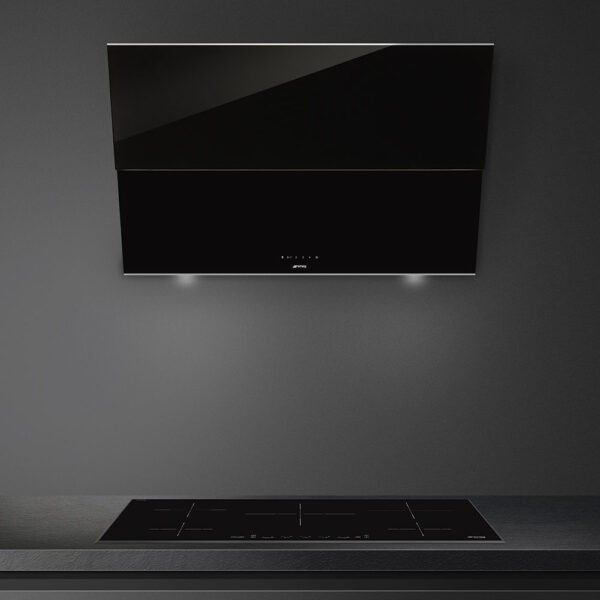

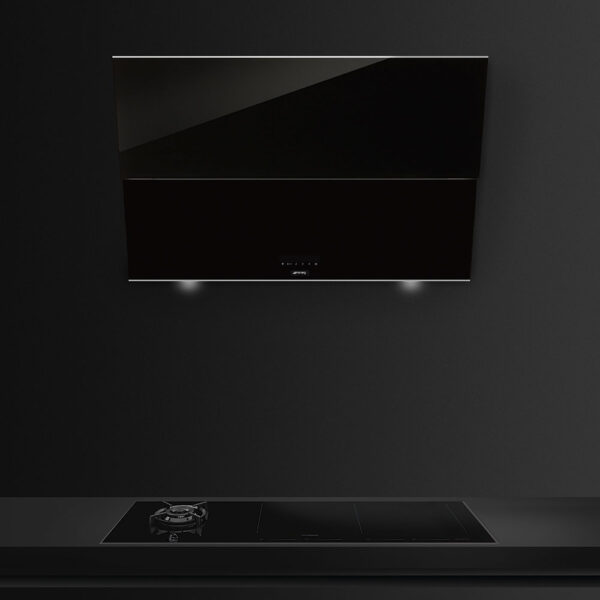

Smeg Dolce Stil Novo 90cm Decorative wall hood KSVV90NX
- 90cm Decorative Wall Hood – Angled black glass cooker hood from the Smeg Dolce Stil Novo range.
- Powerful Extraction – Up to 770m³/h intensive extraction clears steam, smoke and cooking odours fast.
- Flexible Installation – Suitable for ducted or recirculating use with charcoal filters included.
- Touch Controls – 3 speeds plus intensive mode with automatic switch-off for easy everyday use.
- Efficient LED Lighting – Twin LED lights and washable stainless steel grease filters for clear visibility and easy cleaning.
Complete the form below and our team will do their best to help
or simply call us on
- Product Info
- Specification
- FAQ's
Smeg Dolce Stil Novo 90cm Decorative Wall Hood KSVV90NX combines striking black glass design with powerful extraction up to 770m³/h for fast, stylish kitchen ventilation.
The Smeg Dolce Stil Novo 90cm decorative wall hood KSVV90NX brings together premium style and effective everyday performance. Designed in angled black glass with stainless steel detailing, this cooker hood offers strong extraction, intuitive touch controls and efficient LED lighting, making it a smart choice for modern kitchens.
Powerful extraction for everyday cooking
With 3 speeds plus an intensive setting, the KSVV90NX is built to clear steam, smoke and cooking odours quickly. It delivers an extraction rate of 345 m³/h on speed 1, 460 m³/h on speed 2, 600 m³/h on speed 3 and up to 770 m³/h on intensive speed. Maximum extraction rate is 563 m³/h, with an intensive extraction rate of 757 m³/h and a free outlet maximum capacity of 830 m³/h.
The intensive extraction setting is ideal when quick ventilation is needed, helping remove strong cooking smells fast when preparing high-heat dishes.
Perimeter extraction for efficient, quieter performance
Perimeter extraction draws vapours through a restricted area of the hood quickly before slowing the airflow once inside. This efficient extraction process helps reduce noise by limiting filter vibration, while maintaining strong performance.
Noise levels range from 48 dB(A) on speed 1 to 61 dB(A) on speed 3, reaching 68 dB(A) on intensive mode. Sound power at minimum speed is 50 dB(A), while sound power at maximum speed is 62 dB(A).
Ducted or recirculating installation
Most Smeg hoods offer the choice of ducting out or re-circulating, so you can choose the installation method that suits your kitchen. Ducting out extracts cooking fumes and expels them outside using a vent kit, available as an optional accessory. The ducting hose diameter should match the hood vent outlet.
Compatible vent kits include:
SP150: Simple vent kit for hoods with a 150mm diameter vent outlet
SP150FLAT: Comprehensive vent kit for hoods with a 150mm diameter vent outlet
SP215: Simple vent kit for hoods with a 120mm diameter vent outlet
SP217: Comprehensive vent kit for hoods with a 120mm diameter vent outlet
For re-circulating installation, cooking fumes pass through active charcoal filters before clean air is returned to the room. Charcoal filters are included as standard with this hood. You can also check the accessory tab on the hood specification to confirm the required charcoal filter.
Touch controls and automatic switch-off
The touch control panel offers easy access to all settings, with a clean look that suits the Dolce Stil Novo aesthetic. An automatic switch-off function allows the hood and lights to turn off after a predefined time, while the hood continues purifying the air until it switches off automatically.
LED lighting and easy-clean filters
Two 1W LED lights provide clear illumination over the hob, with a 4000 °K colour temperature for bright, practical task lighting. The lights can also be switched on independently of the fan, making them useful for ambient kitchen lighting.
The hood is fitted with 2 washable stainless steel anti-grease filters, designed for easy cleaning and suitable for the dishwasher.
Design, dimensions and key specifications
This 90cm decorative wall hood is part of the Smeg Dolce Stil Novo range and features a black glass finish, angled design and stainless steel component finishing. It has a 150mm vent outlet, a non-return valve, and requires a minimum distance of 600mm from a gas hob or 550mm from an electric hob.
Dimensions are 450 x 900 x 430mm. Nominal power is 283W, motor power is 280W, and the power supply cable length is 1000mm.
Energy performance
The Smeg KSVV90NX has an Energy Efficiency Class A rating, with Fluid Dynamic Efficiency Class A, Lighting Efficiency Class A and Grease Filtering Efficiency Class B. Annual energy consumption is 59 kWh/year.
This model offers a strong balance of style, extraction performance and efficient operation, making it a refined choice for kitchens that demand both design and practicality.
| Automatic Programmes | No |
|---|---|
| Brand | Smeg |
| Smart Appliance | No |
| Discontinued | Yes |
| Warranty | 2 |
| SKU | KSVV90NX |
| GTIN | 8017709226152 |
TYPE
- Product family: Hood
- Hood Type: Decorative wall hood
- Hood width: 90 cm
- Extraction: Expulsion
- Electronic control: Yes
- Perimeter extraction: Yes
- EAN code: 8017709226152
AESTHETICS
- Colour: Black
- Finishing: Glass
- Aesthetics: Dolce Stil Novo
- Design: Angled
- Components finishing: Stainless steel
- Material: Glass
- Glass Type: Black
PROGRAMS / FUNCTIONS
- No. of speeds: 3
- Intensive speed: Yes
- Time-setting options: Automatic switch-off
CONTROLS
- Control setting: Touch control
- Led colour: Ice
TECHNICAL FEATURES
- No. of lights: 2
- Light type: LED
- Light power: 1 W
- Light color temperature scale (°K): 4000 °K
- Free outlet maximum capacity: 830 m³/h
- Motor power: 280 W
- No. of filters: 2
- Anti-grease filters: Stainless steel
- Charcoal filters included: Yes
- Minimum distance from GAS hob: 600 mm
- Vent outlet: 150 mm
- Minimum distance from ELECTRIC hob: 550 mm
- Non return valve: Yes
PERFORMANCE / ENERGY LABEL
- Energy efficicency class ( EEC): A
- Fluid Dynamic Efficiency class (FDEC): A
- Grease Filtering Efficiency Class (GFEC): B
- Lighting Efficiency Class (LEC): A
- Annual Efficiency Consumption (AEChood): 59 KWh/year
- Fluid Dynamic Efficiency (FDE): 29.6
- Lighting Efficiency (LE): 107 lux/W
- Grease Filtering Efficiency (GFE): 87.1 %
- Air flow at minumum speed (Qmin): 330 m³/h
- Maximum extraction rate: 563 m³/h
- Intensive extraction rate: 757 m³/h
- Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 50 dB(A)
- Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 62 dB(A)
- Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 68 dB(A)
- Power consumption in stand-by mode (Ps): 0.49 W
- Time increase factor (F): 1.00
- Energy Efficiency Index per first cavity: 51.9
- Measured air flow rate at best efficiency point (Qbep): 397 m³/h
- Measured air pressure at best efficiency point (Qbep): 431 Pa
- Measured electric power input at best efficiency point (Wbep): 159 W
- Normal Power of the light system (Wl): 2 W
- Average illumination of the light on the cooking surface (Emiddle): 250 lux
- Sound power level at highest setting (Lwa): 62 dB(A)
ELECTRICAL CONNECTION
- Nominal power: 283 W
- Voltage: 220-240 V
- Frequency (Hz): 50-60 Hz
- Power supply cable length: 1000 mm
SPEED 1
- Extraction rate IEC 61591: 345 m³/h
- Noise level IEC 60704-2-13: 48 dB(A)
- Power: 197 W
SPEED 2
- Extraction rate IEC 61591: 460 m³/h
- Noise level IEC 60704-2-13: 55 dB(A)
- Power: 229 W
SPEED 3
- Extraction rate IEC 61591: 600 m³/h
- Noise level IEC 60704-2-13: 61 dB(A)
- Power: 254 W
INTENSIVE SPEED
- Extraction rate (IEC 61591): 770 m³/h
- Noise level IEC 60704-2-13: 68 dB(A)
- Power: 266 W
LOGISTIC INFORMATION
- Dimensions of the product (mm): 450x900x430
- Width: 900 mm
- Depth (mm): 430 mm
- Product Height (mm): 450 mm
Frequently Asked Questions About the KSVV90NX
What type of cooker hood is the Smeg Dolce Stil Novo KSVV90NX?
The Smeg Dolce Stil Novo KSVV90NX is a 90cm decorative wall hood with an angled black glass design. It is designed to give you strong everyday extraction while adding a premium, modern finish to the kitchen.
How powerful is the extraction on the Smeg KSVV90NX?
This model includes 3 standard speeds plus an intensive setting for faster air clearing when needed. Extraction reaches up to 770m³/h on intensive mode, making it a good choice for busy kitchens, strong cooking smells and high-heat cooking.
Is the Smeg KSVV90NX suitable for large kitchens or open-plan spaces?
With the Smeg KSVV90NX, you get high extraction performance that can help clear steam, smoke and odours quickly. This makes it well suited to larger kitchen spaces or open-plan layouts where strong ventilation is especially useful.
Can this hood be installed as ducted or recirculating?
Yes. The Smeg KSVV90NX can be installed for ducted extraction or recirculating use, depending on your kitchen setup. For recirculating installation, charcoal filters are included as standard, which is helpful if external venting is not available.
Does the Smeg KSVV90NX come with charcoal filters?
Yes, charcoal filters are included with this model. That means it is ready for recirculating installation without needing a separate charcoal filter purchase.
How noisy is the Smeg Dolce Stil Novo 90cm wall hood?
This model is designed to balance strong extraction with controlled noise levels. Noise starts from 48 dB(A) on the lowest speed and reaches 68 dB(A) on intensive mode, so it remains practical for everyday cooking while still offering extra power when needed.
What is perimeter extraction and does this hood have it?
Yes, this model includes perimeter extraction. This system draws vapours through a smaller intake area for efficient airflow, which can help maintain strong extraction while also reducing filter vibration and keeping operation quieter.
What controls does the Smeg KSVV90NX use?
The Smeg KSVV90NX features touch controls for a clean, streamlined finish. You can easily select the fan speed, use the intensive setting and activate the automatic switch-off function for added convenience.
Does this hood have automatic switch-off?
Yes, this model includes an automatic switch-off function. This allows the hood to continue clearing the air for a set period before switching itself off, which is useful after cooking.
Does the Smeg KSVV90NX have built-in lighting?
Yes, it has 2 LED lights that provide bright, practical lighting over the hob. The LED lights can also be used independently of the fan, so they are useful both for cooking visibility and for softer kitchen lighting.
Are the grease filters easy to clean?
Yes. This model is fitted with 2 stainless steel anti-grease filters that are washable and dishwasher safe. That makes routine maintenance simple and helps keep the hood performing well over time.
What are the dimensions of the Smeg Dolce Stil Novo KSVV90NX?
The dimensions of the Smeg KSVV90NX are 450 x 900 x 430mm. Its 90cm width makes it a strong match for wider hobs and for kitchens where a more statement extractor is required.
What is the required installation distance above a hob?
This model requires a minimum distance of 600mm above a gas hob and 550mm above an electric hob. Following these clearances helps ensure safe and effective installation.
What size vent outlet does the Smeg KSVV90NX use?
The hood uses a 150mm vent outlet. If you are planning a ducted installation, we would recommend checking that your ducting setup matches this outlet size for the best airflow performance.
Is the Smeg KSVV90NX energy efficient?
Yes, this model has an Energy Efficiency Class A rating. It also offers Class A ratings for fluid dynamic efficiency and lighting efficiency, making it a good choice if you want strong performance with efficient day-to-day running.
