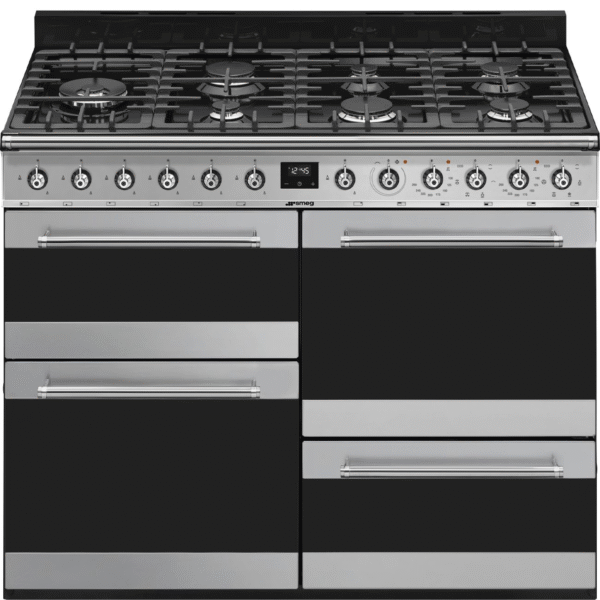

Smeg Classic Symphony 110cm Range Cooker with Gas Top Stainless Steel SYD4110-1

Smeg Classic Symphony 110cm Range Cooker with Gas Top Stainless Steel SYD4110-1

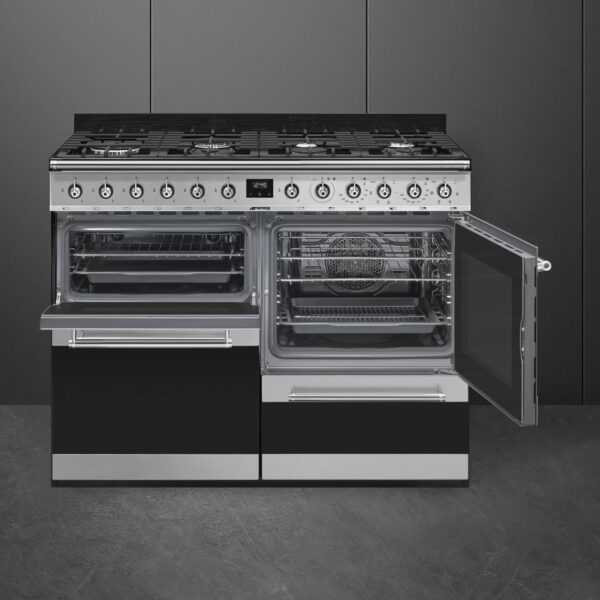

The 110cm wide SYD4110-1 cooker features a multifunction main oven and auxiliary oven, both offering conventional and fan cooking. They each have a generous 61 litre net capacity, 4 shelf positions and feature side opening doors.

In addition, there is a separate 36 litre fully variable grill for controllable closed door grilling on two levels, as well as a convenient pullout storage drawer for pans and baking trays.

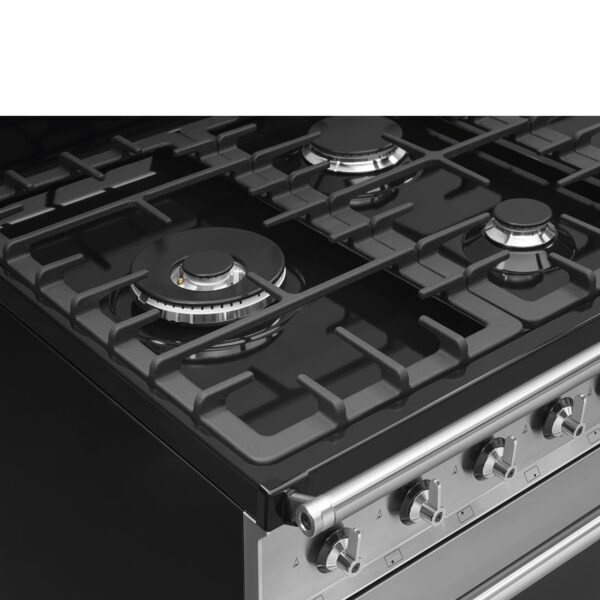

7 BURNER GAS HOB

This flexible gas hob has 7 variable power burners including a large, high power wok burner.

A stainless steel teppanyaki grill plate is also available as an optional extra, which can be placed over two burners for direct contact cooking.

TYPE

• Product Family: Cooker
• Cooker size: 110×60 cm
• Hob energy type: Gas
• N. of ovens: 3
• Hob type: Gas
• Main oven type: Thermo-ventilated
• Type of second oven: Fan assisted
• Cleaning system: Vapor Clean
• EAN code: 8017709300524

AESTHETICS

• Colour: Stainless steel
• Finishing: Brushed
• Aesthetics: Classic
• Design: Square design
• Series: Symphony
• Material: Enamelled
• Door: With 2 horizontal strips
• Command panel finish: Stainless steel
• Hob colour: Black enamel
• Handle: Smeg Classic
• Controls colour: Stainless steel
• Upstand: Yes
• Display: Touch
• Type of pan stands: Cast Iron
• Handle Colour: Brushed stainless steel
• Control knobs: Smeg Classic
• Glass type: dark grey
• No. of controls: 12
• Plinth: Black
• Storage compartment: Drawer

PROGRAMS / FUNCTIONS

Traditional cooking functions

• Static
• Fan assisted
• Circulaire
• ECO
• Fan assisted base

Cleaning functions

• Vapor Clean

Other functions

• Defrost by time

• PROGRAMS / FUNCTIONS AUXILIARY OVEN

• Cooking functions cavity 2: 5

Traditional cooking functions, cavity 2

• Static
• Fan assisted
• Fan grill (large)
• Bottom
• Fan-assisted bottom

Cleaning functions cavity 2

• Vapor Clean

Other functions cavity 2

• defrost by time

PROGRAMME / FUNCTIONS THIRD OVEN

• No. of functions third oven: 1

OPTIONS MAIN OVEN

• Timer: Yes
• End of cooking acoustic alarm: Yes
• Minimum Temperature: 50 °C
• Maximum temperature: 260 °C

OPTIONS AUXILIARY OVEN

• Minimum Temperature: 50 °C
• Maximum temperature: 260 °C

OPTIONS THIRD OVEN

• Minimum Temperature: 50 °C
• Maximum temperature: 260 °C

HOB TECHNICAL FEATURES

• Total no. of cook zones: 7
• 1st zone position: Left
• 2nd zone position: Front left
• 3rd zone position: Rear left
• 4th zone position: Front centre
• 5th zone position: Rear centre
• 6th zone position: Front right
• 7th zone position: Rear right
• 1st zone type: Gas – 2UR (dual)
• 2nd zone type: Gas – AUX
• 3rd zone type: Gas – Rapid
• 4th zone type: Gas – Rapid
• 5th zone type: Gas – AUX
• 6th zone type: Gas – Semi Rapid
• 7th zone type: Gas – Semi Rapid
• 1st zone power: 4.20 kW
• 2nd zone power: 1.00 kW
• 3rd zone power: 2.90 kW
• 4th zone power: 2.90 kW
• 5th zone power: 1.00 kW
• 6th zone power: 1.80 kW
• 7th zone power: 1.80 kW
• Type of gas burners: Standard
• Burner caps: Matt black enamelled
• Automatic electronic ignition: Yes
• Gas safety valves: Yes

MAIN OVEN TECHNICAL FEATURES

• Net volume of the cavity: 61 litres
• Cavity material: Easy clean enamel
• Shelf positions: 4
• Type of shelves: Metal racks
• No. of lights: 1
• Light type: Halogen
• Light power: 40 W
• Fan number: 1
• Cooking time setting: Start and Stop
• Door opening: Side opening
• Side opening door: Yes
• Removable door: Yes
• Full glass inner door: Yes
• Removable inner door: Yes
• Total no. of door glasses: 3
• No.of thermo-reflective door glasses: 1
• Safety Thermostat: Yes
• Cooling system: Tangential
• Grill type: Electric
• Grill element: 1700 W
• Large grill – Power: 2700 W
• Lower heating element power: 1200 W
• Upper heating element – Power: 1000 W
• Circular heating element – Power: 2700 W
• Temperature control: Electro-mechanical

SECOND OVEN TECHNICAL FEATURES

• Net volume of the second cavity: 61 litres
• Cavity material: Easy clean enamel
• Shelf positions: 4
• Type of shelves: Metal racks
• No. of lights: 1
• Light type: Halogen
• Light power: 40 W
• Fan number: 1
• Door opening: Side opening
• Side opening door: Yes
• Removable door: Yes
• Full glass inner door: Yes
• Removable inner door: Yes
• No. total door glasses: 3
• No. thermo-reflective door glasses: 1
• Safety Thermostat: Yes
• Cooling system: Tangential
• Grill type: Electric
• Tilting grill: Yes
• Grill element – power: 1700 W
• Large grill – Power: 2700 W
• Lower heating element – power: 1200 W
• Upper heating element – Power: 1000 W
• Temperature control: Electro-mechanical

THIRD OVEN TECHNICAL FEATURES

• Net volume, 3rd cavity: 36 l
• Gross volume, 3rd cavity: 41 l
• Cavity material: Easy clean enamel
• Shelf positions: 2
• Type of shelves: Metal racks
• No. of lights: 1
• Light type: Incandescent
• Light power: 25 W
• Door opening: Flap down
• Removable door: Yes
• Full glass inner door: Yes
• Removable inner door: Yes
• No. total door glasses: 3
• No. of thermo-reflective door glasses: 1
• Safety Thermostat: Yes
• Cooling system: Tangential
• Grill type: Electric
• Tilting grill: Yes
• Large grill – Power: 2700 W
• Temperature control: Electro-mechanical

PERFORMANCE / ENERGY LABEL

• Energy efficiency class: A
• GAS – Energy consumption in fan-forced convection, first cavity: 2.77 MJ
• Energy consumption forced air convection (kWh) first cavity: 0.77 KWh
• GAS – Energy consumption conventional mode, first cavity: 3.42 MJ
• Energy consumption conventional first cavity (kWh): 0.95 KWh

PERFORMANCE /ENERGY LABEL – SECOND CAVITY

• Energy efficiency class, second cavity: A
• GAS – Energy consumption in conventional mode, second cavity: 3.42 MJ
• GAS – Energy consumption in conventional mode, second cavity: 0.95 KWh
• GAS – Energy consumption in forced air convection, second cavity: 2.77 MJ
• GAS – Energy consumption in forced air convection, second cavity: 0.77 KWh

ELECTRICAL CONNECTION

• Nominal power: 8400 W
• Voltage: 220-240 V
• Voltage 2 (V): 380-410 V
• Frequency: 50/60 Hz

GAS CONNECTION

• Gas connection rating (W): 15500 W
• Gas Type: G20 Natural gas

LOGISTIC INFORMATION

• Width (mm): 1100 mm
• Product Height (mm): 900 mm
• Depth (mm): 600 mm
• Net weight (kg): 121.600 kg
