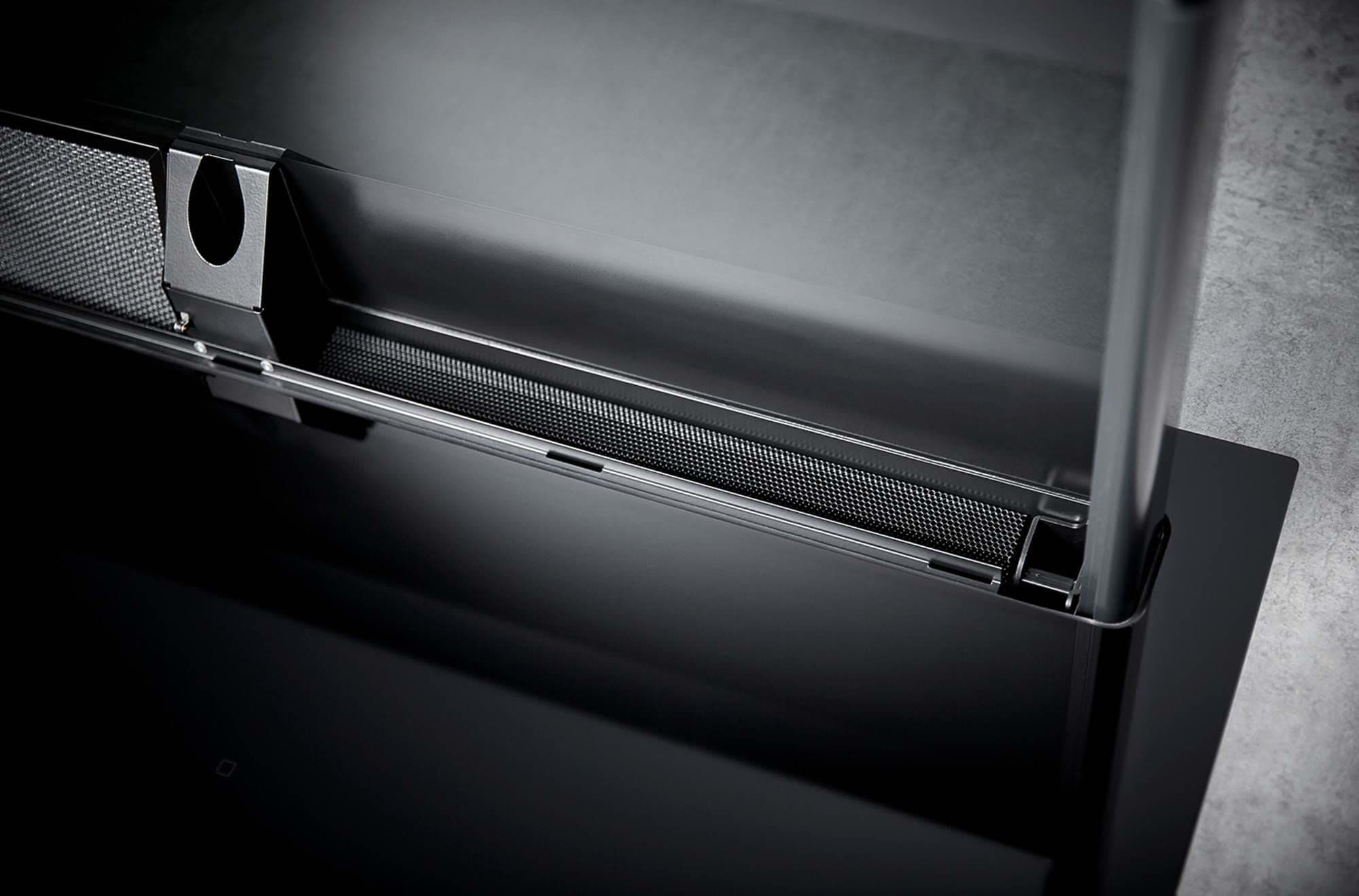

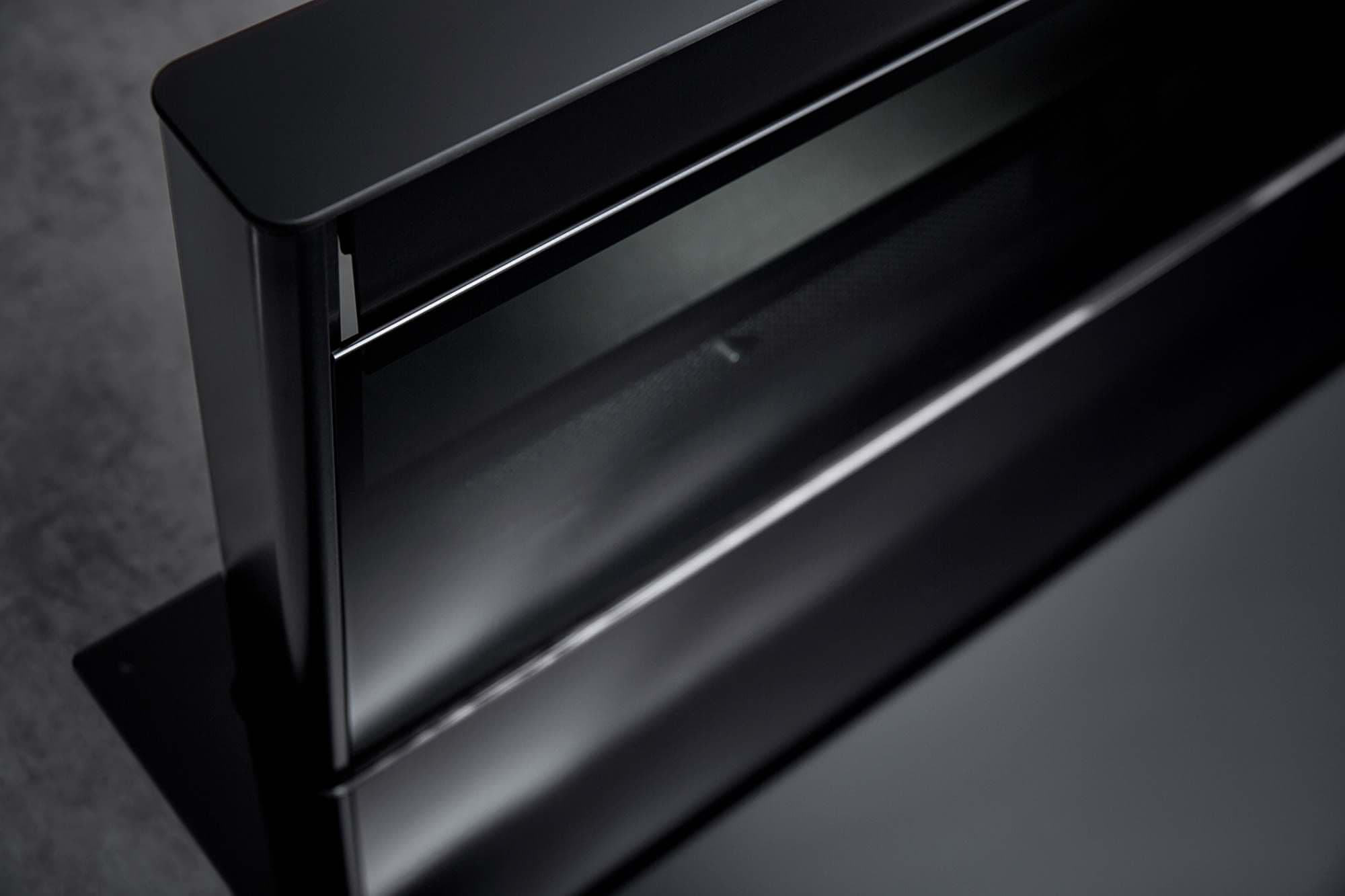

- Extraction tower disappears almost invisibly into hob
- Optimised airflow due to elegant finish in HX design
- Direct extraction at source, thanks to the adjustable height: 10 cm, 20 cm, 30 cm
- Maximum Noise Level 65db
- Maximum Extraction rate 691m³/h with Qboost

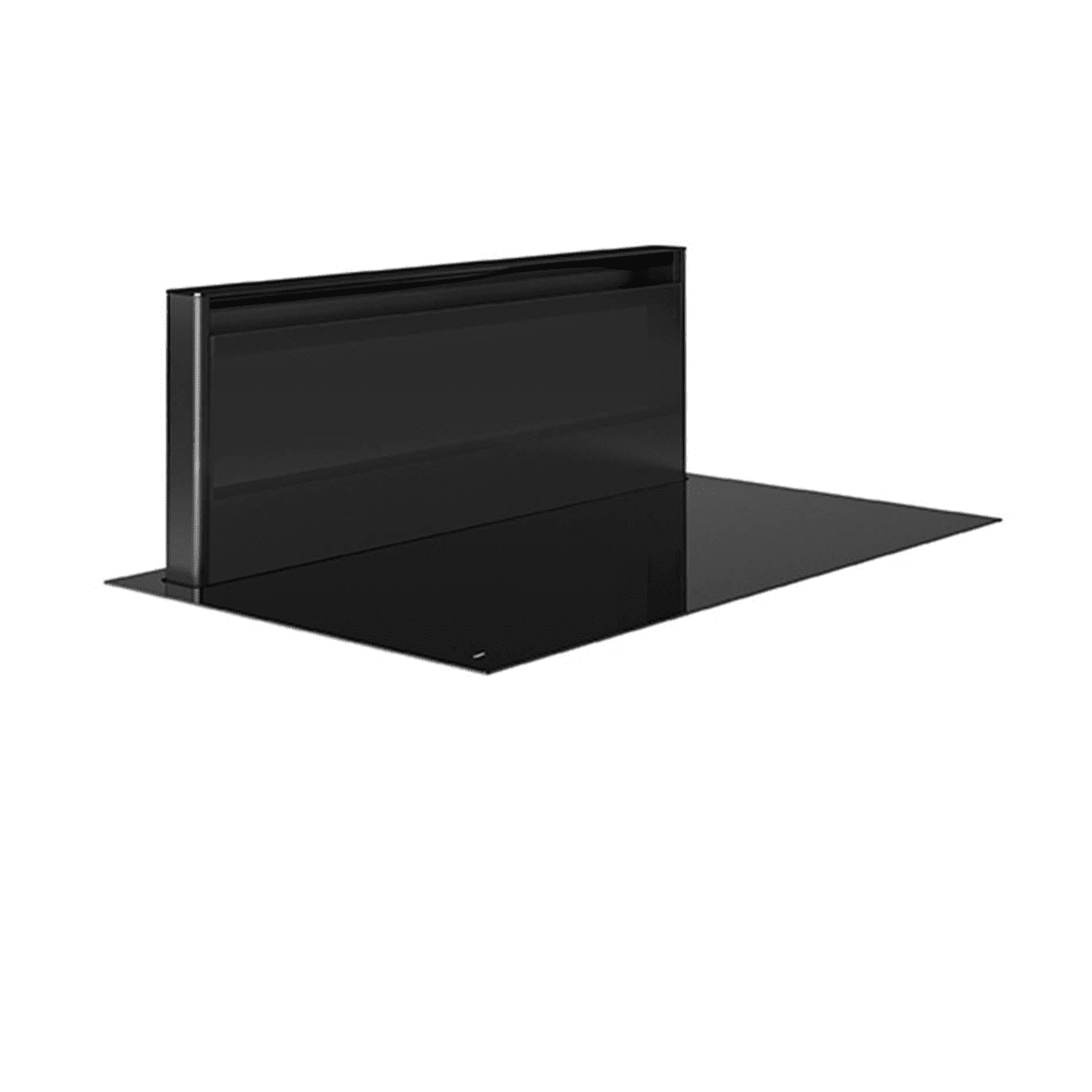

Novy Hob + Hood Novy Panorama Pro 1821
Cooker hoods with a motor (direct outlet)
The arrangement in which is a cooker hood has an outlet to the outside.
Power function
Each zone has a Power function significantly increasing the power. For example, this is ideal to bring a large amount of water to the boil.
Keep-warm function
The keep-warm function makes it very easy to maintain a constant temperature. All devices have a keep-warm function at 70ðC. Appliances in the Power and Pro ranges also have a melting setting at 42ðC and a keep-warm function at 94ðC.
Stop&Go
The energy supply is temporarily disabled. When touching the key all the levels and timers set are reused.
Bridge function
The bridge function allows you to link two adjoining zones so that you can control them in one movement. Very handy for large pots and pans. The linking goes automatically in the Pro and Power range.
Grill function
When using this function the Bridge function is automatically activated to create a larger cooking area. This function is perfect for grilling, with a specially adapted power distribution which is ideal for use with cast-iron cookware.
| Brand | Novy |
| Code | 1821 |
| GTIN | 5414425133949 |
| Type | Vented Induction Hob |
| Energy Efficiency Class | B |
| Finish | Black Glass |
| Size | 60cm to 89cm |
| Installation | Flush or Surface Mount |
| Warranty | 5 Years |
| ZONES | 4 Zone |
| COOKTOP | Induction |
| Outlet Type | Duct Out or Recirculation |
| Height | 16cm |
| Width | 85cm |
| Depth | 77cm |
| Dimensions | H 16cm W 81.8cm D 77cm |
| Noise Level dB | 65dB |
| Noise Rating | 50dB to 69dB |
| No. Of Fan Speeds | 8 |
| Colour Group | Black |
| Category | Hobs |
Cooking zones
Number of cooking zones
- 4 zones
Cooking zone specifications
| Zone | Zone dimension (mm) | Zone power (W) | Location of heating element |
|---|---|---|---|
| 1 | 200x240 | 2100/3700 | Left |
| 2 | 200x240 | 2100/3700 | Center left |
| 3 | 200x240 | 2100/3700 | Center right |
| 4 | 200x240 | 2100/3700 | Right |
Energy label
- Energy Efficiency class (EEIhood) B
- Annual Energy Consumption (kWh/year) (AEChood) 50,5
- Lighting Efficiency class (LEhood) Not applicable
- Fluid Dynamic Efficiency class (FDEhood) B
- Grease Filtering Efficiency class (GFEhood) C
Functions and features
- Motor Integrated
- Number of motors 2
- Sound absorber Integrated
- Recirculation Optional
- InTouch function Not applicable
- Auto stop Yes
- Delayed switch off Yes
- Delayed switch off (minutes) 30/10
- Tower height (cm) 10, 20, 30
- Number of grease filters 2
- Grease filter cleaning indication Yes
- Recirculation filter cleaning indication Yes
- Diameter duct (mm) 222x89
Functions and features hobs
- Bridge activation Automatic
- Bridge function 2
- Grill function Yes
- Chef function No
- Pot move function No
- Automatic pan recognition Yes
- Keep warm function (°C) 42°C / 70°C / 94°C
- Residual heat indication Yes
- Childproof lock Yes
- Pause function Yes
- Safety time-switch-off Yes
- Keep warm function (°C) 42°C / 70°C / 94°C
- Timers Timer per Zone / Minute minder / Automatic cooking
Dimensions
- Product dimensions (WxDxH) (mm) 818 x 160 x 770
- Diameter outlet (mm) 222x89
- Position exhaust Under
Airflow and noise level
- Free airflow (m³/h) 1160
- Airflow duct out max powerspeed (m³/h) (Qboost) 691
- Sound power duct out at max powerspeed (dB(A)) (LWAboost) 65
- Sound power duct out at minimum speed (dB(A)) (LWAmin) 37
Technical specifications
- Maximum power (W) 7680
- Voltage cooker hood (V) 220-230
- Frequency (Hz) 50-60
- Power consumption in off-mode (Po) (W) 0
- Power consumption in stand-by-mode (Ps) (W) 0,70
- Net weight (kg) 50
