Novy 15003 Pureline Frame 90cm Island Mounted Cooker Hood
- Novy 90cm Island Mounted Cooker Hood – Modular three-frame recirculation design supports flexible installation above wide cooktops.
- Powerful Airflow – Three fan speeds plus power deliver up to 423 m³/h continuous airflow and 497 m³/h on boost.
- Monoblock Filtration – Recirculation filter provides effective air filtration for up to 900 cooking hours.
- Dimmable LED Shelf Lighting – Three included shelf lights offer adjustable 2700K or 4000K illumination with dimming control.
£3,734.00
- Product Info
- Specification
- FAQ's

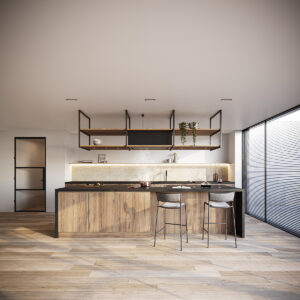

Novy 15003 Pureline Frame 90cm Island Mounted Cooker Hood combines flexible modular installation with a distinctive black steel frame and efficient recirculation.

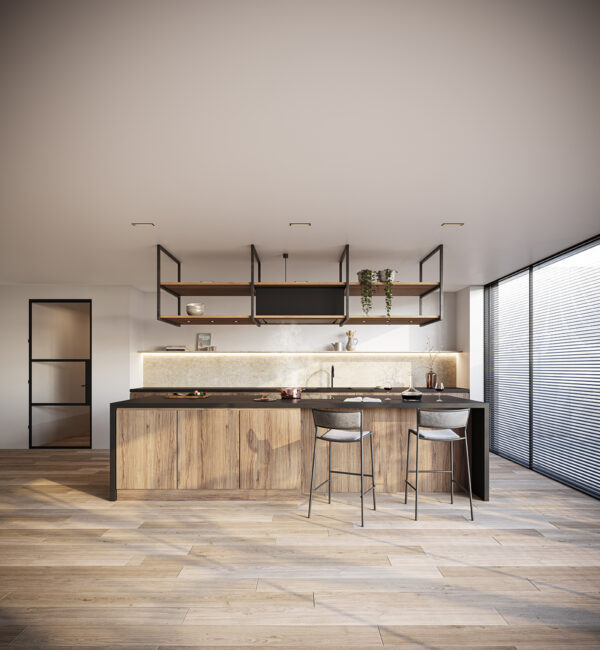

The Novy 15003 Pureline Frame 90cm island mounted cooker hood offers a modular setup that allows the width and layout to be adjusted to suit your kitchen design. Its textured black steel frame gives the appliance an industrial appearance, while panels can be supplied and fitted separately by a professional kitchen fitter.
Why choose the Novy 15003 island mounted cooker hood?
Choose the Novy 15003 if you want a premium island hood that becomes part of the kitchen design, not just an extractor. Its modular three-frame Pureline Frame layout suits wide cooktops and bespoke shelving, while recirculation with a long-life monoblock filter makes it practical where ducting is difficult. Adjustable LED shelf lighting, remote control, InTouch hob control and quiet, measured airflow make it a refined choice for open-plan kitchens with a strong architectural look.

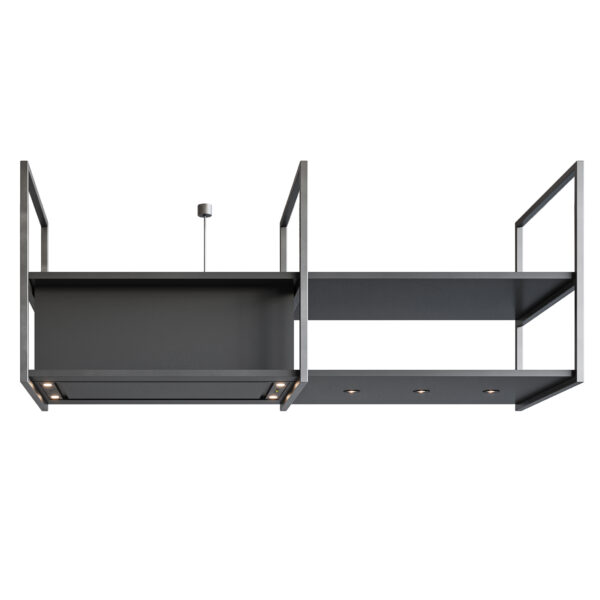

Flexible Modular Island Cooker Hood Design
Designed for use above wide cooktops, the Novy Pureline Frame 90cm provides effective extraction within a flexible island-mounted configuration. The system includes three frames, each measuring 25 x 806 x 700 mm, with a recommended maximum distance of 1250 mm between two frames.
The cooker hood housing measures 872 x 556 x 330 mm, while the overall product width is 90 cm. Shelf material between 18 and 25 mm thick can be incorporated into the installation, with the required cut-outs measuring 401 x 248 mm for the top shelf and 845 x 485 mm for the lower shelf.
Recirculation with Monoblock Filtration
The Novy 15003 operates in recirculation mode using a standard monoblock filter. The recirculation filter can last for up to 900 cooking hours, helping maintain effective air filtration over an extended period.
Three fan speeds plus a power setting provide adjustable extraction, with airflow reaching 423 cubic metres per hour at maximum continuous speed and 497 cubic metres per hour on the power setting. Free airflow is rated at 815 cubic metres per hour.

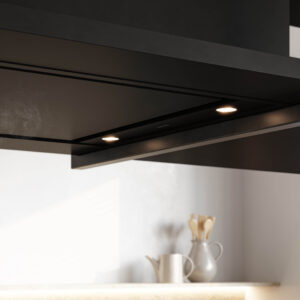

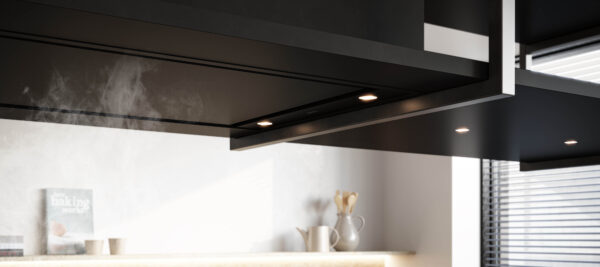

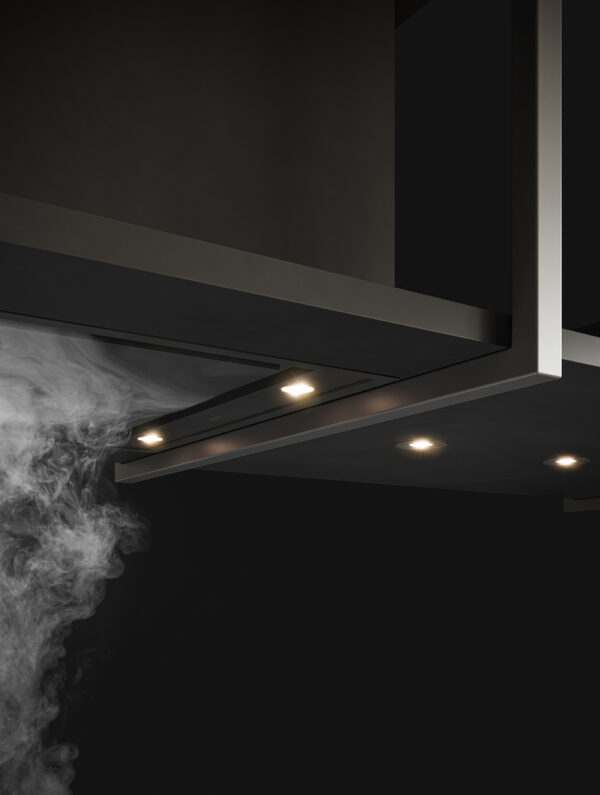

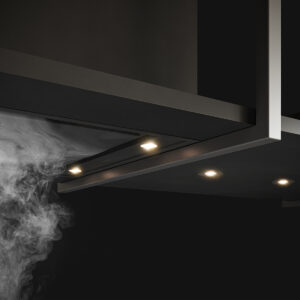

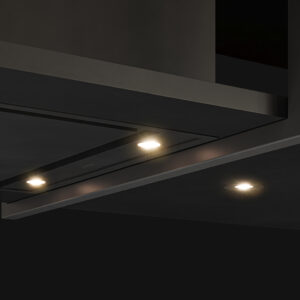

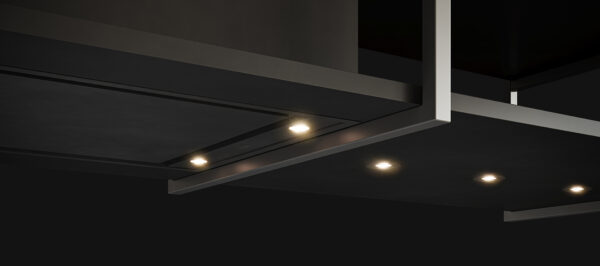

Dimmable LED Shelf Lighting
Integrated LED shelf lighting provides a choice between warm 2700K and neutral white 4000K illumination. Three shelf lights are included, with dimmable operation and a total lighting energy consumption of 6 W.
Controls and Everyday Functions
The cooker hood can be operated using remote control or push buttons and includes the Novy InTouch function as standard. It also features an integrated sound absorber, three fan speeds plus power, an automatic power revert after 6 minutes and delayed switch-off for 30 minutes.
Grease filter and recirculation filter cleaning indications help support ongoing maintenance. Two grease filters are fitted, with grease filter association 6830020 and recirculation filter association 7300055.
Noise Levels and Airflow Performance
At fan speeds 1, 2 and 3, airflow is rated at 251, 363 and 423 cubic metres per hour respectively. Sound power levels at these speeds are 47, 55 and 58 dBA, with sound pressure levels of 35, 43 and 46 dBA.
At maximum power speed, sound power reaches 61 dBA and sound pressure reaches 49 dBA. Sound power at maximum continuous speed is 58 dBA. Sound pressure at maximum continuous speed is specified as 45 dBA for duct-out operation and 46 dBA for recirculation.
| Weight | 55 kg |
|---|---|
| Dimensions | 55.6 × 87.2 × 35 cm |
| Automatic Programmes | No |
| Brand | Novy |
| Colour Group | Black |
| Noise Level | 61 |
| No. Of Fan Speeds | 4 |
| Outlet Type | Duct Out or Recirculation |
| Warranty | 2 |
| Group | Island |
| Variant | Island |
| Product Type | Cooker Hood |
| Smart Appliance | No |
| SKU | 15003 |
| GTIN | 5414425230648 |
| Brand | Novy |
|---|---|
| Product Type | Island Mounted Cooker Hood |
| Model | Pureline Frame 90cm |
| Type Number | 15003 |
| Colour | Black |
| Finish | Textured paint |
| Installation Type | Island mounted |
| Functioning Mode | Recirculation |
| Dimensions | 872 x 556 x 330 mm |
| Width | 90 cm |
| Product Weight | 55 kg |
| Frame Dimensions | 25 x 806 x 700 mm |
| Number of Frames | 3 |
| Controls | Remote control and push buttons |
| Fan Speeds | 3 + power |
| Number of Motors | 1 |
| Motor Location | Integrated |
| Sound Absorber | Integrated |
| InTouch Function | Standard |
| Delayed Switch Off | 30 minutes |
| Automatic Power Revert | 6 minutes |
| Automatic Operation | No |
| Grease Filters | 2 |
| Grease Filter Code | 6830020 |
| Recirculation Filter | Monoblock filter, code 7300055 |
| Lighting | 3 dimmable LED shelf lights |
| Light Colour Temperature | 2700K / 4000K |
| Shelf Lighting Consumption | 6 W |
| Airflow | 251 – 423 m³/h, boost 497 m³/h |
| Free Airflow | 815 m³/h |
| Sound Power Level | 47 – 58 dBA, boost 61 dBA |
| Sound Pressure Level | 35 – 46 dBA, boost 49 dBA |
| Electrical Connection | 220-240V, 50-60Hz |
| Total Wattage | 123 W |
| Fuse Rating | 10 A |
| Power Cable Length | 1.8 m |
| Electrical Connection Location | Top |
| Key Features | Modular adjustable frame setup, black steel industrial-style frame, dimmable warm-to-neutral LED lighting, efficient extraction for wide cooktops and monoblock recirculation filter lasting up to 900 cooking hours |
Installation details
This island mounted cooker hood is designed for recirculation installation. The cooker hood housing measures 872 x 556 x 330 mm and the product dimensions for recirculation are 872 x 556 x 700 mm. The advised mounting height is 650 – 850 mm above gas, ceramic and induction hobs. The top shelf cut-out is 401 x 248 mm and the lower shelf cut-out is 845 x 485 mm. Suitable shelf material thickness is 18 – 25 mm, with a shelf material depth of 750 mm. The power supply cable is 1.8 m and the electrical connection is located at the top. Panels are not included and should be supplied by a professional kitchen fitter.
Frequently Asked Questions About the 15003
Is the Novy 15003 Pureline Frame 90cm designed for recirculation?
Yes. The Novy 15003 Pureline Frame 90cm is designed to operate in recirculation mode, using a monoblock filter to clean the air before returning it to the kitchen. This makes it particularly suitable for island installations where external ducting is not practical.
How many frames does the Novy 15003 Pureline Frame have?
This model uses three textured black steel frames, each measuring 25 x 806 x 700 mm. The modular arrangement allows the layout to be adapted to suit the kitchen design, with a recommended maximum distance of 1250 mm between frames.
Are the shelves and panels included with the Novy 15003?
No. The shelf and panel material is not supplied with the cooker hood. It is intended to be provided and fitted separately by a professional kitchen fitter, allowing the finished installation to coordinate with your kitchen furniture and worktops.
What thickness of shelf material can be used with the Novy 15003?
The Novy 15003 Pureline Frame is designed for shelf material between 18 and 25 mm thick. The required cut-outs are 401 x 248 mm for the upper shelf and 845 x 485 mm for the lower shelf, so professional installation is recommended.
How powerful is the Novy 15003 Pureline Frame cooker hood?
This model has three normal fan speeds plus a power setting. Maximum continuous airflow is rated at 423 m³/h, providing effective extraction for a 90 cm island cooker hood and helping it cope with wider cooking surfaces.
How long does the Novy 15003 monoblock recirculation filter last?
The monoblock recirculation filter is designed to last for up to 900 cooking hours. The cooker hood also includes a recirculation filter indicator to help you keep track of maintenance. The compatible replacement monoblock filter is reference 7300055.
Does the Novy 15003 Pureline Frame have adjustable lighting?
Yes. This model includes dimmable LED shelf lighting with an adjustable colour temperature from warm white at 2700K to neutral white at 4000K. Three LED shelf lights are supplied, allowing the lighting to be tailored for both ambience and worktop illumination.
Can the Novy 15003 be controlled from a Novy hob?
Yes. The Novy 15003 includes the Novy InTouch function as standard, allowing compatible Novy induction hobs to control the cooker hood. It can also be operated using its push-button controls or the remote control.
What installation height is recommended above the hob?
Novy specifies a mounting height of between 650 and 850 mm above gas, ceramic and induction hobs for the Novy 15003 Pureline Frame. The exact installation should be planned by your kitchen fitter to suit the cooking surface and surrounding furniture.
Does the Novy 15003 have a delayed switch-off function?
Yes. The cooker hood includes a 30-minute delayed switch-off function, allowing it to continue filtering the air after cooking has finished. The power setting also automatically returns to a lower fan speed after six minutes.
How many grease filters does the Novy 15003 use?
The Novy 15003 Pureline Frame is fitted with two grease filters and includes a grease filter cleaning indicator to help with routine maintenance. The associated grease filter reference is 6830020.
Are there any suitable alternatives to the Novy 15003 Pureline Frame 90cm Island Mounted Cooker Hood I could consider?
Yes, you could consider the Novy 15001 Pureline Frame 90cm Island Mounted Cooker Hood as a slightly simpler same-brand, same-size recirculating option, retaining the modular black frame design but using two frames rather than three. Alternatively, the Novy 7642 Flatline Mineral Black 90cm Island Extractor Hood is a more conventional 90cm island-mounted alternative with an integrated motor, optional recirculation and substantially stronger boost extraction of up to 707 m³/h.
*FAQs are checked against manufacturer information, but please confirm installation requirements before purchase.
