KMDA7476FL

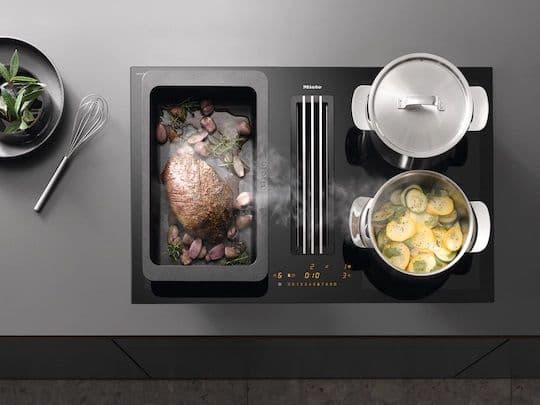

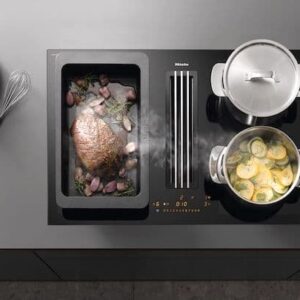

Miele KMDA7476FL 80cm Vented Induction Hob

Integrated Extraction – Combines induction cooking and built-in vapour extraction in one sleek appliance for a cleaner, more streamlined kitchen design.
PowerFlex XL Cooking Areas – Features two extra-large PowerFlex XL cooking areas with TwinBooster for flexible pan placement and fast, powerful heat when you need it.
Flush-Fit Frameless Design – Black glass ceramic surface with a flush, frameless finish creates a modern look that sits neatly within the worktop.
Smart Convenience and Safety – Includes Miele@home, Con@ctivity, Stop & Go, pan recognition and multiple safety features for easier everyday cooking.

2 Year Warranty

PRODUCT DISCONTINUED

Need help finding an alternative?
Complete the form below and our team will do their best to help
or simply call us on

Product Info
Specification
FAQ's

Item 1

Miele KMDA 7476 FL 80cm vented induction hob with integrated extractor, two extra-large PowerFlex XL cooking areas and flush-fit design for sleek, flexible cooking.

The Miele KMDA7476FL 80cm vented induction hob combines precise induction cooking with integrated vapour extraction in one streamlined appliance. Designed with a black glass ceramic surface, this flush, frameless hob sits neatly into the worktop and features a flush-fit extractor for a clean, modern finish.

Integrated extraction with flexible installation

The Miele KMDA7476FL is a convertible induction hob with extractor, suitable for extraction mode and recirculation mode. For recirculation installation, the DUU 1000-2 conversion kit is available separately, while flat ducting components DFK-xxxx can also be ordered separately to suit your setup.

With an A++ energy efficiency rating, annual energy consumption of 27.60 kWh/year, fluid dynamic efficiency class A and an ECO motor, it is designed to deliver effective extraction while supporting efficient everyday use.

PowerFlex XL cooking performance

This induction hob offers 4 cooking zones, 2 cooking areas and space for up to 4 pans. It features 4 PowerFlex XL cooking zones, each measuring 150 x 230 mm, with a maximum rating of 2.10 kW, Booster power rating of 3.00 kW and TwinBooster power rating of 3650 W.

The left and right cooking zones each provide a maximum rating of 3400 W, a Booster power rating of 4800 W and a TwinBooster power rating of 7300 W. Miele’s TwinBooster function allows induction power to be directed exactly where it is needed, with the option to combine the power output of two cooking zones on a single zone for faster heat generation.

Everyday convenience with Miele technology

The Miele KMDA7476FL includes Miele@home and the automatic Con@ctivity function for added convenience. A yellow display, digital power level display, permanent pan recognition, keeping warm function, minute minder, auto heat-up and recall function all help make cooking simpler and more intuitive.

For additional flexibility, the hob also includes the Stop & Go function. This reduces all cooking zones to power level one at the touch of a button, helping to prevent food from overcooking or burning if you need to step away briefly. When you return, the previous settings can be restored with another touch.

Individual setting options, including buzzer adjustments, are also available, alongside grease filter saturation and active charcoal filter saturation indicators to help keep maintenance straightforward.

Easy-clean design

The easy-to-clean ceramic glass surface is designed for simple day-to-day care and includes wipe protection. Behind the grease filters, Miele’s CleanCover provides a sealed, smooth surface instead of sharp metal edges and exposed electrical components. This makes cleaning easier while also helping to protect against contact with cables and motor parts.

The hob includes 1 dishwasher-safe 10-ply stainless-steel grease filter, helping to keep upkeep practical and efficient.

Extraction and recirculation sound levels

In extraction mode, sound power levels are 45 dB(A) at level 1, 60 dB(A) at level 2, 69 dB(A) at level 3 and 73 dB(A) on Booster, according to EN 60704-3. Sound pressure levels are 31 dB(A) at level 1, 47 dB(A) at level 2, 56 dB(A) at level 3 and 60 dB(A) on Booster, according to EN 60704-2-13.

In recirculation mode, sound power levels are 43 dB(A) at level 1, 60 dB(A) at level 2, 70 dB(A) at level 3 and 70 dB(A) on Booster, according to EN 60704-3. Sound pressure levels are 29 dB(A) at level 1, 47 dB(A) at level 2, 56 dB(A) at level 3 and 62 dB(A) on Booster, according to EN 60704-2-13.

Safety and installation details

Safety features include safety switch-off, lock function, system lock, integrated cooling fan, overheating protection and a residual heat indicator for extra reassurance during use.

For installation, the internal cutout dimensions with flush installation are 780 mm wide and 500 mm deep, while the external cutout dimensions are 804 mm wide and 524 mm deep. The total rated load is 7.50 kW, with a voltage of 230 V, frequency of 50-60 Hz and supply lead length of 1.44 m.

Item 2

Discontinued	Yes
Brand	Miele
Energy Efficiency Class	A
Colour Group	Black
Product Type	Vented Induction Hob
Warranty	2
Zones	4
Automatic Programmes	No
Smart Appliance	No
SKU	KMDA7476FL
GTIN	4002516451020

Heating type

Heating type Induction hob

Operating modes

Type of air guide Convertible
Extraction mode
Recirculation conversion kit (order separately) DUU 1000-2
Flat ducting components (order separately) DFK- xxxx

Design

Elegant glass ceramic surface
Ceramic surface colour Black
Flush
Frameless – surface-mounted
Flush fit extractor

Cooking zone details

Number of cooking zones 4
Number of cooking areas 2
Maximum number of pans 4
PowerFlex cooking zones No.4
Type PowerFlex XL-Kochzone
Size in mm 150×230
Max. rating in W 2.10
Max. Booster power rating in W 3.00
Max. TwinBooster power rating in W 3650

Cooking zone

Position Left
Max. rating in W 3400
Max. Booster power rating in W 4800
Max. TwinBooster power rating in W 7300

Cooking zone

Position right
Max. rating in W 3400
Max. Booster power rating in W 4800
Max. TwinBooster power rating in W 7300

User convenience

Miele@home
Display colour Yellow
Automatic function Con@ctivity
Digital power level display
Permanent pan recognition
Keeping warm
Stop & Go function
Recall function
Minute minder
Safety switch-off
Auto heat-up
Individual setting options (e.g. buzzers)
Grease filter saturation indicator
Active charcoal filter saturation indicator

Efficiency and sustainability

Energy efficiency class (A+++ to D) A++
Annual energy consumption in kWh/year 27.60
Fluid dynamic efficiency class A
Lighting efficiency class-
ECO motor

Cleaning convenience

Easy to clean ceramic glass
Wipe protection
Easy-to-clean canopy interior – CleanCover

Filter system

Number of dishwasher safe stainless-steel grease filters (10-ply) 1

Extraction

Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-345.00
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-360.00
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-369.00
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-373.00
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1331.00
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1347.00
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1356.00
Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-1360.00

Recirculation

Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-343.00
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-360.00
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-370.00
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-370.00
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1329.00
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1347.00
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1356.00
Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-1362.00

Safety

Safety switch-off
Lock function
System lock
Integrated cooling fan
Overheating protection
Residual heat indicator

Technical data

Internal cutout dimensions in mm (width) with flush installation 780
Internal cutout dimensions in mm (depth) with flush installation 500
External cutout dimensions in mm (width) with flush installation 804
External cutout dimensions in mm (depth) with flush installation 524
Total rated load in kW 7.50
Voltage in V 230
Frequency in Hz 50-60
Length of supply lead in m 1.44

Item 2

Frequently Asked Questions About the KMDA7476FL

What type of hob is the Miele KMDA 7476 FL?

The Miele KMDA 7476 FL is an 80cm induction hob with integrated vapour extraction. It combines cooking and extraction in one appliance, which makes it a strong choice for streamlined kitchen designs where you want to avoid a separate overhead cooker hood.

Does the Miele KMDA 7476 FL vent externally or work in recirculation mode?

This model is designed as a convertible unit. It can be installed for external extraction, and it can also be set up for recirculation with the compatible DUU 1000-2 recirculation conversion kit, which is ordered separately. Flat ducting components are also available separately to suit the installation.

How many cooking zones does the Miele KMDA 7476 FL have?

The Miele KMDA 7476 FL has 4 cooking zones arranged across 2 large PowerFlex XL cooking areas, with space for up to 4 pans. This gives you more flexibility for different pan sizes and makes it easier to cook several elements of a meal at once.

What is PowerFlex XL and TwinBooster on the Miele KMDA 7476 FL?

PowerFlex XL gives you larger, more flexible cooking areas for pans of different sizes. TwinBooster adds extra power when you need faster heat-up times. Each side offers up to 7300W TwinBooster output across the cooking area, so this model is well suited to fast boiling, searing and busy everyday cooking.

Does the Miele KMDA 7476 FL include smart features?

Yes. This model includes Miele@home and Con@ctivity. It also features a digital power level display, permanent pan recognition, keeping warm, Stop & Go, recall, auto heat-up and a minute minder, giving you a more convenient and responsive cooking experience.

Is the Miele KMDA 7476 FL easy to clean?

Yes. The black ceramic glass surface is designed for easy day-to-day cleaning, and the extractor area includes Miele CleanCover for a smoother, easier-to-clean interior. The stainless-steel grease filter is dishwasher safe, which helps keep maintenance simple.

What safety features does the Miele KMDA 7476 FL have?

The Miele KMDA 7476 FL includes safety switch-off, a lock function, system lock, integrated cooling fan, overheating protection and a residual heat indicator. These features help make everyday use safer, particularly in busy family kitchens.

What size cut-out is needed for the Miele KMDA 7476 FL?

For flush installation, the internal cut-out dimensions are 780mm wide by 500mm deep, with external cut-out dimensions of 804mm by 524mm. We would always recommend checking the full installation requirements before ordering, especially if you are replacing an existing hob or planning a flush-fit finish.

How efficient is the extractor on the Miele KMDA 7476 FL?

This model has an A++ energy efficiency rating, an ECO motor and fluid dynamic efficiency class A. That makes it a good choice if you want integrated extraction that is designed to balance strong performance with lower everyday energy use.

*Please be aware we try to be as factual as possible with all our answers but there may be the odd mistake.
