- DynaCool – Even temperature distribution: a fan ensures excellent circulation and distribution of the cold air.
- Miele@Home – Make your life smart; connect up all your Miele appliances using your smart devices.
- DailyFresh – Large capacity drawer with adjustable moisture.
- NoFrost – Maximum convenience for freezing food & saves the hassle of defrosting forever.
Smart networking
With our innovative Miele@Home 1 system , you can use the full potential of your Miele appliances and improve your everyday life. All Miele smart home appliances connect easily and efficiently. Operation is easy, using the Miele app, voice control or integration with existing smart home solutions. Networking takes place via the home Wi-Fi router and the Miele cloud.
Maximum variety
Whether they hold large bottles or small cans, the door shelves of your Miele refrigerator can be easily and individually adjusted in height. Thus, all foods find a place that suits them.
Dishwasher safe door shelves
Miele ComfortClean door shelves are made of high-quality plastic and are particularly resistant to scratches, chemicals, high temperatures and are very transparent. They can be cleaned hygienically (up to 55 ð C) and easily in the dishwasher. It is therefore no longer necessary to clean the shelves by hand.
Ideal storage for food and wine

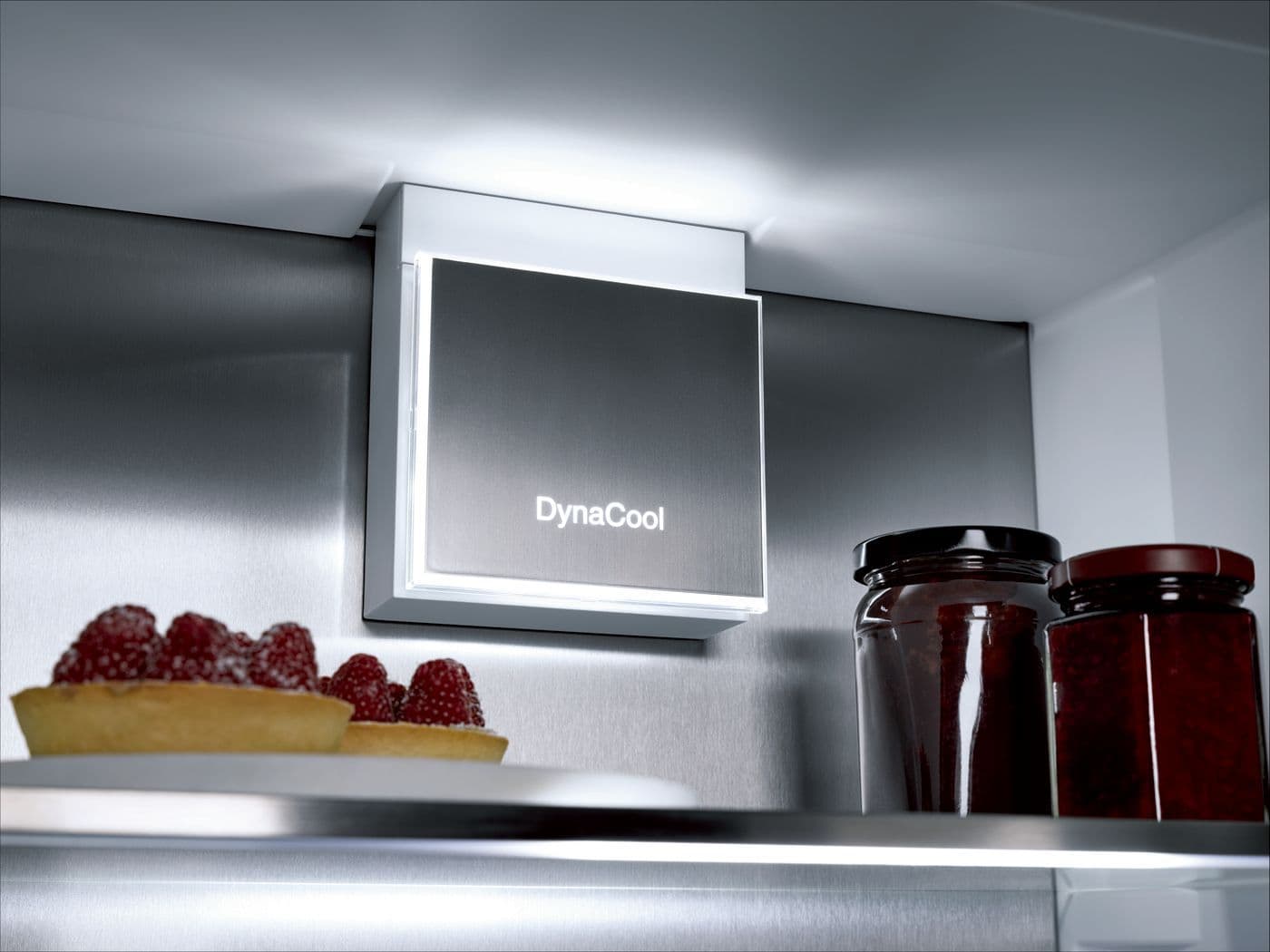

The DynaCool function guarantees an even temperature distribution throughout the refrigerated space. So the level at which you store your food no longer matters, everyone benefits from the same conditions. Thanks to DynaCool, the distribution of the hot top and cold bottom layers of conventional refrigerators is a thing of the past.
| Brand | Miele |
| Code | KFN7764D |
| GTIN | 4002516413820 |
| Type | Fridge Freezer |
| Finish | White |
| Size | 160cm to 189cm |
| Variant | Built In |
| Energy Efficiency Class | D |
| Warranty | 2 Years |
| Connectivity | Smart Appliance |
| Capacity | 240L to 299L |
| Defrost Type | Frost Free |
| Noise Rating | Under 35dB |
| Discontinued | Yes |
| Group | Larder |
| Height | 180cm |
| Width | 60cm |
| Depth | 55cm |
| Dimensions | H 177cm W 55.9cm D 54.5cm |
| Noise Level dB | 34dB |
| Capacity Litres | 254L |
| Colour Group | White |
| Category | Cooling |
Model
- Built-in appliance
- Integrated device
- Door hinges right
- Switchable door hinges
- Design
- Freezer zone lighting LED
- Fan lighting
Comfort in use
- Networking with Miele @ home
- Cooling system
- DailyFresh
- Precise interior door adjustment
- ComfortClean
- DynaCool
- NoFrost
- DuplexCool
- ComfortSize
- VarioRoom
- SoftClose door closing damping
Ordered
- Electronic temperature display and adjustment
- FreshTouch
- Disconnectable refrigeration part
- Independent temperature adjustment for the refrigeration and freezer zone
- Super cool
- SuperFrost
- Number of temperature zones 2
- Sabbath Mode
- Party mode
- Vacation mode
Refrigerator / Refrigeration area
- Number of shelves 5
- of which illuminated 2
- Number of vegetable bins 1
- Dry wall
- Cleansteel anti-trace stainless steel
- Number of door shelves for preserves 2
- Interior door compartment for bottles 1
Freezer / Freezer zone
- Number of removable freezer drawers / baskets 3
- including on sliding rails 3
Efficiency and sustainability
- Energy efficiency class (A – F) D
- Energy consumption per year in kWh 181.40
- Energy consumption in 24 hours in kWh 0.495
Security
- Lock function
- Audible signal for the door
- Acoustic signal for the temperature of the freezer
- Optical signal for the door
- Optical signal for temperature
- Power failure indication for the freezer area
Technical informations
- Niche width in mm 560 - 570
- Height of the niche in mm 1.772 - 1,788
- Depth of the niche in mm550
- Device width in mm 559
- Device height in mm 1,770
- Device depth in mm 546
- Weight in kg 65.2
- Fixing technique
- Fixed door
- Max weight door front refrigeration section in kg 18
- Max weight freezer section door front in kg 12
- Climate class SN-ST
- Refrigeration zone in l 184
- 4-star freezer zone in l 70
- Total useful volume in l 254
- Shelf life in case of failure in h 14
- Freezing capacity in kg / 24h 6.0
- Sound perception class (A – D) B
- Acoustic power in dB (A) re1pW 34
- Power consumption in milliamps (mA) 1,400
- Voltage in V 220-240
- Fuse protection in A 10
- Frequency in Hz 50
- Length of the electrical connection cable in m 2.2
Supplied accessories
- Egg tray
- Ice tray
