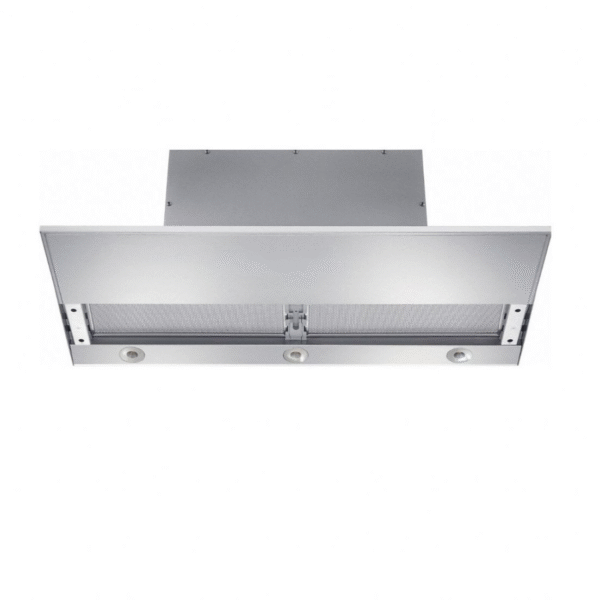

Miele DA3698 Ceiling Extractor Hood
- Ceiling Extractor Hood – Slim 892mm stainless steel canopy for a clean, built-in kitchen look.
- Powerful Extraction – Up to 635m³/h booster performance for effective removal of cooking odours and steam.
- Con@ctivity Control – Automatic fan adjustment works with a compatible Miele hob for effortless ventilation.
- Efficient Lighting – 3 x LED spotlights provide bright, even illumination across the hob area.
- Quiet ECO Motor – Energy-saving DC motor delivers strong extraction with low noise and A++ energy efficiency.
Complete the form below and our team will do their best to help
or simply call us on
- Product Info
- Specification
- FAQ's
Miele DA3698 Ceiling Extractor Hood with a slim 892mm stainless steel canopy, powerful extraction up to 635m³/h and Con@ctivity control for easy ventilation.

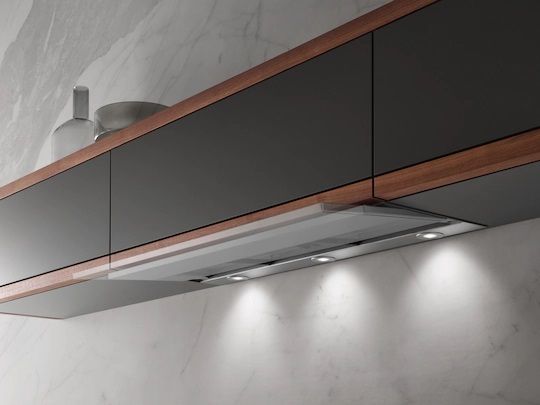

The Miele DA3698 Ceiling Extractor Hood is designed to create a clean, built-in kitchen look with its slim 892mm stainless steel canopy. Combining powerful extraction, quiet performance and intelligent control, this slimline cooker hood is ideal for keeping your cooking area fresh, clear and comfortable.
Powerful and efficient extraction
With booster extraction performance of up to 635m³/h in ducted mode, the Miele DA3698 removes cooking odours and steam effectively. It features 3 power levels plus a booster level, giving you flexible ventilation to suit everything from gentle simmering to more intensive cooking.
Air throughput in ducted mode reaches 190m³/h at level 1, 290m³/h at level 2, 400m³/h at level 3 and 635m³/h on booster. In recirculation mode, performance reaches 140m³/h, 225m³/h, 365m³/h and 530m³/h respectively.
Quiet ECO motor with A++ energy efficiency
The integrated DC ECO motor delivers strong extraction performance while keeping noise levels low and energy use efficient. This model has an A++ energy efficiency rating and annual energy consumption of just 25.60 kWh/year, making it a practical choice for energy-conscious homes.
In ducted operation, sound power levels are 36dB(A) at level 1, 44dB(A) at level 2, 51dB(A) at level 3 and 63dB(A) on booster. Sound pressure levels are 22dB(A), 30dB(A), 37dB(A) and 49dB(A) respectively.
Con@ctivity control and smart features
For added convenience, Con@ctivity 3.0 allows the cooker hood to work with a compatible WiFi-enabled Miele hob. The hob settings are transmitted to the hood, enabling automatic fan adjustment for effective ventilation with minimal input.
This model also supports WiFiConn@ct, MobileControl, ShopConn@ct and Miele@home, and can be operated through the Miele@mobile app. Electronic controls with light-touch switches and LED indicators make everyday use simple and precise.

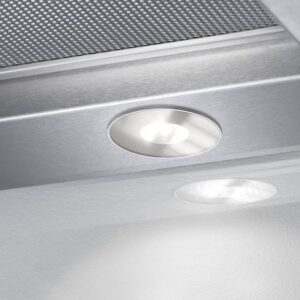

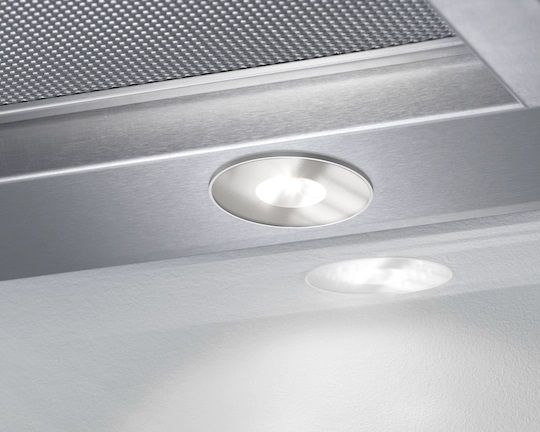

Bright LED lighting over the hob
Three integrated 3W LED spotlights provide bright, even lighting across the hob area. With a light intensity of 500 lx, colour temperature of 3500 Kelvin and a dimmer function, the lighting is designed to enhance visibility while cooking.
Designed for easy cleaning
The CleanCover canopy interior helps make cleaning easier, while the two 10-ply dishwasher-safe stainless-steel grease filters offer effective grease removal. Built-in fall protection supports safe handling and helps protect the hob below during cleaning.
Grease filter saturation indicators are included and programmable, while the active charcoal filter saturation indicator is also programmable for added maintenance convenience.
Convertible installation options
The Miele DA3698 is a convertible cooker hood suitable for both extraction and recirculation operation. For recirculation, the DUU 151 recirculation conversion kit and DKF19-1 active charcoal filter are available separately.
Extraction ducting can be connected at the top or rear, with a ducting diameter of 150mm. Minimum installation height is 450mm above electric hobs and 650mm above gas hobs with a maximum total power of 12.6kW and burner output of up to 4.5kW.

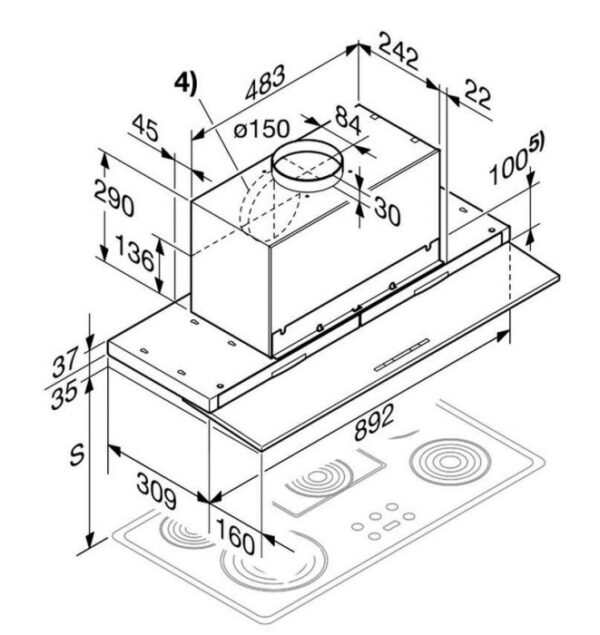

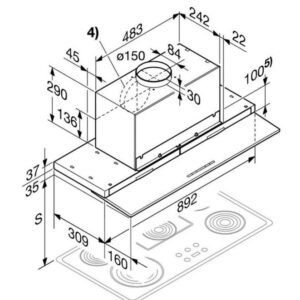

Miele DA3698 dimensions and technical details
This ceiling extractor hood has a canopy width of 892mm, height of 37mm and depth of 309mm. Net weight is 19kg, with a 1.50m supply lead, total rated load of 0.09kW, voltage of 230V, fuse rating of 10A, frequency of 50Hz and 1 phase connection.
Finished in stainless steel, the Miele DA3698 also offers variable height and variable width customisation on request, making it easier to tailor to a streamlined kitchen design.
| Discontinued | Yes |
|---|---|
| Brand | Miele |
| Energy Efficiency Class | A |
| Colour Group | Stainless Steel |
| Product Type | Cooker Hood |
| Variant | Wall |
| Warranty | 2 |
| Group | Telescopic |
| Automatic Programmes | No |
| Smart Appliance | No |
| Noise Level | 45 |
| SKU | DA3698 |
| GTIN | 4002516003748 |
Construction type
- Slimline cooker hood
Networking of domestic appliances
- WiFiConn@ct
- MobileControl
- ShopConn@ct
Operating modes
- Type of air guide Convertible
- Recirculation conversion kit (order separately) DUU 151
- Active charcoal filter (order separately) DKF19-1
Design
- Colour Stainless steel
- Variable height available as customisation on request
- Variable width available as customisation on request
User convenience
- Miele@home
- Automatic function Con@ctivity 3.0 (WLAN)
- Electronic controls
- Light-touch switches with LED
- Miele@mobile app
- Power levels (number without Booster level) 3
- Booster level
- Programmable Booster level switch-off
- Grease filter saturation indicator
- Grease filter saturation indicator programmable
- Active charcoal filter saturation indicator programmable
- Motor-operated cooker hoods
Efficiency and sustainability
- Energy efficiency class (A+++ to D) A++
- Annual energy consumption in kWh/year 25.60
- Fluid dynamic efficiency class A
- Lighting efficiency class A
- Grease filtering efficiency class C
Power Management system
- ECO motor
Cleaning convenience
- Easy-to-clean canopy interior – CleanCover
Filter system
- Number of dishwasher safe stainless-steel grease filters (10-ply) 2
Lighting
- LED
- Number x W 3 x 3 W
- Light intensity in Lx 500 lx
- Colour temperature in K 3500 Kelvin
- Dimmer function
Blower
- Dual-action blower
- DC motor
Extraction
- Air throughput in Level 1 (m³/h) according to EN 61591 190
- Air throughput in Level 2 (m³/h) according to EN 61591 290
- Air throughput in Level 3 (m³/h) according to EN 61591 400
- Air throughput in Booster level (m³/h) according to EN 61591 635
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 36.00
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 44.00
- Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 51.00
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 63.00
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 22.00
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 30.00
- Sound pressure in setting 3 (dB(A) re 20 µPa) 37.00
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 49.00
Recirculation
- Air throughput in Level 1 (m³/h) according to EN 61591 140
- Air throughput in Level 2 (m³/h) according to EN 61591 225
- Air throughput in Level 3 (m³/h) according to EN 61591 365
- Air throughput in Booster level (m³/h) according to EN 61591 530
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 46.00
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 55.00
- Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 65.00
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 73.00
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 32.00
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 41.00
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 51.00
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 59.00
Safety
- Safety shut-off
Technical data
- Canopy width in in. (mm) 892
- Canopy height in in. (mm) 37
- Depth of hood canopy in in. (mm) 309
- Minimum height above electric hobs in mm 450
- Minimum height above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650
- Net weight in kg 19.00
- Length of supply lead in m 1.50
- Total rated load in kW 0.09
- Voltage in V 230
- Fuse rating in A 10
- Frequency in Hz 50
- Number of phases 1
Installation notes
- Extraction ducting connection at top
- Extraction ducting connection at rear
- Extraction connection at top and rear
- Diameter of extraction ducting connection in mm 150
- Combination with WiFi-enabled Miele hob required
Frequently Asked Questions About the DA3698
Is the Miele DA3698 suitable for a built-in kitchen design?
Yes. The Miele DA3698 is designed to create a clean, built-in look with its slim stainless steel canopy. At 892mm wide and just 37mm high, it suits streamlined kitchen layouts where you want extraction performance without a bulky visible hood.
How powerful is the Miele DA3698 extractor hood?
The Miele DA3698 offers 3 fan speeds plus a booster setting. In ducted mode, extraction reaches up to 635m³/h on booster, with airflow of 190m³/h, 290m³/h and 400m³/h across levels 1 to 3. This makes it a strong choice for removing everyday cooking odours, steam and grease effectively.
Can the Miele DA3698 be used in recirculation mode?
Yes. This model is convertible, so it can be installed for either extraction or recirculation. For recirculation setup, the DUU 151 conversion kit and DKF19-1 active charcoal filter are required and sold separately.
Does the Miele DA3698 work automatically with a Miele hob?
Yes. The Miele DA3698 includes Con@ctivity 3.0, which allows the hood to adjust its fan settings automatically when paired with a compatible WiFi-enabled Miele hob. This helps keep ventilation effective without needing constant manual changes.
Is the Miele DA3698 energy efficient?
Yes. The Miele DA3698 has an A++ energy efficiency rating and uses an ECO DC motor designed for low energy consumption and quieter running. Annual energy consumption is 25.60 kWh, so it is a good option for homes that want strong extraction with lower running costs.
How noisy is the Miele DA3698 during use?
This model is designed to deliver strong extraction with relatively low noise levels. In ducted mode, sound power levels range from 36dB(A) on the lowest setting to 63dB(A) on booster. That makes it well suited to open-plan kitchens and everyday cooking where lower background noise matters.
What lighting does the Miele DA3698 have?
The Miele DA3698 includes 3 LED spotlights rated at 3W each. They provide bright, even illumination over the hob with a light intensity of 500 lux and a colour temperature of 3500 Kelvin. A dimmer function is also included, so you can adjust the lighting to suit cooking or ambient use.
Is the Miele DA3698 easy to clean?
Yes. This model includes Miele CleanCover for an easier-to-clean canopy interior, along with 2 dishwasher-safe 10-ply stainless steel grease filters. It also has programmable grease filter and charcoal filter saturation indicators, which help you keep maintenance on schedule.
What are the installation requirements for the Miele DA3698?
The Miele DA3698 has a 150mm duct connection and allows extraction ducting from the top or rear. The minimum installation height is 450mm above electric hobs and 650mm above gas hobs, provided the gas hob does not exceed 12.6kW total power and 4.5kW per burner.
Who is the Miele DA3698 best suited for?
We would recommend the Miele DA3698 for buyers looking for a premium built-in ceiling extractor hood with a slim design, strong booster performance and smart Miele hob integration. It is especially well suited to modern kitchens where clean lines, quiet running and automatic ventilation control are important.
