- Brilliant White Finish Miele Ceiling Extractor Hood – Duct Out or Recirculation (sold separately), Remote control operation (not included), Run-On function, Filter Indicator & Noise Rating of just 57dB(A) with Energy Rating A+.
- Stainless Steel (10-ply) Grease Filter – Can be cleaned in Dishwasher.
- Powerful – 725 m3/h on booster setting.

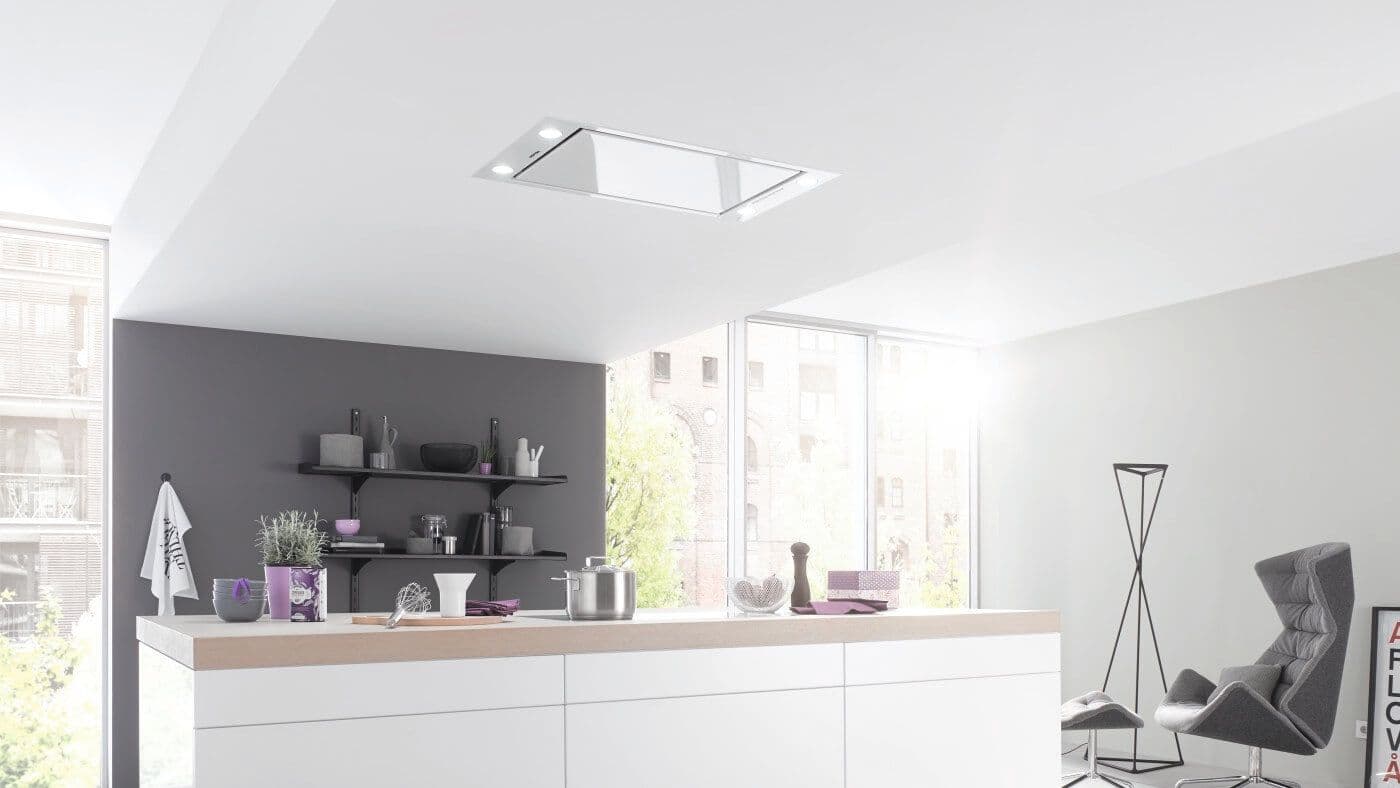

Discover the Miele DA2808 90cm Built In Ceiling Extractor Hood in Brilliant White on Appliance Superstore. Brilliant White Finish Miele Ceiling Extractor Hood - Duct Out or Recirculation (sold separately), Remote control operation (not included), Run-On function, Filter Indicator & Noise Rating of just 57dB(A) with Energy Rating A+. Stainless Steel (10-ply) Grease Filter - Can be cleaned in Dishwasher. Powerful - 725 m3/h on booster setting. Energy Efficient - LED Lighting. Miele CleanCover - Easy cleaning & Protects electrical components + motor. Miele@Home - Make your life smart; connect up all your Miele appliances using your smart devices.
STAINLESS STEEL GREASE FILTERS (10-LAYER) - Easy to use and effective against grease
Miele cooker hoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your hob from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discolouration occurs from being cleaned in the dishwasher and they retain their stunning appearance.
MIELE CLEANCOVER - Convenience and safety in detail
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.
SAFETY SWITCH-OFF - Always on the safe side
The cooker hood will switch off automatically after 10 hours. This ensures maximum safety even in the event of operating errors.
ECO MOTOR - The heart of every cooker hood
The heart and soul of every cooker hood is the motor. Some Miele cooker hoods feature ECO motors which work up to 50 % more economically than conventional motors. They are also very quiet but still as powerful as the motors in other Miele cooker hoods.
CON@CTIVITY (Miele@Home) - Automatic operation for intelligent fan control
Thanks to the Con@ctivity automatic function, the cooker hood can communicate with the hob below: the settings selected on the hob are transmitted to the controls on the cooker hood. Your Miele cooker hood then uses this data to automatically select the correct fan setting, ensuring the optimum room climate at all times. Communication is established between the cooker hood and hob via WiFi.
RUN-ON FUNCTION - Automatic fan run-on
The automatic fan run-on ensures the full extraction of steam and odours still in the air after cooking. The cooker hood can be set to switch off automatically after 5 or 15 minutes.
FILTER INDICATOR - Countdown time conveniently in view
If the grease or active charcoal filter of your Miele cooker hood is saturated, it is indicated by a lit-up red LED. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.
EDGE EXTRACTION - Decorative panels instead of metal grease filters
In cooker hoods with edge extraction panels, the commercial-looking metal grease filters are hidden behind a decorative cover. The cooking vapours are drawn in at the outer edges.
Brand | Miele |
Code | DA2808 |
GTIN | 4002516003465 |
Type | Cooker Hood |
Finish | White |
Group | Ceiling |
Size | 90cm to 119cm |
Energy Efficiency Class | A+ |
Warranty | 2 Years |
Connectivity | Smart Appliance |
Noise Rating | 50dB to 69dB |
Variant | Ceiling |
Outlet Type | Duct Out or Recirculation |
Height | 35cm |
Width | 90cm |
Depth | 50cm |
Dimensions | H 34.2cm W 88cm D 50cm |
Noise Level dB | 57dB |
No. Of Fan Speeds | 4 |
Intensive Mode | Yes |
Colour Group | White |
Category | Cooker Hoods |
SPECIFICATION
CONSTRUCTION TYPE
Ceiling extractor |
OPERATING MODES
Type of air guide | Can be retrofitted |
Recirculation conversion kit (order separately) | DUU 2900 |
Active charcoal filter (order separately) | DKF 20-P |
DESIGN
Colour | Brilliant white |
Edge extraction |
USER CONVENIENCE
Miele@home | |
Automatic function Con@ctivity | |
Electronic controls | |
Miele@mobile app | |
Power levels (number without Booster level) | 3 |
Programmable Booster level switch-off | |
Run-on time 5/15 min. | |
Grease filter saturation indicator | |
Grease filter saturation indicator programmable | |
Active charcoal filter saturation indicator programmable |
EFFICIENCY AND SUSTAINABILITY
Energy efficiency class (A+++ to D) | A+ |
Annual energy consumption in kWh/year | 27.60 |
Fluid dynamic efficiency class | A |
Lighting efficiency class | A |
Grease filtering efficiency class | B |
PowerManagement system | |
ECO motor |
CLEANING AND CARE
Easy-to-clean canopy interior – CleanCover |
FILTER SYSTEM
Number of dishwasher-safe stainless steel grease filters (10-ply) | 2 |
LIGHTING
LED | |
Number x W | 4 x 3 W |
Light intensity in Lx | 720 lx |
Colour temperature in K | 3500 Kelvin |
Dimmer function |
FAN
Dual-action blower | |
DC motor |
EXHAUST AIR
Air throughput in Level 1 (m³/h) according to EN 61591 | 200 |
Air throughput in Level 2 (m³/h) according to EN 61591 | 310 |
Air throughput in Level 3 (m³/h) according to EN 61591 | 450 |
Air throughput in booster level 1 (m³/h) | 725 |
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 | 35 |
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 | 44 |
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 | 53 |
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 | 65 |
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 | 20 |
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 | 30 |
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 | 38 |
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 50 |
RECIRCULATION
Air throughput in Level 1 (m³/h) according to EN 61591 | 115 |
Air throughput in Level 2 (m³/h) according to EN 61591 | 215 |
Air throughput in Level 3 (m³/h) according to EN 61591 | 335 |
Air throughput in Booster level 1 (m³/h) according to EN 61591 | 535 |
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 | 43 |
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 | 53 |
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 | 62 |
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 | 72 |
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 | 28 |
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 | 39 |
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 | 47 |
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 57 |
SAFETY
Safety shut-off |
TECHNICAL DATA
339 | |
339 | |
Overall height for vented and external in in. (mm) | 339 |
Overall height for extraction mode and external mode cooker hoods in mm | 339 |
Overall height for recirculation in in. (mm) | 339 |
Overall height for recirculation mode cooker hoods in mm | 339 |
Canopy width in in. (mm) | 880 |
Canopy height in in. (mm) | 342 |
Depth of hood canopy in in. (mm) | 500 |
Minimum height above electric hobs in mm | 450 |
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm | 650 |
Net weight in kg | 17 |
Length of supply lead in m | 1.50 |
Standard plug fitted | |
Total rated load in kW | 0.12 |
Voltage in V | 230 |
Fuse rating in A | 10 |
Frequency in Hz | 50 |
Number of phases | 1 |
INSTALLATION NOTES
Extraction ducting connection at top | |
Extraction ducting connection on side | |
Extraction ducting connection at top, rear, and si | |
Diameter of extraction ducting connection in mm | 150 |
Combination with WiFi-enabled Miele hob | required |
ACCESSORIES INCLUDED
Non-return flap | |
Adapter to reduce ducting diameter from 150 mm to 125 mm Ø |
EAN
4002516003465 |
