- Stainless Steel Finish Miele Extractor Hood – Duct Out or Recirculation (sold separately), Run-On function, Button control operation & Energy Rating A+.
- Miele@Home – Make your life smart; connect up all your Miele appliances using your smart devices.
- Stainless Steel (10-ply) Grease Filter – Can be cleaned in Dishwasher.
- Powerful – 640 m3/h on booster setting.
- Miele CleanCover – Easy cleaning & Protects electrical components + motor.
Easy to use and effective against grease
Miele cooker hoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your hob from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discoloration occurs from being cleaned in the dishwasher and they retain their stunning appearance.
Automatic operation for intelligent fan control
Thanks to the Con@ctivity automatic function, the cooker hood can communicate with the hob below: the settings selected on the hob are transmitted to the controls on the cooker hood. Your Miele cooker hood then uses this data to automatically select the correct fan setting, ensuring the optimum room climate at all times. Communication between the hob and hood is established either via ZigBee (Con@ctivity 2.0) or WiFi (Con@ctivity 3.0).
Convenience and safety in detail
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.
| Brand | Miele |
| Code | DA2698-CLST |
| GTIN | 4002516001492 |
| Type | Cooker Hood |
| Energy Efficiency Class | A+ |
| Finish | Stainless Steel |
| Group | Built In |
| Size | 90cm to 119cm |
| Warranty | 2 Years |
| Connectivity | Smart Appliance |
| Noise Rating | 35dB to 49dB |
| Variant | Wall |
| Outlet Type | Duct Out or Recirculation |
| Height | 7cm |
| Width | 90cm |
| Depth | 30cm |
| Dimensions | H 6.8cm W 88.6cm D 30.7cm |
| Noise Level dB | 47dB |
| No. Of Fan Speeds | 4 |
| Intensive Mode | Yes |
| Colour Group | Metallic |
| Category | Cooker Hoods |
Construction type
- Integrated extractor
Networking of domestic appliances
- WiFiConn@ct
- MobileControl
- ShopConn@ct
Operating modes
- Type of air guide Convertible
- Recirculation conversion kit (order separately) DUU 151
- Active charcoal filter (order separately) DKF19-1
Design
- Colour Stainless steel
- Variable height available as customisation on request
- Variable width available as customisation on request
- Edge extraction
User convenience
- Miele@home
- Automatic function Con@ctivity 3.0 (WLAN)
- Electronic controls
- Light-touch switches with LED
- Miele@mobile app
- Power levels (number without Booster level)3
- Booster level
- Programmable Booster level switch-off
- Grease filter saturation indicator
- Grease filter saturation indicator programmable
- Active charcoal filter saturation indicator programmable
Efficiency and sustainability
- Energy efficiency class (A+++ to D) A+
- Annual energy consumption in kWh/year 28.60
- Fluid dynamic efficiency class A
- Lighting efficiency class A
- Grease filtering efficiency class A
- PowerManagement system
- ECO motor
Cleaning convenience
- Easy-to-clean canopy interior – CleanCover
Filter system
- Number of dishwasher safe stainless-steel grease filters (10-ply) 2
Lighting
- LED
- Number x W 4 x 3 W
- Light intensity in Lx 650 lx
- Colour temperature in K 3500 Kelvin
- Dimmer function
Blower
- Dual-action blower
- DC motor
Extraction
- Air throughput in Level 1 (m³/h) according to EN 61591200
- Air throughput in Level 2 (m³/h) according to EN 61591300
- Air throughput in Level 3 (m³/h) according to EN 61591400
- Air throughput in Booster level (m³/h) according to EN 61591640
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-336.00
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-344.00
- Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-351.00
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-362.00
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1322.00
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1330.00
- Sound pressure in setting 3 (dB(A) re 20 µPa)37.00
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-1348.00
Recirculation
- Air throughput in Level 1 (m³/h) according to EN 61591135
- Air throughput in Level 2 (m³/h) according to EN 61591220
- Air throughput in Level 3 (m³/h) according to EN 61591365
- Air throughput in Booster level (m³/h) according to EN 61591535
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-347.00
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-355.00
- Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-362.00
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-374.00
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1332.00
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1341.00
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1348.00
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-1359.00
Safety
- Safety shut-off

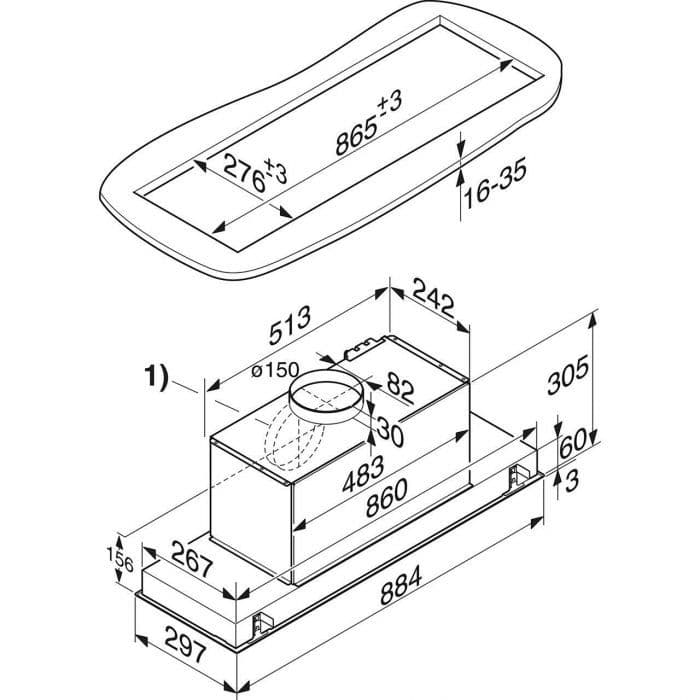

Technical data
- Canopy width in in. (mm) 880
- Canopy height in in. (mm) 64
- Depth of hood canopy in in. (mm) 293
- Minimum height above electric hobs in mm 450
- Minimum height above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650
- Net weight in kg 14.00
- Length of supply lead in m 1.50
- Standard plug fitted
- Total rated load in kW 0.09
- Voltage in V 230
- Fuse rating in A 10
- Frequency in Hz 50
- Number of phases 1
Installation notes
- Extraction ducting connection at top
- Extraction ducting connection at rear
- Extraction connection at top and rear
- Diameter of extraction ducting connection in mm 150
- Combination with WiFi-enabled Miele hob recommended
