DA2628
Miele DA2628 Ceiling Extractor Hood
- Stainless Steel Finish Miele Extractor Hood – Duct Out only, Run-On function, Button control operation & Energy Rating A+.
- Miele@Home – Make your life smart; connect up all your Miele appliances using your smart devices. Stainless Steel (10-ply) Grease Filter – Can be cleaned in Dishwasher.
- Powerful – 640 m3/h on booster setting.
- Miele CleanCover – Easy cleaning & Protects electrical components + motor.
Product info
Specification
Downloads
MIELE DA2628 Extractor | S/Steel | Energy efficient LED lighting | Light touch switches
The DA2628 fully integrated ceiling extractor in stainless steel is 1180mm x 30cm wide and has an impressive extraction rate of 640m3/h on booster setting and has a powerful ECO motor for efficient operation. The design is elegant and practical with edge extraction panels and has energy efficient LED lighting and Con@ctivity 2.0 for automatic control via a Miele hob & Wificonn@ct
The DA2628 fully integrated ceiling extractor in stainless steel is 1180mm x 30cm wide and has an impressive extraction rate of 640m3/h on booster setting and has a powerful ECO motor for efficient operation. The design is elegant and practical with edge extraction panels and has energy efficient LED lighting and Con@ctivity 2.0 for automatic control via a Miele hob & Wificonn@ct
| Brand | Miele |
| Code | DA2628 |
| GTIN | 4002516001515 |
| Type | Cooker Hood |
| Energy Efficiency Class | A+ |
| Finish | Stainless Steel |
| Group | Ceiling |
| Size | 90cm to 119cm |
| Variant | Ceiling |
| Warranty | 2 Years |
| Connectivity | Smart Appliance |
| Noise Rating | 70dB or Over |
| Outlet Type | Duct Out |
| Height | 7cm |
| Width | 120cm |
| Depth | 30cm |
| Dimensions | H 6.3cm W 118cm D 29.3cm |
| Noise Level dB | 74dB |
| No. Of Fan Speeds | 4 |
| Intensive Mode | Yes |
| Colour Group | Metallic |
| Category | Cooker Hoods |
Construction type
- Integrated extractor
- Colour Stainless Steel
- Edge extraction
- Type of air guide air extraction
- Electronic controls
- Light-touch switches with LED
- Power levels (number without Booster level) 3
- Booster level
- Programmable Booster level switch-off
- Run-on time 5 / 15 min.
- Grease filter saturation indicator programmable
- Easy-to-clean canopy interior – CleanCover
- Energy efficiency class (A++ – E)A+
- Annual energy consumption in kWh/year26.8
- Fluid dynamic efficiency classA
- Lighting efficiency classA
- Power Management system
- ECO package
- Miele@home
- WiFiConn@ct
- MobileControl
- Automatic function Con@ctivity 2.0
- Automatic function Con@ctivity 3.0
- Filter system
- Number of dishwasher safe stainless-steel grease filters (10-ply) 4
- Lighting LED
- Light intensity in Lx700
- Colour temperature in K3,500Fan
- Dual-action fan
- ECO motor (DC motor)Air throughput with max. duct diameter in extraction mode (not for external version)
- Air throughput in Level 1 (m³/h) according to EN 61591200
- Air throughput in Level 2 (m³/h) according to EN 61591300
- Air throughput in Level 3 (m³/h) according to EN 61591400
- Air throughput in Booster level (m³/h) according to EN 61591640
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-336
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-344
- Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-351
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-362
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1322
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1330
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1337
- Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-1348Safety
- Safety switch-off
- Single pane tempered glass

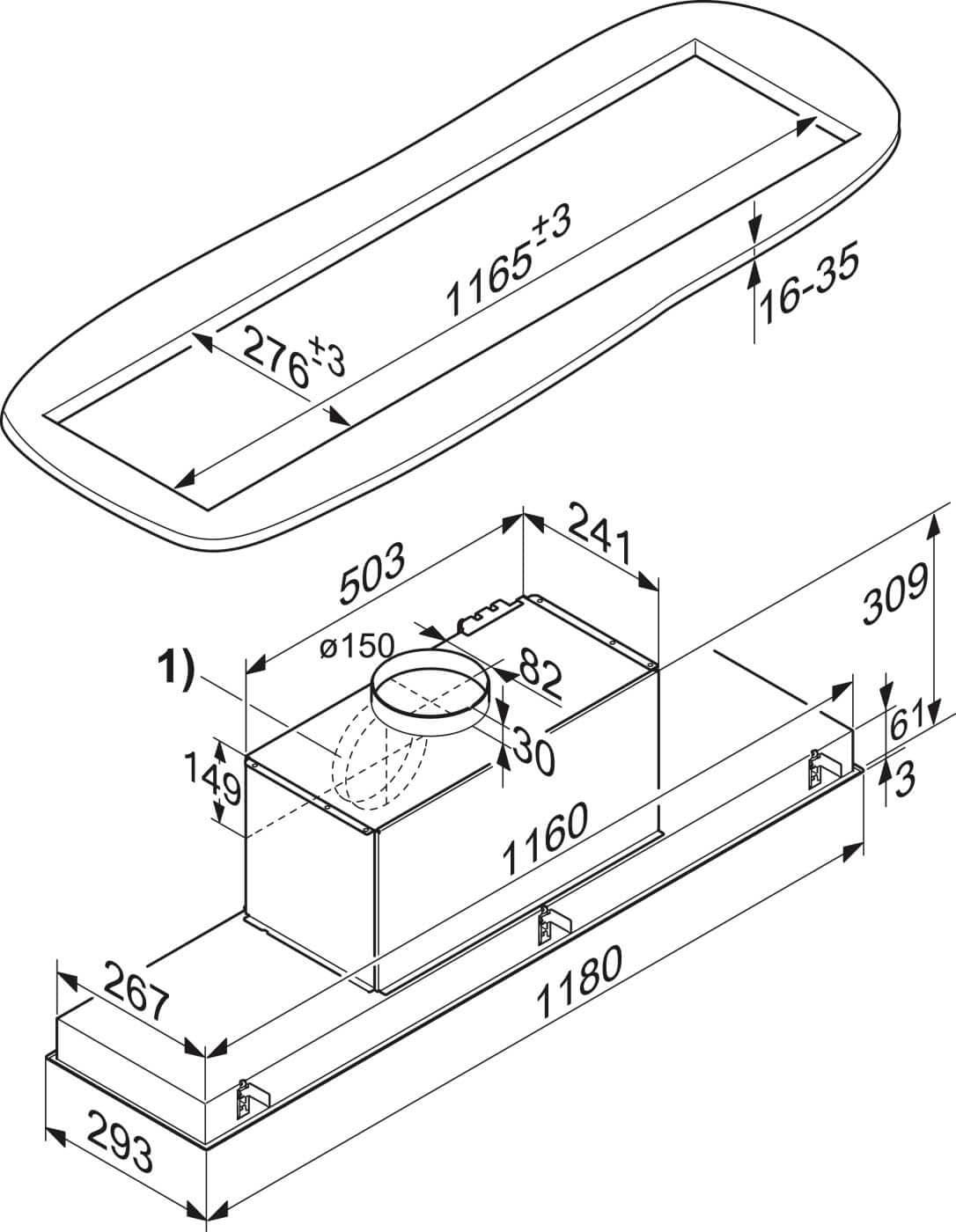

- Canopy width in mm1,180
- Canopy height in mm64
- Canopy depth in mm293
- Minimum height above electric hobs in mm450
- Minimum height above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm650
- Net weight in kg17.0
- Length of supply lead in m1.5
- Standard plug fitted
- Total rated load in kW0.09
- Voltage in V230
- Fuse rating in A10
- Number of phases 1
- Extraction ducting connection at top
- Extraction connection at top and rear
- Diameter of extraction ducting connection in mm150
- Non-return flap
- RF Con@ctivity 2.0 communication stick for KMXKS 3000 Z
